high quality hvac metal air duct machine / auto duct line 3 for sale
US $13500-$15000
Квадратная трубопроводная формовочная машина, U образная Автоматическая трубопроводная линия 5
- Category: Duct Making Machine >>>
- Supplier: Anhui Suntay Heavy Industries&Mechanical Manufacture Co. Ltd
Share on (60716087905):
Product Overview
Description

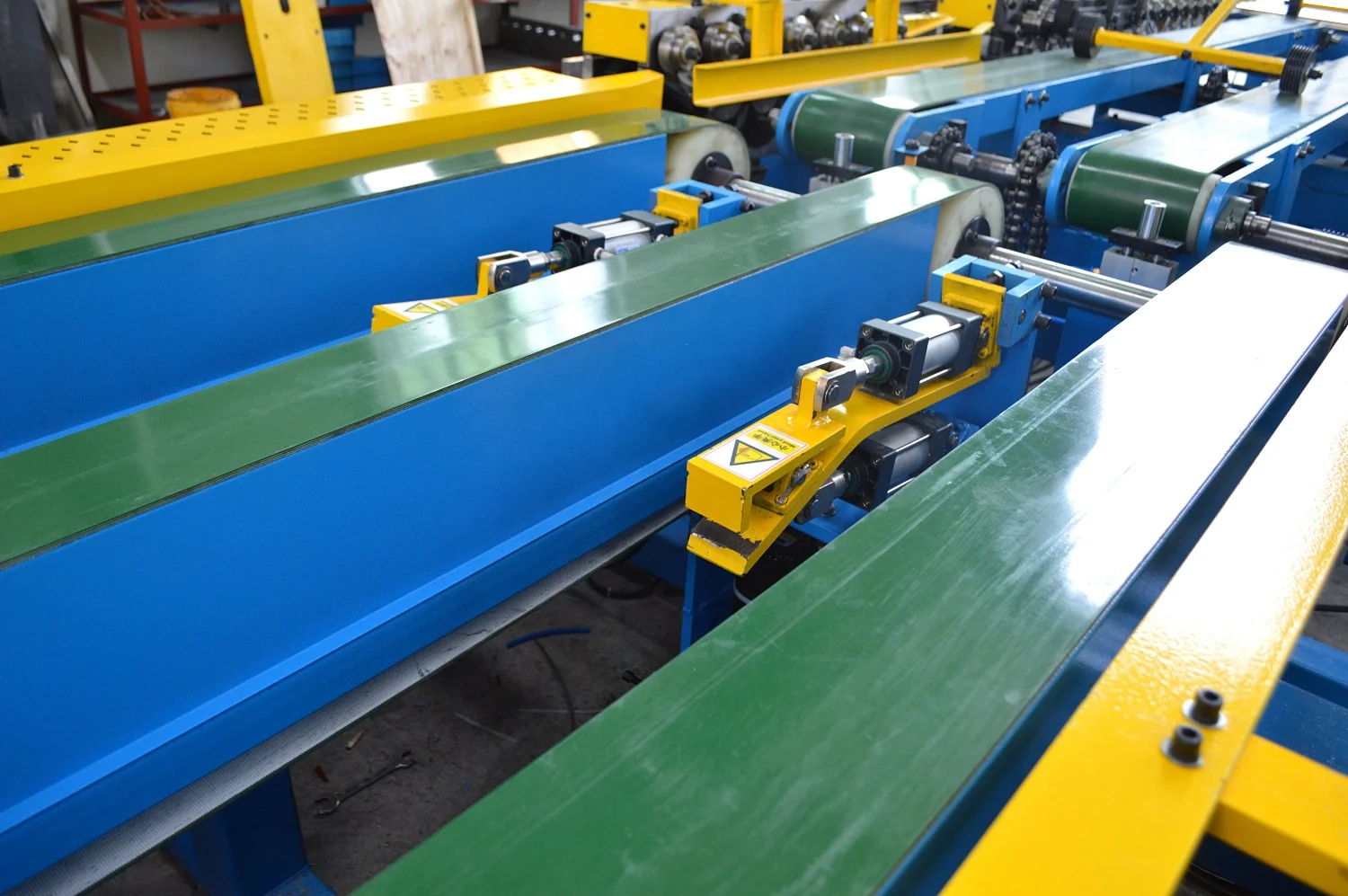

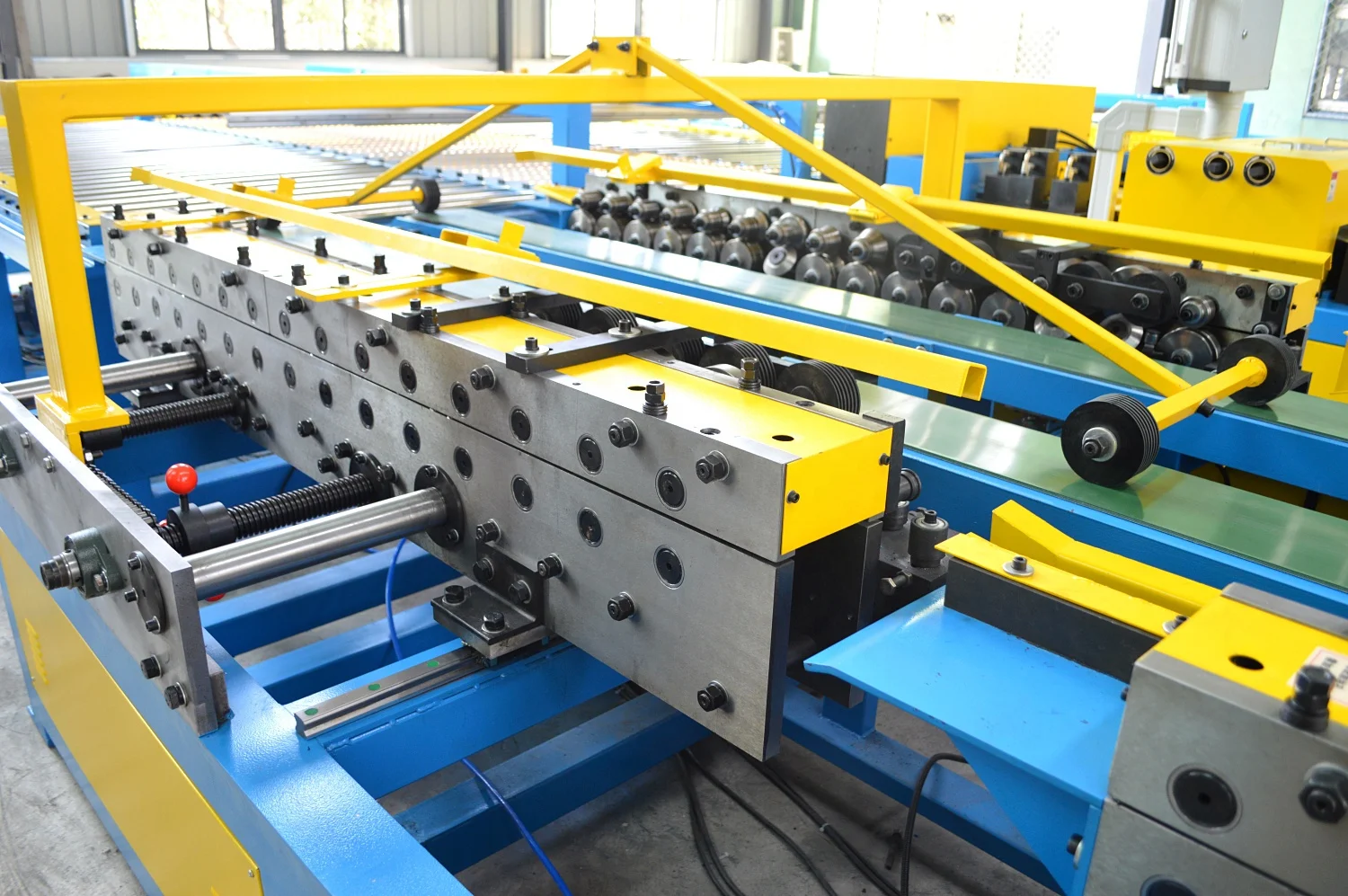

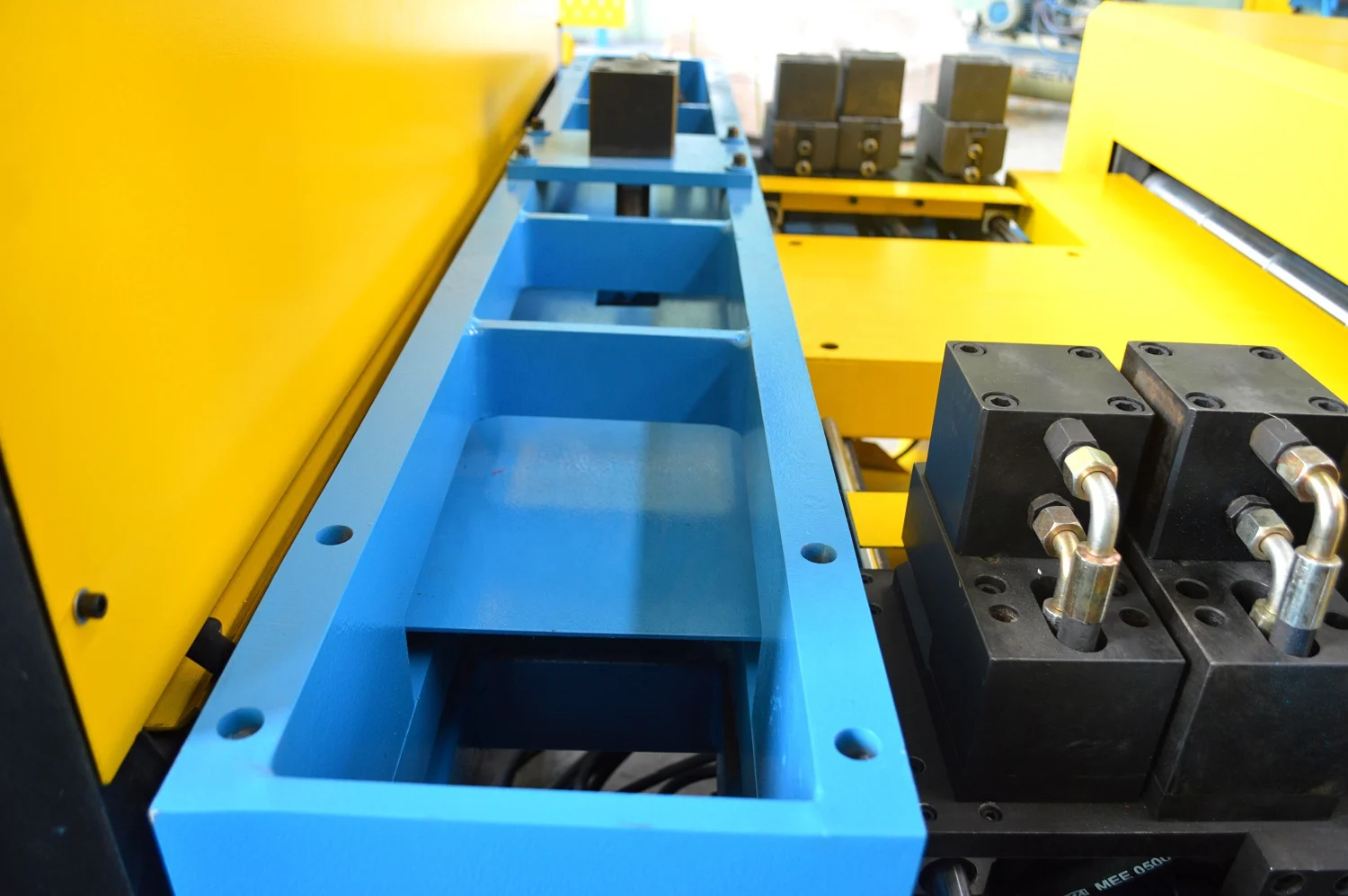

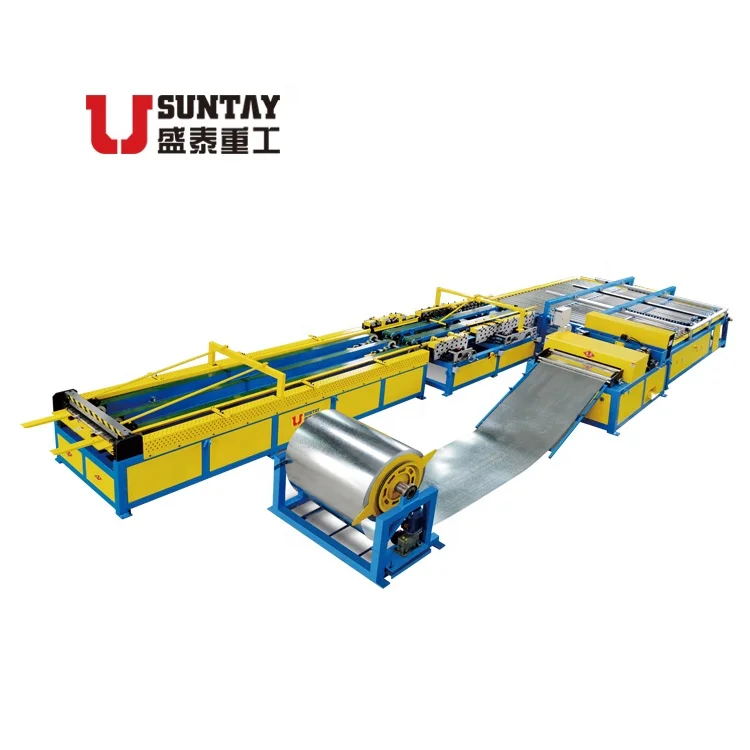

Square Ductwork Former Machine U shape auto duct line 5
Function
It's mainly for TDF/angle steel/C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling , leveling, beading, punching,shearing, locking, forming TDF/angle steel/C- shaped flange and folding.
Advantages
1. The machine is U-shaped, easy to install and it's suitable for small-sized or mid-sized work-shops because it occupies a small piece.
2. The injection holes are used at both ends of the drive shaft, to enhance the bearing life.
3. Power bending function is used to prevent generating the waste and make sure perfect bending accuracy.
4.It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double comparing with the linear type.
5.Without moving back and forth the fixed locking machine is able to improve the efficiency.
6.All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
7. Under the material-saving mode of CNC system, waste is less than 20mm per roll.
8.With production memory functions, the production orders can be tracked and checked.
9.It only need one or two person to operate , Save a lot of labor and increase the production efficiency.
Main Import Configuration
1.Beijing Huade plus hydraulic system from Taiwan
2.Japan Omron encoder
3.Taiwan Hiwin linear guideways
4.Schneider electrical system
Basic Configuration
1.Two electric coil cradles, 4 material trays (5-7t each roll)
2.One rack
3.One host (line 2 host)
4.Two stainless steel roller conveyer platforms
5.One fixed joint locking machine
6.One duplex TDF flange forming machine
7.One duplex angle steel flange forming machine
8.One servo feeding platform

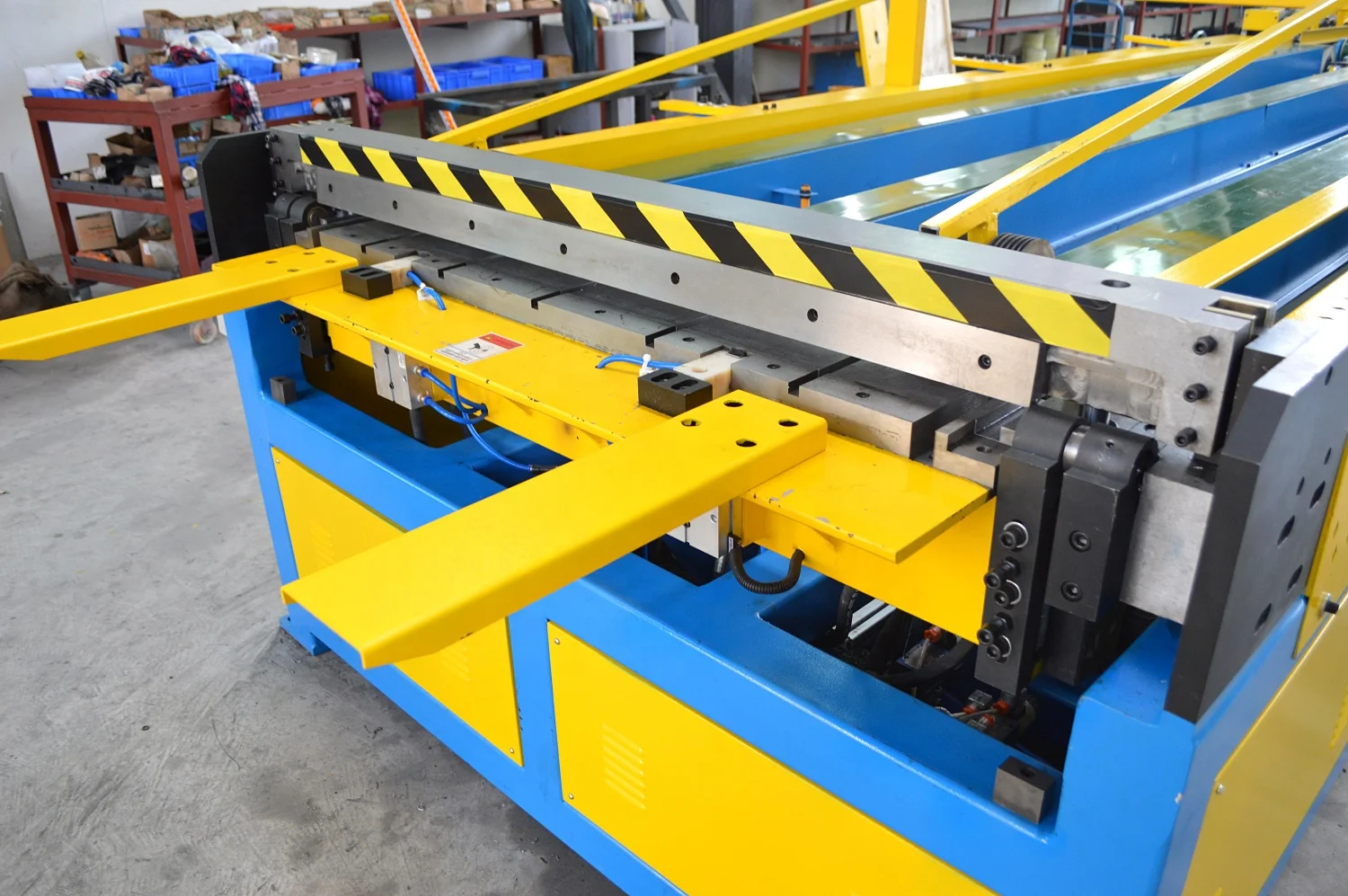

9. One hydraulic folding machine
10.One set of computer controlling system
It's mainly for TDF/angle steel/C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling , leveling, beading, punching,shearing, locking, forming TDF/angle steel/C- shaped flange and folding.
Advantages
1. The machine is U-shaped, easy to install and it's suitable for small-sized or mid-sized work-shops because it occupies a small piece.
2. The injection holes are used at both ends of the drive shaft, to enhance the bearing life.
3. Power bending function is used to prevent generating the waste and make sure perfect bending accuracy.
4.It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double comparing with the linear type.
5.Without moving back and forth the fixed locking machine is able to improve the efficiency.
6.All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
7. Under the material-saving mode of CNC system, waste is less than 20mm per roll.
8.With production memory functions, the production orders can be tracked and checked.
9.It only need one or two person to operate , Save a lot of labor and increase the production efficiency.
Main Import Configuration
1.Beijing Huade plus hydraulic system from Taiwan
2.Japan Omron encoder
3.Taiwan Hiwin linear guideways
4.Schneider electrical system
Basic Configuration
1.Two electric coil cradles, 4 material trays (5-7t each roll)
2.One rack
3.One host (line 2 host)
4.Two stainless steel roller conveyer platforms
5.One fixed joint locking machine
6.One duplex TDF flange forming machine
7.One duplex angle steel flange forming machine
8.One servo feeding platform
9. One hydraulic folding machine
10.One set of computer controlling system
Main Technical Parameters
Modle | Sheet thickness(mm) | Max width(mm) | Max working speed(m/min) | Coiler max weight(T) | Dimensions(m) L*W*H | Power(kw) | Weight (T) |
SADL-5U-1250 | 0.5-1.2 | 1250 | 15 | 7 | 16500*5000*1500 | 30 | 13 |
SADL-5U-1500 | 0.5-1.2 | 1500 | 15 | 7 | 16500*5400*1500 | 30 | 14 |
