Powervault RD1000 Removable Disk Storage Original for DELL 1.5TB 4TB 3 Year CN;BEI Internal RD1000 Stock N/A

Features

Techincal Specification

Height

Internal Dock: 41.4 mm (1.63”);

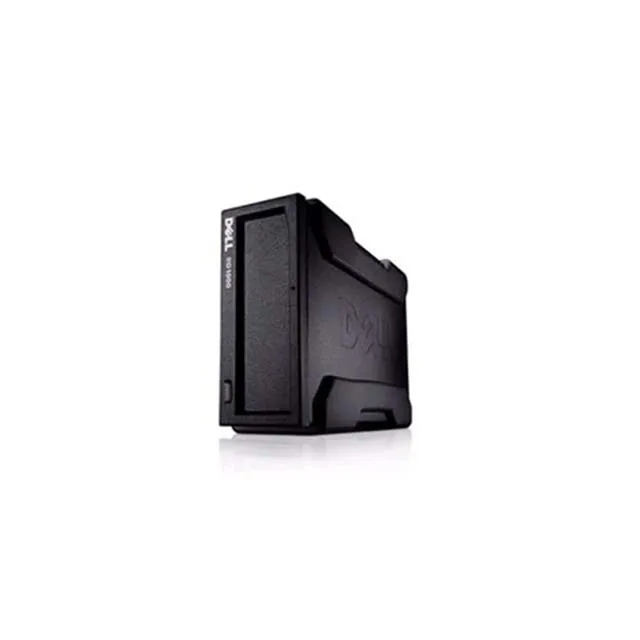

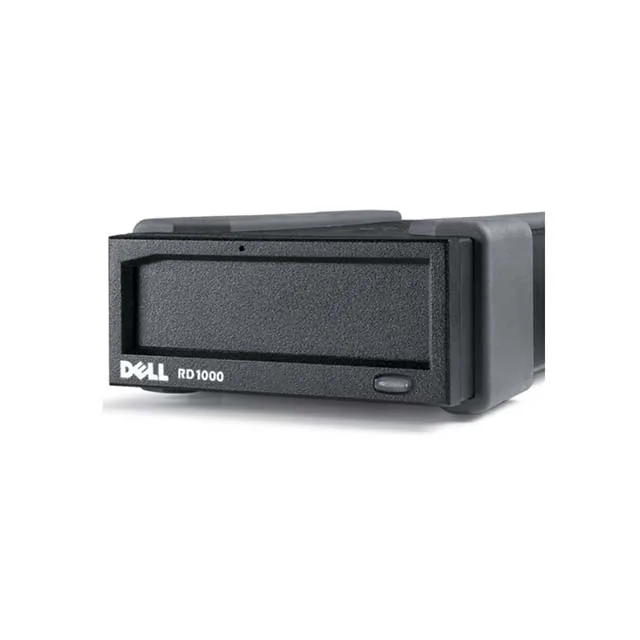

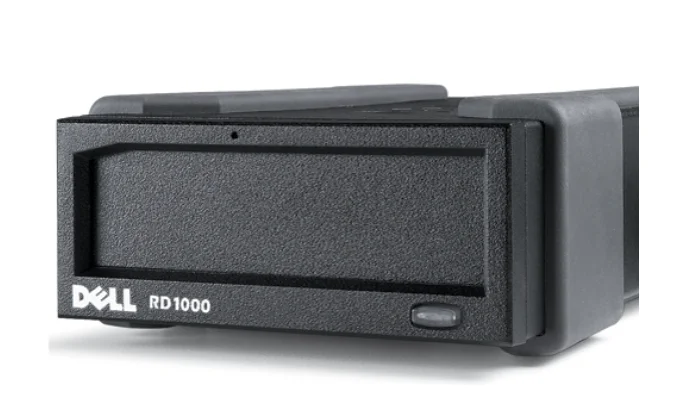

External Dock: 51.8 mm (2.04”);

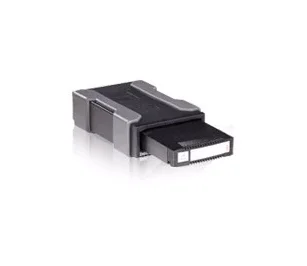

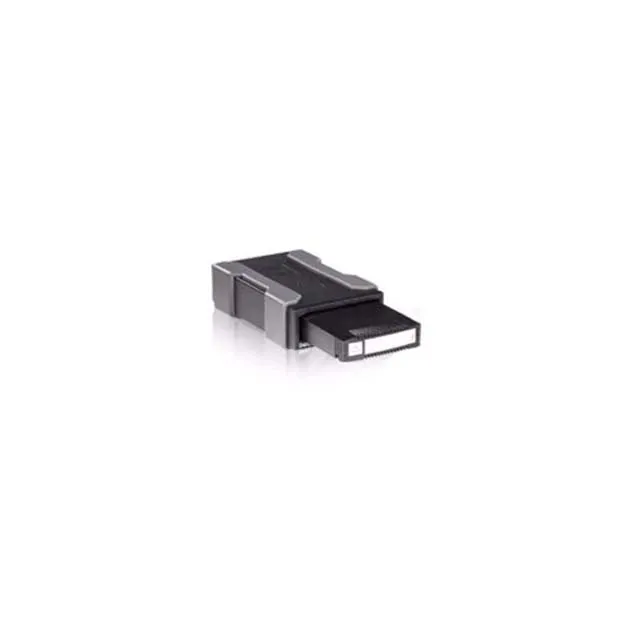

RD Cartridge: 23.68 mm (0.93”)

Width

Internal Dock (3.5”): 101.6 mm (4.00”);

Internal Dock (5.25”): 146 mm (5.75”);

External Dock: 109.8 mm (4.32”);

RD Cartridge: 86.6 mm (3.4”)

Length (Depth)

Internal Dock (3.5”): 159.4 mm (6.28”);

Internal Dock (5.25”): 171.9 mm (6.77”);

External Dock: 177.5 mm (7.00”);

RD Cartridge: 119.18 mm (4.69”);

Weight

Internal Dock (3.5”): 408 g (0.90 lbs.);

Internal Dock (5.25”): 635 g (1.40 lbs.)

External Dock: 540 g (1.19 lbs.);

RD Cartridge: 173 g (0.38 lbs.);

Orientation

Dock can be oriented either horizontally or vertically;

Configurations

Internal SATA connect in 3.5” or 5.25” bay;

External USB 3.0 connect

Supported Cartridge Capacities

320GB native, compressed capacity 5 (640GB)

500GB native, compressed capacity 5 (1TB)

1TB native, compressed capacity 5 (2TB)

2TB native, compressed capacity 5 (4TB)

Code Updates

Supported through SATA and USB

Interface

SATA (internal dock) 35MB/s;

USB 3.0 (external dock) up to 80MB/s 6

Temperature

OPERATING: 10°C to 40°C

NON-OPERATING: (-40°C to 65°C)

Thermal Gradient

OPERATING: 10°C / hour

NON-OPERATING: (20°C /hour)

Relative Humidity

OPERATING: 20% to 80%

NON-OPERATING: (10% to 90%), non-condensing

Max Wet Bulb Temperature

OPERATING: 29°C

NON-OPERATING: (38°C), non-condensing

Altitude

OPERATING: -50 ft to 10,000 ft.

NON-OPERATING: (-50 ft to 35,000 ft.)

Vibration

OPERATING: sine vib 0.25 G peak, 3-200 Hz

NON-OPERATING: (random vib 1.54 G RMS)

Power Ratings

Internal RD1000

 External

Voltage Tolerance

+ 5VDC ± 5%

 + 12VDC ± 10%

Power Consumption

(Typical / Peak)

7.5 W / 13 W

6.6 W / 13 W

AC Adapter

N/A

Universal Adapter

100-240 VAC

50-60Hz Input
