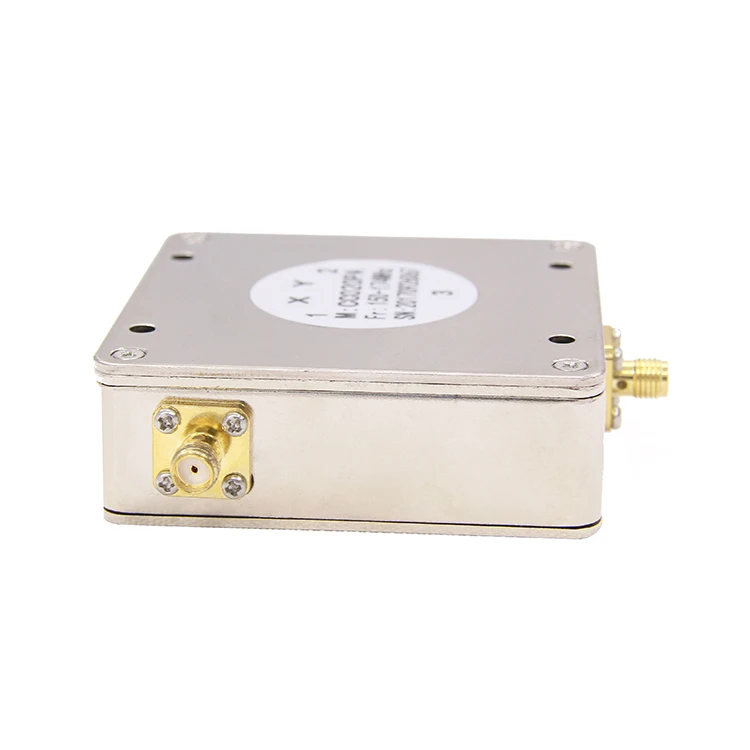

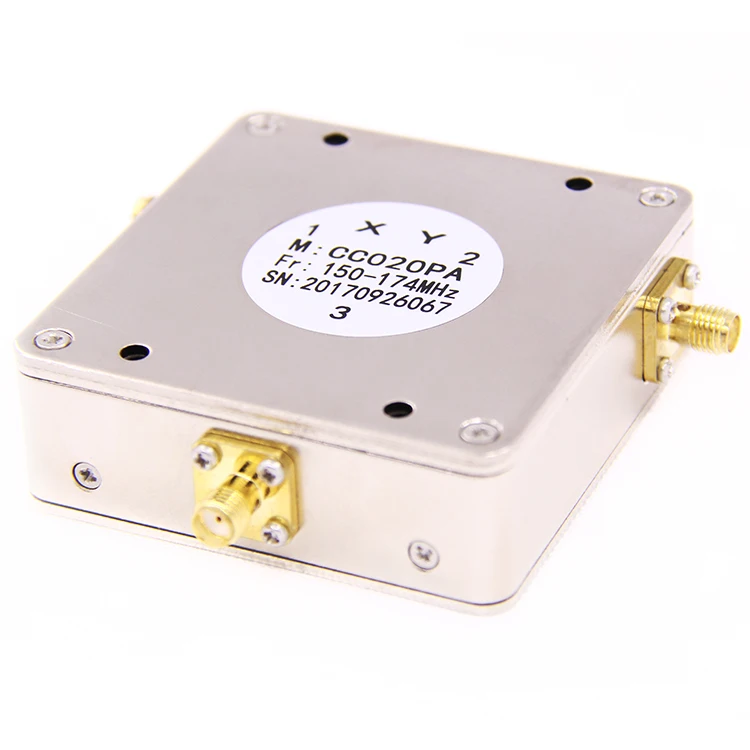

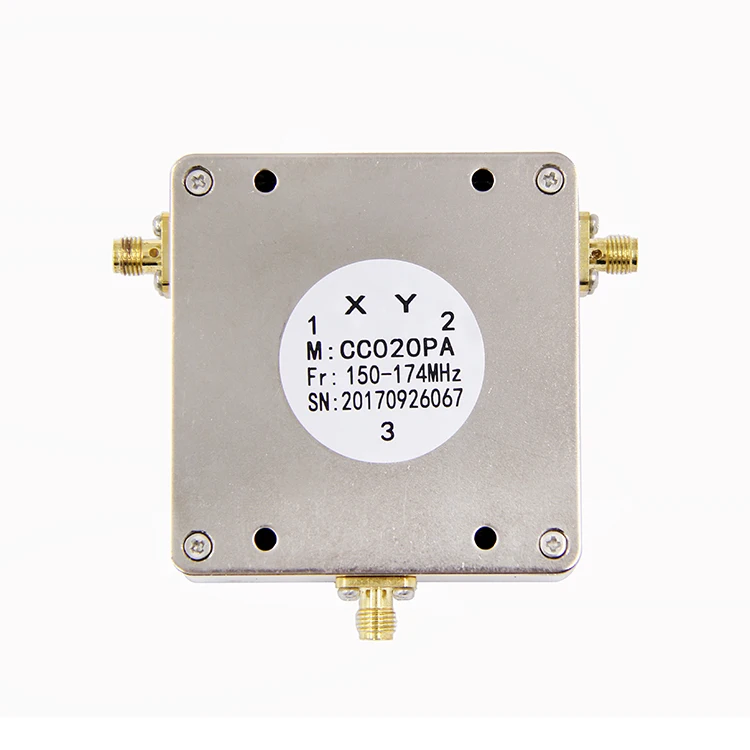

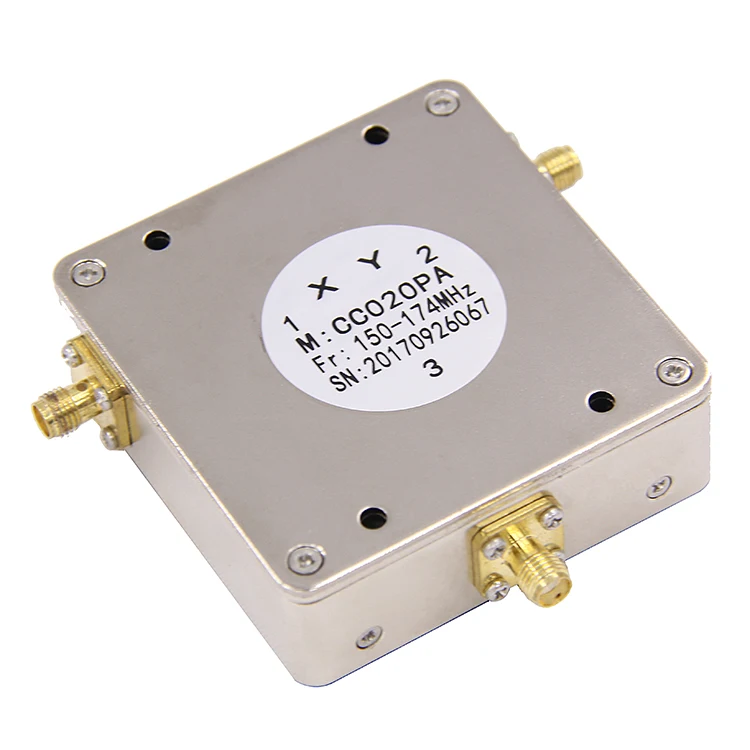

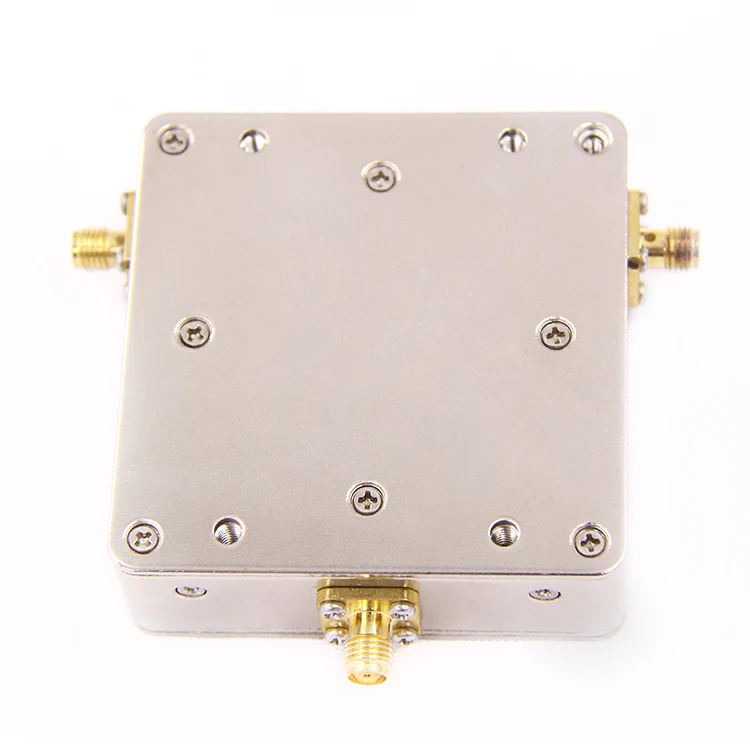

Best price 150 174 mhz Low Insertion vhf rf Coaxial Circulator

Product Overview

Description

1,High Isolation;
2,Low Insertion Loss;
3,quality and quantity guaranteed;
4,Specific parameters can be designed according to user's requirements;
5,Suitable for the microwave mobile communication system, various rf system and radar system.

M0del No.:CC020PA
Frequency Range (MHz)	BandWidth (MHz)	Insertion Loss (dB Max)	Isolation (dB Min)	VSWR (Max)
220-300	10	0.4	20	1.2
225-240	Full	0.35	20	1.25
226-238	Full	0.4	20	1.25
270-300	Full	0.3	20	1.2
Reverse Power: 300 W Connector Type: SMA/N Operating Temperature: -20-+70 ℃
