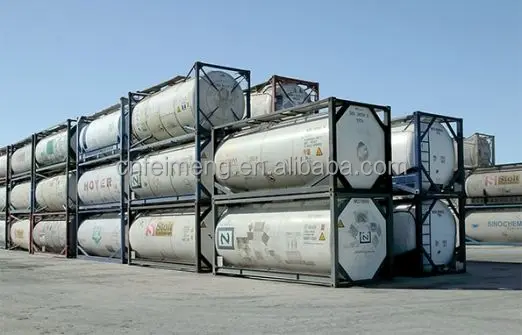

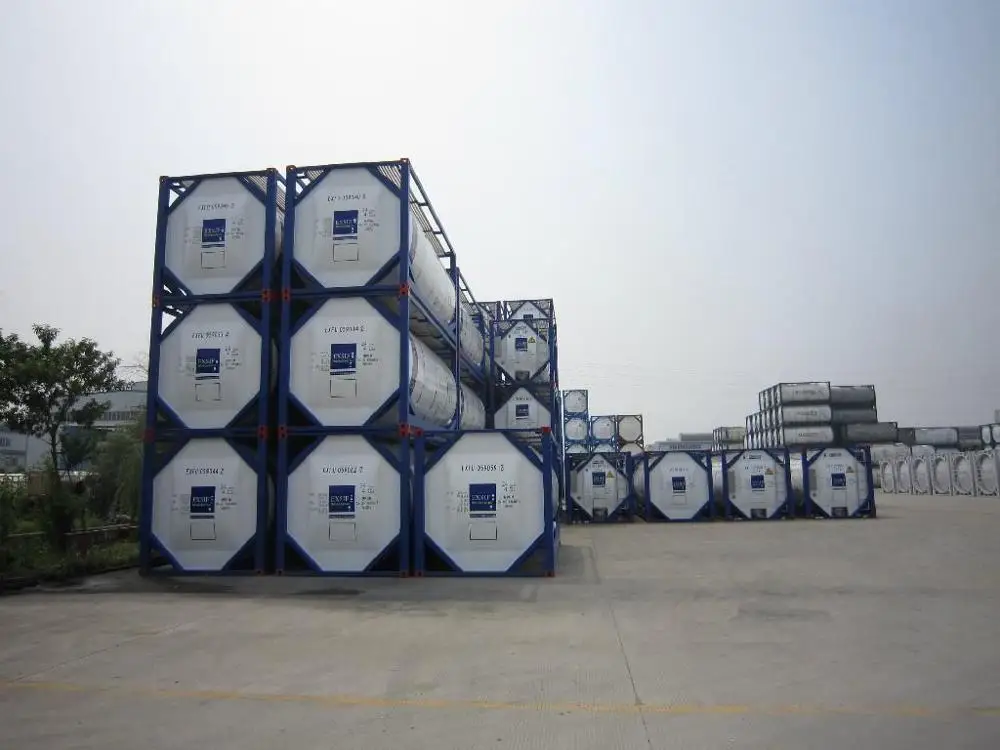

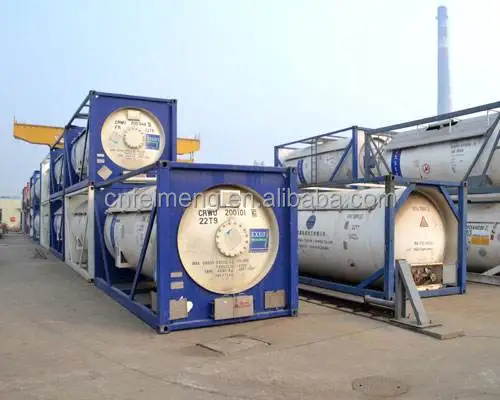

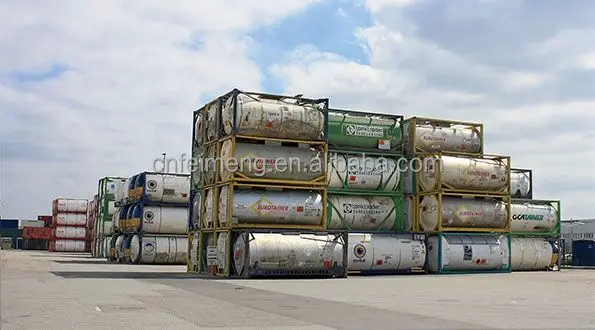

Stock ISO tank/used ISO tank for oil transportation

Technical parameters:

1,external size:6058×2438×2591mm

2,tank geometric volume:25m3

3,design pressure:0.4Mpa

4,medium:chemicals oil, oleins, vegetable oil,etc

5,heating type:steam pipe heating

6,tank material: 316L stainless steel

7,wall thickness: tank body: 4.4mm;  shell cover head: 5mm

8,insulation type:50mm thickness insulation layer

9,loading and unloading type:load at top and unload at bottom

10,weight:around 3780Kg

11,maximum operation weight:35000Kg

12,valve unit:imported high quality

Provided files when delivery:

1,product quality certificate; build drawing(general drawing, tank body drawing); user’s manual; strength calculation.

2,BV/LR certificate

 package: nude packing

Delivery time: immediately after your deposite
