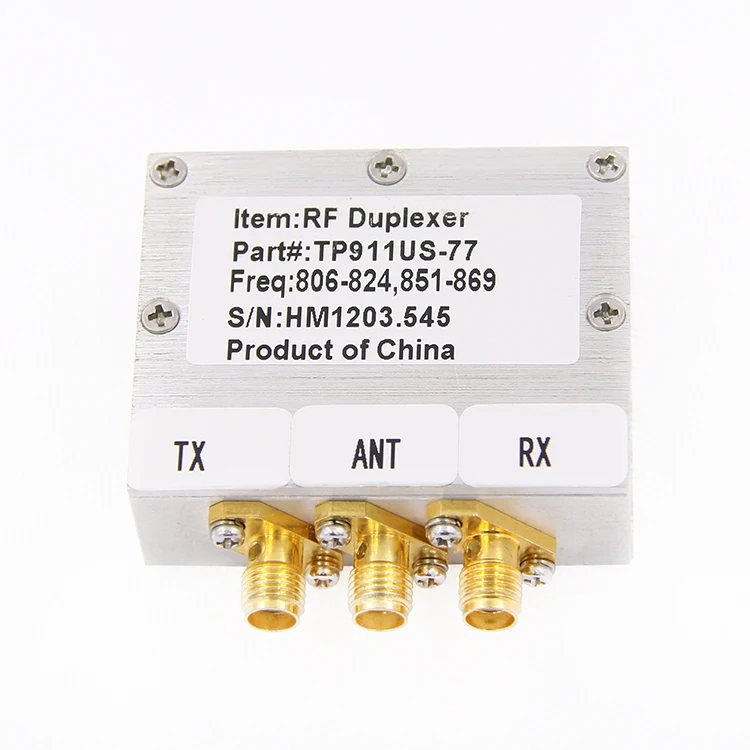

high quality 806 824MHz 851 869MHz duplexer vhf uhf cavity
- Category: Telecom Parts >>>
- Supplier: Xiangyu Communication Technology Co. Ltd.
Share on (60717748401):
Product Overview
Description
Product Description
Item | Technical | |
RX | TX | |
Frequency | 806-824 MHz | 851-869 MHz |
BandPass | 18.0MHz | 18.0MHz |
Insertion Loss | ≤1.0dB | |
Ripple | ≤0.6dB | |
VSWR | ≤1.3 | |
Isolation | ≥85dB | |
Power | ≥50W(CW) | |
Temperature | -30℃~+60℃ | |
Connector Type | N-KF ,50Ω | |

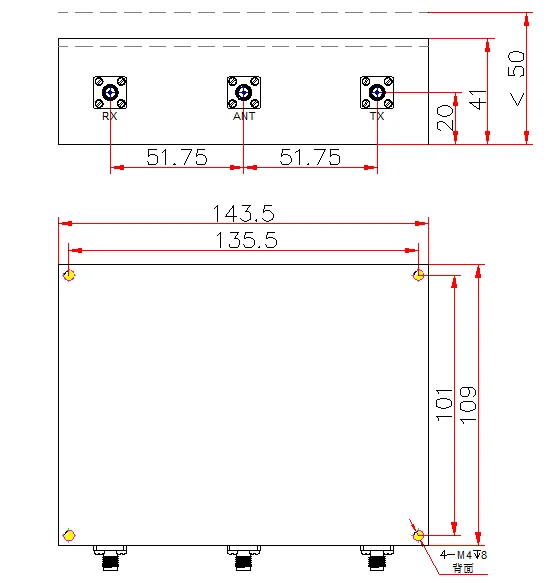

Size | 143.5*109*41 mm | |
Color | Black | |
