High level servo bending machine CNC system CT12
US $170.00-$3600
Automatic Pipe Wire Spring Coil Bending Machine Hydraulic Cnc Small Pipe/wire Bending Machine Steel Bar Stainless Steel CN;JIA
- Category: Other Bending Machines >>>
- Supplier: Zhangjiagang Telhoo Machinery Manufacturer Co. Ltd.
Share on (60717773764):
Product Overview
Description
Product Description
program Machine type | DW38CNC-4A2S | ||||||||
Min bending R for carbon pipe 1.5D | Ø38.1X 2t | ||||||||
Min bending R for s.s pipe 1.5D | Ø31.7X1.5t | ||||||||
Max feed distance | 2100mm | ||||||||
Max R for bending | 175mm | ||||||||
Max angle for bending | 185° | ||||||||
Bending process for every pipe | 16 | ||||||||
Working rate | Bend rate | Ma×45°/sec | |||||||
Rotary rate | Ma×270°/sec | ||||||||
Feeding rate | Ma×700mm/sec | ||||||||
Working accuracy | Bend angle | ±0.15° | |||||||
Rotary angle | ±0.1° | ||||||||
Feeding length | ±0.1mm | ||||||||
Watt of oil press electrical machine | 12mpa | ||||||||
Information inputting method | Axis (Y,B,C) | ||||||||
Bending method | Servo | ||||||||
Max bending group | 500 | ||||||||
Power of rotary Servo motor | 850w | ||||||||
Power of feeding Servo motor | 1kw | ||||||||
Power of bending servo motor | 3kw | ||||||||
Power of machine-head displacement servo motor(left+righe) | 1kw | ||||||||
Electrical motor power | 4kw | ||||||||
Weight of machine | 2100kg | ||||||||
Size L W H(CM) | 400X110X130 | ||||||||
Remark:The Max length of mandrel of pipe bending machine can according to customers requirement. | |||||||||
Difference Remark: | |||||||||

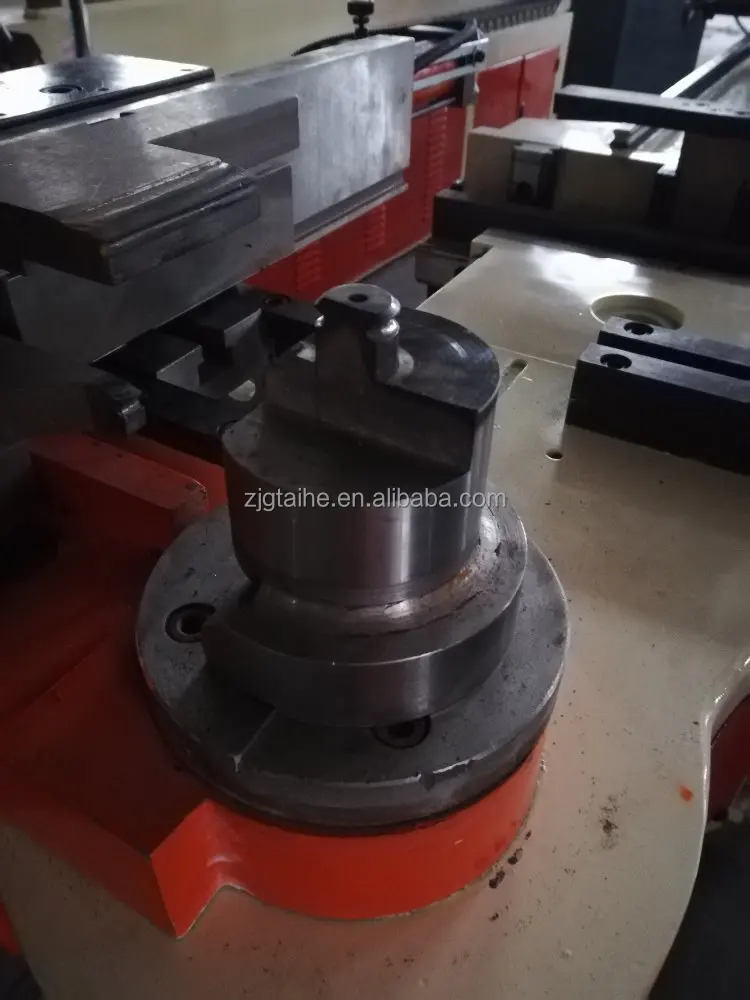

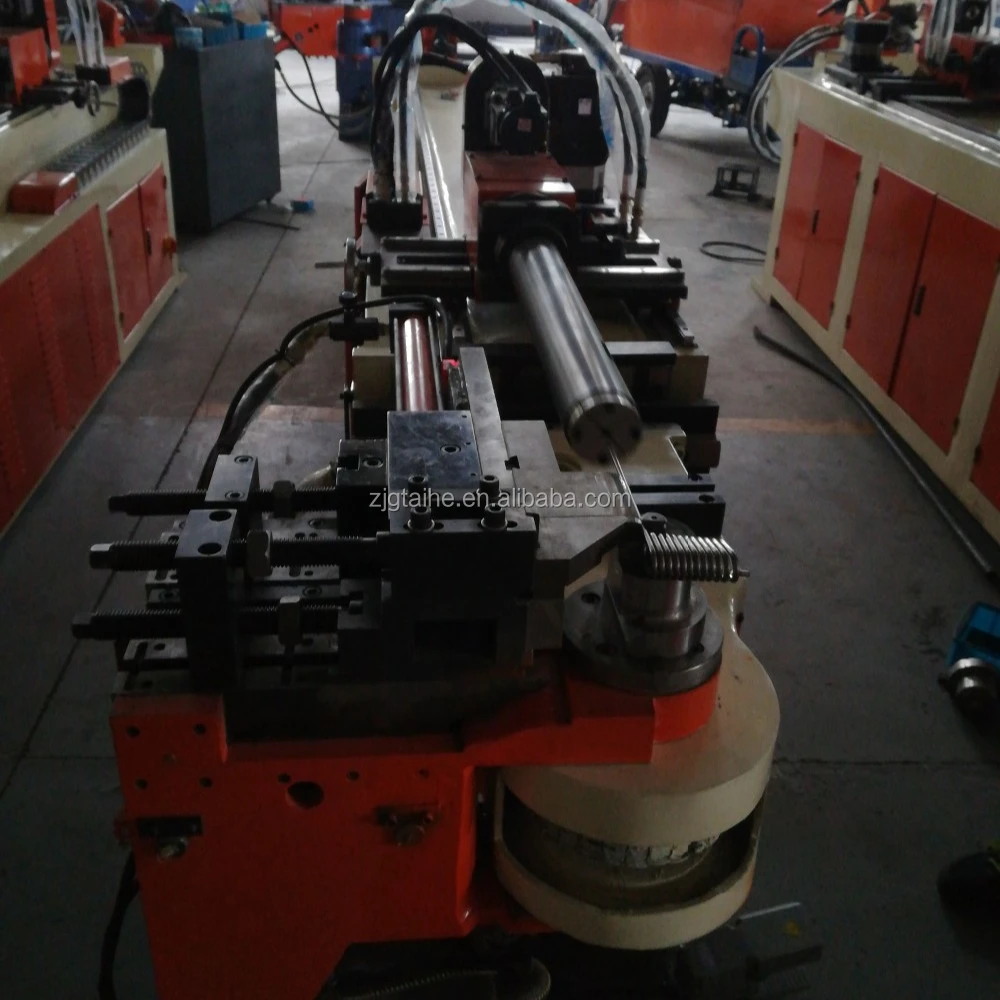

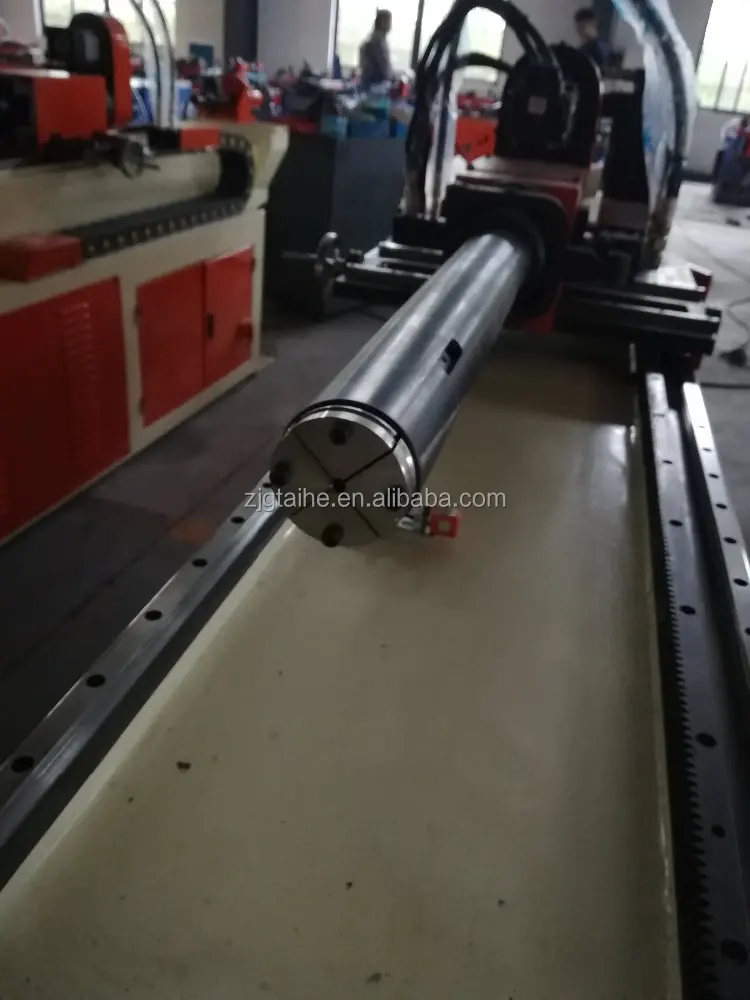

Product Photos
Tube sample pictures
Packaging & Shipping
Payment terms and After sales service:
1.Payment terms: 30% T/T down payment, 70% T/T before shipment.
2.Delivery time: No later than 10 days since receiving the advance payment.
3.Validity of the price: One month
4.Package: Iron case. Wooden box.
5.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
6.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
7.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.
