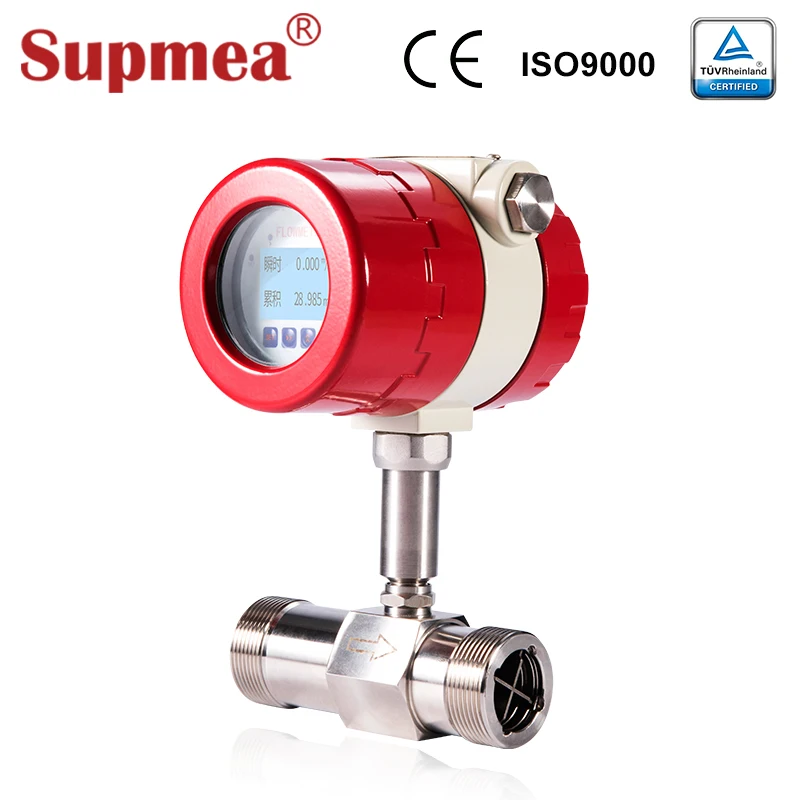

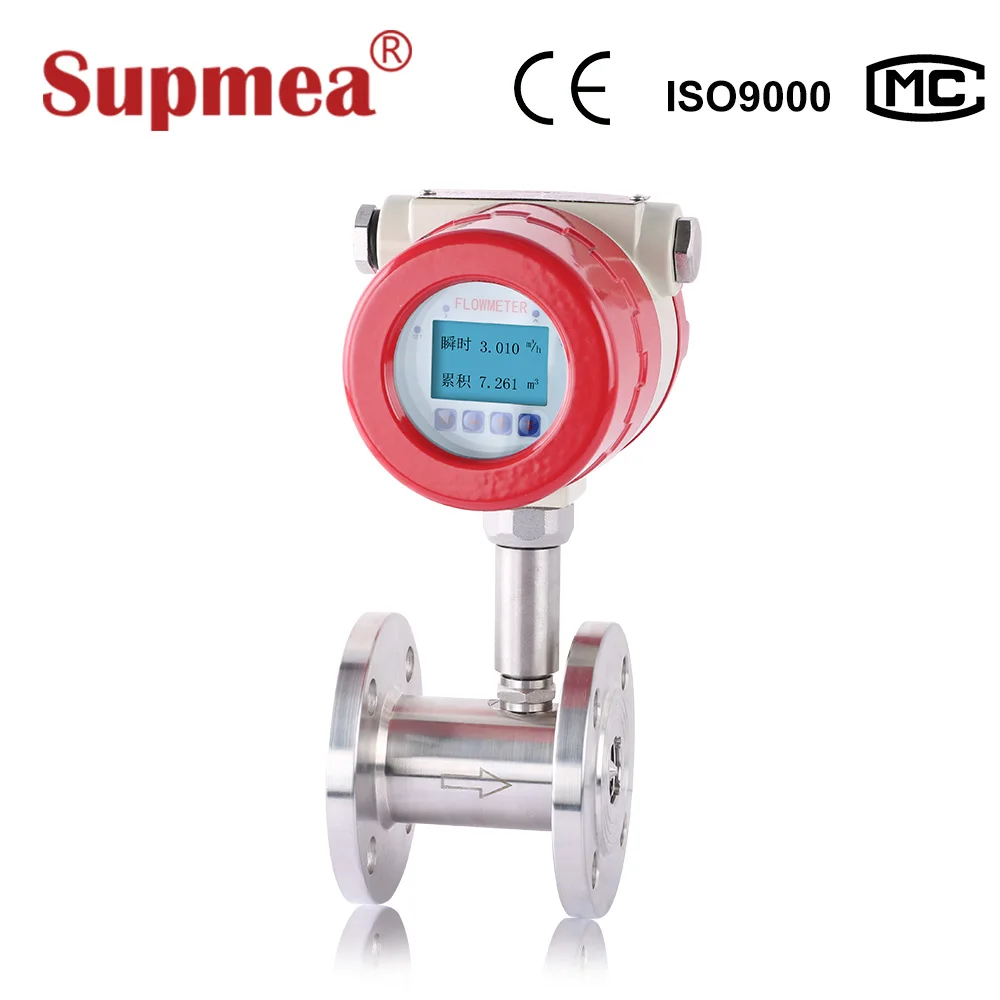

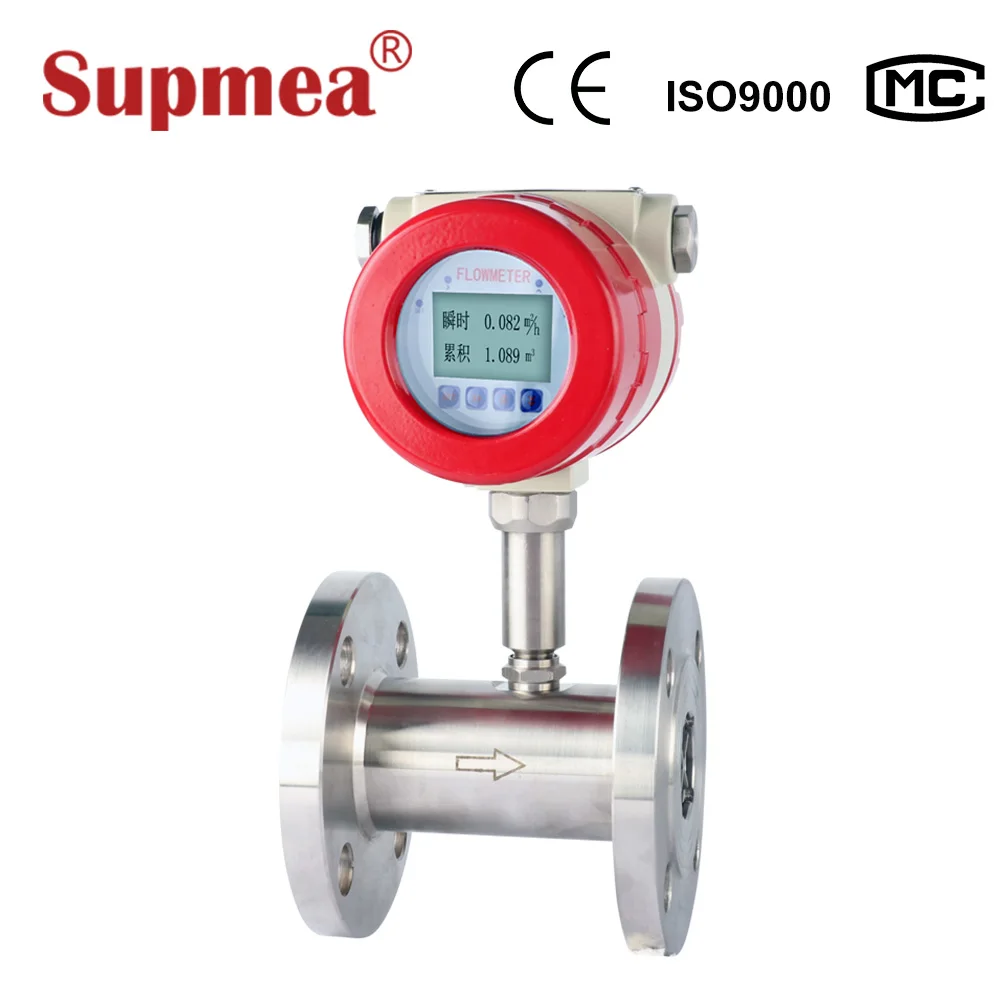

Intelligent type Volumetric flow rate metering turbine water flow meter

Share on (60717967283):


Price:

Quantity:


Product Overview

Description


Product Description

SPE-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.

Product specification

\t
Measure medium:
\t
liquid (water, liquefied petroleum gas, refined oil, light crude oil, organic liquid, inorganic liquid and other fiber, particulate impurities Of liquid)
\t
Nominal diameter:
\t
DN4 -- DN200mm
\t
Measurement accuracy:
\t
0.2, 0.5, 1.0 (preferred)
\t
Medium viscosity:
\t
less than 5 × 10-6m2 / s (for the liquid with >5 × 10-6m2 / s , the flowmeter needs to be calibrated before using)
\t
Nominal pressure:
\t
1.0Mpa; 1.6Mpa; 2.5Mpa; 4.0Mpa; 6.3Mpa
\t
Medium temperature:
\t
-20 ℃ ~ +120 ℃ (stainless steel measuring tube)
\t
Environmental conditions:
\t
Ambient temperature: -20 ℃ ~ +60 ℃; Relative humidity: 5% to 95%; Atmospheric pressure: 86kPa ~ 106kPa;
\t
Power supply:
\t
3.6V lithium battery; 12VDC; 24VDC;
\t
Output signal:
\t
three-wire pulse output, two-wire 4-20mA output
\t
Ingress protection :
\t
IP65 (IP67, IP68 );

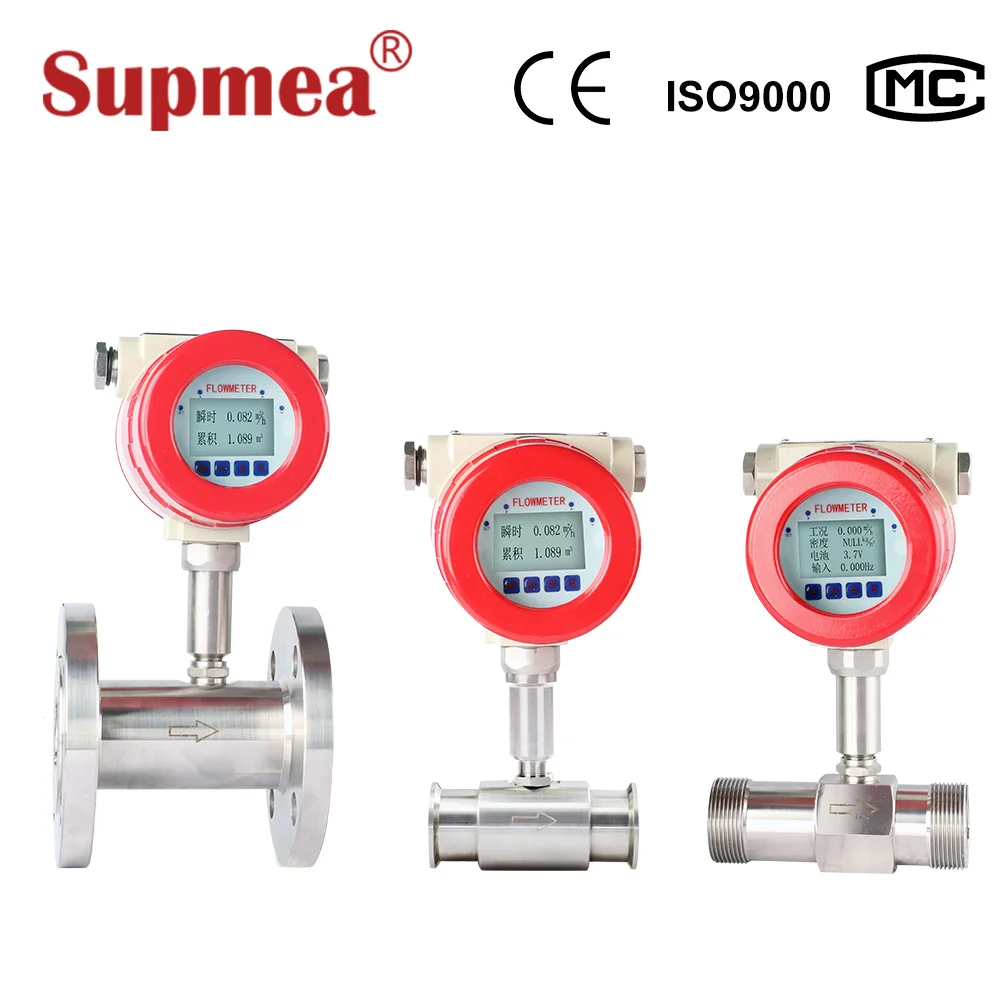

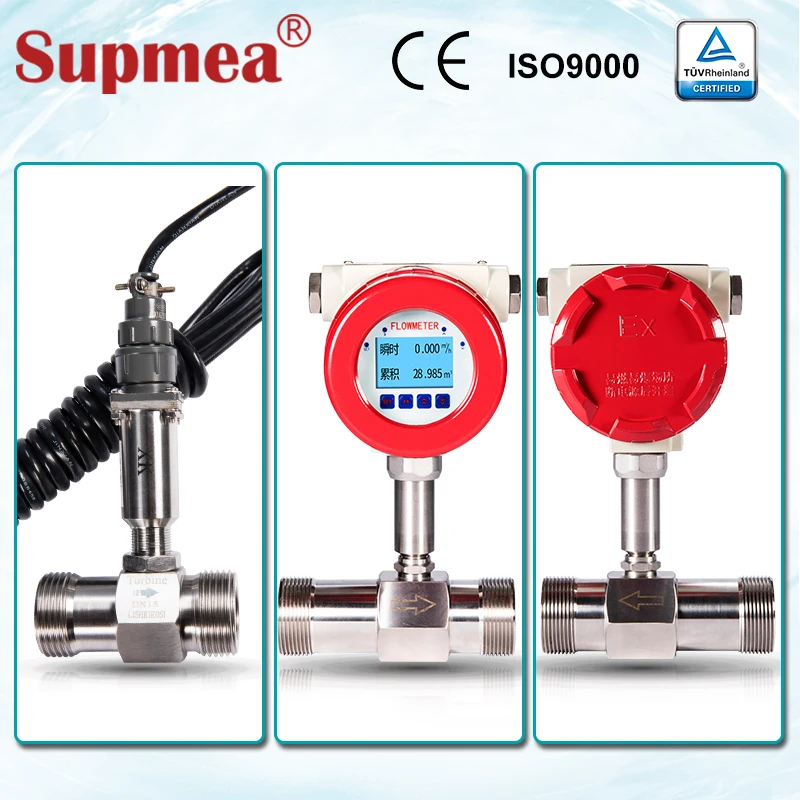

Detailed Images
Our Service

Professional engineers to provide one-on-one service


Response time: Online chatting within 1 minute,
                             Inquiry within 5 minutes

After-sales service: 5-years warranty, free replacement for non-human-oriented operation during the warranty period

Overseas Service Center: Malaysia, Singapore

After-sales service process:
1.Contact us via Online chatting, inquiry, email or phone call(+8613777833374)

2.Confirm the problem, try to figure it out local

3.If can not be solved, send back to maintenance or replacement.

Coopreation&award
Packing & Delivery

Automatic packer

Carton

Wooden case

Lead time : Most products within 3-5 working days(if have stock, could be sent same day), customized product would be longer

Delivery process:
1.Use customer’s own delivery account, or we help to choose a suitable one
(Usually use FedEx, Ups, DHL, TNT, EMS,etc)

2.Delivery time is 2-7 working days, some products have stock in Malaysia.

3.Help to do the destination customs clearance

Related Products
Our Company

Factory


Workshop


Warehouse

Team


FAQ

Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance

Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
