Light weight steel structure truss CZ quickly changeable interchangeable purline quick change steel purlin making machine
Product Description
Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
C Z Purlin Roll Forming Machine Main parameters
1.Echnical parameters
1. | Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
2. | Control System | PLC Inverter Encoder Touch Screen |
3. | Main Frame | 400mm H-Beam |
4. | Total Power | 22 kw |
5. | Power Supply | 380V, 3-Phase,50Hz |
6. | Forming Speed | 12-24m/min |
7. | Roll Station | 18 stands |
8. | Roller Diameter | 80mm |
9. | Effective Width | 80-300mm |
10. | Feeding Thickness | 1.5-3.0mm |
11. | Backboard Thickness | 20mm |
12. | Cutter Standard | GCr12 |
13. | Roller Standard | Gcr15# |
14. | Overall Size | About 8500×1000×1400mm |
15. | Total Weight | About 10T |
16. | Custom | According to customer's requirements |
NOTE: All technical parameters can be changed according to user s need, and only as a reference.
2.C Z Purlin Roll Forming Machine Components specification
(1) Manual Uncoiler
Max.Capacity:5T
(2)Pre- Cutting Device& Pre-Punching Device
It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.
Cutting length tolerance:±2mm
Material:GCr12 with quenched treatment 60-62°C
(3)Hydraulic System
Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.
Power: 22 KW
(4)Control System
It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.
Computed mode: automatic or manual
(5)Encoder
The counter gauges length, and modulates pulses.
(6)Simple Stack
It is used for loading the formed plate.

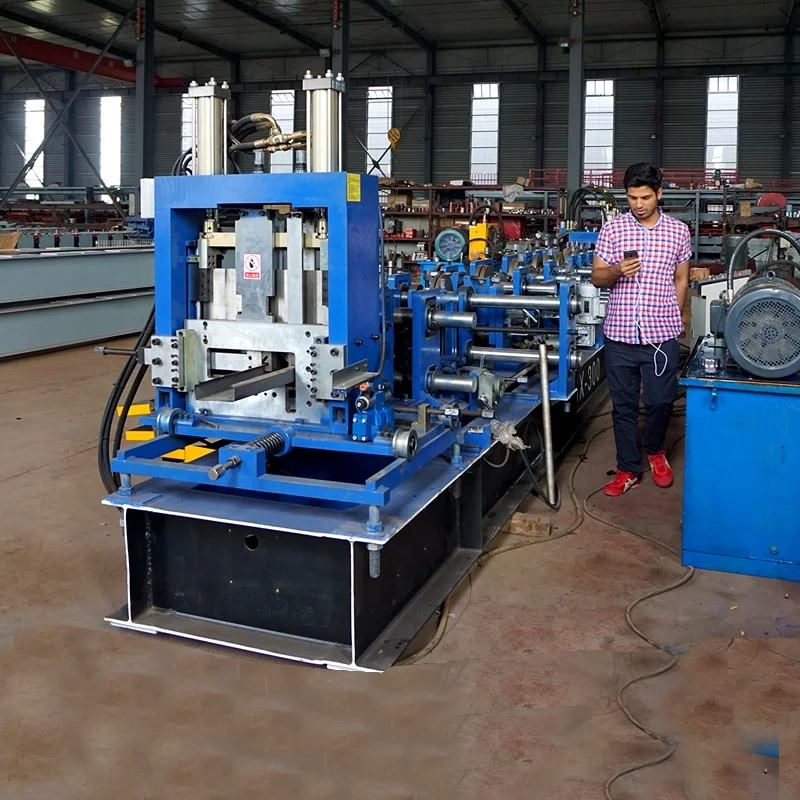

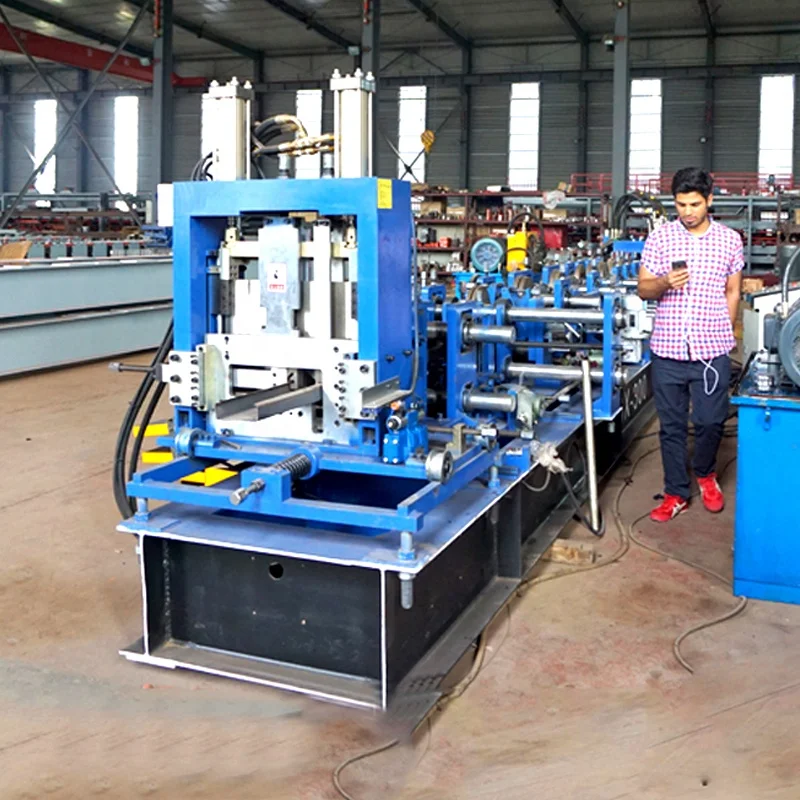

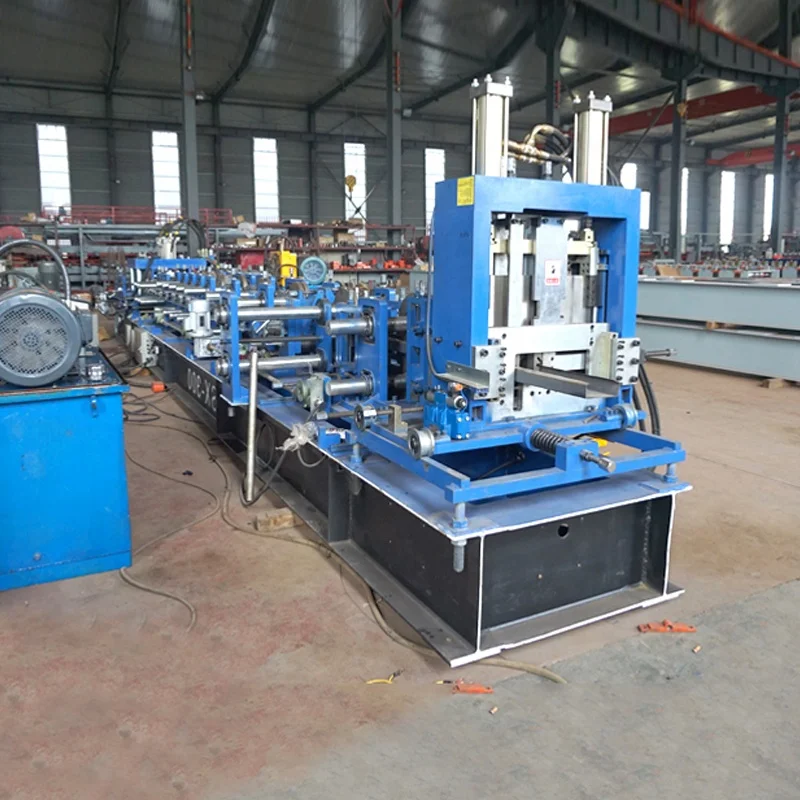

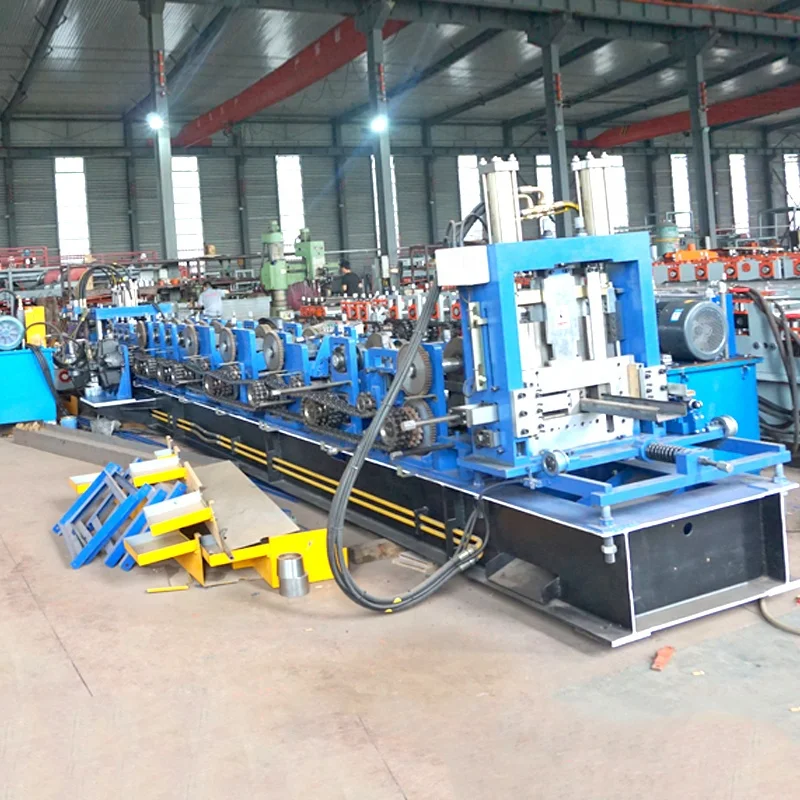

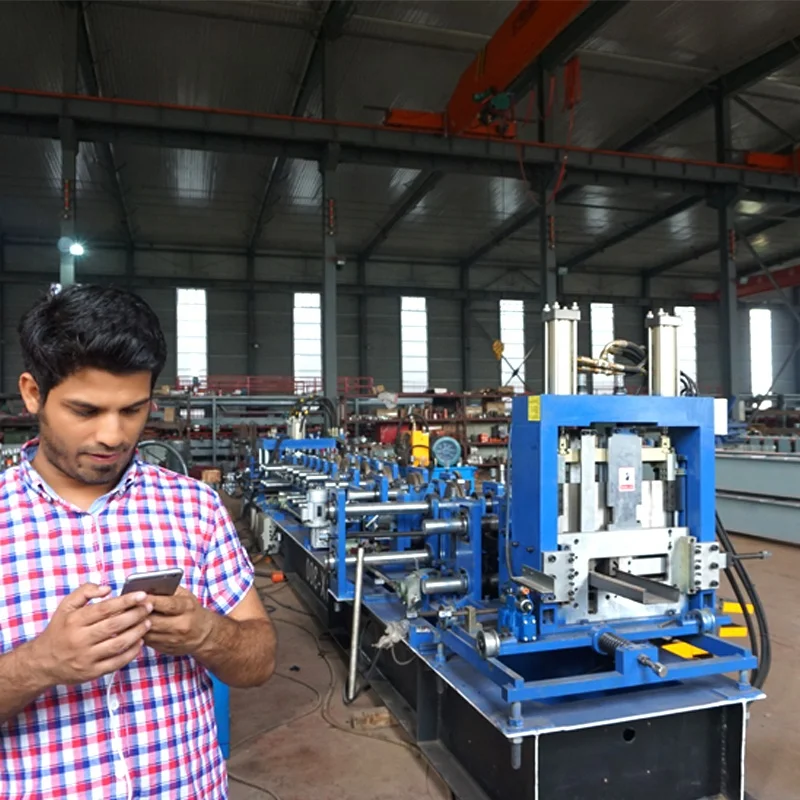

Product Pictures
Detailed Images
Our Services
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
Packaging & Shipping
Company Information
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C Z Purlin Roll Forming Machine , highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day!
Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.
