Многоканальный высокоточный автоматический вибрирующий счетчик таблеток в таблетках машина для подсчета мягких гелевых капсул конфет
- Category: Pharmaceutical Machinery >>>
- Supplier: Zhejiang CapsulCN Machinery Co. Ltd.
Share on (60718564769):
Product Overview
Description
Welcome to visit CapsulCN factory!
Why Choose Us:
1. 16 years professional pharmaceutical machinery manufacturer and supplier.
2. 3 Years Warranty， 14 Days Delivery，Factory Price.
3.12680㎡ factory，Own R&D Team.
4. Free design service，free professional solutions.
5.Passed ISO 9001，CE，SGS，Intetek certificates .
6.Provide alibaba quality and delivery guarantee services.
Products Description

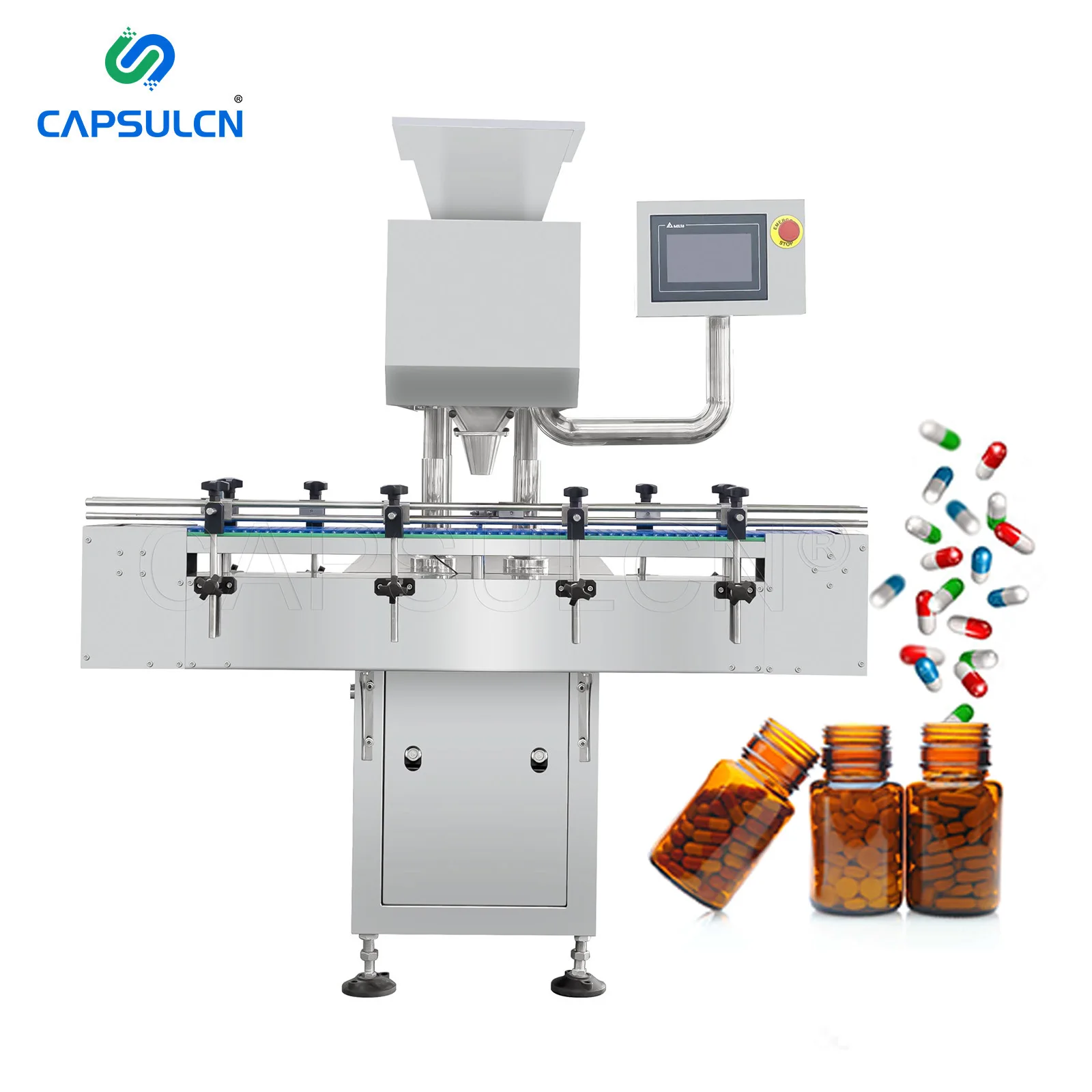

Automatic Capsule & Tablet counting machine
Electronic Counting Machine is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of medicine granules. This machine can be used independently, and can also form a linked production line with other supporting equipment such as bottle unscrambler, paper stopper, capping machine, sealing and labeling machine.
1.Three-stage vibrators：With 8-channel vibration, materials are distributed more evenly.
2.Reliable operation：It runs stably and smoothly with low noise.
3.High dust resistance：It adopts unique anti-dust photoelectric sensor.
4.Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
5.Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
6.Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
7.Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
8.Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
9.The platform height can be adjusted according to the bottle height.
10.The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.
2.Reliable operation：It runs stably and smoothly with low noise.
3.High dust resistance：It adopts unique anti-dust photoelectric sensor.
4.Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
5.Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
6.Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
7.Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
8.Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
9.The platform height can be adjusted according to the bottle height.
10.The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.

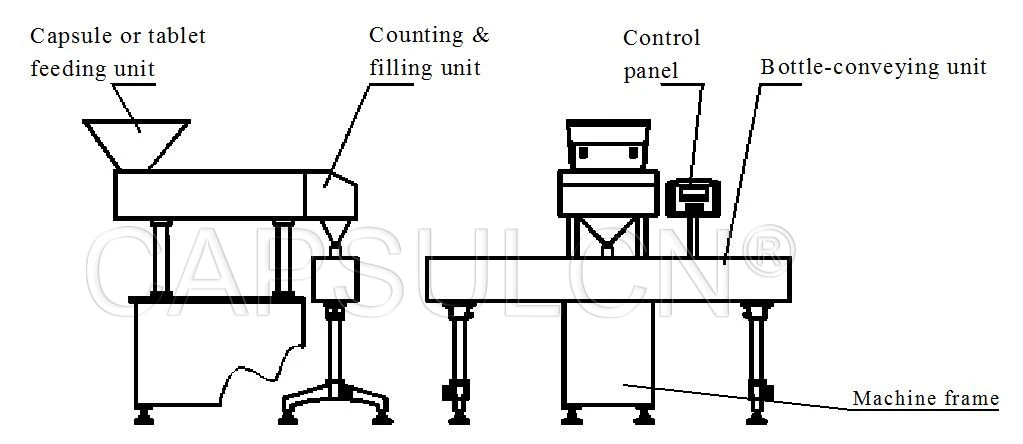

Details Images
Capsule or tablet feeding unit
It consists of the hopper, the three-stage vibrator, the vibrating plate and the anti-dust cover.

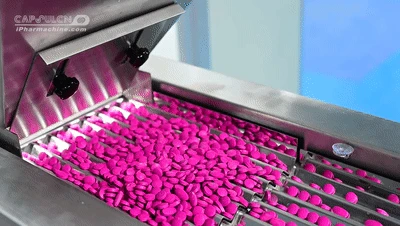

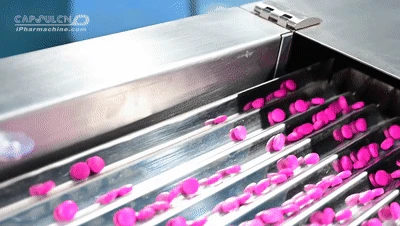

Three-stage vibrators
With 8-channel vibration, materials are distributed more evenly.
Counting & filling unit
It consists of filling pipes, counting sensor, hopper, etc.
Bottle-conveying unit
composed of the drive system, the conveyer belt, the bottle-pause cylinder, bottle-intercepting cylinder, bottle-illuminating sensor, etc.
Electrical control system
(Control panel)
This part includes HMI, PLC and the power amplifier.
This part includes HMI, PLC and the power amplifier.
Machine frame
It consists of the electrical cabinet and supporting legs.
Product Paramenters
Model | 8 | 12 | 16 | 24 | 32 | 48 | |||||
Applicable bottle shape | round, square plastic bottle | ||||||||||
Filling material | 0~5#capsule、soft capsule、Φ5.5～12compressed tablet、special-shaped tablet sugarcoated tablet，Φ3～12pill | ||||||||||
(It depends on the bottle size、filling quantity） | 10-30 bottles per minute | 20-60bottles per minute | 20-80 bottles per minute | 20-90 bottles per minute | 40-120 bottles per minute | 40-150 bottles per minute | |||||
The setting range of bottling volume | 1-9999 | 1-9999 | 1-9999 | 1-9999 | 1-9999 | 1—9999 | |||||
Power supply | AC220V 50Hz 0.6kw | AC220V 50Hz/AC110V 60HZ 0.6kw | AC220V 50Hz 1.2kw | AC220V 50Hz 1.5kw | AC220V 50Hz 1.2kw | AC220V 50Hz 1.2kw | |||||
Overall dimension | 1250*1450*1450mm | 1400*1400*1560mm | 1600*1400*1560mm | 1800*1400*1680mm | 2200*1400*1680mm | 2200×1400×1680mm | |||||
Weight | 240kg | 300kg | 350kg | 400kg | 550kg | 580kg | |||||
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, Filling machine and Capsule Size.) Contact us>>
Recommend Products
Let the machine work for you!
Dear customer,
Maybe you have only bought one of our machines, but you shall know about our company’s complete production line,which will definitely satisfy you.

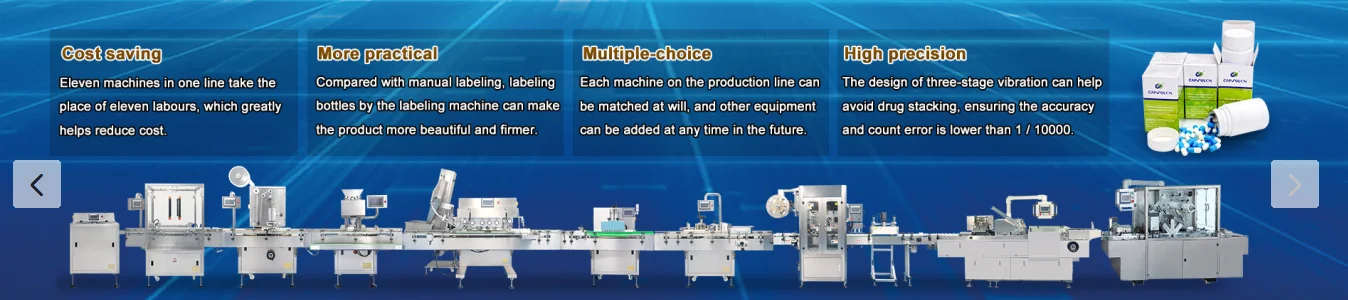

Eleven machines cooperate perfectly
* You can choose the complete line or just several machines of it, which is based on your own needs.
* As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade of product packaging.
* You can choose the complete line or just several machines of it, which is based on your own needs.
* As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade of product packaging.
Company Profile
COMPANY INFORMATION
As an expert in the phamaceutical and pharmaceutical packaging industry.
Zhejiang CapsulCN Machinery Co, Ltd is specialized in the research, production andrelevant service in the automatic packing machines of pharmaceutical, medical andfood industries.It is a member of National Equipment Association, High-tech Enterprise of Zhejiang Province, and the director unit of Wenzhou Private Management Economy Promotion Association.

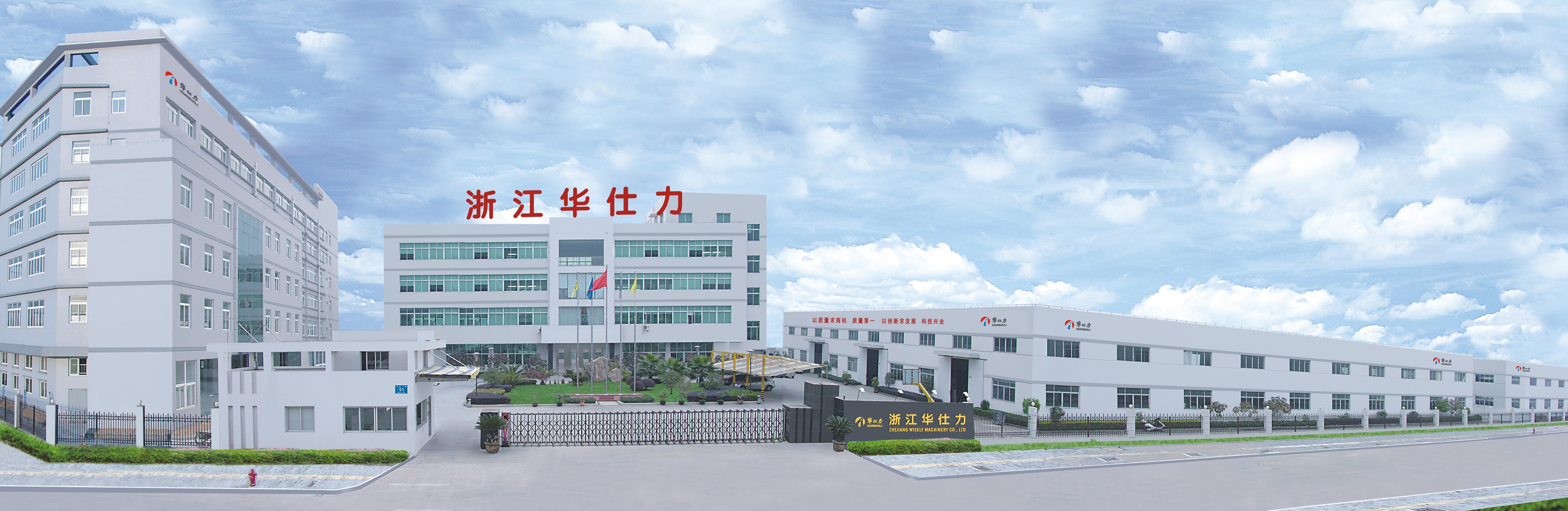

In 2010, we had a new factory located in Wenzhou City, Zhejiang Province, with a covering area of more than 13,000 square meters. building area of 15,000 square meters, and workshops of 10 meters high. It greatly improved our production capacity.
In 2010, we had a new factory located in Wenzhou City, Zhejiang Province, with a covering area of more than 13,000 square meters. building area of 15,000 square meters, and workshops of 10 meters high. It greatly improved our production capacity.

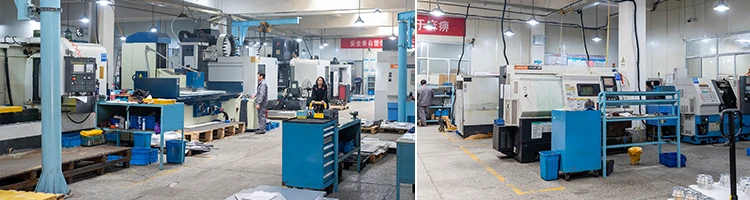

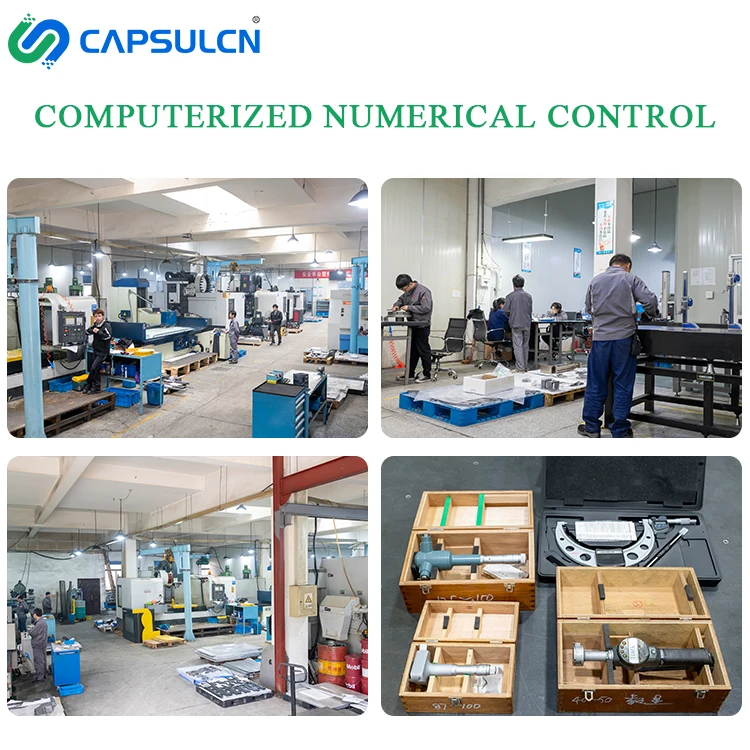

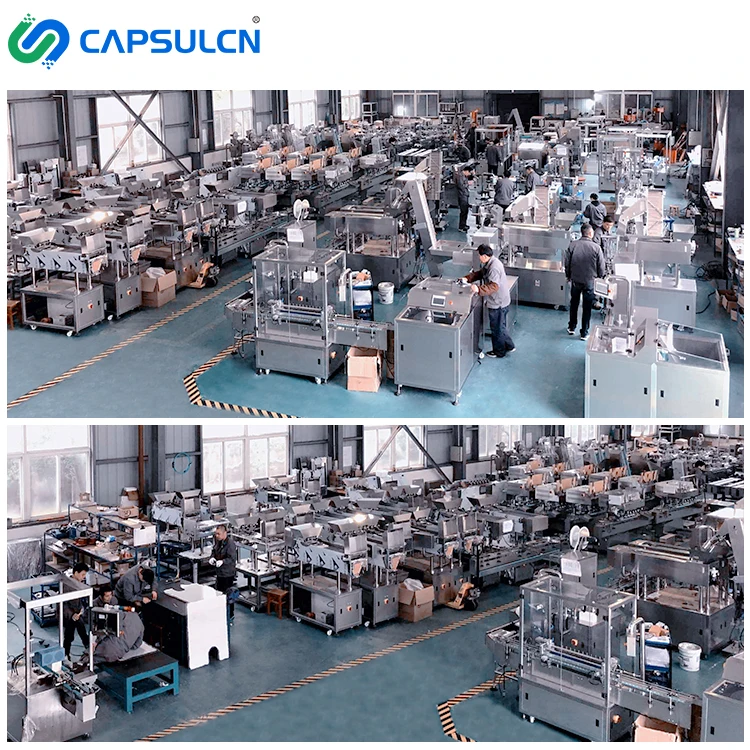

Manufacturing Workshop
