Product Overview

Description


Product Specs

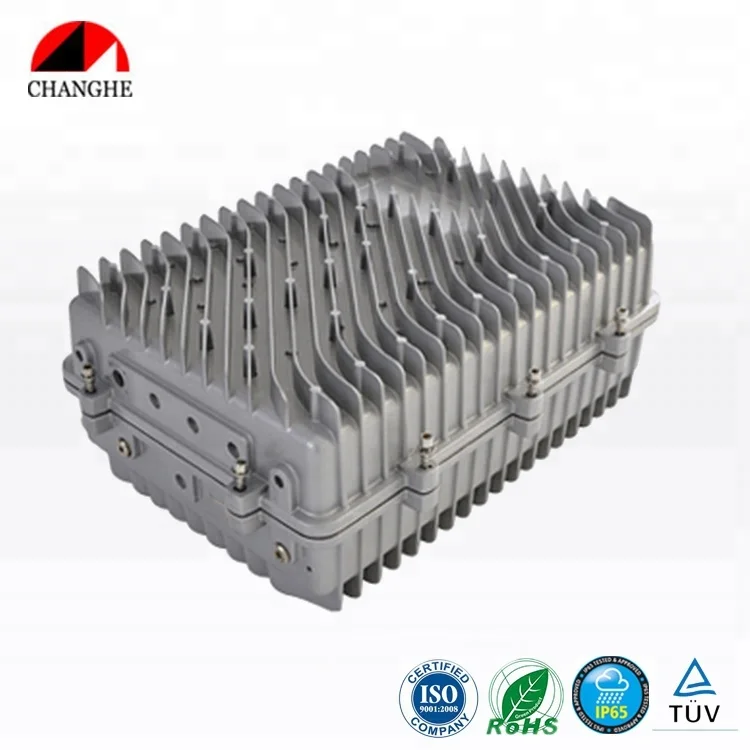

IP65 CATV Outdoor Amplifier Enclosure (11B-24)

The dimensions specified below are Length x Width x Height.


Technical Features:

- External size: 500 x 351 x 216 mm(LxWxH)
- Internal size: 473 x 324 x 138 mm (LxWxH)
- 75Ω joint
- Metal insulation net
- IP 65 watertight and dust-proof
- Can be used at a wide range of operating temperatures:-40℃～120℃
- Good RFI shielding
- Powder coatings offer quality corrosive resistance
\t
Ingress protection
\t
IP65 IEC60529:2001
\t
Impact protection
\t
IK08 IEC62262:200
\t
Temperature range (short term)
\t
-40℃ ~ 120℃ IEC60068:1997
\t
Temperature range (long term)
\t
-20℃ ~ 80℃ IEC60068:1997
\t
Chemical Resistance
\t
Good
\t
Flammability rating
\t
Highly flame resistant
\t
Non-toxicity
\t
Halogen Free
\t
RoHS
\t
RoHS compliance

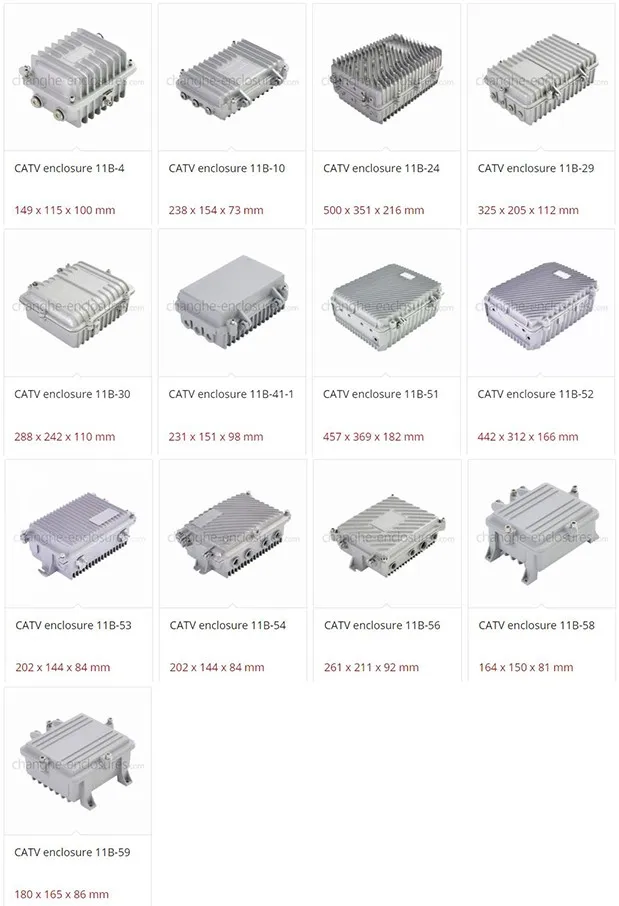

Dimension Chart

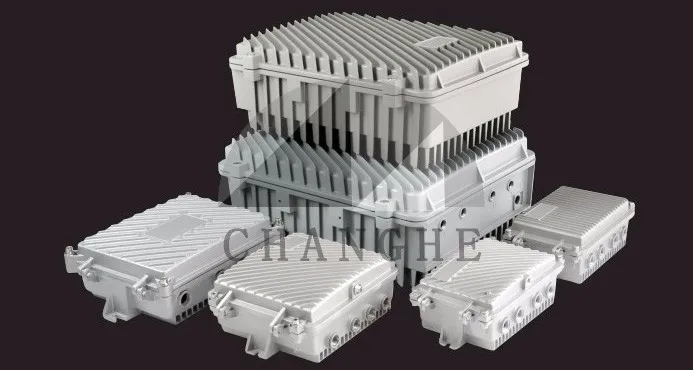

CHANGHE Outdoor CATV Amplifier Enclosures

Die-cast in aluminum alloy, CHANGHE amplifier enclosures offer high corrosive resistance and provide excellent RFI and EMI shielding. Internal dimensions range from 123x103x55 mm to 473x324x138 mm. For more detailed information, please visit our website: //www.changhe-enclosures.com

\t
Model No.
\t
Internal dimensions (mm)
\t
Model No.

\t
Internal dimensions (mm)

\t\t
130x90x75
\t\t
183x140x50
\t\t
168x87x72
\t\t
420x335x126
\t\t
210x130x58
\t\t
410x280x112.5
\t\t
211x132x87
\t\t
184.5x127x63
\t\t
255x146x81
\t\t
184.5x127x63
\t\t
316x165x130
\t\t
200x185x75.5
\t\t
473x324x138
\t\t
246x196x187
\t\t
300x180x98
\t\t
123x103x55
\t\t
258.5x213x100
\t\t
143x123x60
\t\t
209x129x90
\t

\t

Customization

Custom & Modified Enclosures

When a standard enclosure isn’t exactly what you need, CHANGHE can modify our designs for the ideal enclosure solution. Some common modifications we can do for you:

- Mold & Design
- Special Paint Colors
- Silk Screening
- Punched Holes

- Cutouts
- Mounting plate design
- Salt Mist Resistance
- Non-inflammable sealing ring

Company Profile

Why choose us?


Ningbo Dayang Co., Ltd (trademark: CHANGHE Enclosures) is a leading company in the enclosure industry. We have been developing and manufacturing enclosures and protective cases for more than 20 years. With\tover\ttwenty years experience, a dedicated design team and most up-to-date production machinery, we process the products in accordance with our customers’ requirements. We aspire to be the most valued supplier of enclosures for any branch of business,on the domestic and foreign markets.

Specialist Divisions:


Besides waterproof enclosures, CHANGHE Enclosures also includes the following specialist divisions:

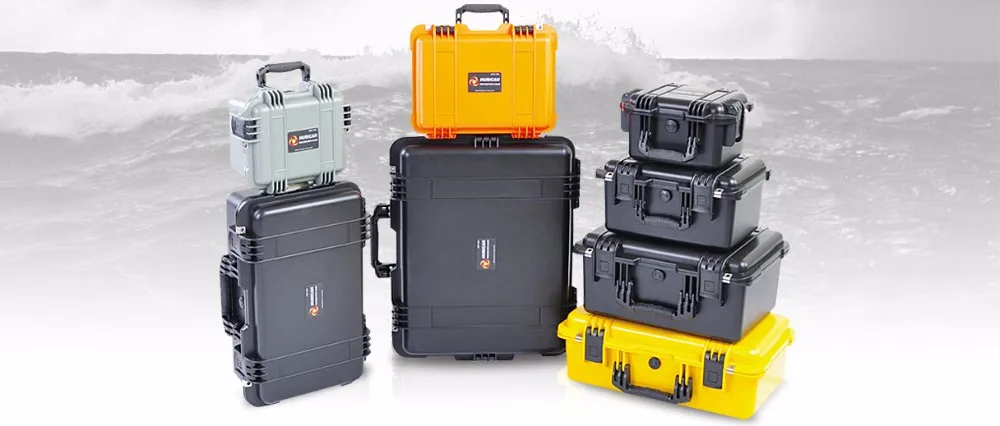

HURICAN® Protective cases


Instrument Enclosures


DIN Rail Enclosures


Aluminum Extrusion Enclosures


CATV Amplifier Enclosures
