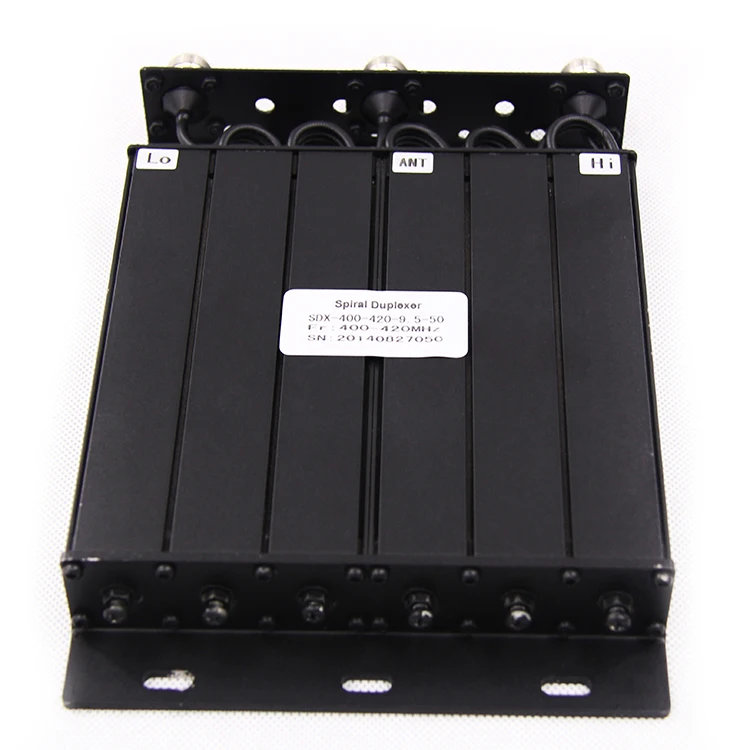

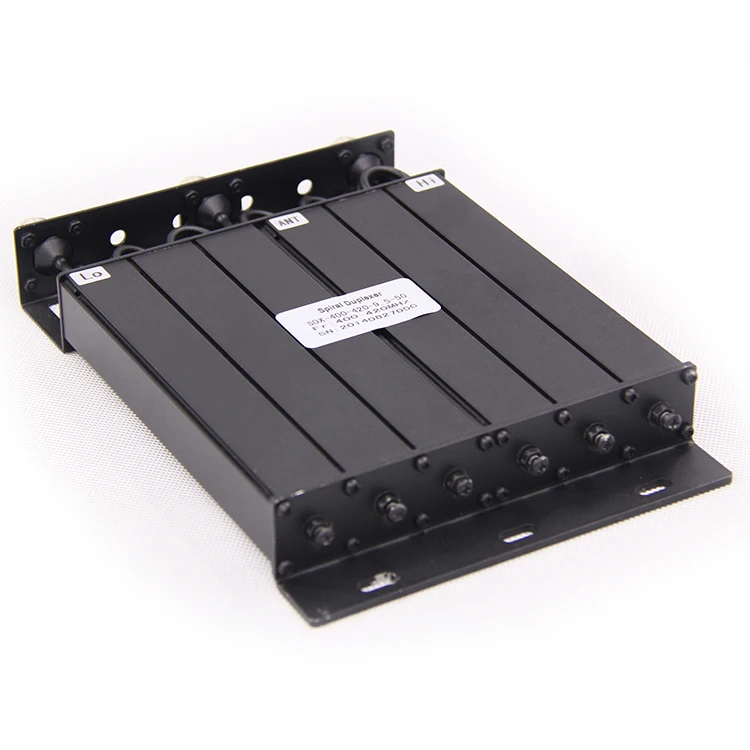

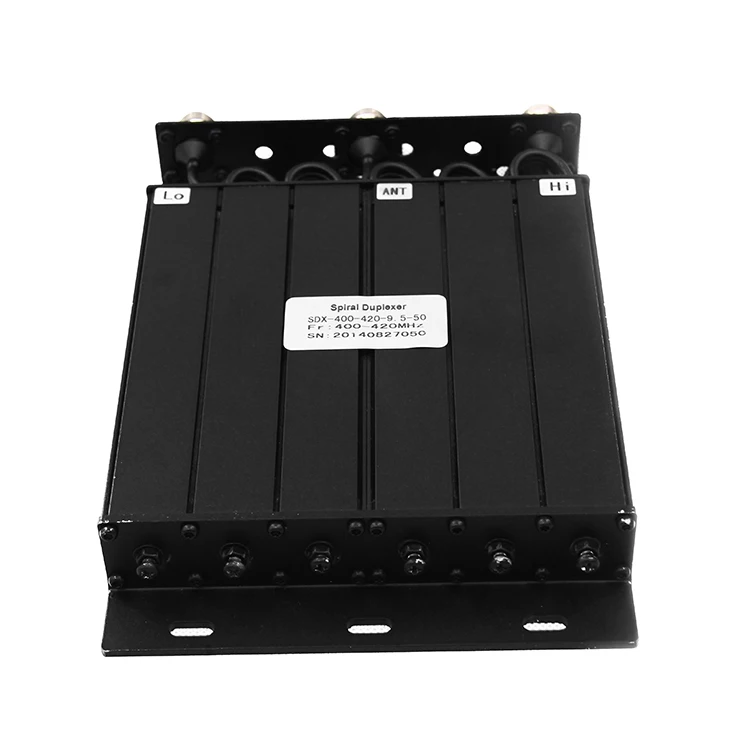

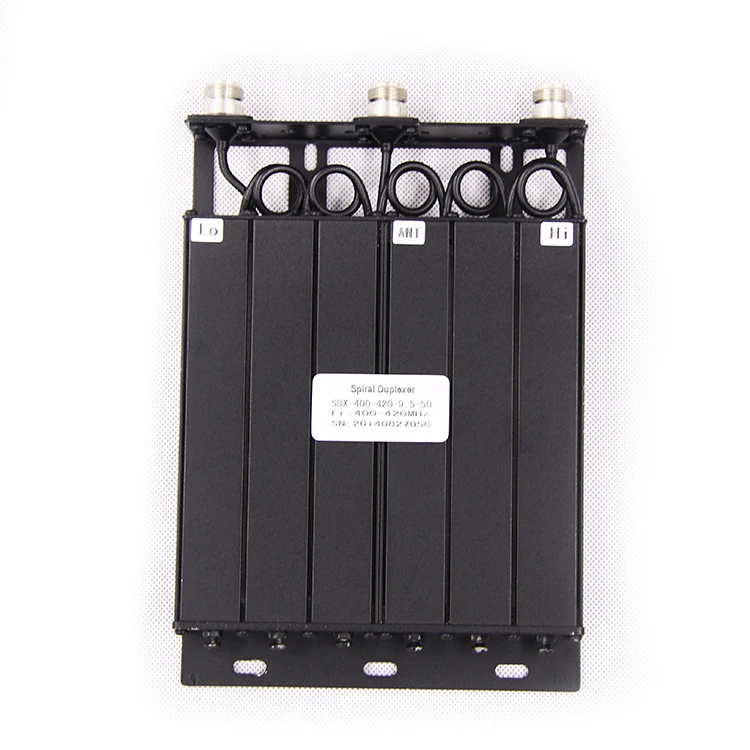

High Quality Factory 400 420MHz 50w N F / BNC F rf duplexer vhf uhf
- Category: Telecom Parts >>>
- Supplier: Xiangyu Communication Technology Co. Ltd.
Share on (60718864181):
Product Overview
Description
Product Description
| Item | Technical | ||
| Model | Frequency Band | Tx/Rx split range | |
| Specification | DX-400-420-9-50 | 400-420 MHz | 9 MHz |
| DX-440-450-6-50 | 440-450 MHz | 6 MHz | |
| Insertion Loss | ≤1.5dB | ||
| Return Loss | ≥16dB | ||
| Isolator | ≥75dB | ||
| Power | ≥50W(CW) | ||
| Temperature | -30℃~+60℃ | ||
| Connector Type | N-F / BNC-F | ||

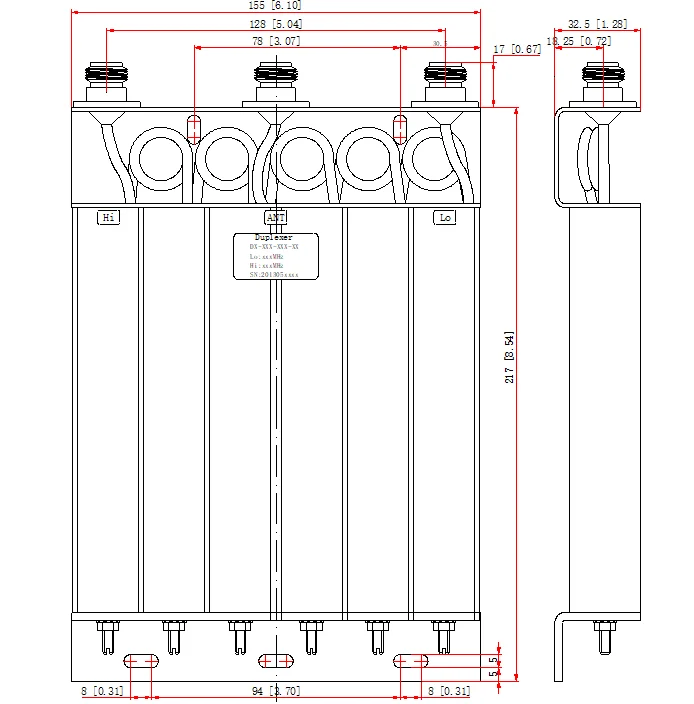

| Size | 155*220*32.5 mm | ||
| Color | Black | ||
