Automatic Kawasaki Robot ingot stacker for ingot stacking ingot casting and stacking machine

Product Overview

Description

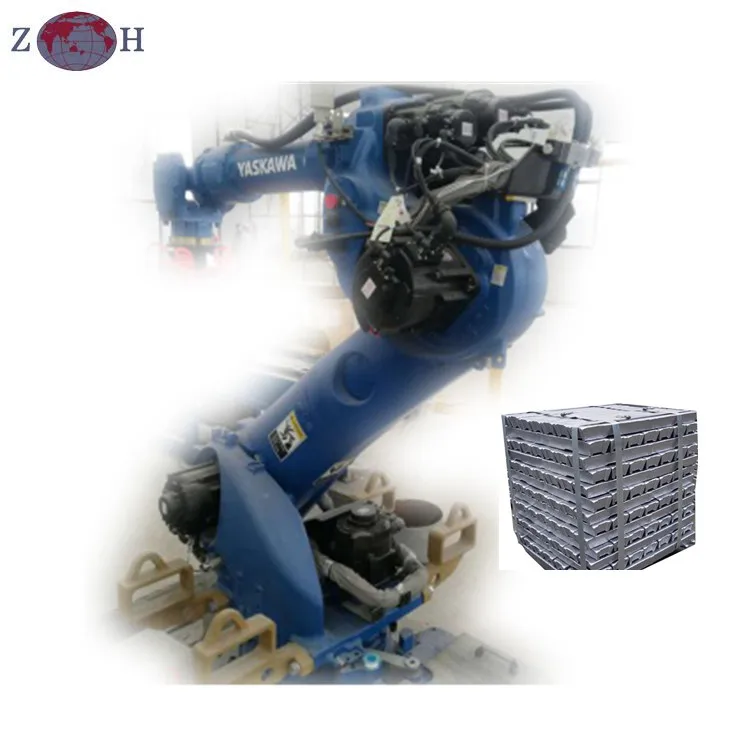

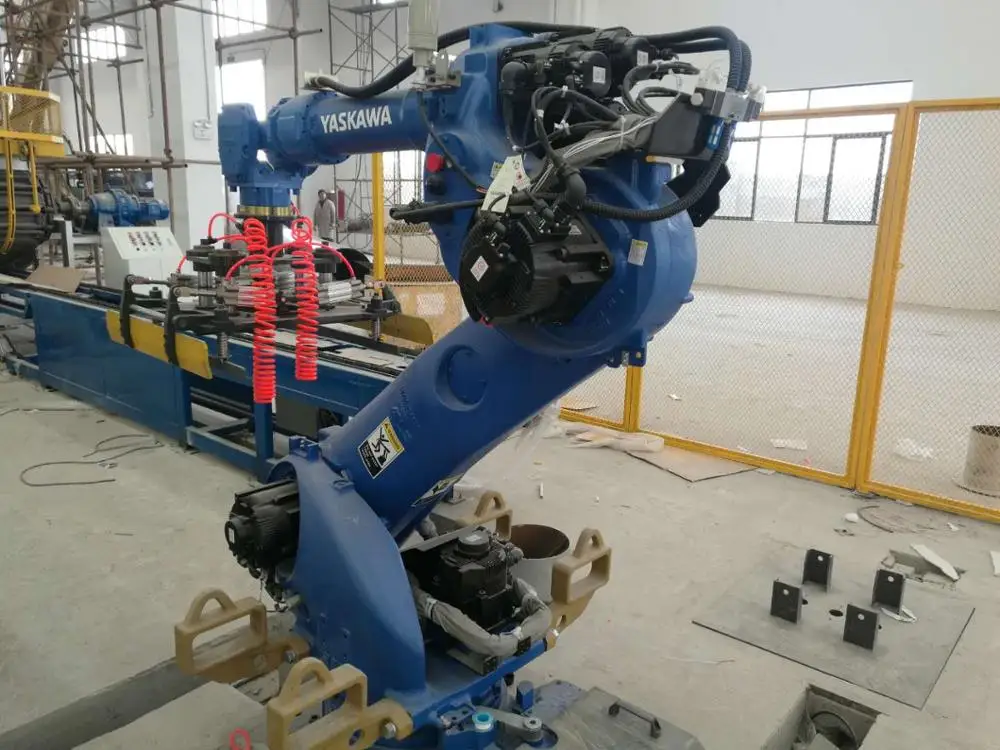

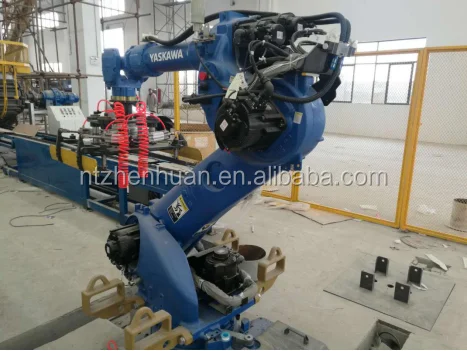

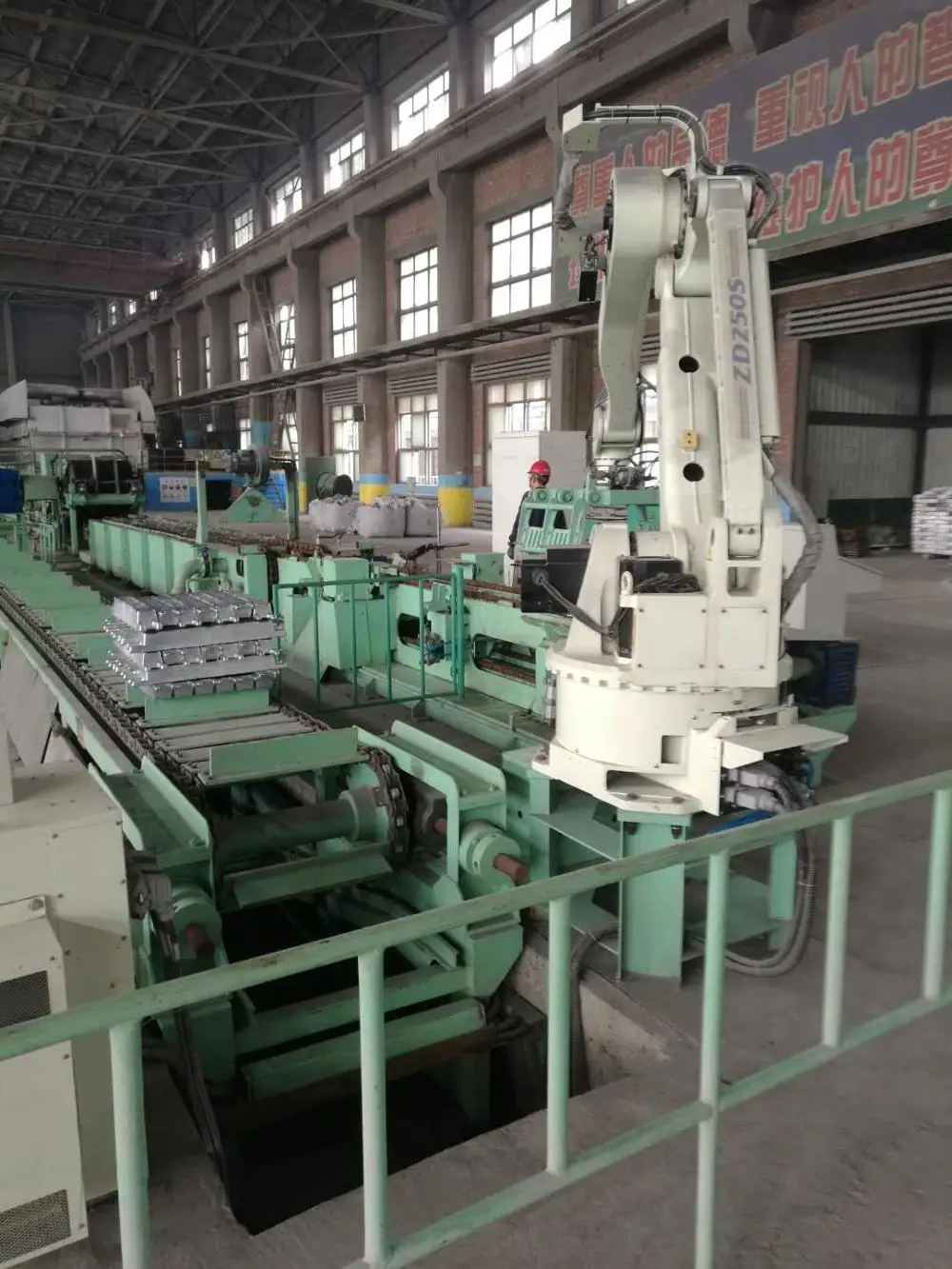

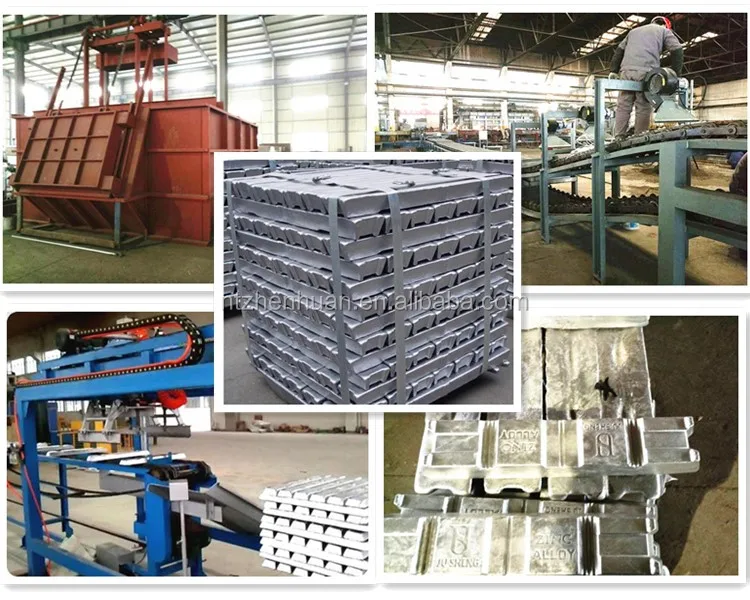

Auto ingot stacking machine/ingot stacker with Kawasaki Robot



Robot stacker unit including robot palletizer, manipulator, pneumatic device, synchronization overturn device, motor conveyor car.

Ingot stacking robot palletizer includes 0, 90, 10 and 270 degree rotation angle.



1- Robot technical data

Name	Data
Machine code	CP250L
Brand	Japan Kawasaki
Degree of freedom	4 axis
Outspread distance for horizontal direction	3255mm
Outspread distance for vertical direction	3075mm
Accuracy	±0.5mm
Rotation angle	0° ,  90°,  180°, 270
Effective lifting weight	250kg
Moving ingot number	5pcs/time



2- Cooling Conveyor data

Machine dimension	10.6 x 1.5 x 1.15m
Machine weight	5600kg
Speed	8.8m/min
Cooling method	Force-air cooling
Cooling blast volume	180m³/h
· Pitch of conveyor chain	63.5m
· Driving device	Motor transmission



3- Stacker

Max. capacity is 16tons/hour.

The device includes stacker robot, synchronous reversing device, stacker platform, array device, clamp force and so on.



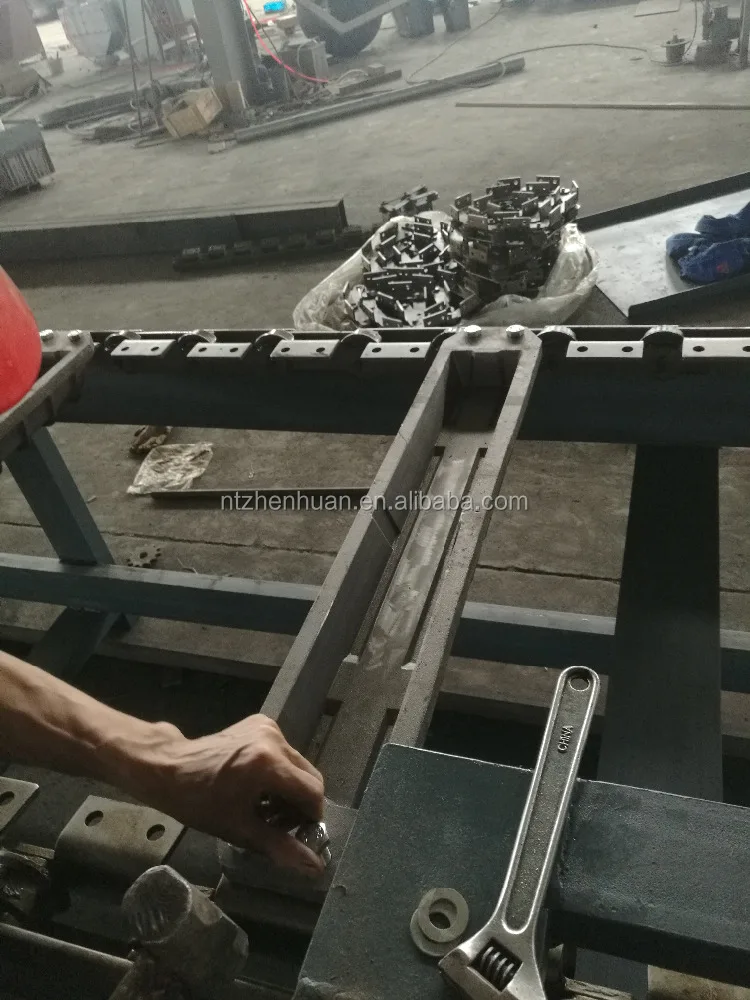

4- Conveyor

This device includes drive sprocket, tensioner sprocket, transmission device, chain, signalling device, pneumatic packing device, and hoist device.

Device dimension	12 x 1.2 x 0.8m
Device weight	4000kg
Speed	5m/min
Pneumatic packing device	Model: A383, FROMM, Italy, Tensioning force: 15000N Weight: 24kg Steel strip size: 32.0 x 0.8-1.3mm



5- Pneumatic system

Supply gas pressure	≥ 0.6Mpa
Gas consumption	2m3 /min
Pipe diameter	60mm



6- Electronic control system

PLC	Mitsubishi, Japanese
Servo motor and control system	Chinese







We also provide whole production line for aluminium ingot, billet, sheet and other aluminum products.
