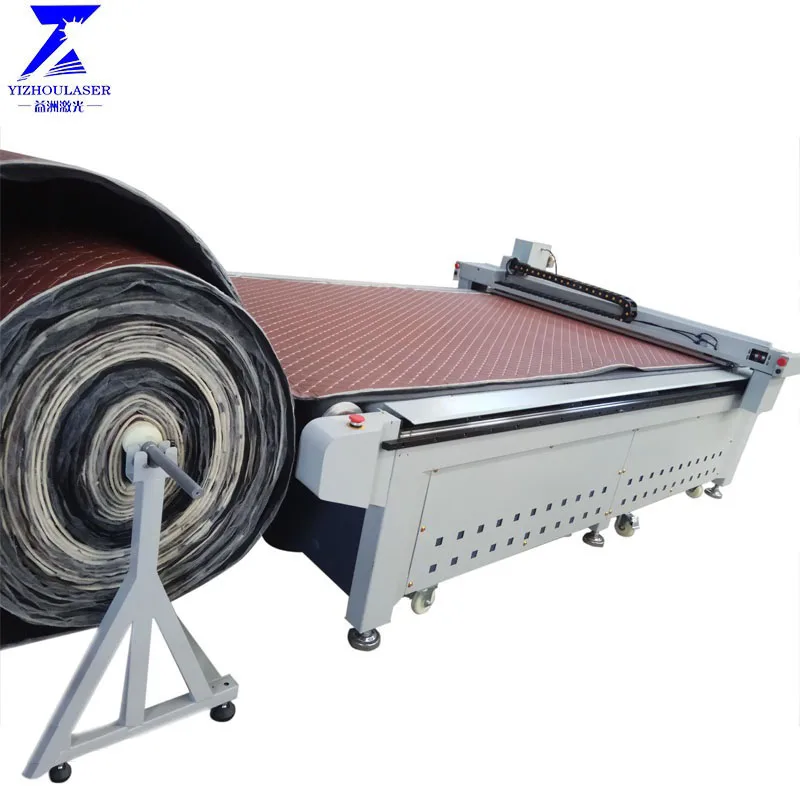

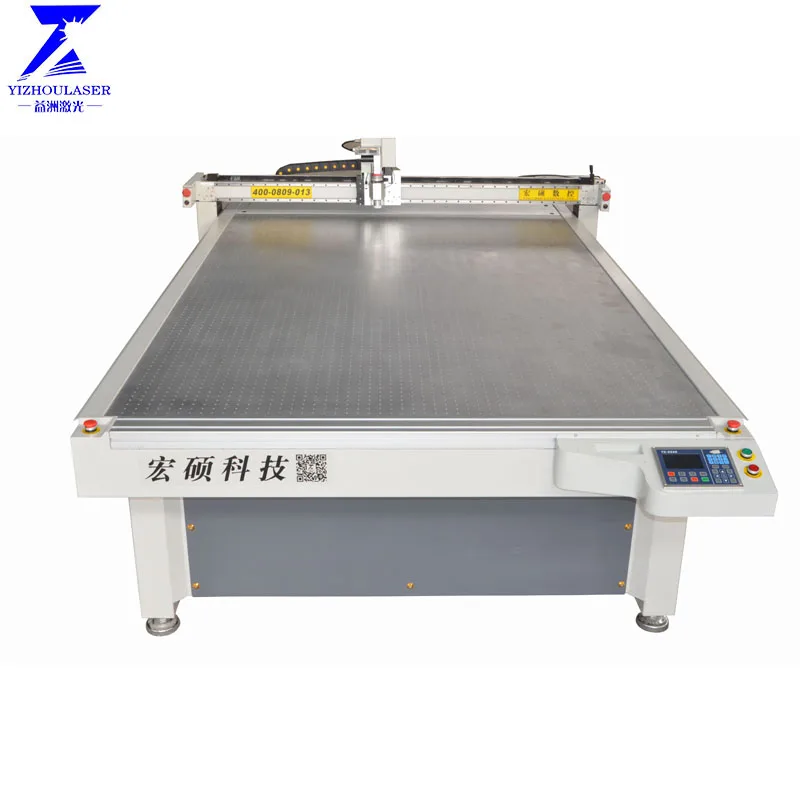

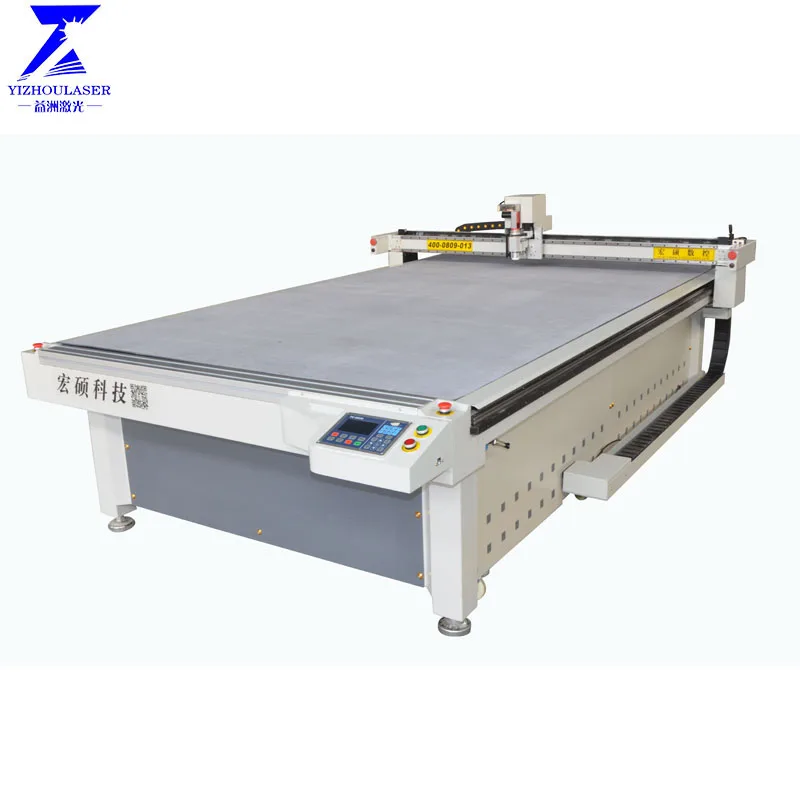

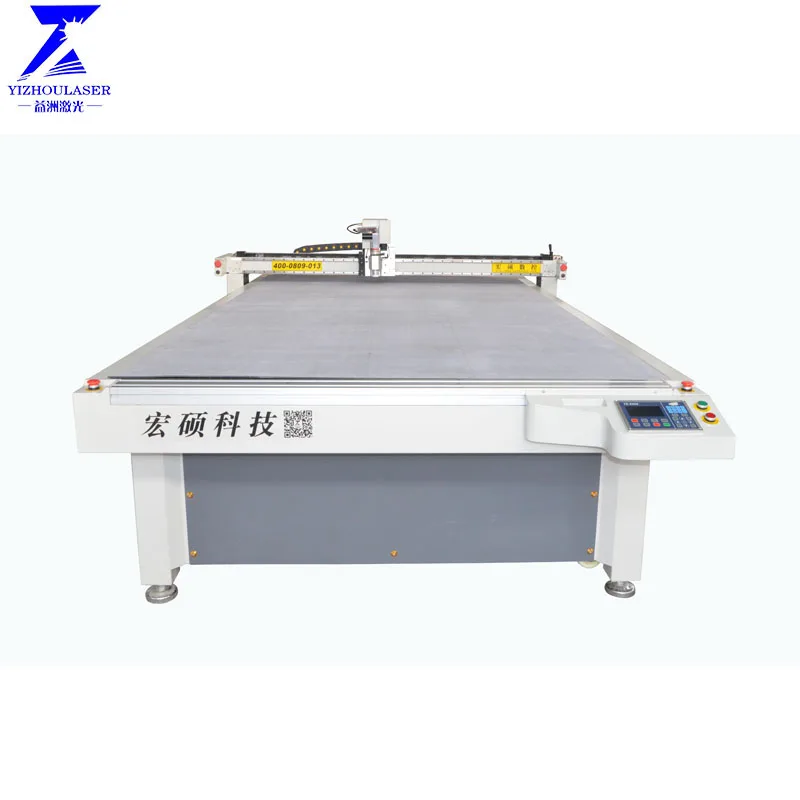

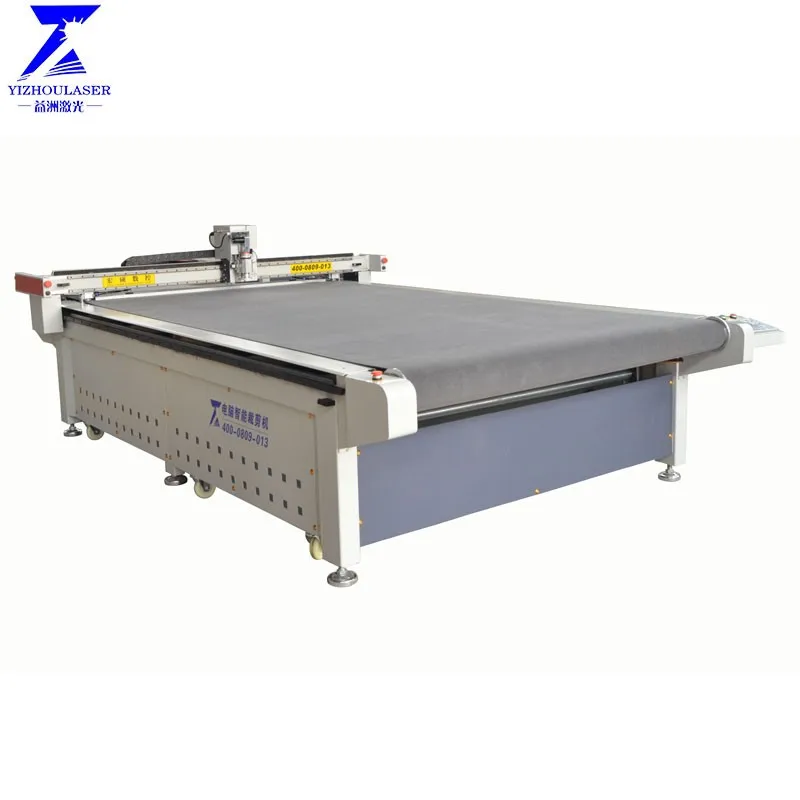

Профессиональный ЧПУ генераторный нож, режущий станок для коврового покрытия, резиновой коробки

Name

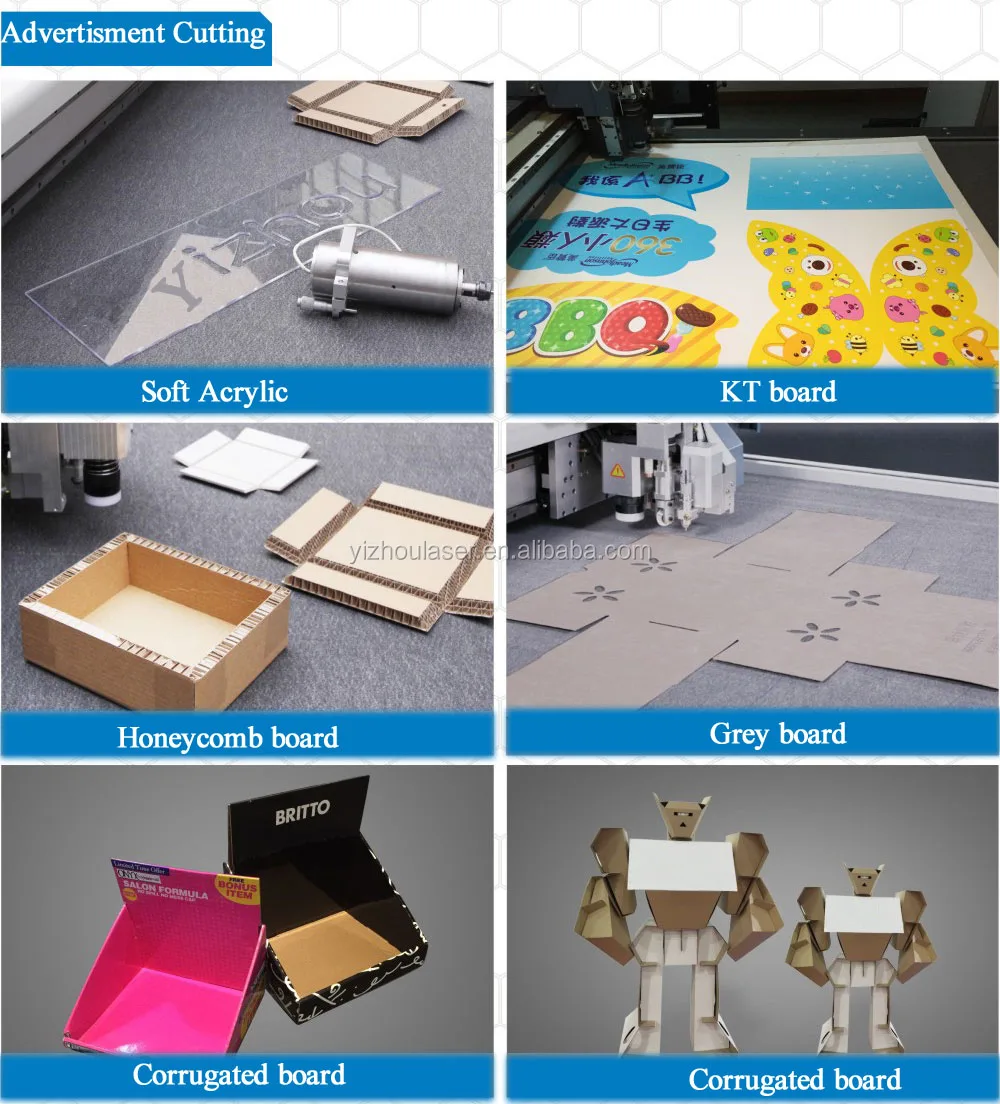

Professional CNC Oscillating Knife Cutting machine for Leather Carpet Rubber Carton

Working size

1600*2500mm|600*900mm|1600*1000mm|2000*3000mm

Model

YZ1625

Max.cutting thickness

30mm

Characteristic

Computer operation,data transmission fast

Cutting speed

0-1200mm/s

Motor and driver

FUJI digital servo motor and driver

Oscillating Knife frenquency

18000 rotate/min

Drawing pen type

Gel pen, mark pen, ball pen, silver pen

Knife property

8 different types of cutting property, half cutting, complete cutting settings

Material fixing method

Intelligent divisional vacuum absorption

Machine resolution

0.025mm

Software resolution

0.025mm

Transmission interface

RJ45 Ethernet port

Gearing

PMI Linear guide and gear rack

Memory

8MB

Software program

HP-GL and GP-GL drive language

HMI

Resistive touch screen

Voltage/ Frequency

AC220V±22V\\50±1Hz

Air pump voltage

AC380V±38V\\50±1Hz or 220V optional

Air pump power

380V 9KW or 220V 2.2KW*4KW

Packing size

2.2*3.15*1.3m

Weight

1300KGS

Package

Standard wooden case for export
