3 phase electric induction brazing welding machine price

Share on (60719296024):


Price:

Quantity:


Product Overview

Description



Product Description


Product introduction

High quality 3 phase induction brazing welding machine price

Our leading products with IGBT series parallel induction heating technology as the core. With super audio, medium frequency inverter power supply, PLC, CNC system automation control of cohesion.





Specifications of 3 phase induction welding machine
Models
LSW-30
Working voltage
3 phase 380V, 50/60HZ
Max input current
50A
Max input power
30KW
Oscillation frequency
25-50KHZ
Cooling water flow
25 L/Min-0.1Mpa
Efficiency
95%
Duty cycle
100%
Weight
48kg
Dimension: L*W*H
690*290*600mm


Main Features of induction brazing machine:

1) Uses the Faraday principle of electromagnetic induction heating, high thermal efficiency, fast speed, good controlability and easy to implement the overall and local heating.
2)  Adopts all-solid-state power conversion module Siemens IGBT technology, high input impedance, simple driving circuit, good heating temperature, easy operation.
3) Less power consumption, safety and environmental.
4) Modular design, ease of maintaining and repairing
5) Portable, space-saving, easy to move.
6) 24hours continuous working.

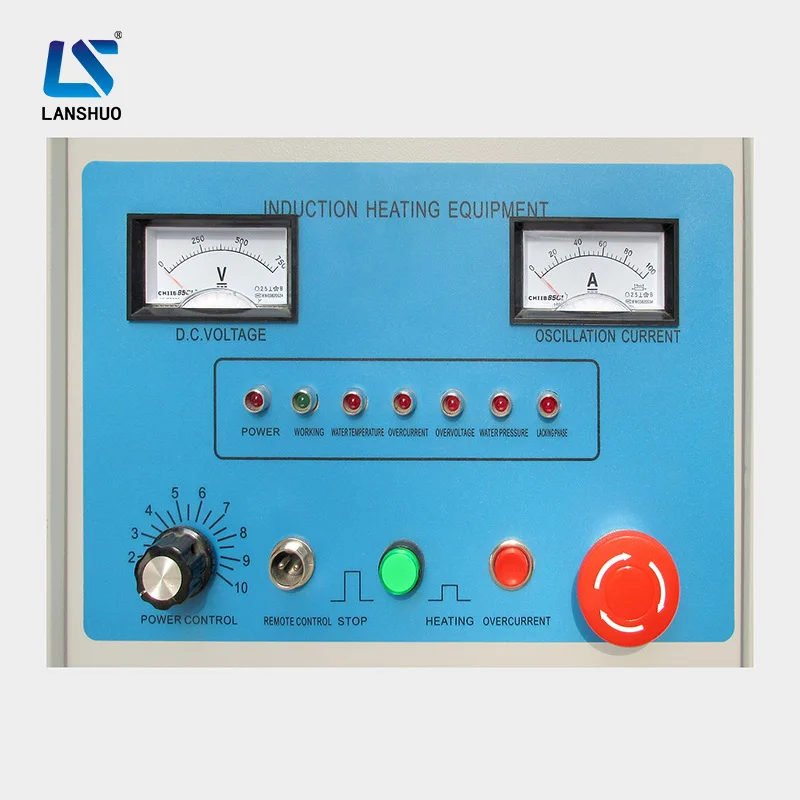

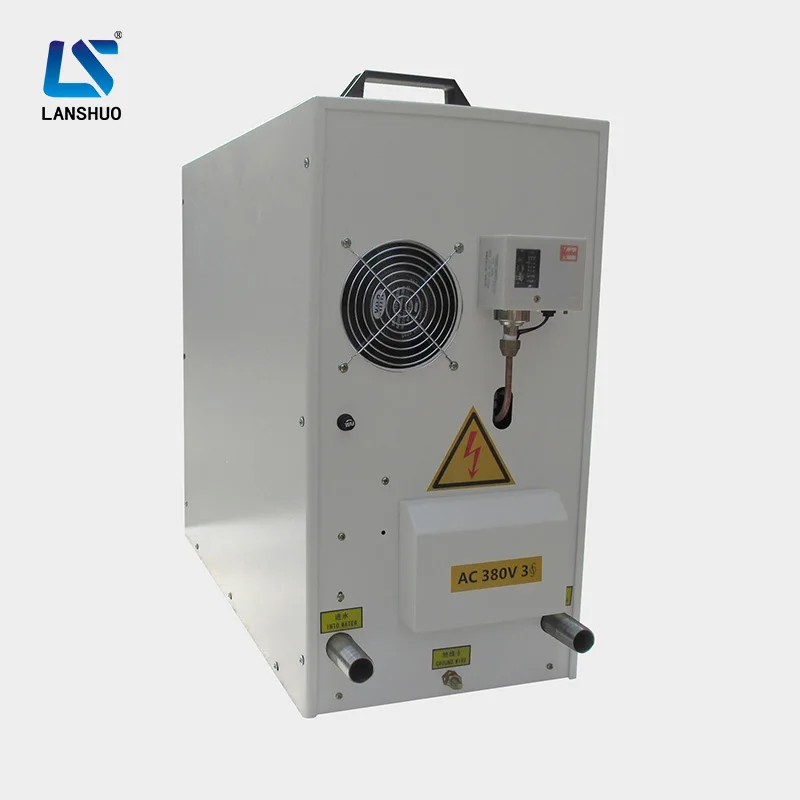

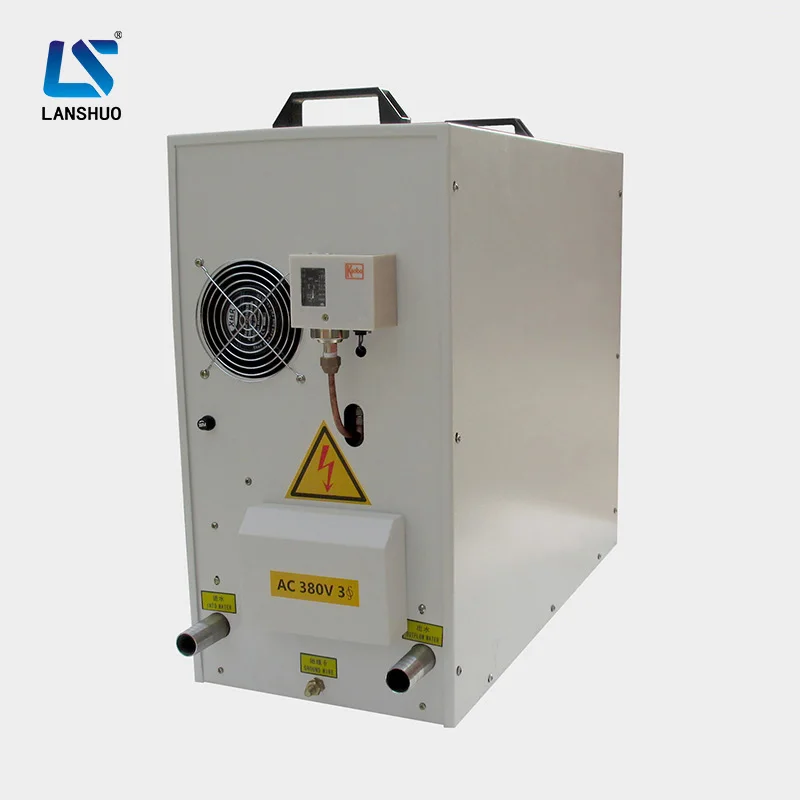

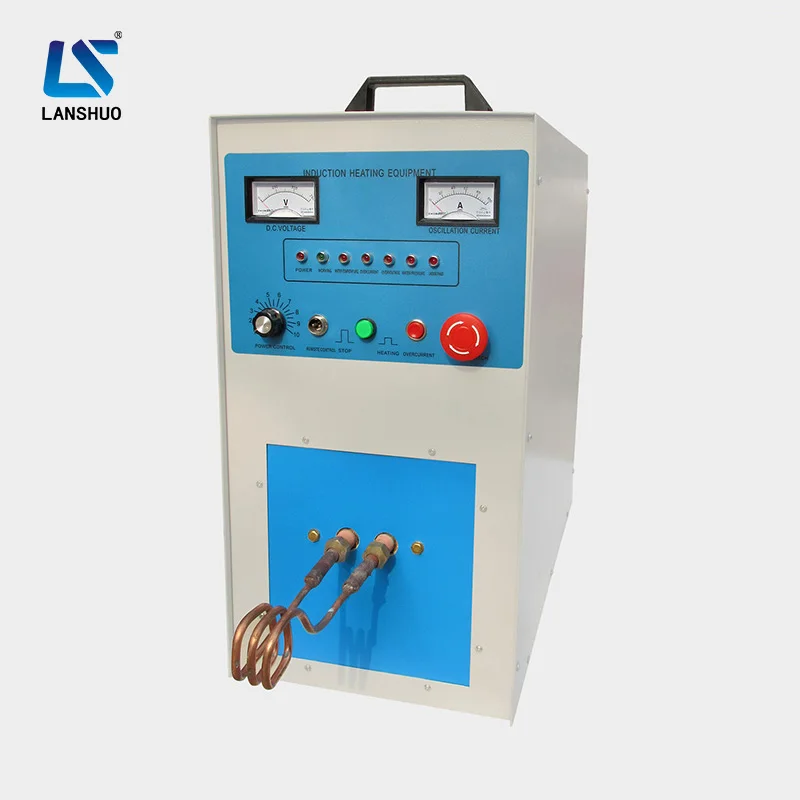

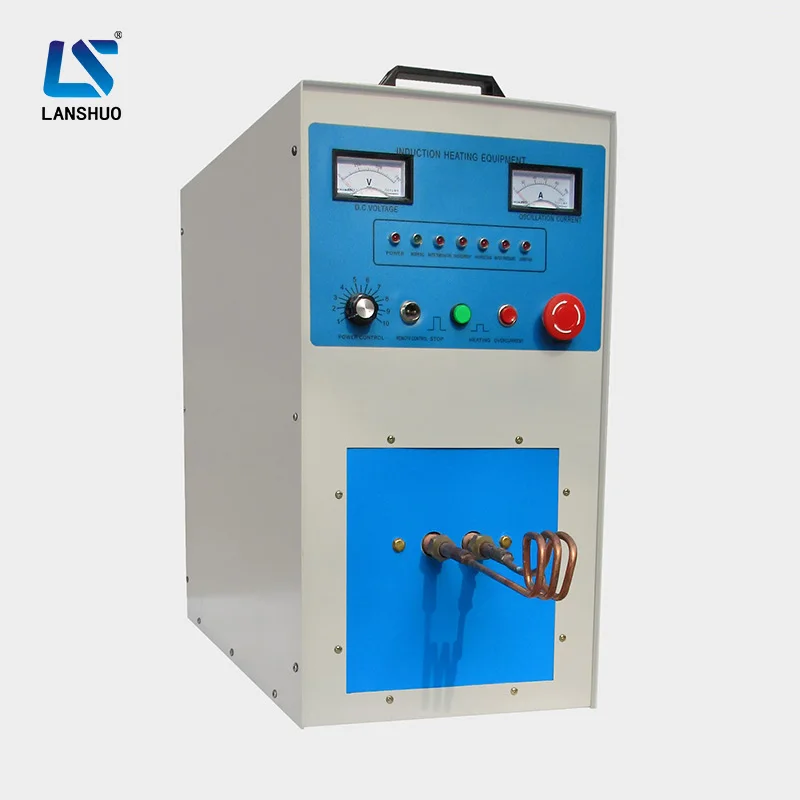

Detailed Images






Application




Certifications




Our Company




1. Zhengzhou Lanshuo Electronics Co.,Ltd. is located in Zhengzhou National High-tech Industrial Development Zone. We are specialized in the R&D, design, design, production, complete sets of high frequency medium frequency induction heating machine, with importing & exporting managerial authority, and a import & export of industrial furnace franchising enterprises.
2. Our company is strong in technology research and development center, has 12 years of industry experience.
3. we have a lot of senior enginner and technical researches, both of them with advanced and reliable innovative capacity.
4. Our machines have passed the test of CE. Besides, Lanshuo Electronics Co.,Ltd can provide specific application oriented equipment to meet individual needs of our customers and assist you with automation of the machines offered.



Packing & Delivery


As for packing:
Machine is always wrapped with a film layer, and then packed with a paper box.The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.





As for delivery:
Availabla to all kinds of transport  mode;
Shipped in 5 days after payment





Our Service


1. Reply inquiry in 24 hours
2. Experienced staffs answer all questions in fluent English
3. Customized design is available
4.Overseas on-site technicians service if required.
5. Special discount and protection of scales are provided to our distributor
6.  Long-term technical service.
