New design CE approved quality hvac air duct making machine for air square pipe forming

Product Overview

Description

2019 new design CE approved quality hvac air duct making machine for air square pipe forming



Air pipe duct manufacture line 5 Main Features



Auto Duct V production line is composed of rack, leveling embossing, hydraulic pointed mouth and square opening, hydraulic shearing machine, joint angle displacement type nip machine, manipulator grabbing assumed a feeding platform, plate double joint flange and double linked list bone molding machine, servo feeding platform, TDF hydraulic crimping machine, electric control part adopts full computer control, bending servo feeding, positioning precision, especially the “ ” word processing line, guarantee the precision of bending. The max feed speed is 16m/min. The length error is ±0.5mm. The line can be used to process TDF flange and angle steel flange duct, with simple and rapid exchange.

The line covers small area, with linear processing and high production efficiency. It can produce a small section of the “ ” word wind pipe. The min section of TDF flange can be as small as 200*200mm.



Air pipe duct manufacture line Basic equipment: (V)

* 2 sets of electric feeding rack

* Leveling, beading, punching, die opening, cutting plate machine (each 1 set)

* Displacement type joint angle reel bone machine

* An electric feeding platform

* Double linkage flange machine

* A double linkage single bone (angle iron flange machine) machine

* A servo feeding platform

* Hydraulic bending machine

* A set of computer control system and software production

* An electrical cabinet

Air pipe duct manufacture line Technical data



Model	Plate  thickness  range (mm)	Plate  width (mm)	Max  working  speed     (m/min)	Max  coiler  weight   (Kg)	Weight  (Kg)	Dimensions (mm)
SDJL-V	0.5-1.2	1300	16	6000*2	9500	18000*3500*1300
		1600			10000	18000*3800*1300

 Air pipe duct manufacture line details photos

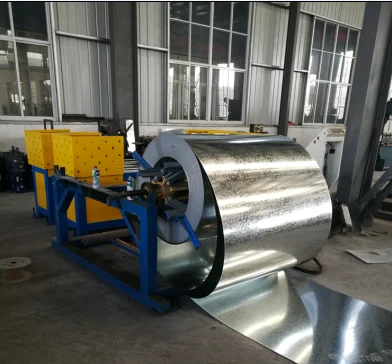

 Electric feeder rack-auto feeding-2 sets

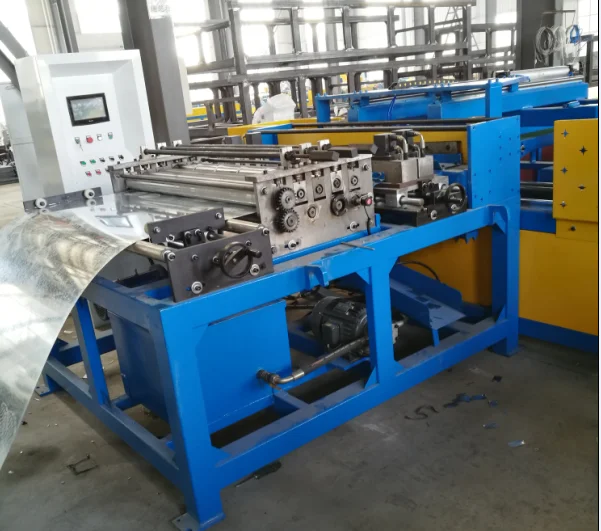

Main part to do beading-punching mouth and shearing

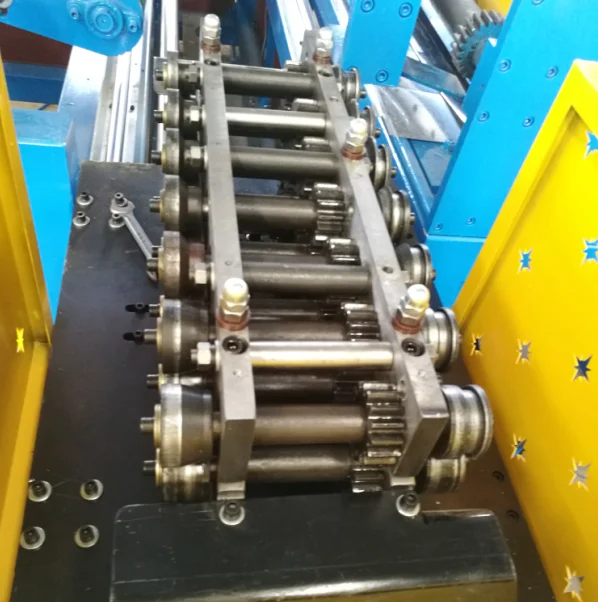

Displacement lock fomring part-high precision lock forming

Double linkage flange forming part--High quality bearing to ensure the

TDF flange making

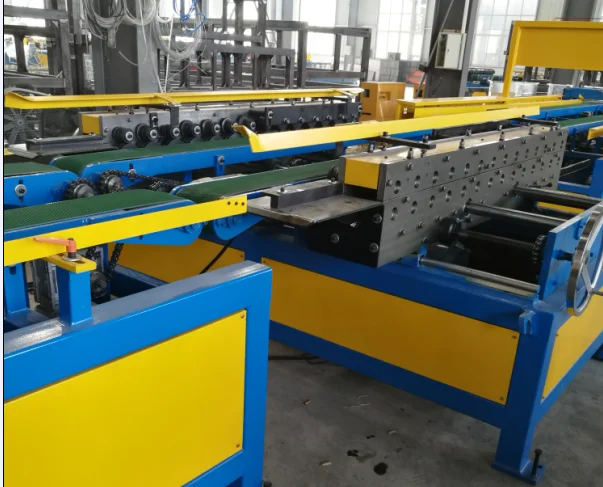

Transport belt with robot-transport the plate fast and right

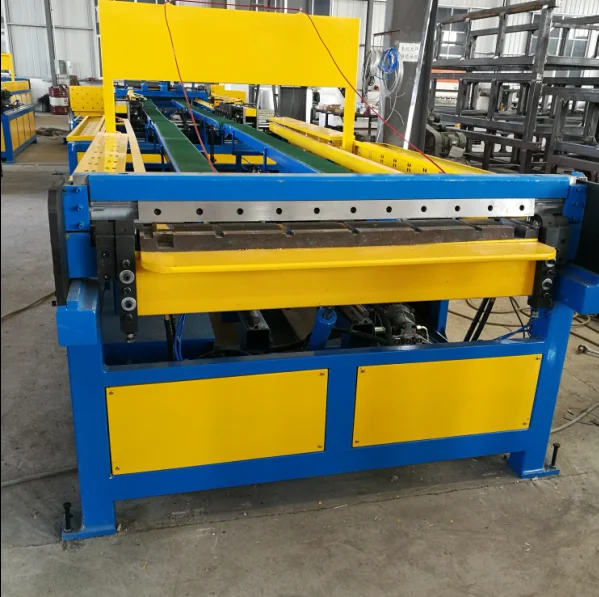

Folding part-To fold the plate to be aire pipe





The ending products show:





FAQ

*RBZG has our own factory and brand; Our machines can match all the CE standard or more strict ones.

*Quality assurance: 2 years warranty and 100% quality inspection before packing.

*Service:Impeccable after-sale service, and all your problem will be solved within 24 hours.

*Price: Can be negotiable according to the qty.

*MOQ:1 set.

*Howtovisit:You can fly to NanJing LuKou airport directly,you can also take highspeed train to Nanjing South Station from other city in China.We will pick you up in   the airport or Train station.



Any interest, welcome to contact with us
