200mm resin lap disc for grinding gemstone
US $2.20-$8.45
Made In China abrasive tool taper cup grinding wheel Directly From Factory
- Category: Grinding Wheels >>>
- Supplier: Jiangxi Star Grinding Wheel Co. Ltd.
Share on (60719801416):
Product Overview
Description

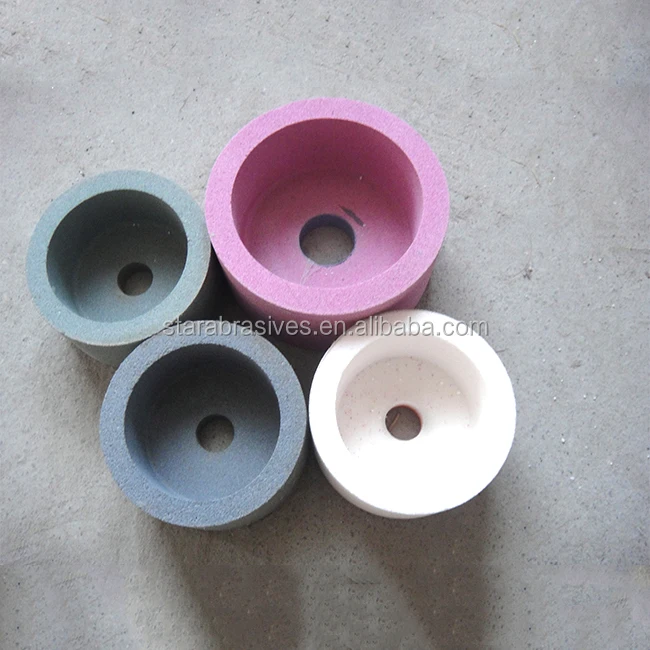

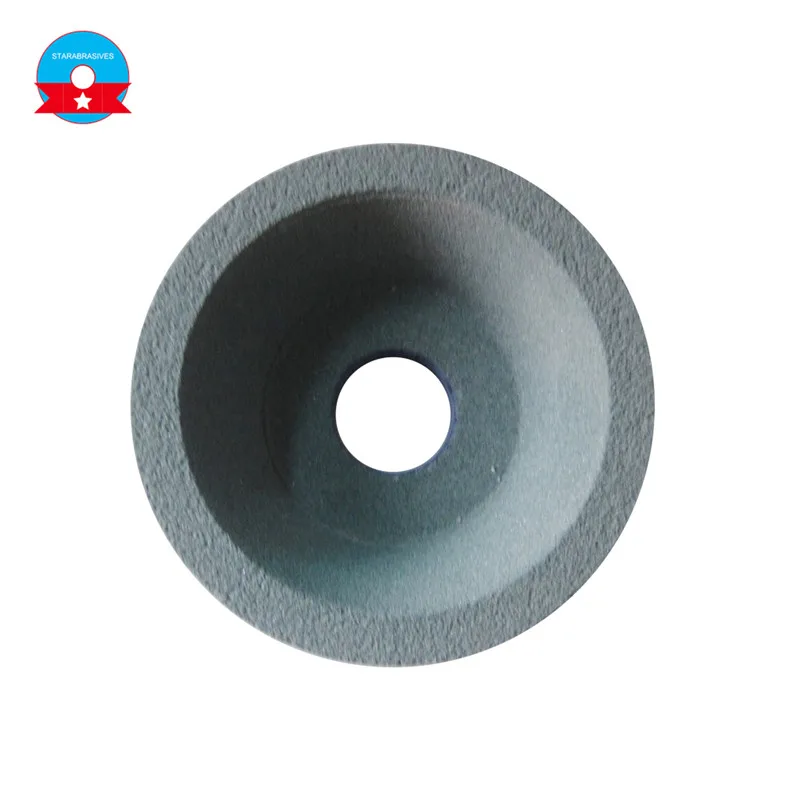

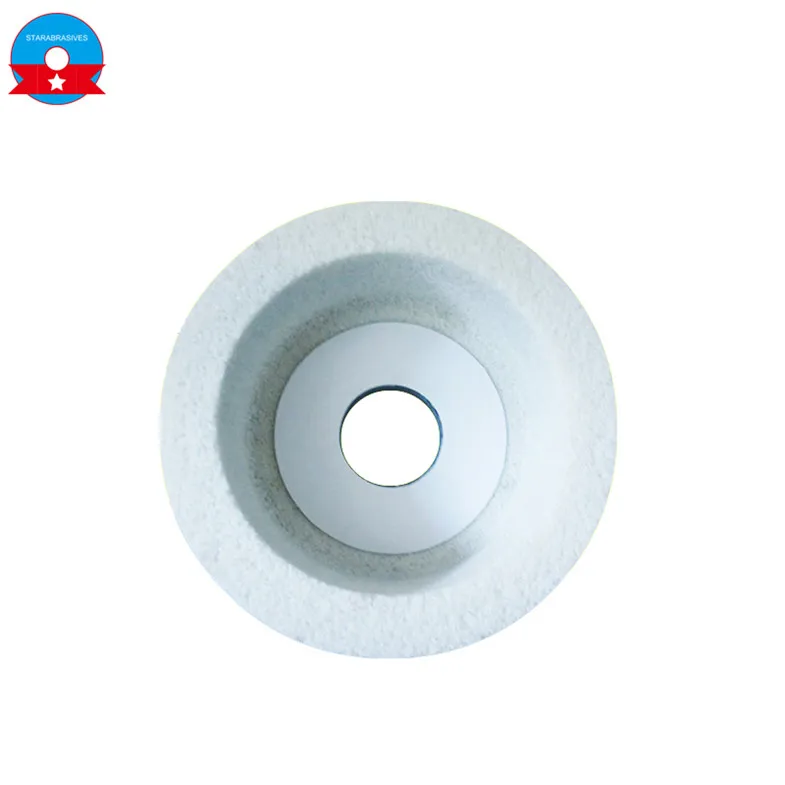

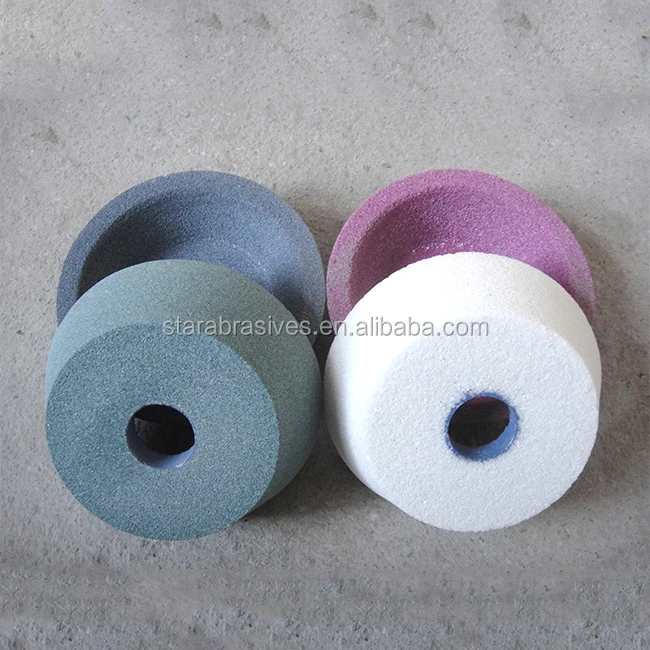

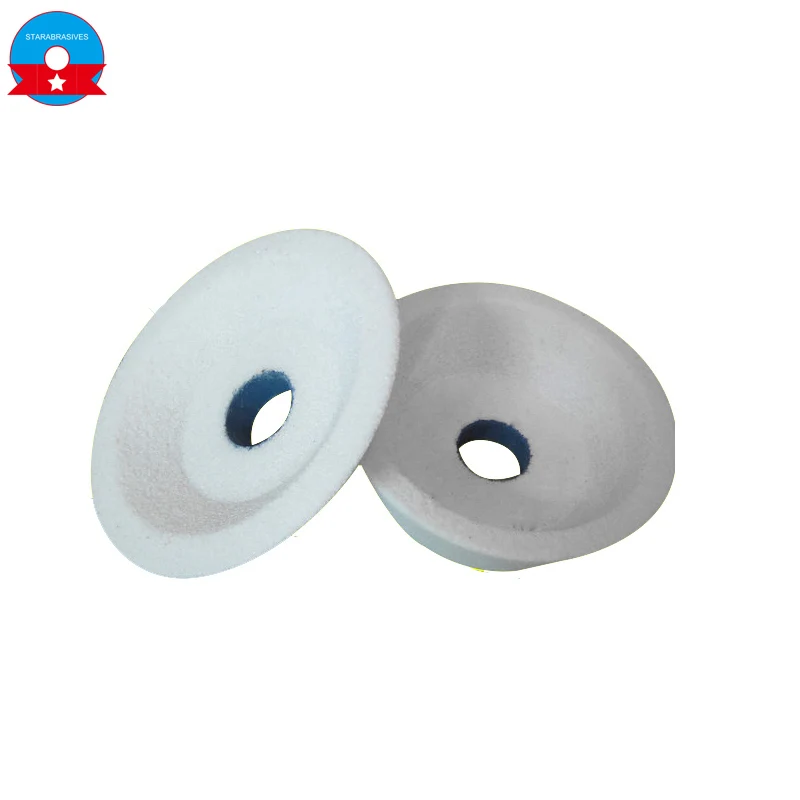

Made In China abrasive tool taper cup grinding wheel Directly From Factory
Product Parameter
Shape: bowl,Taper cup
Material: A, WA, C, GC, brown fused alumina, white fused alumina, green silicon carbide, black carbon
Hardness: D/E/G, G/H/L, K/L, M/N ,P/Q/R, S/T ,Y
Grit: 36#-240#
Group number: 5 or 6
Combining with the agent: Ceramic binding agent or resin binding agent
Max. speed: 30m/s
Application: Grinding knife, drill and saw blade
Size: 75mm*32mm*20mm, 100mm*35mm*20mm, 125mm*35mm*32mm, 125mm*45mm*32mm, 150mm*50mm*32mm, 150mm*35mm*32mm, 175mm*63mm*32mm, 200mm*63mm*32mm
Color: Pink, black, white, taupe, gray-white, orange-red, green
| D(mm) | T(mm) | H(mm) | W(mm) | E(mm) | J(mm) | K(mm) | R(mm) |
| 50-300 | 25-150 | 10-250 | 1 | 1 | H | H | R<6 |
| D | T | H | W | E | J | K | R |
| 50 | 25 | 13 | 5 | 7 | 32 | 23 | 3 |
| 75 | 32 | 20 | 10 | 52 | 44 | ||
| 100 | 30 | 10 | 50 | 40 | 4 | ||
| 35 | 7.5 | 75 | 62 | ||||
| 125 | 35 | 32 | 10 | 66 | 55 | ||
| 45 | 13 | 92 | 75 | ||||
| 150 | 35 | 12.5 | 91 | 81 | 5 | ||
| 50 | 10 | 15 | 114 | 97 | |||
| 175 | 63 | 22.5 | 25 | 102 | 86 | ||
| 200 | 25 | 127 | 106 | ||||
| 250 | 140 | 100 | 30 | 40 | 201 | 155 | |
| 300 | 150 | 140 | 35 | 247 | 191 | ||
Any specifications are available according to customer’s requirements.
Welcome to customize by supplying samples!
