10m3/h EDI ultra pure water deionizer for pharmaceutical
Product Overviews
1. Overview:

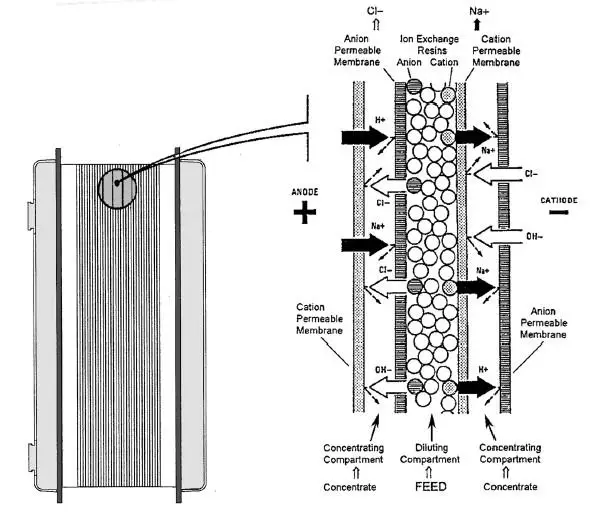

EDI(Electrodeionization)technology scientifically combine electrodialysis with ion exchange technology and substitutes the traditional ion exchange bed technique.
2. Advantages:
1.Continuous production,no need for acid and alkali regenerating, without the emission of acid and alkali solution
2.Stable quality of output water
3.Low working cost,standard design
4.Compact structure
5. Convenient operation and management
3. Application Field:
Product range can be used in to the semiconductor industry, the electronic industry, the power plant, the chemical industry, the petroleum industry, the metallurgy industry, the pharmaceutical industry, the cosmetics industry, the pulp&paper industry, the automatic industry and many other industries.
4. Operating Feed Water Specifications:
Specification
Notes
Working Range
Optimum Performance
Feedwater Source
Ro water,direct feed, or with intermediate break tank plus filter
EDI Feed Conductivity
Ionic load determines size of the working bed and polishing bed within the EDI
1-20 us/cm
1-6 us/cm
Feedwater Conductivity Equivalent
less than 50us/cm
less than 10us/cm
PH
Low ph feedwater typically indicatrs the presence of CO2 which will decrease quality
5.0-9.5
7.0-7.5
Total CO2
Combined CO2 and HCO3-
less than 5mg/l
less than 2mg/l
Temperature
5°C to 40°C
20°C to 30°C
Hardness
Ca2+ and Mg2+ as CaCO3
less than 1.0ppm at 90% recovery
Organics
TOC
less than 0.5ppm
Not Detectable
Metals
Fe,Mn,transition metals
less than 10 ppb
Not Detectable
Silica,SiO2
Typically dissolved, reactive
less than 0.5ppm
less than 0.2ppm
Oxidizers
Cl2 and O3 typically
Not Detectable
Not Detectable
Particles
Recommended direct feed partical-free RO permeate, or 1um pre-filtration of feed from intermediate tank
SDI less than 1
SDI less than 0.5
5. Product Water Quality of the Module:
Resistivity: 16~18MΩ·cm
Silica: 5~20ppb
PH: 7.0±0.2

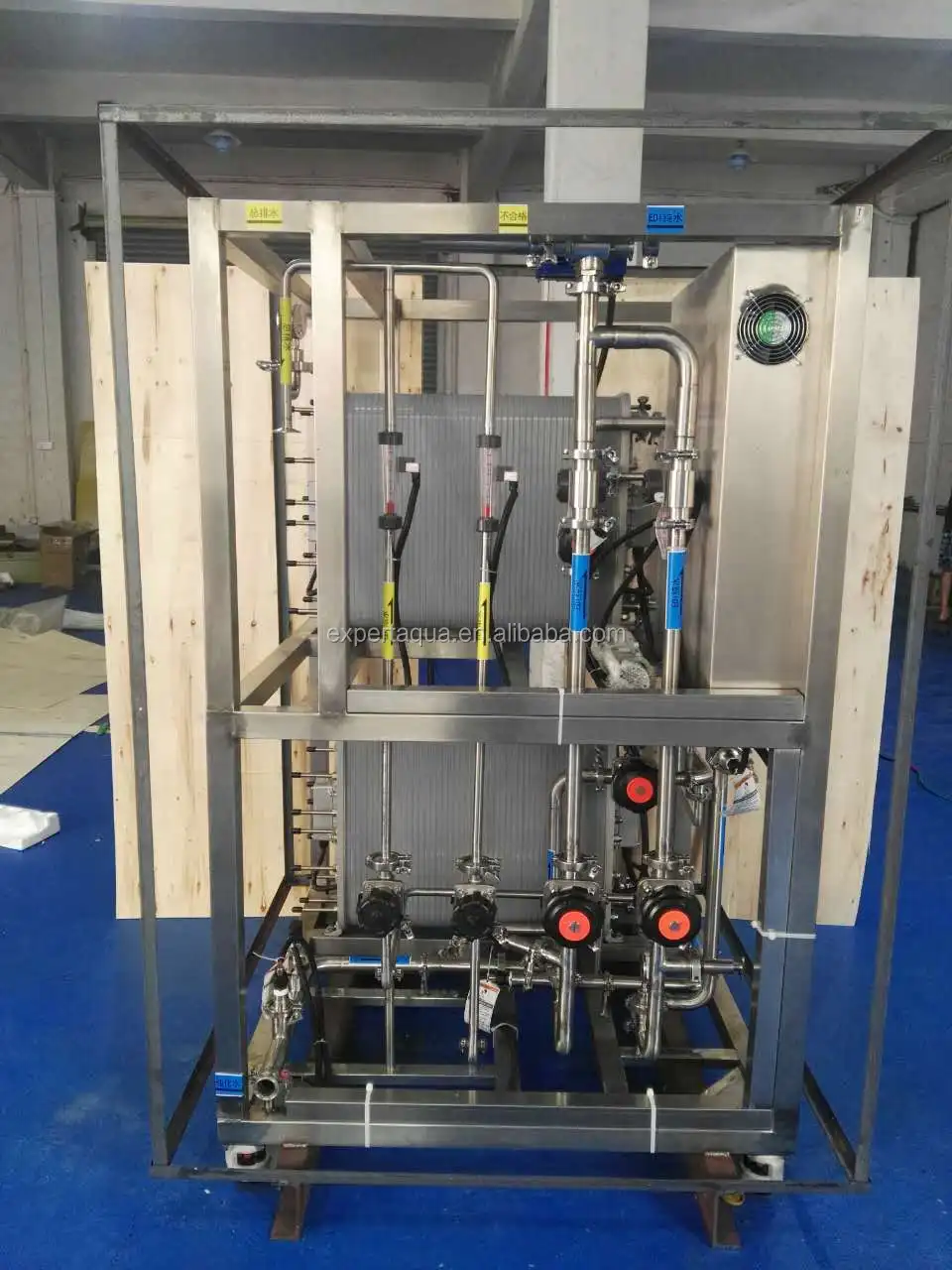

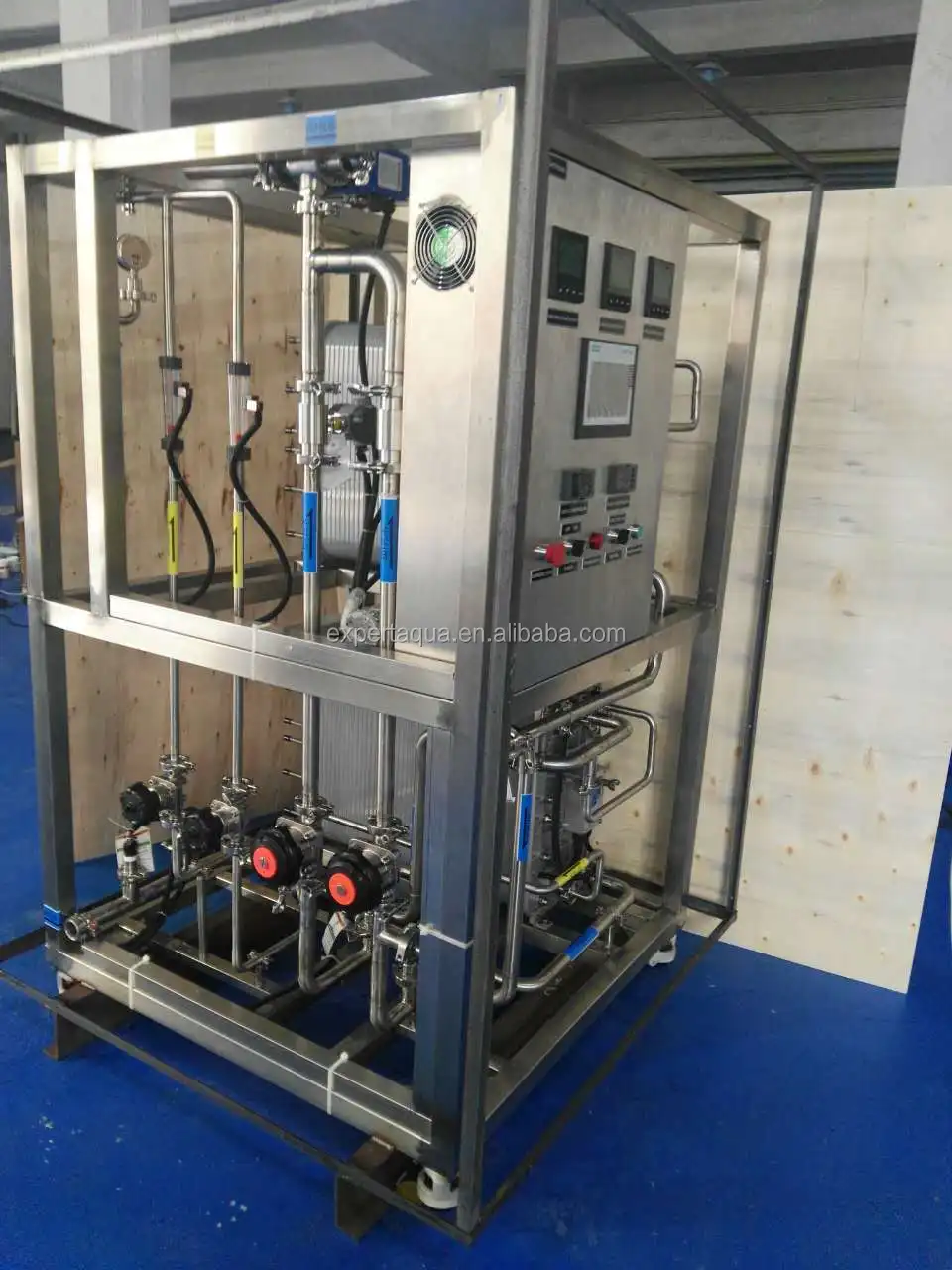

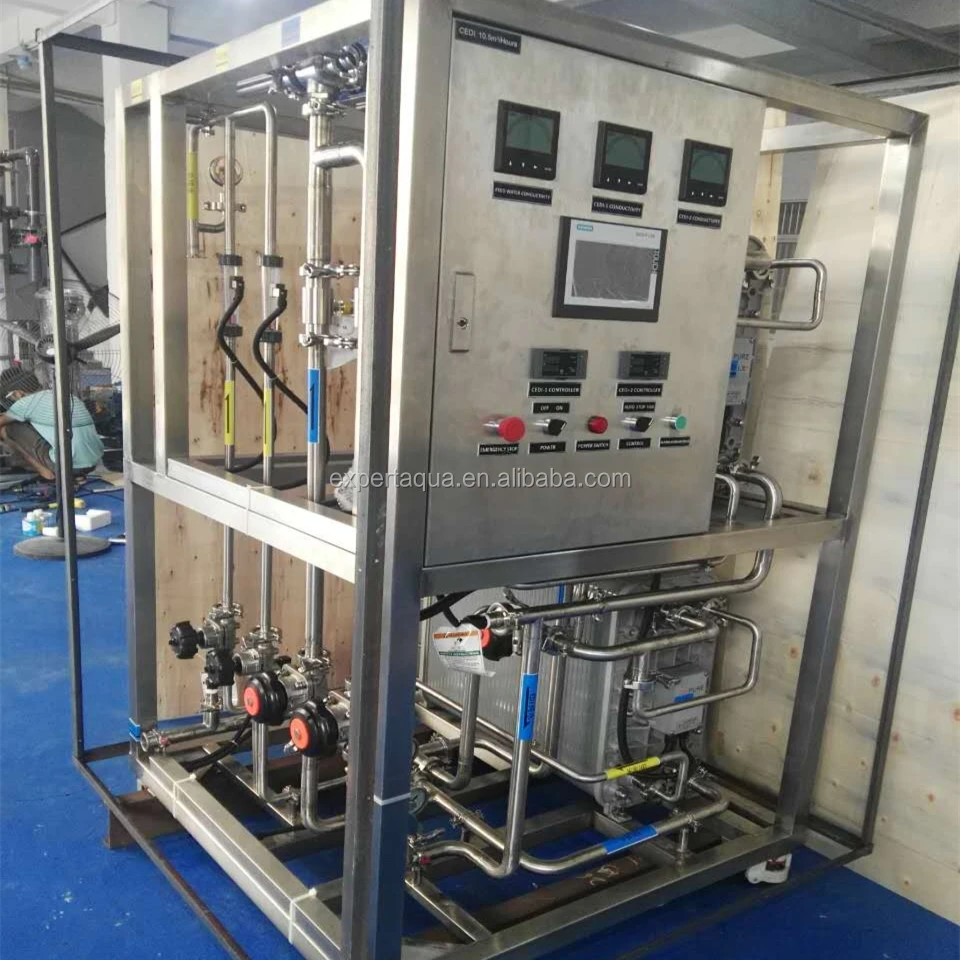

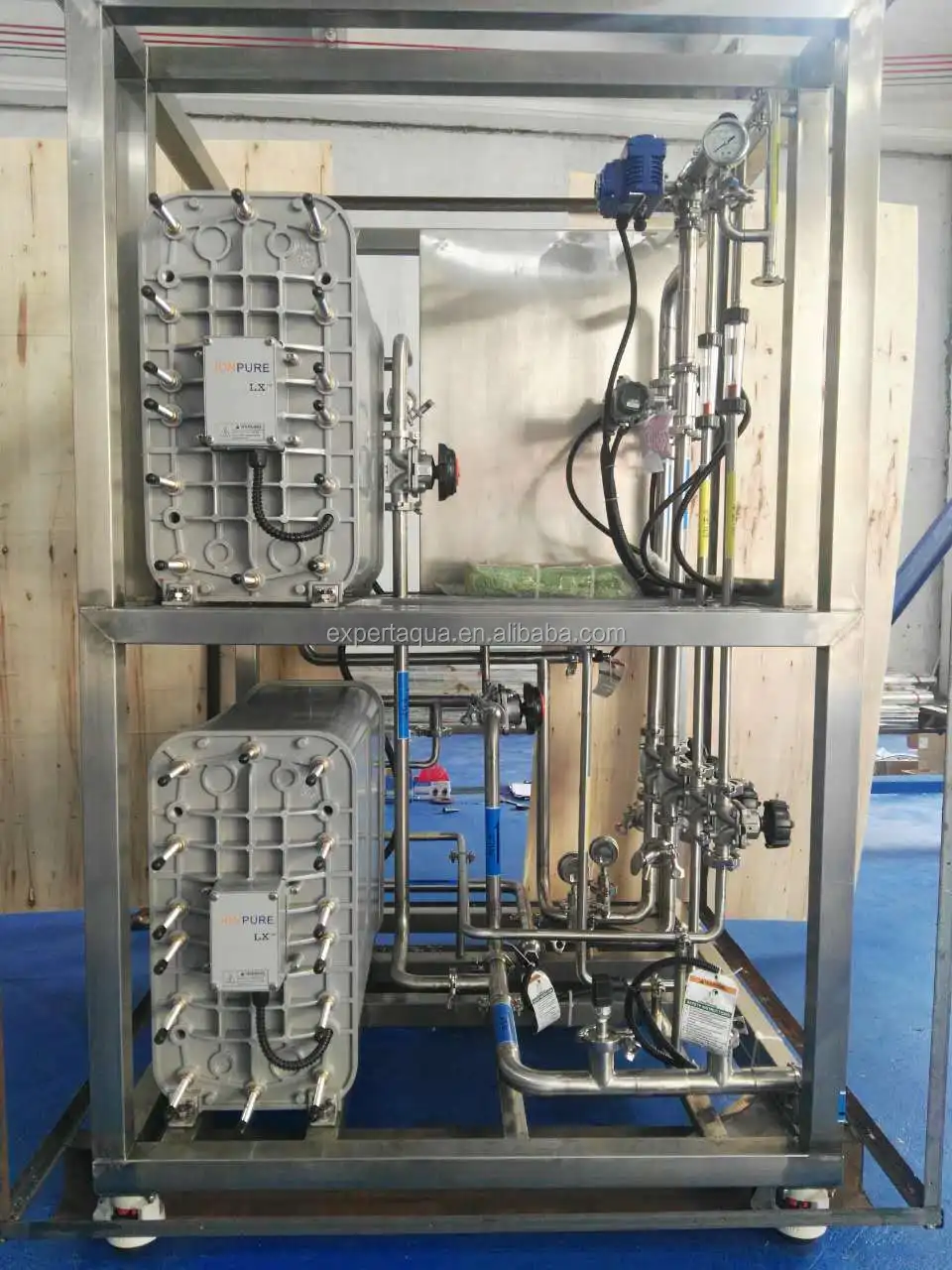

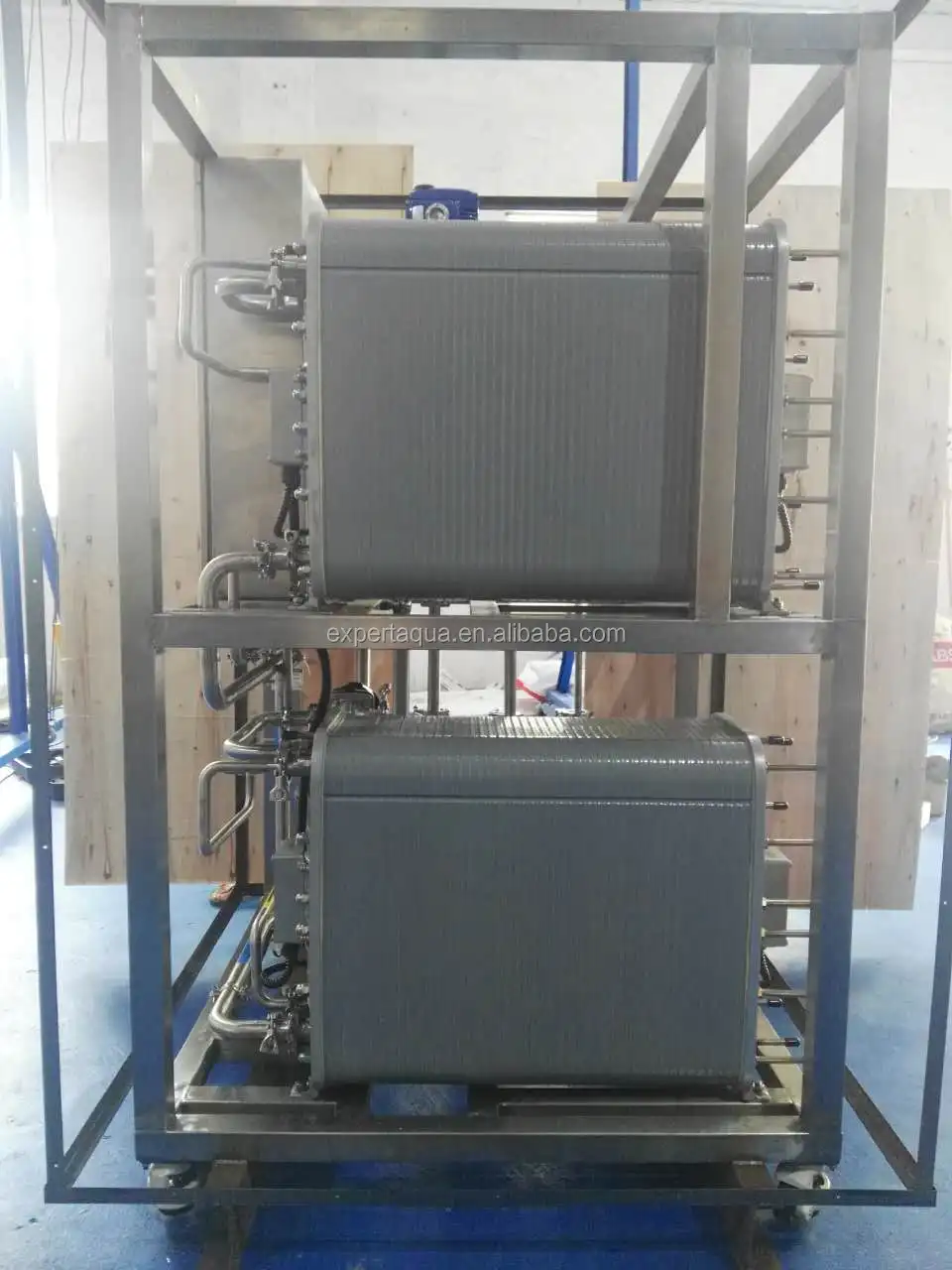

Product Display

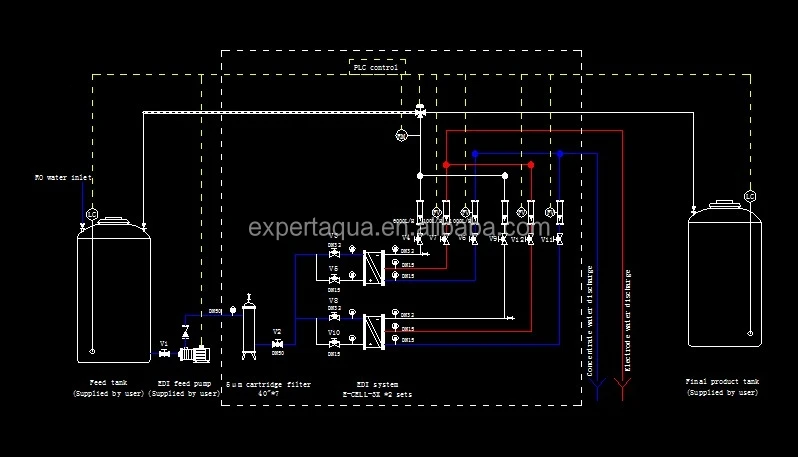

System Flow Diagram
Packaging & Shipment
We use standard export packing ways to avoid cargo damage during shipment.
Shipping: we supply shipping service and all kinds of certificate, eg.:CO, F/A, F/F....and so on.
Our Services
Project Design:
We can design any projects of the water treatment equipment to meet the demands of our clients, considering both quality of the raw water and the desired standard of the product water.
Supply Overseas Installation & Commissioning:
System will be well pre-testing before delivery. Operation manual and drawings will be provided as well. If technicians are required at installation site, all cost involved, including visa fee, air ticket, accommodation costs, etc, are paid by buyer. In addition, each technician should pay salary every day.
Supply Overseas Visiting & Meeting:
If further project discussion is required at overseas, we can arrange visiting and meeting at your site.
