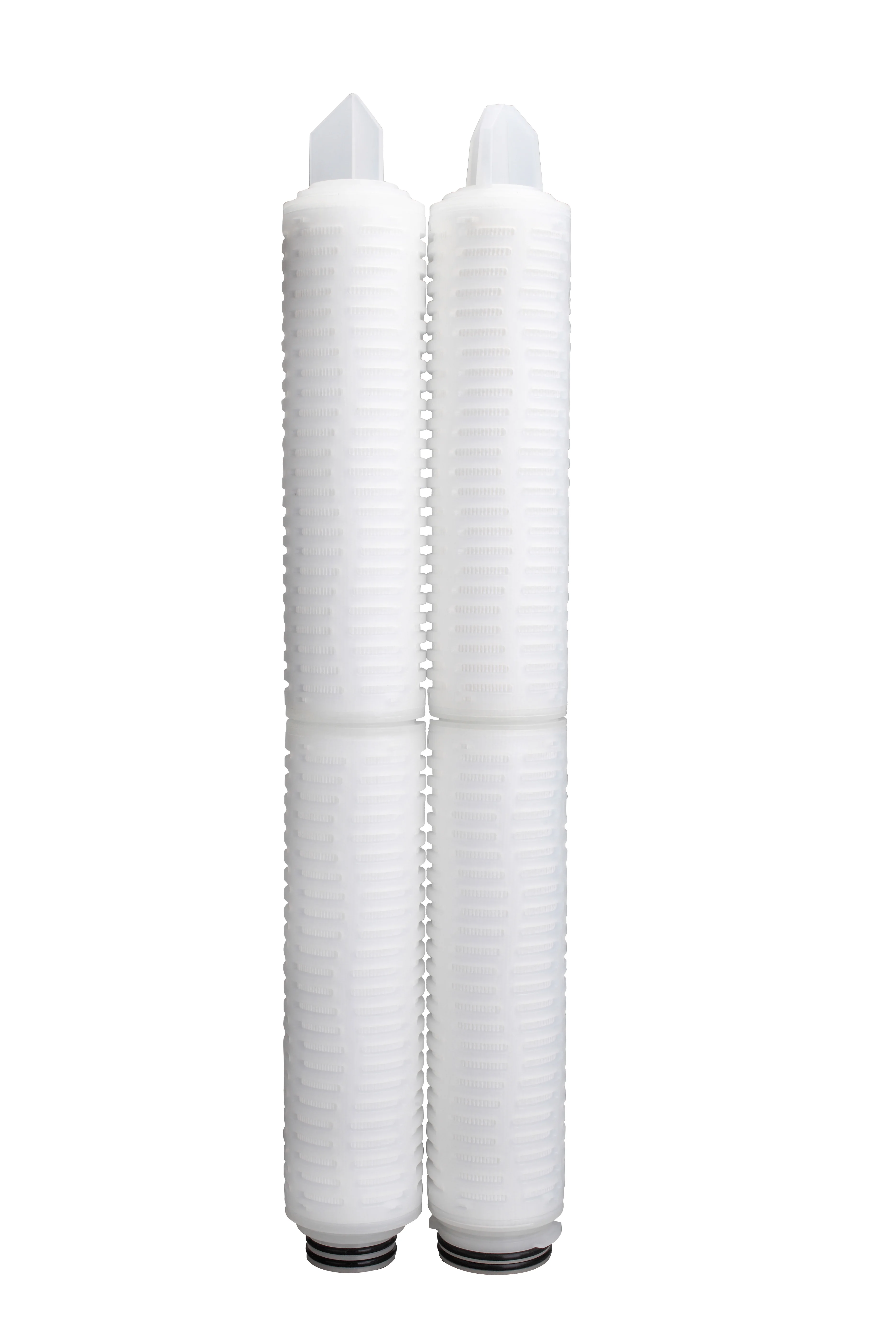

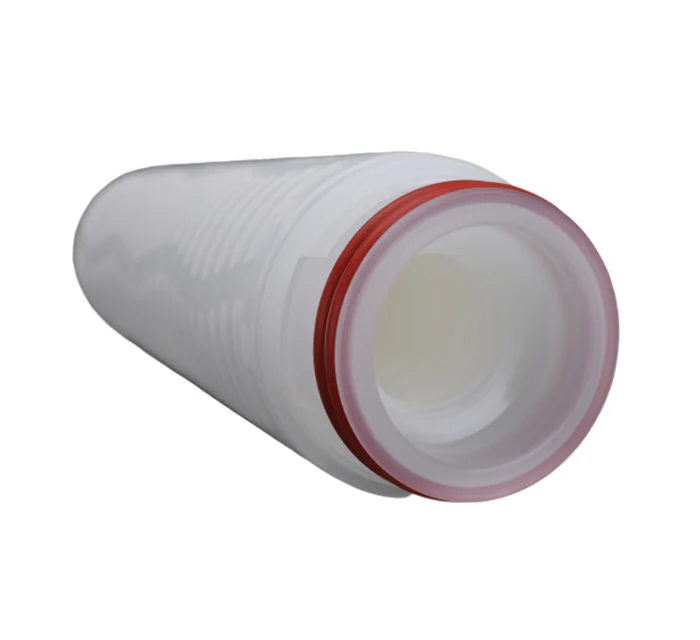

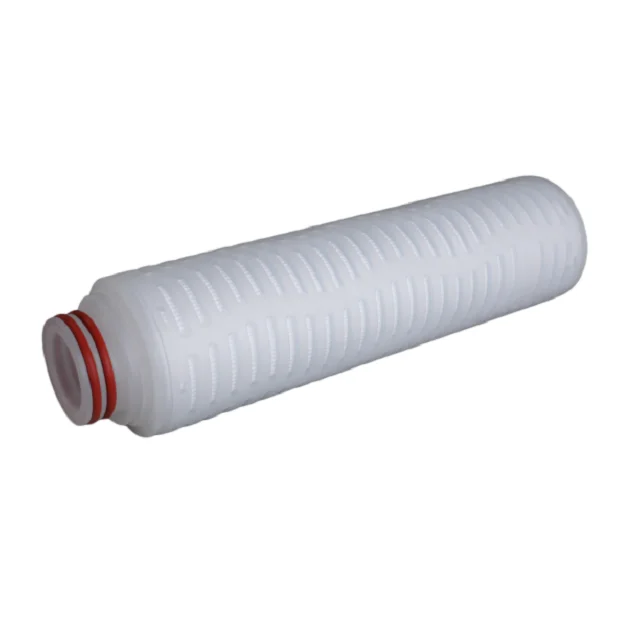

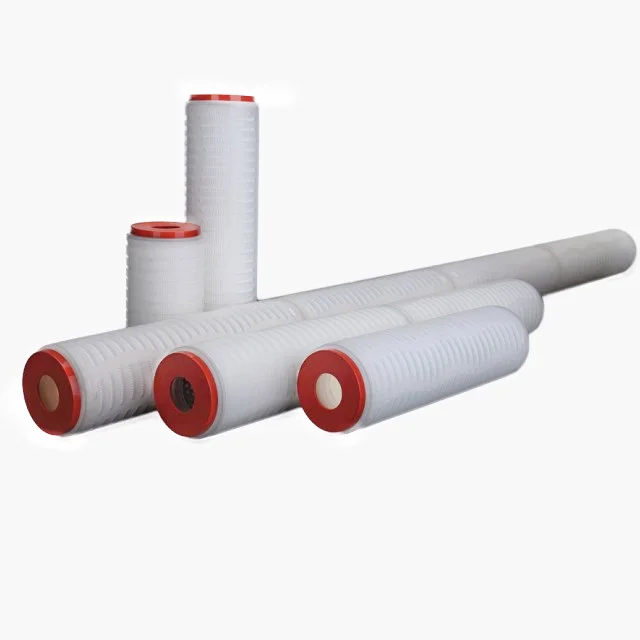

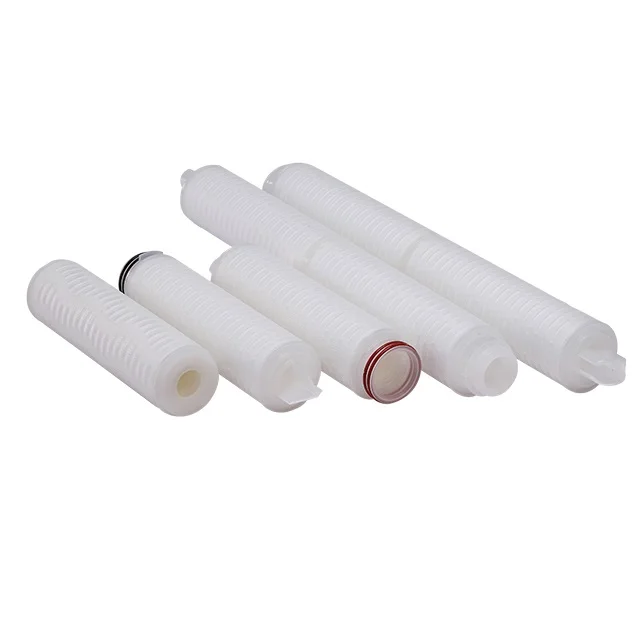

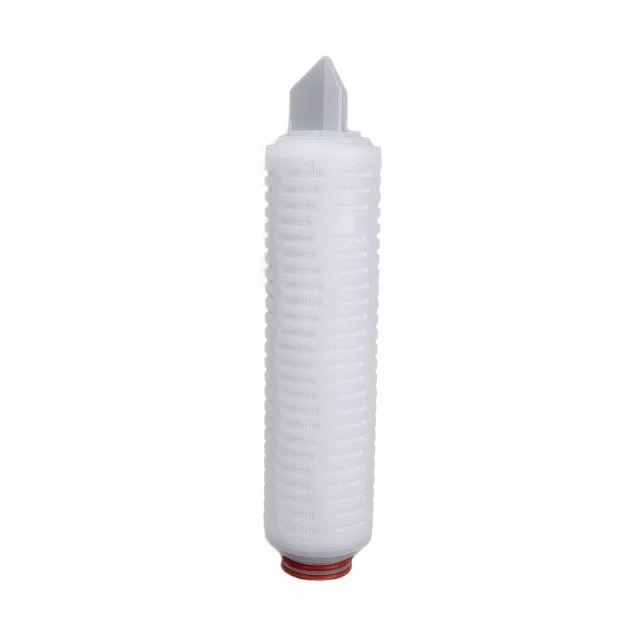

0,45 микрон, 30 дюймов, полипропиленовый мембранный картридж для фильтра/полипропиленовый плиссированный микрофильтр для вина
- Category: >>>
- Supplier: Hangzhou Tianshan Precision Filter Material Co. Ltd.
Share on (60720296424):
Product Overview
Description
PRODUCT CATEGORIES
PARAMETER INFORMATION
Absolute rating | Imported polypropylene membrane which can provide absolute rating filtration. | |
Complete Polypropylene structure | Made of 100% high quality polypropylene material | |
Wide chemical compatibility | Can be used in the solvent which PH value is from 1 to 13 | |
No media migration into the process fluid | All the material have passed the migration test | |
Effective Filtration Area | 0.65M2 per 10" | |
Materials | Filter Media: Polypropylene Membrane | |
Support Layers: Polypropylene | ||
Inner core: Polypropylene /SUS304 | ||
Outer Support: Polypropylene Cage | ||
Cartridge Dimensions (Nominal) | Outer Diameter: 69mm (2.75") | |
Inner Diameter: 33mm (1.30") | ||
Length: 10"- 254mm | ||
20"- 508mm | ||
30"-762 mm | ||
40"- 1016mm * (Length is based on DOE Adapter) | ||
Cartridge Purity | Free of surfactants, resins, binders and adhesives | |
Standard: Clean and flushed with Pyrogen-free water | ||
Rinse: up to 17-18MΩ.cm with a minimum of throughput | ||
Table 1: Typical water flow rate (10") | ||
Typical Applications | Pharmaceuticals; APIs; Biologics;Fermentation Broths;Fine Chemicals;Food & Beverages, Wine, Beer, Mineral Water;Semi-Conductor, LCD Display; Discs | |
Table 2: Liquid Retention Ratings(um) Test | ||
Operating Conditions | Normal Operating Temperature: Up to 60℃ (140℉) | |
Max.Operating Temperature.: 80℃ (172℉)at△P≤1.0 bar (14psi) | ||
Max. Differential Pressure: Normal Flow direction 4.2 bar (60 psi) at 25℃ (77℉);Reverse flow direction 2.1 bar (30psi) at 25℃ (77℉) | ||
PH Value compatibility: 1-13 | ||
Sterilization | Steam Sterilization for 30 minutes at 121±2 ℃ | |
Cumulative Time:15hours;OR flush with hot water at 82℃(180℉) for 30 minutes at P≤1.0 bar (14psi) -- Recommended. | ||
Materials Safety | Meet the current ISO and 2002/72/EC standard | |
Endotoxin: ＜0.25 EU/ml | ||
Extractables: 0.03g/ 10" | ||
Table 3: 100% Integrity Test | ||
APPLICATION
RELATED PRODUCTS
COMPANY PROFILE
EXHBITION
WHY CHOOSE US
PACKING AND SHIPPING
1. How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....
2. What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.
3 . How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
