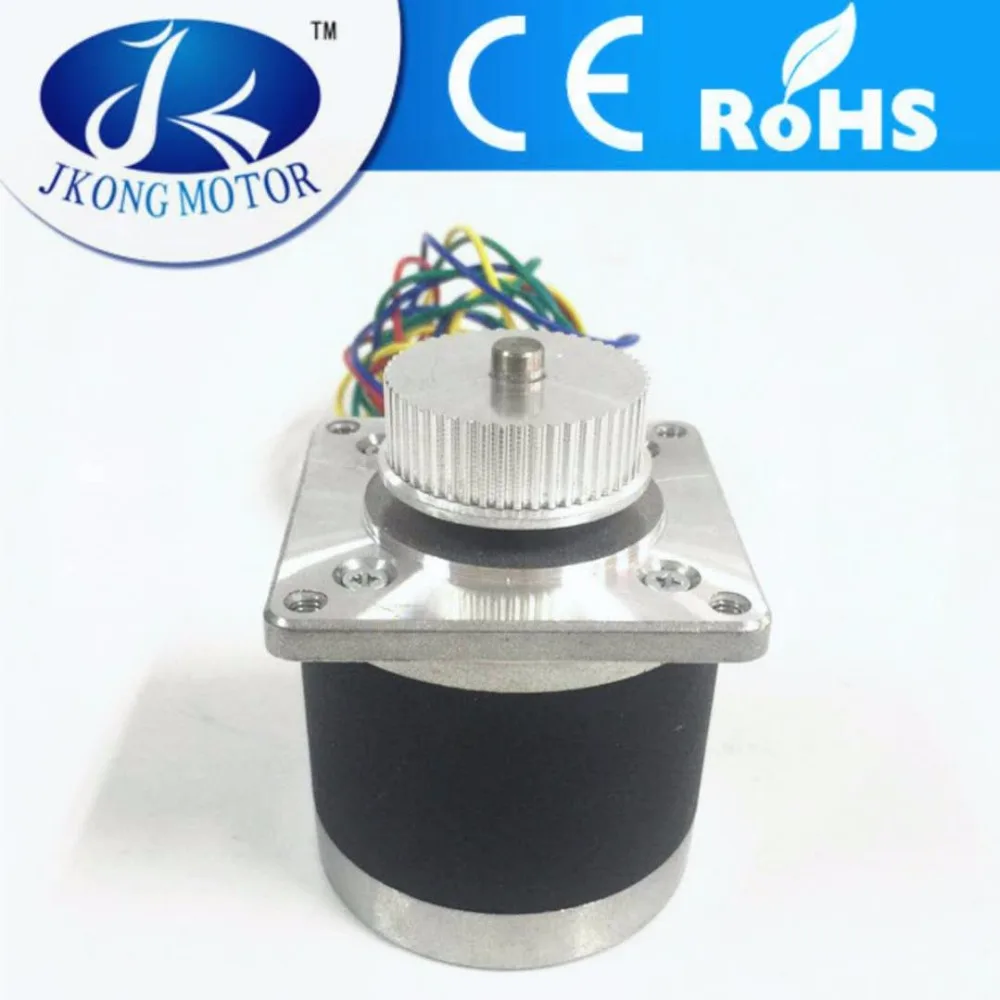

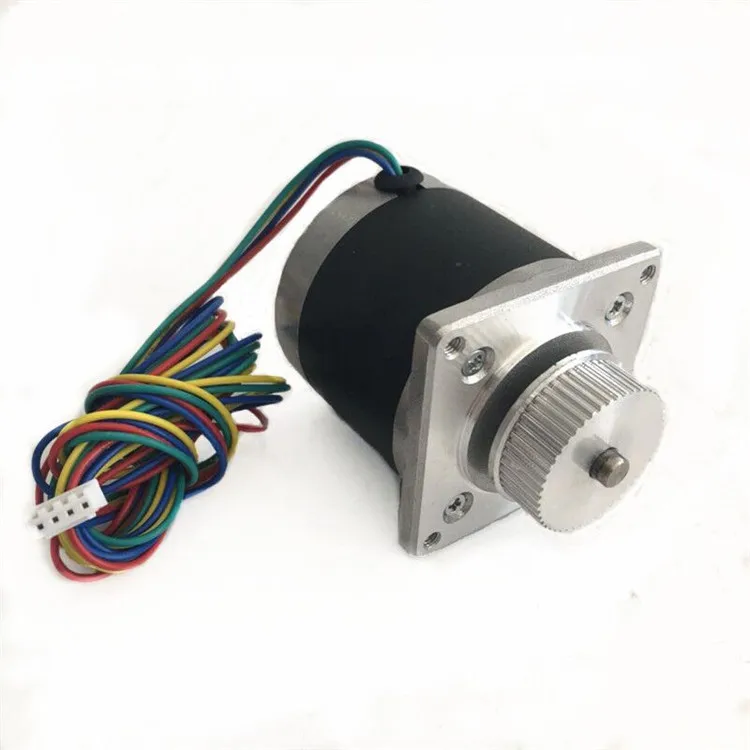

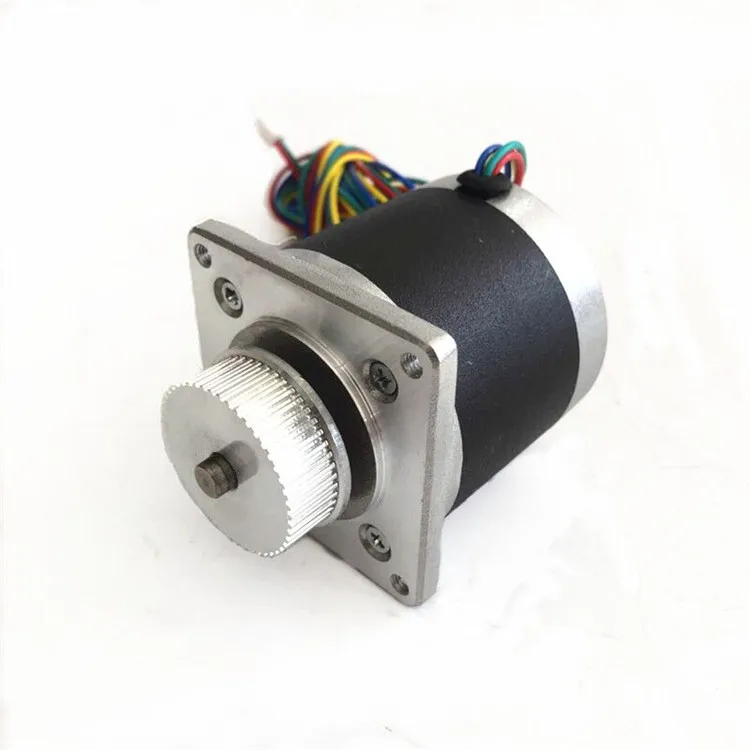

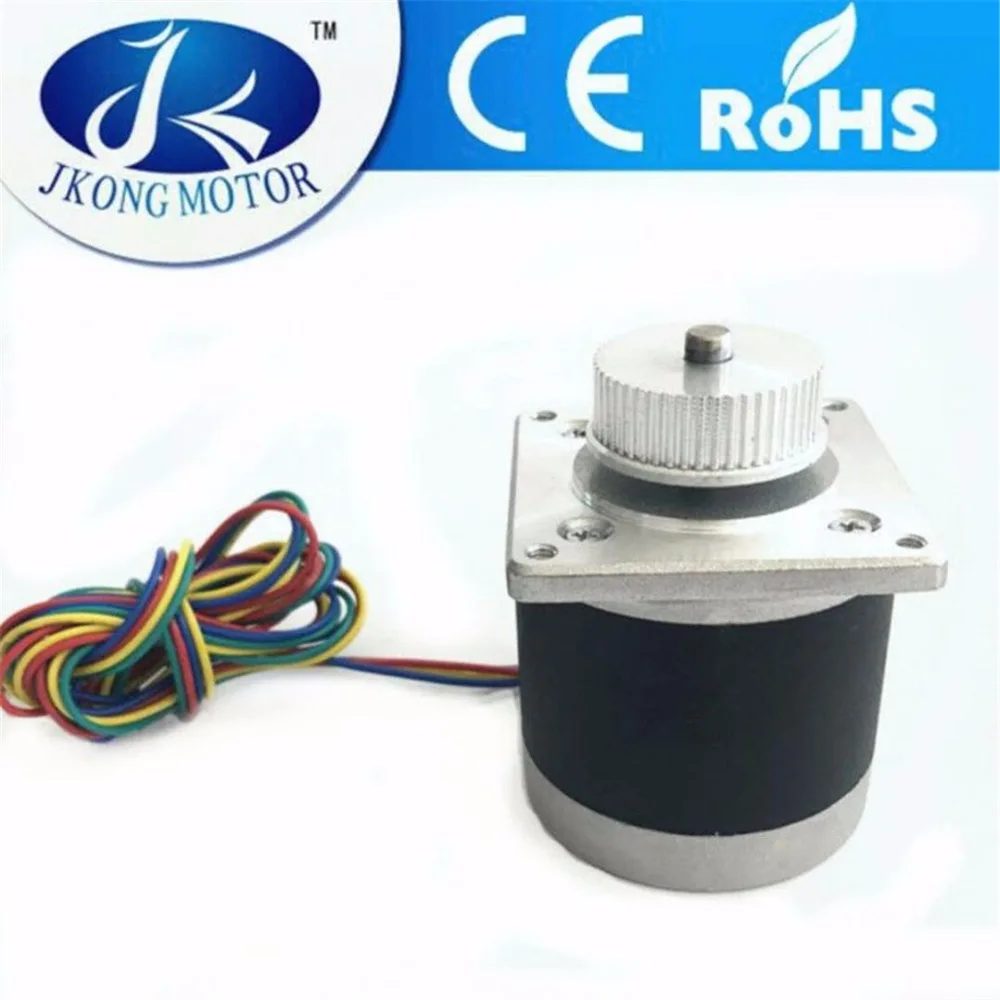

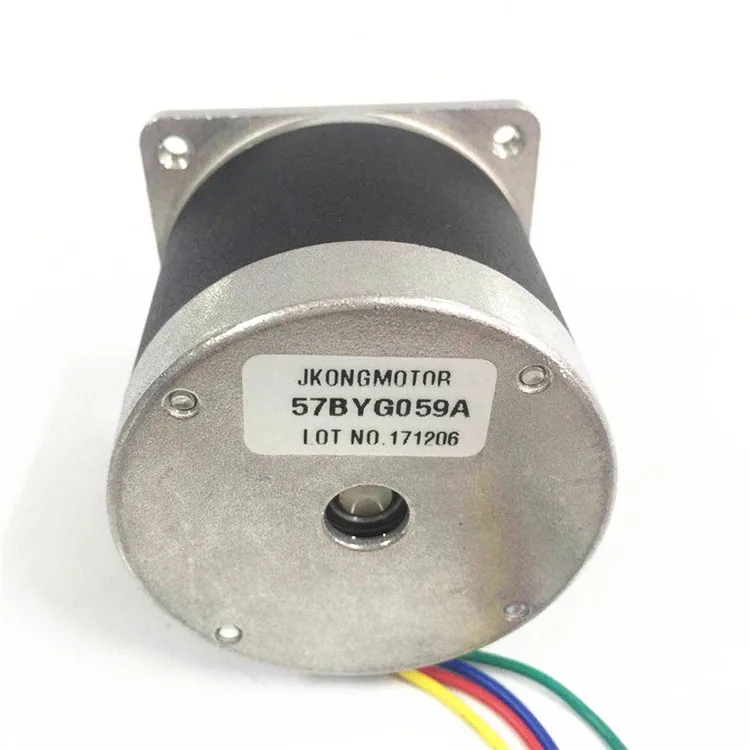

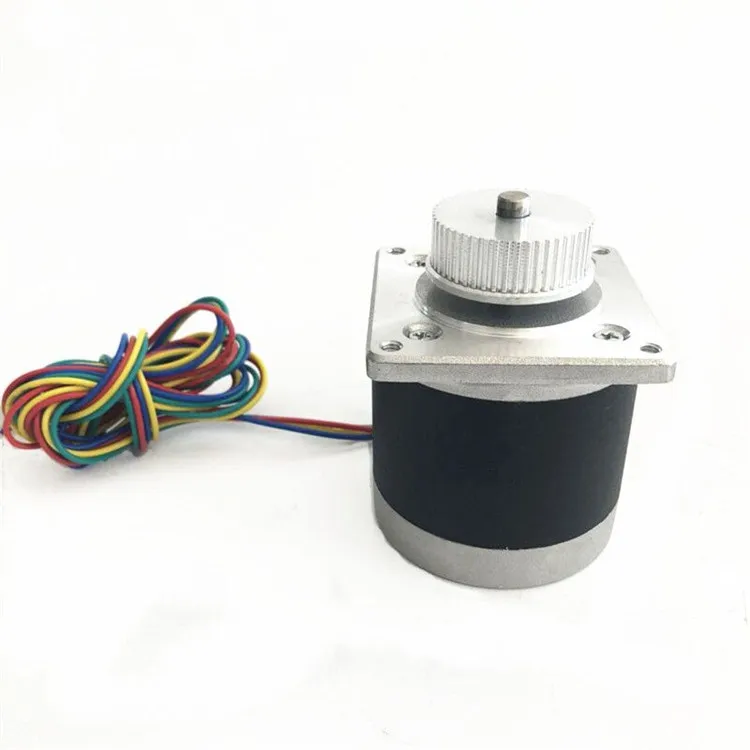

Станок с ЧПУ, шаговый двигатель 57BYG059A, шаговый двигатель с ЧПУ

Feartures & Benifits:

• NEMA23 frame size


• High step accuracy and resolution


• Low vibration and noise


• Can be customized for winding current, shaft options and cables and connectors.


• CE certified and ROHS compliant

Applications:

Used for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertising instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.

cutting plotter stepping motor , cutting plotter X AXIS MOTOR.

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N

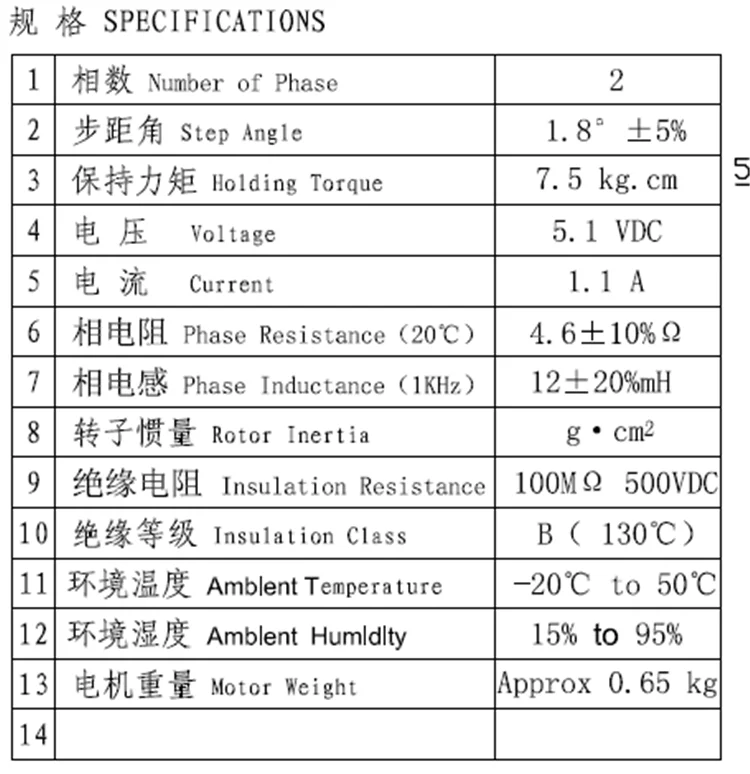

Electrical Specification:

number of phase: 2

step angle: 1.8

holding torque: 7.5Kg.cm

voltage: 5.1VDC

current: 1.1A

phase resistance: 4.6

phase inductance: 12

insulation class: B

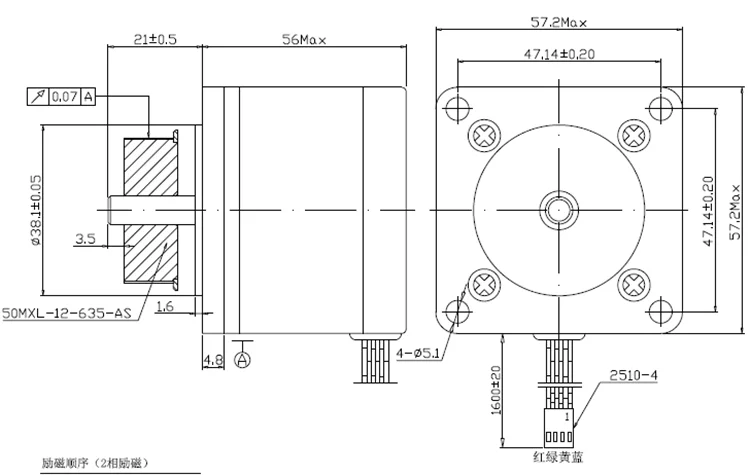

 Drawing:

Company Show:

Depending on advanced technology and knight service,our JKONGMOTOR & Electric Appliance CO.,LTD has established a excellent team and maintain a good  business relationship with a large amount of clients in global market.

Choosing JKONGMOTOR, we will have a win-win relationship.

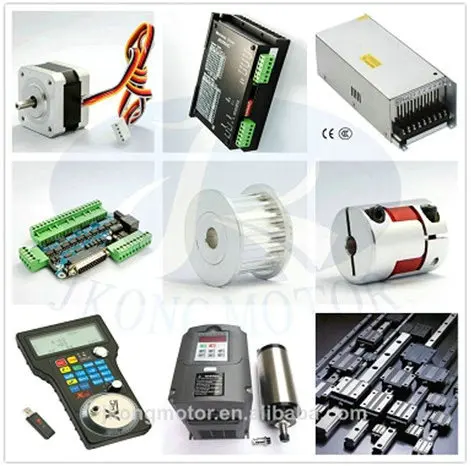

 We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..
