Product Overview

Description

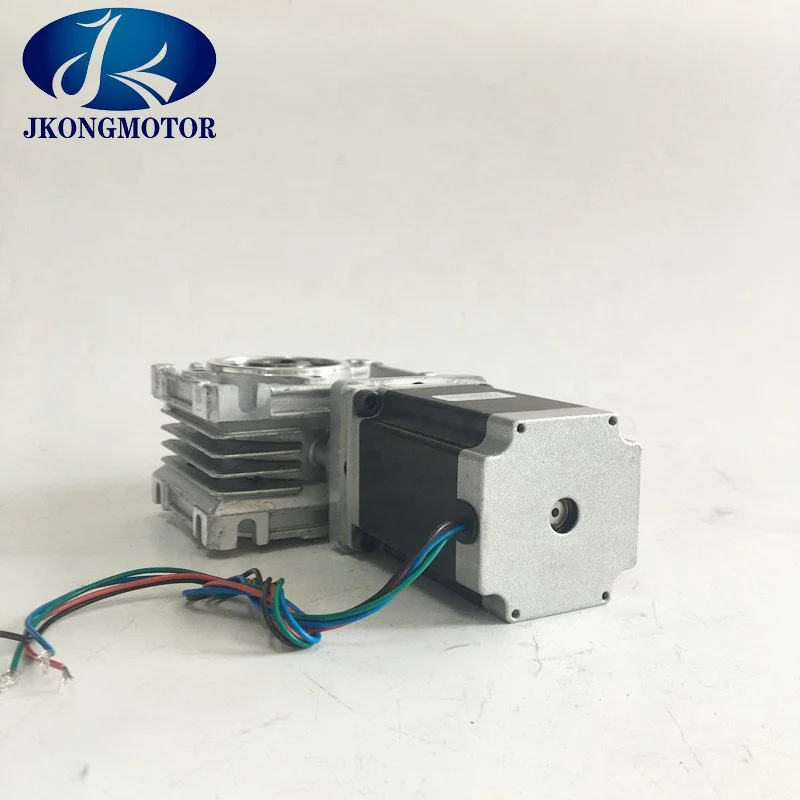

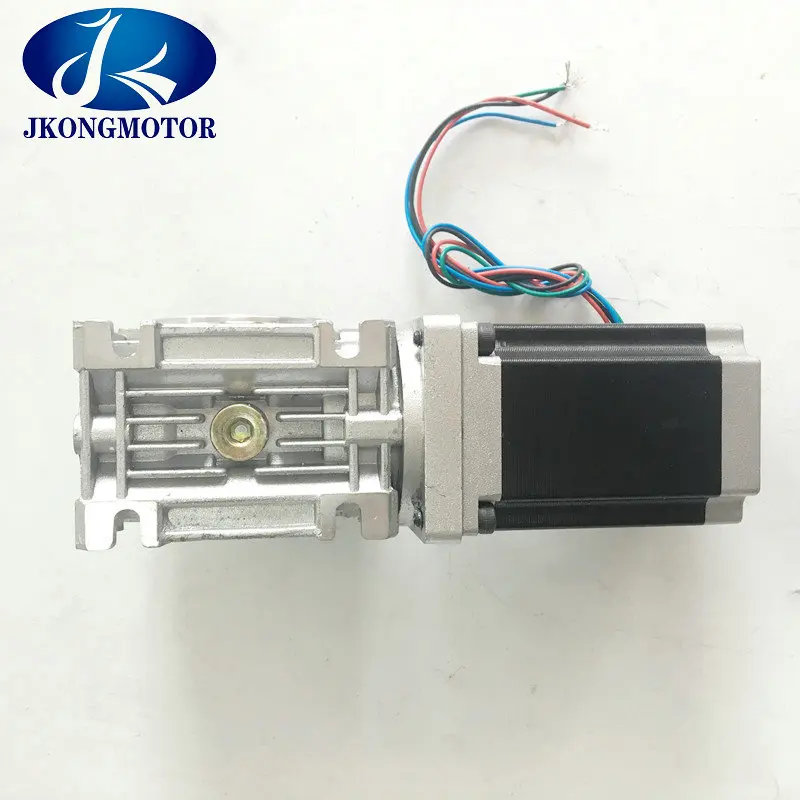

Stepper motor worm gear / stepping motor nema23 1.2N.m with gearbox ratio from 1:5 to 1:80





Genaral Specification:

















































Item



Specifications



Step Angle



1.8°



Temperature Rise



80℃max



Ambient Temperature



-20℃~+50℃



Insulation Resistance



100 MΩ Min. ,500VDC



Dielectric Strength



500VAC for 1minute



Shaft Radial Play



0.02Max. (450g-load)



Shaft Axial Play



0.08Max. (450g-load)



Max. radial force



75N (20mm from the flange)



Max. axial force



15N



Electrical Specification:










































































Model No.



Step Angle



Motor Length



Current


/Phase



Resistance


/Phase



Inductance


/Phase



Holding Torque



# of Leads



Detent Torque



Rotor Inertia



Mass







( °)



(L)mm



A



Ω



mH



N.m



No.



g.cm



g.cm






Kg



JK57HS56-2006



1.8



56



2



1.8



2.5



0.9



6



350



280



0.68



JK57HS56-2108



1.8



56



2.1



1.8



2.5



1



8



350



280



0.68



JK57HS56-2804



1.8



56



2.8



0.9



2.5



1.2



4



350



280



0.68






 Wiring Diagram:


 468 leading wires.jpg








Tel: 0086 519 88372558


Fax: 0086 519 88713769





Email: sales02<at>jkongmotor.com




Q1: What about your warranty?


A: We guarantee is one year . for sea order .  is 15months.





Q2: Do you have any certificates?


A: Yes, we have. All the motors have been approved by CE and Rohs.





Q3: Do you offer OEM AND ODM service?


A: Yes. We can  supply OEM andmake customized design for any specific application.





Q4: How can be your brand distributor?


A: We will check your capacity and help you promote and expand the market.





Q5: What's the delivery time  ?


A: Except special order. For samples usually  10-14 working days . for batch order . usually 20-25days.
