Product Overview

Description

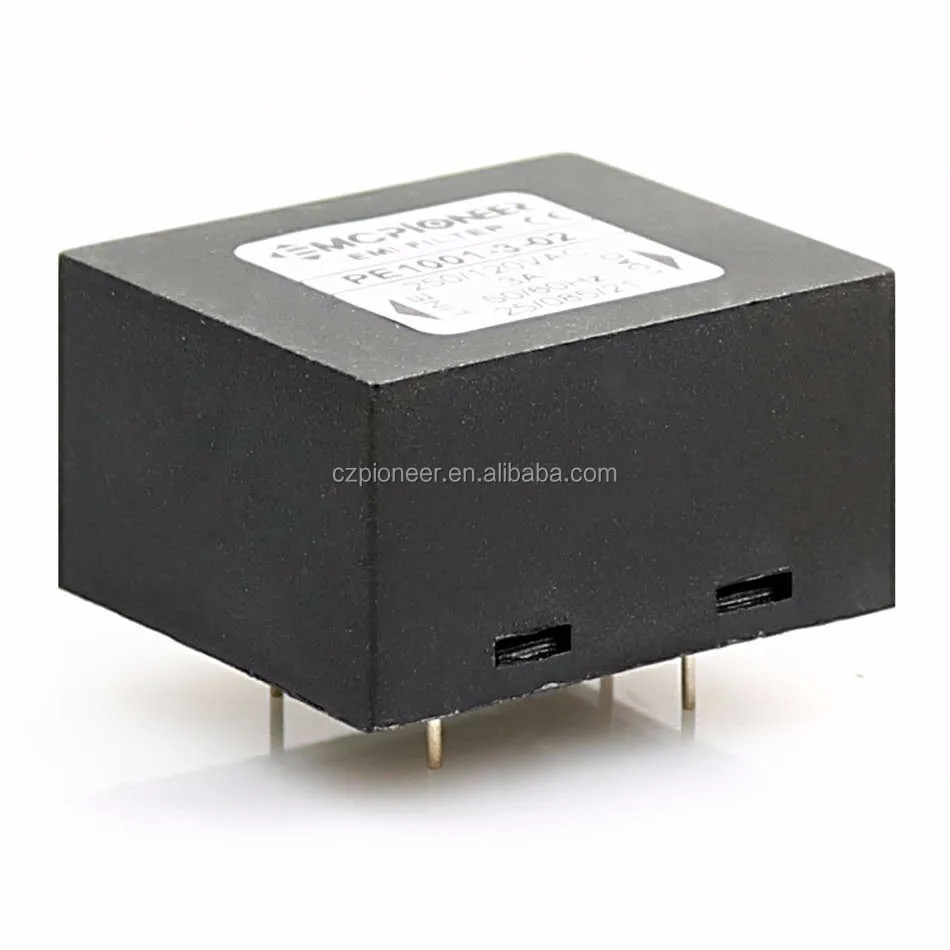

High quality electric black plastic noise emi pin power line filter for pcb



PCB PIN EMI Filter Description



1.The PE1000 PCB filters is a single-phase filters designed for easy and fast PCB-mounting.
2.Rated currents from 0.5 to 10A.
3.Compact unit,light weight ,PCB through hole mounting.
4.High quality components ensure the safety and reliability of filters.
5.Optional metal or plastic housing.
6.Customized acceptable.
7.Optional DC version(D type).



PPIN PCB Mounting EMI Filter Application



Single-phase power supplies ,swich-mode power supplies.

Small to medium-sized machines and household equipment.
Electrical and electronic equipment.
Test and measurement equipment.



PIN PCB EMI FILTER Specification

Rated Voltage:120/250VAC

Rated current:1A-6A

Operating Frequency:DC-60Hz

Temperature range:HPF25/085/21

Test Voltage(1min):Line to Ground 2000VAC       Line to Line:1450VDC



PCB EMI Filter Picture Show:

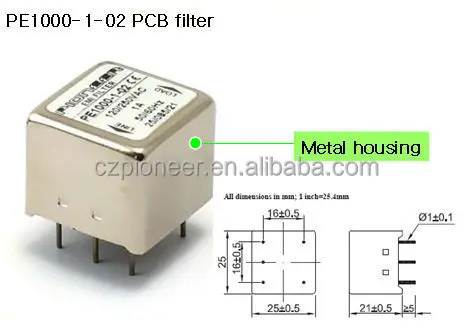

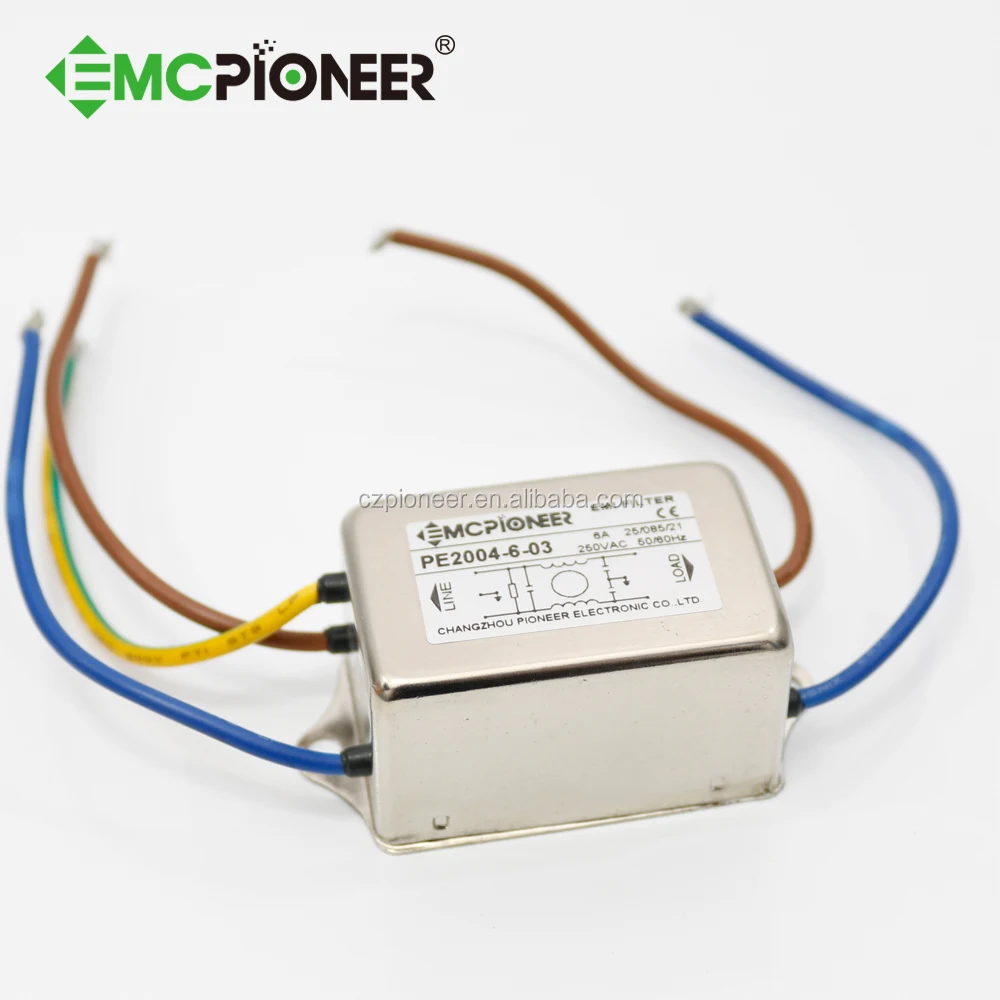

1.Metal Housing:

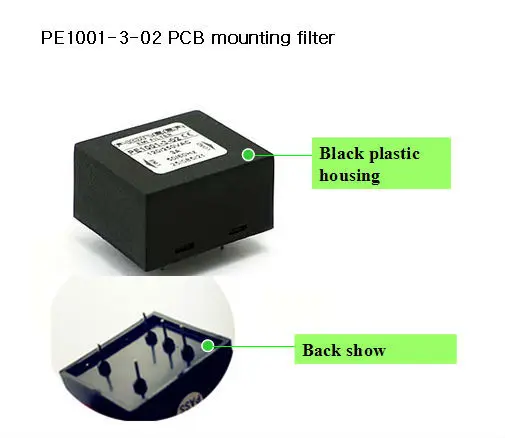

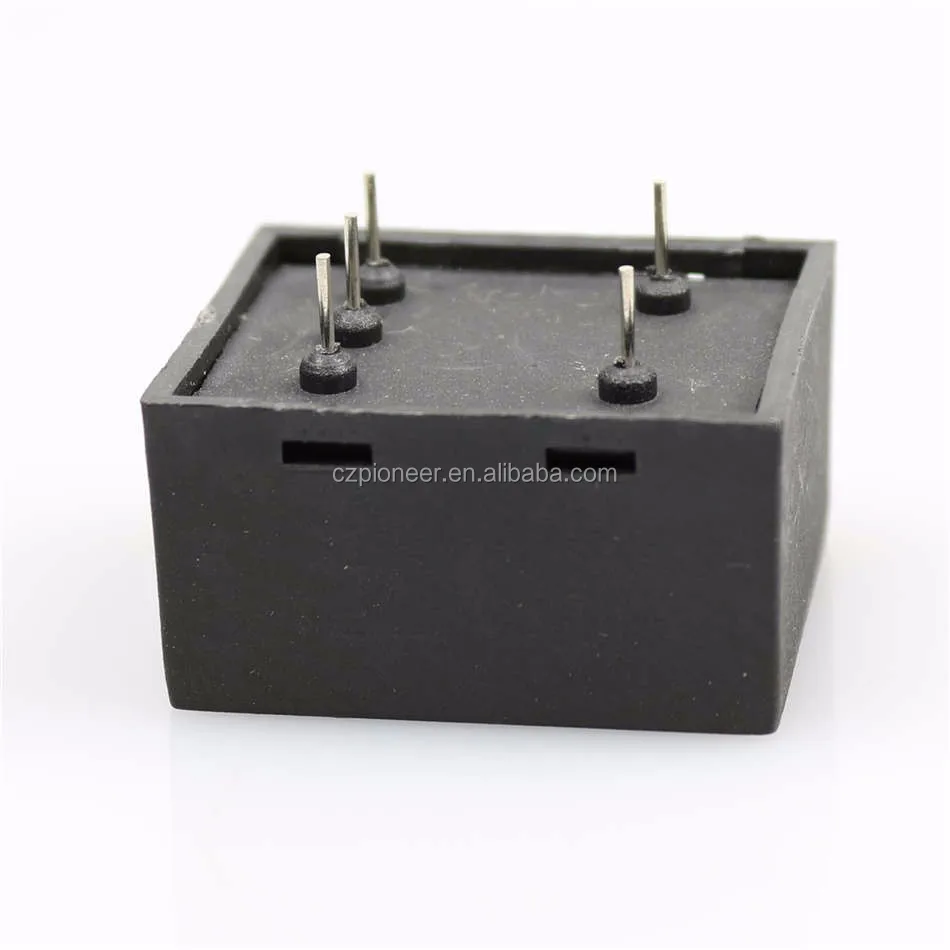

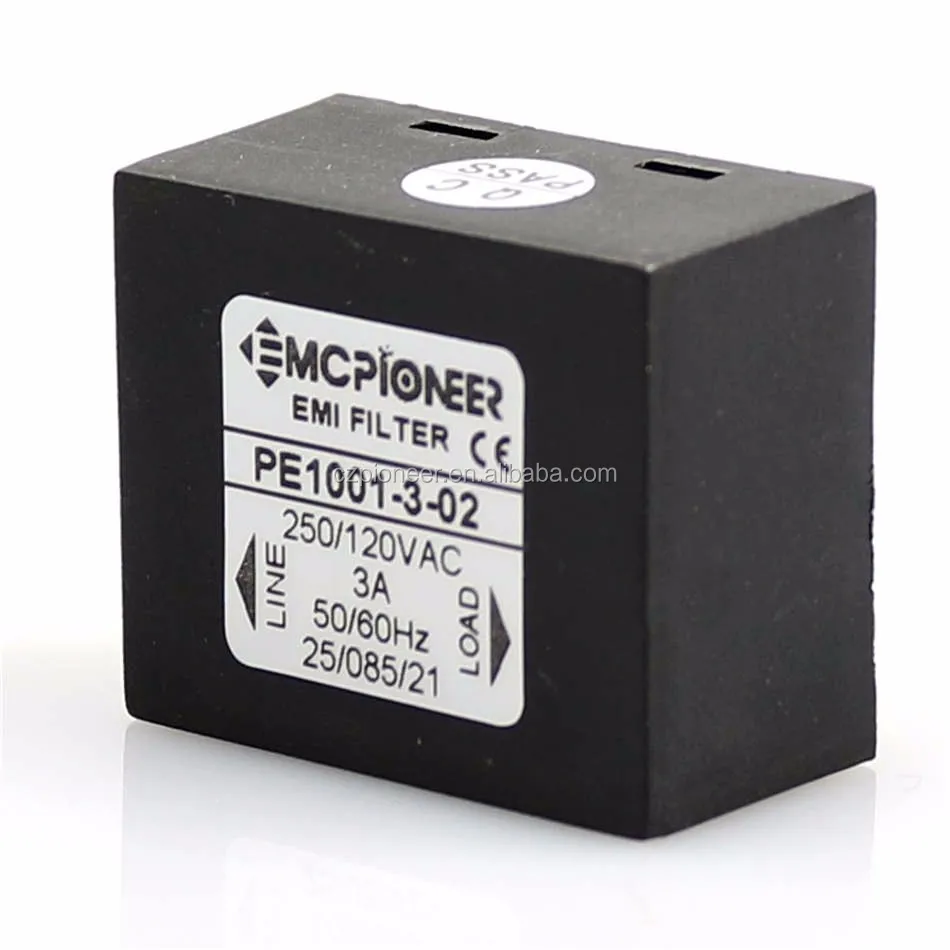

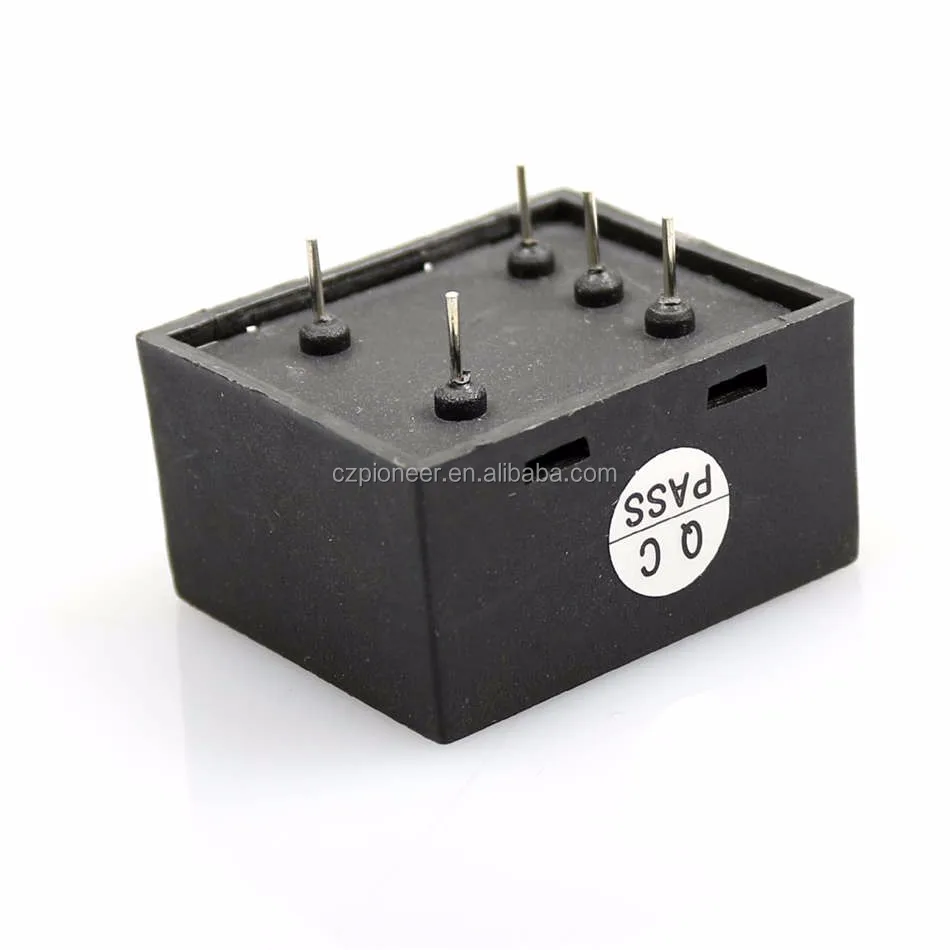

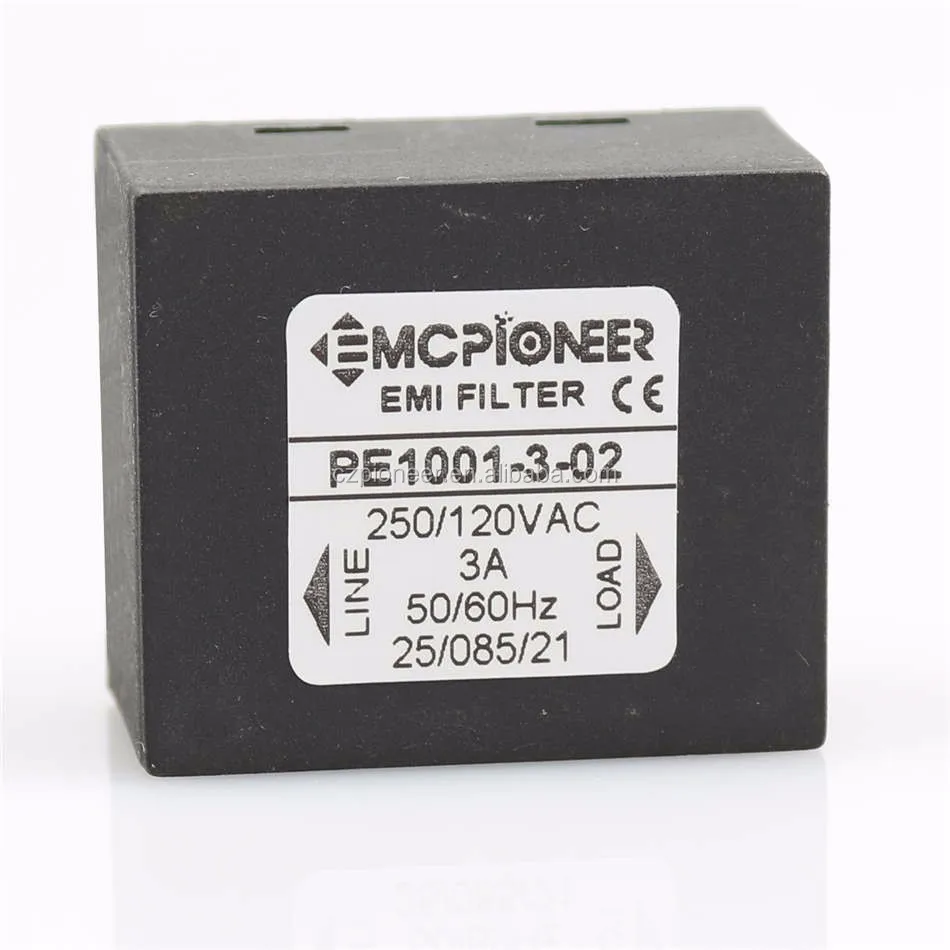

2.Black Plastic Housing Filter:

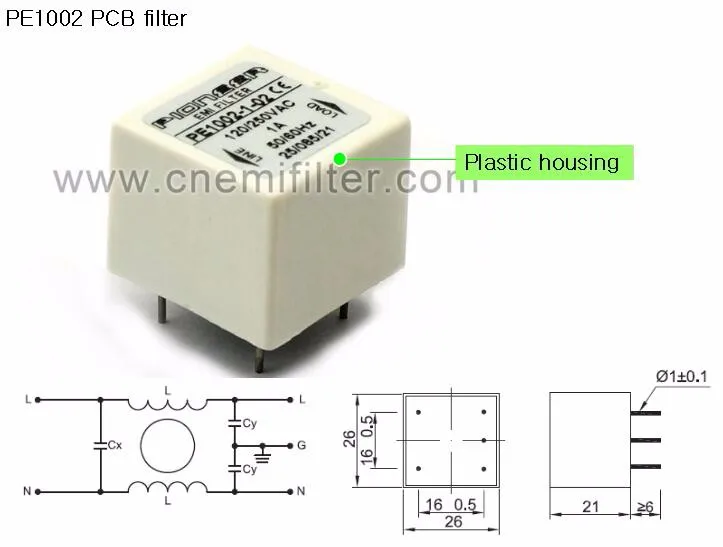

3.White Plastic Housing:



 click to more produce :





PCB EMI Filter Package:





Company:

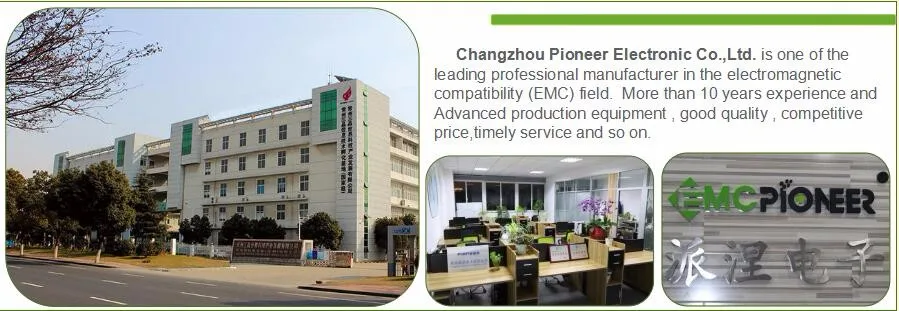

    Changzhou Pioneer Electronic Co.,Ltd.is one of the leading professional manufacturer in the electromagnetic compatibility (EMC) field.

    PCB EMI FILTER , SINGLE PHASE EMI FILTER , THREE PHASE EMI FILTER , DC EMI FILTER , HOUSHOLD EMI FILTER , INVERTER EMI FILTER , FEEDTHROUGH EMI FILTER , POWER ENTRY EMI FILTER etc.
