Replace Marathon AVR SE350 Automatic Voltage Regulator

Product Overview

Description

Replace Marathon AVR SE350 Automatic Voltage Regulator



We have Replacement For Marathon SE350 AVR in our regular stock!

The Brands mentioned here are for reference purpose only, our products are replacement / not original.



Marathon Generator AVR / Automatic Voltage Regulator for Marathon alternator:

AVR Replaced Brands: MARATHON

Marathon AVR: SE350, DVR2000E, DVR2000E+

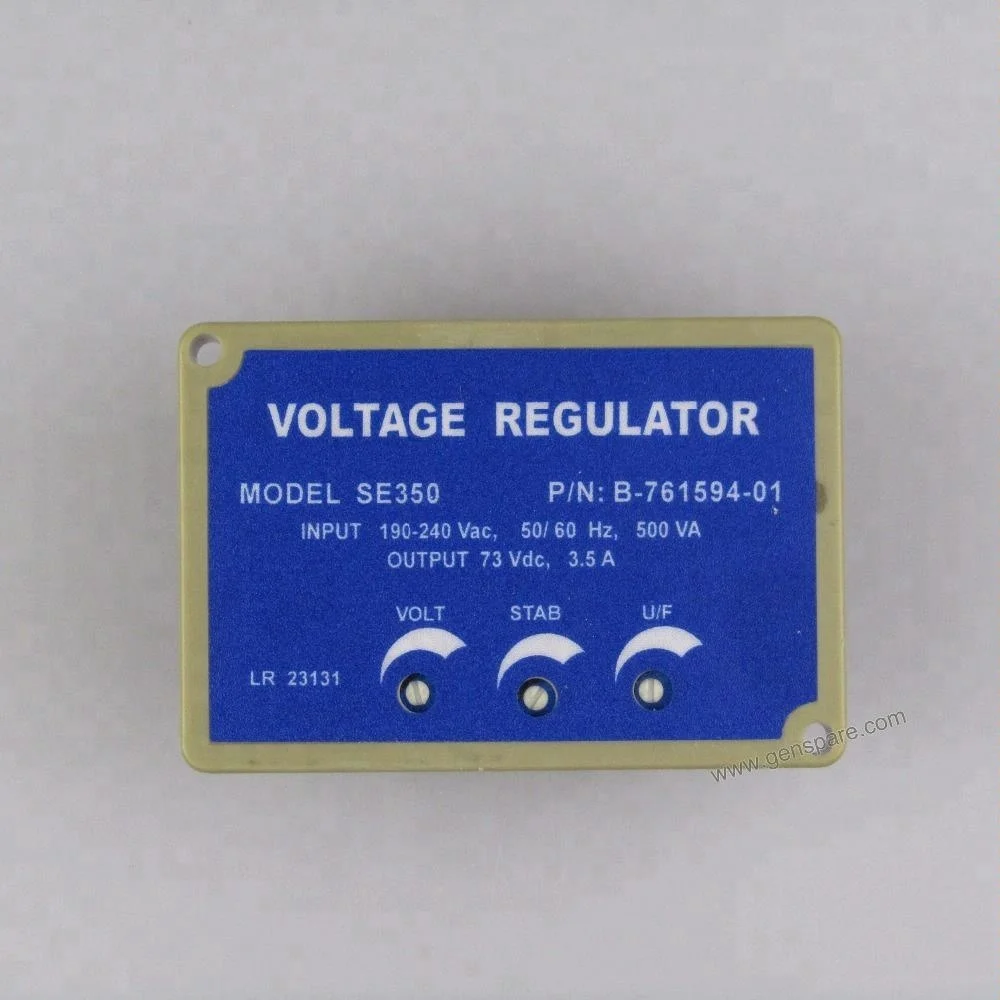

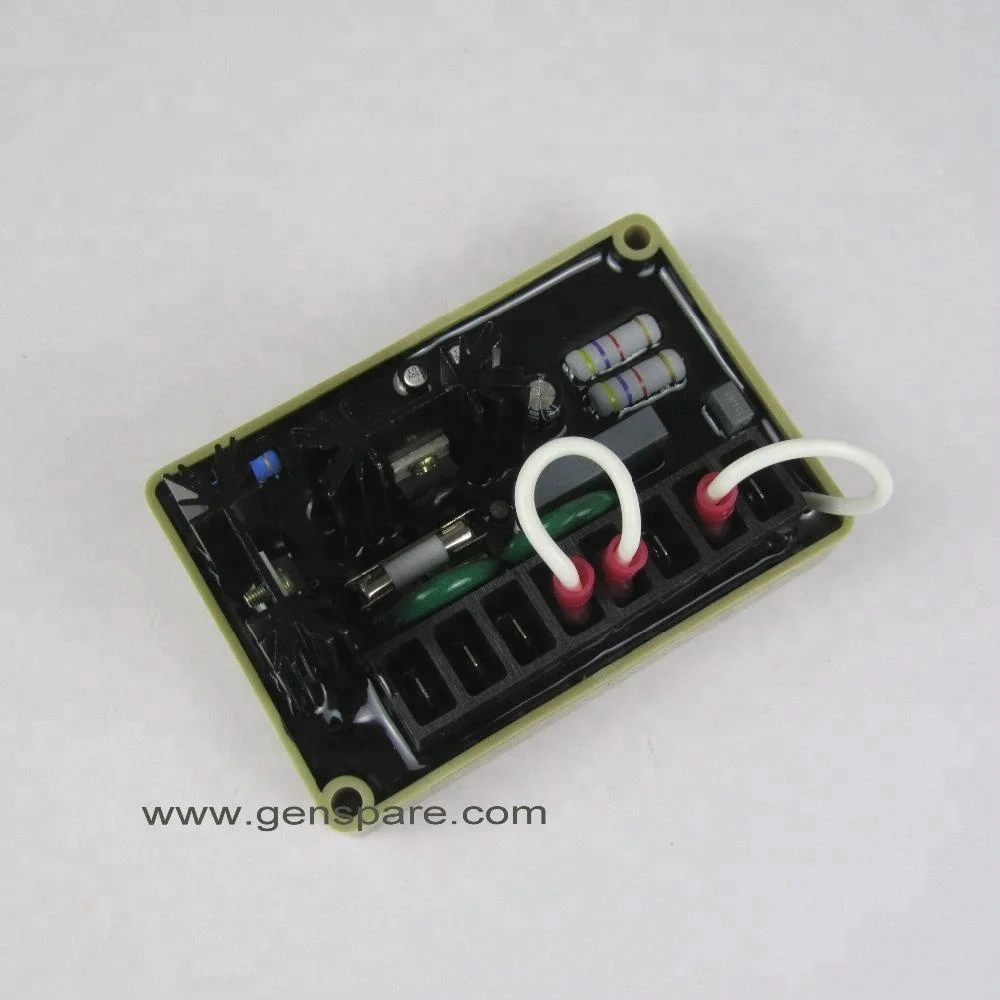

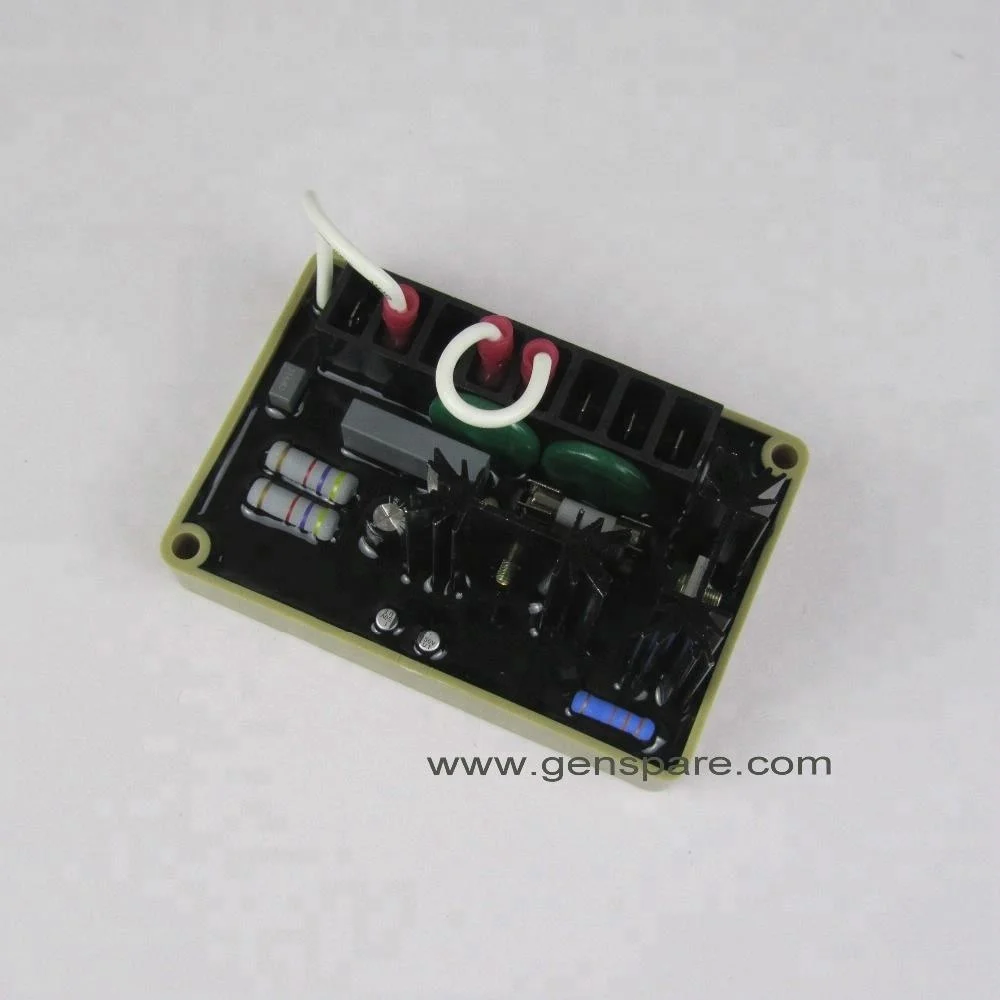

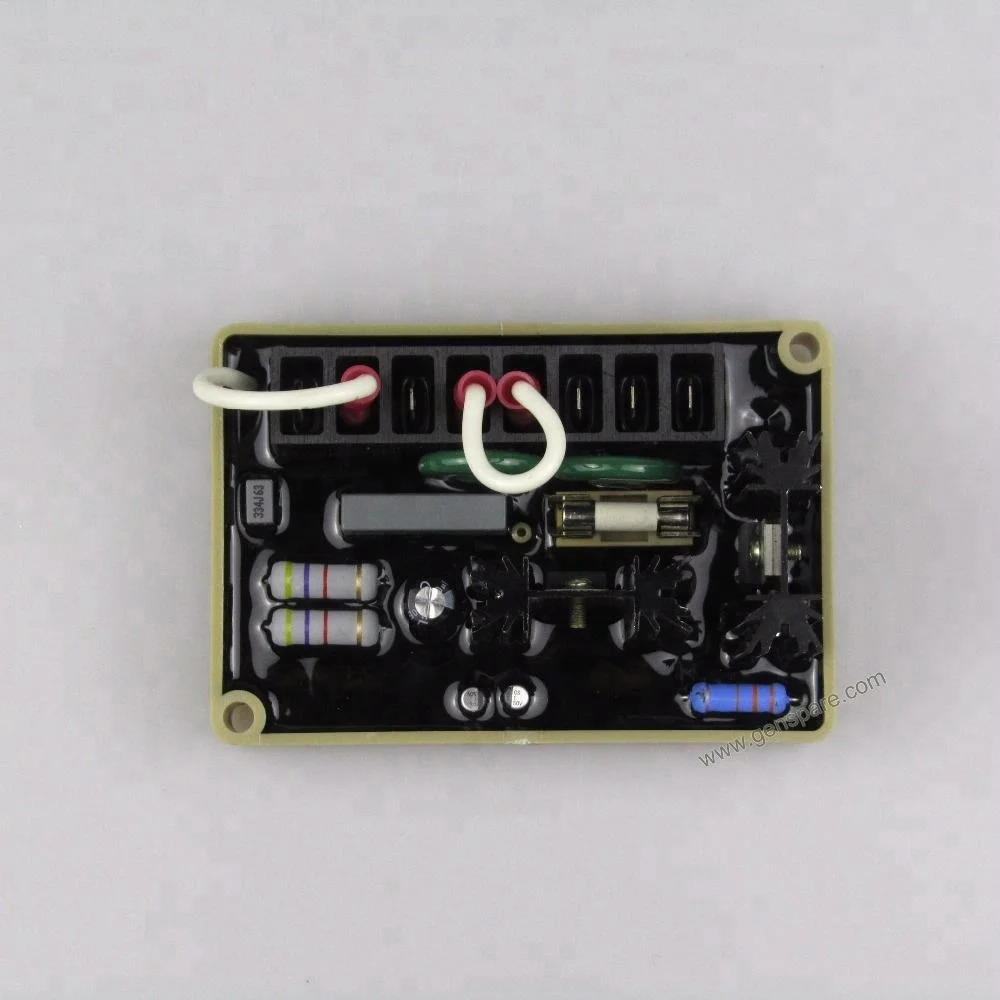

The Marathon AVR SE350 voltage regulator is an encapsulated electronic voltage regulator that controls the

output of a brushless AC generator by regulating the current into the exciter field.

Sensing & Power Input : 190-240 Vac

Burden:  500 VA

Output Power- Continuous:  73 Vdc at 3.5 Adc (255w)

Output Power - Forcing(240 Vac Input Power):  105 Vdc at 5 Adc (525w)

Regulation:  1 .0%

Remote Voltage Adjustment Range:  ± 10% with 2000 ohm rheostat

± 5% with l000 ohm rheostat

Frequency Compensation:  Adjustable

Roll off frequency:  54-61 Hz for 60 Hz

45-51 Hz for 50 Hz

Operation Weight:  6.5 oz.

Operating Temperature: - 40°C to + 60°C

Storage Temperature: - 65°C to + 85°C

Power Dissipation:  8 watts maximum

Size:  3.94" L  *  2.66” W  *  2.20: H

Gross Weight: 0.2 KG

Voltage Buildup:  Internal provisions forautomatic voltage

build up from generator residual voltage as low as 10 Vac.

EMI Suppression : Internal Electromagnetic Interference Filter (EMI Filter )
