Датчик скорости дизельного генератора MPU MSP6723C MSP6723

Product Overview

Description

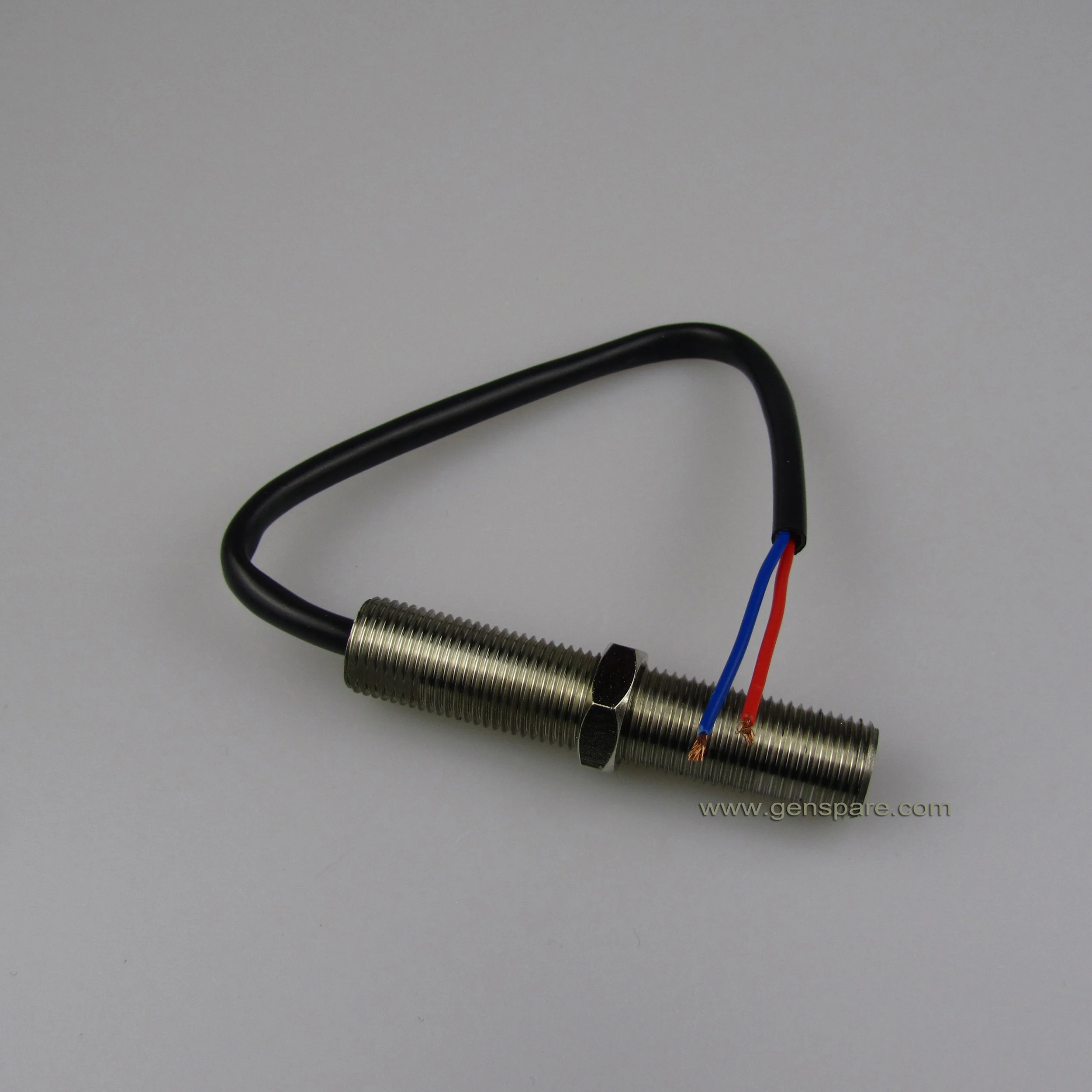

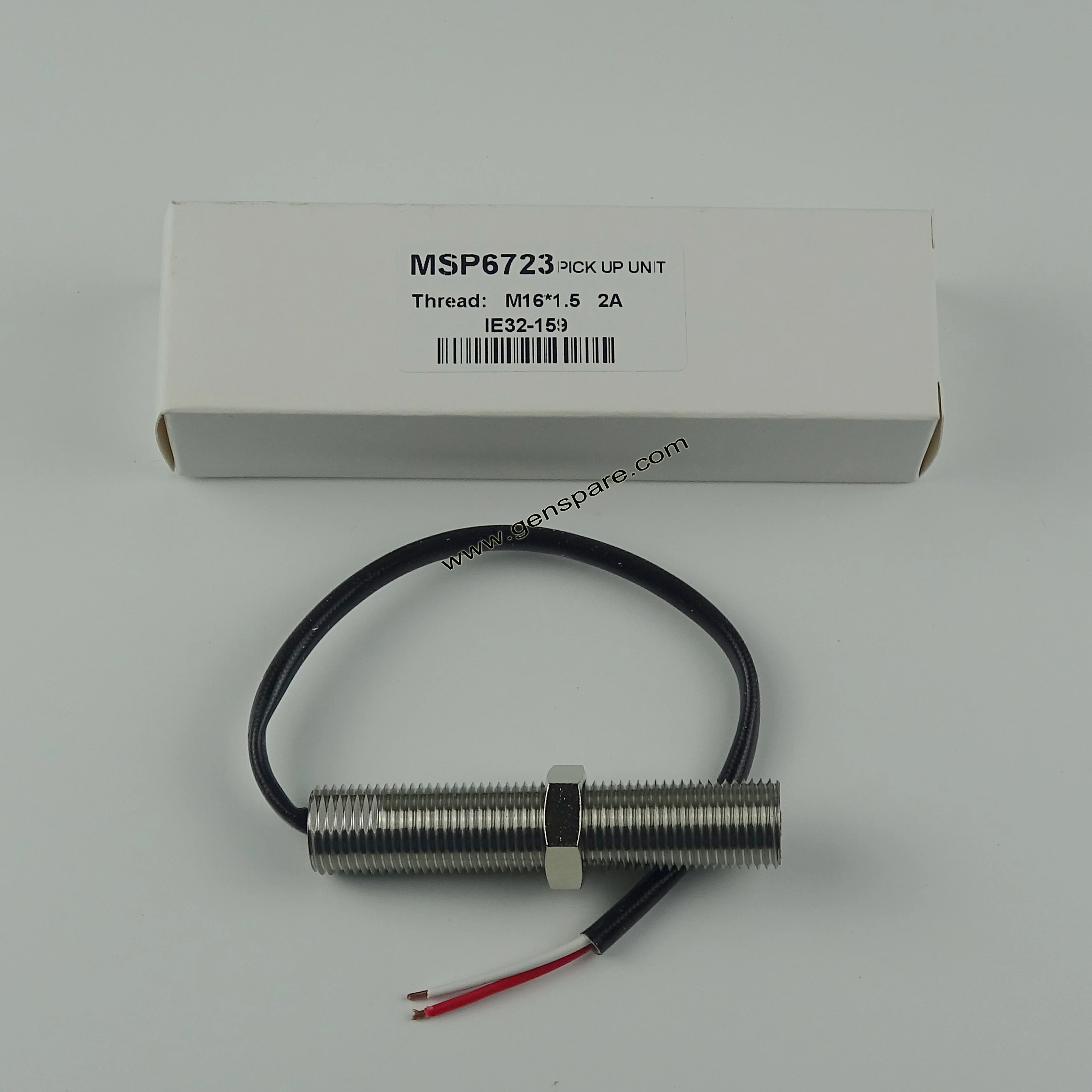

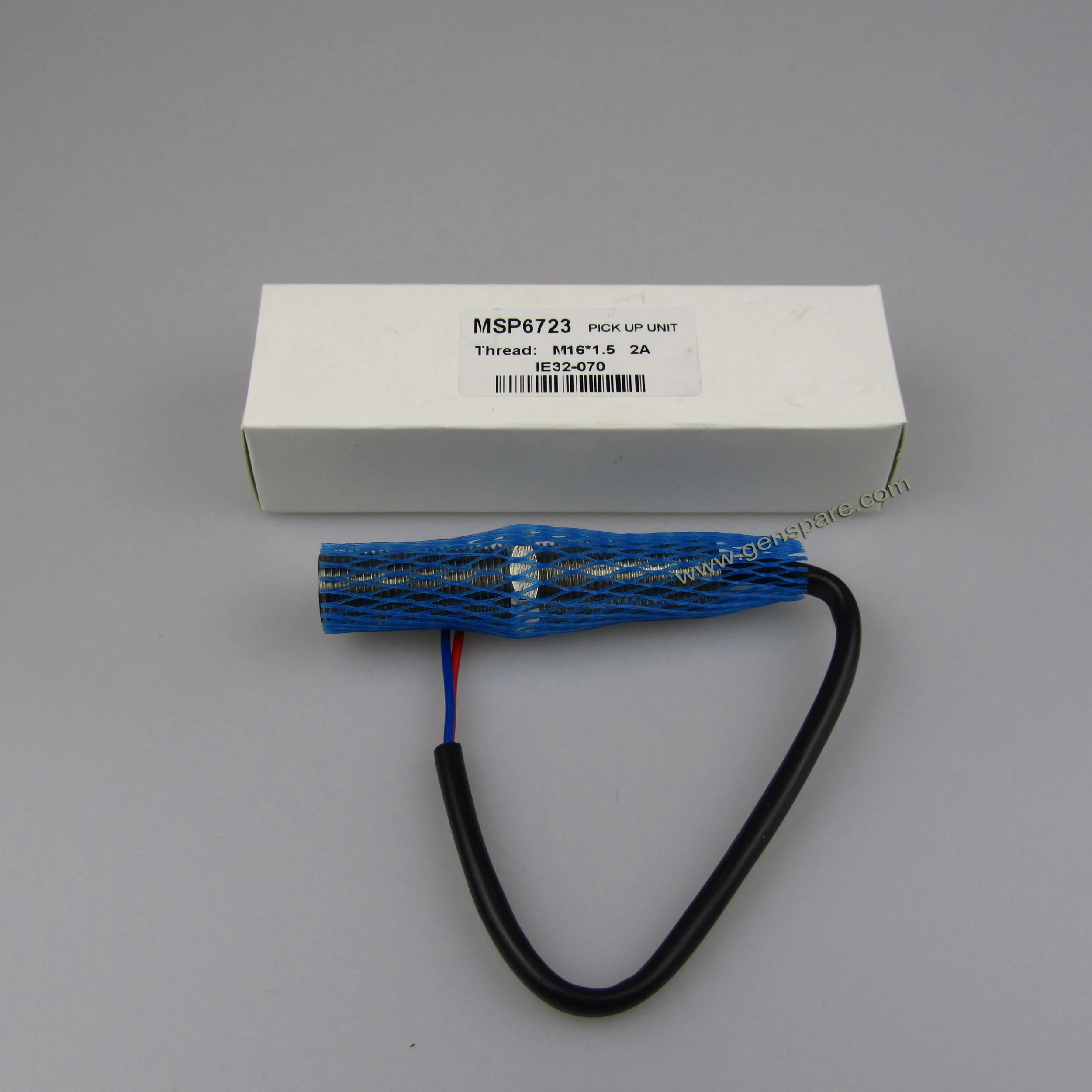

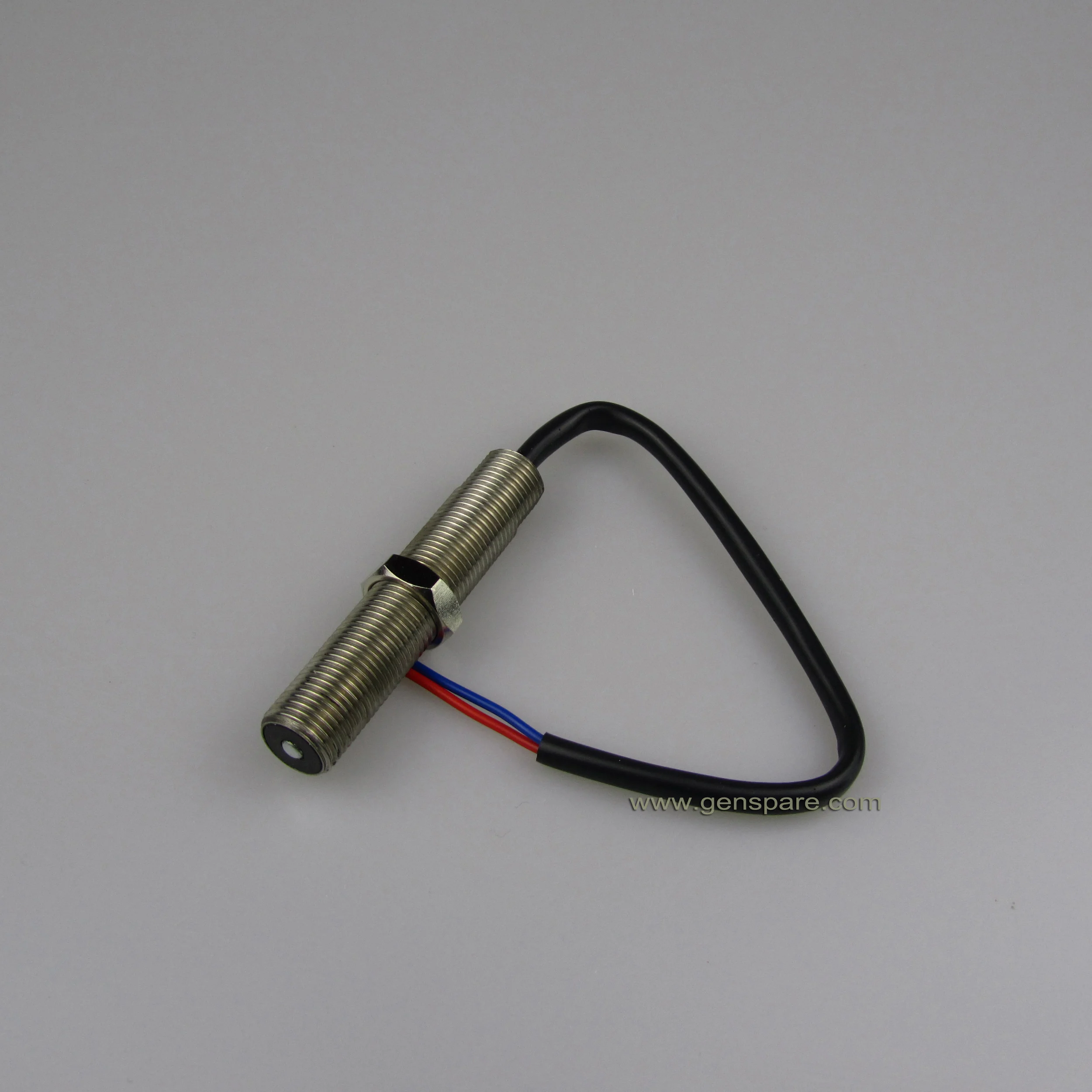

Diesel Generator Speed Sensor MPU MSP6723C MSP6723



We have Speed Sensor MSP6723C MSP6723 in our regular stock!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.



The Diesel Generator Speed Sensor MSP6723 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor.  Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit.  The signal from the Generator Speed Sensor MSP6723C, teeth per second (Hz.), is directly proportional to engine speed.  Speed sensors are available in various lengths in both U.S. and metric threads.  Wire leads, military connectors, automotive connectors or stud terminals are also available.  Over 30 styles currently available for the Diesel Generator MPU.



M16*1.5 Thread Diesel Generator Speed Sensor
Product #	Thread Length	Harness Length	Connector	With Mating Connector
MSP6714	3.0in [76.2mm]	na	Military	No
MSP6715	3.0in [76.2mm]	na	Military	Yes
MSP6723 Speed Sensor	3.13in [79.4mm]	3in [76mm]	Automotive	No
MSP6723C Speed Sensor	3.13in [79.4mm]	3in [76mm]	Automotive	Yes
MSP6739	3.13in [79.4mm]	3in [76mm]	Packard	No
MSP6745	5in [127mm]	na	Military	No
