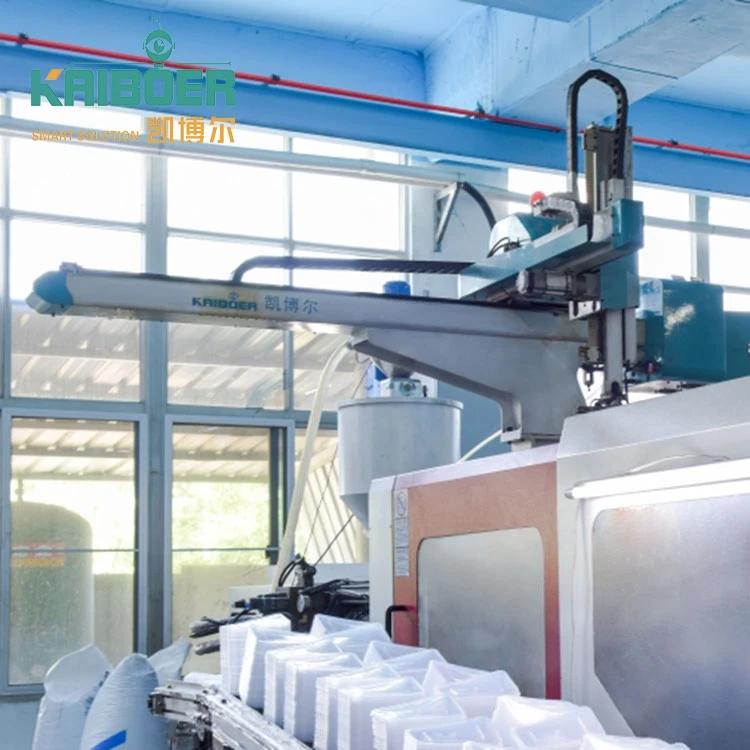

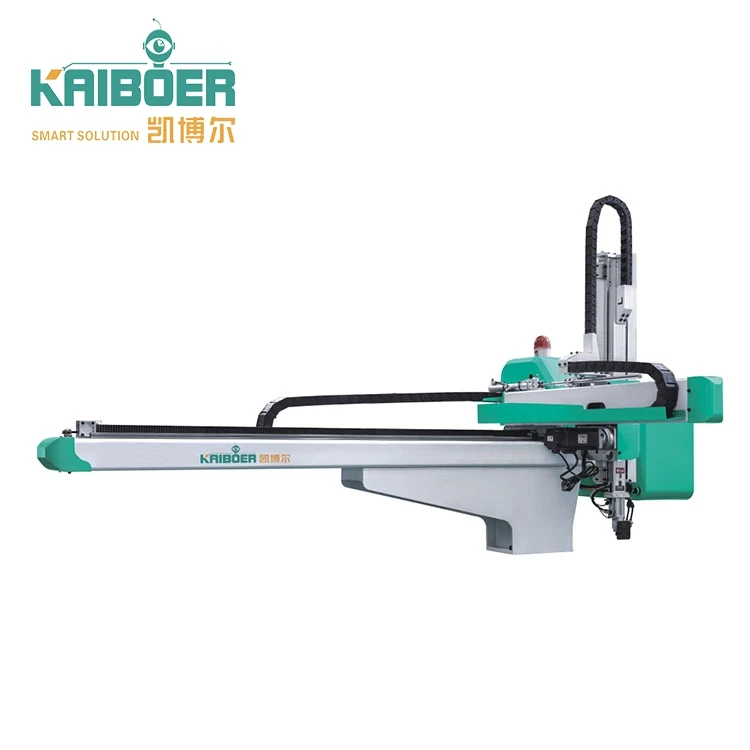

High Quality Intelligent Ac Servo Automatic Cartesian Robot 3 Axis
Product Description
COMMON SPECIFICATIONS
Power
Working pressure
Drive System
Posture(Air Cylinder)
Posture angle
Maximum load (including metallurgical)
AC220V 50/60Hz
4-7kgf/cm2
AC Servo Motor
Double 90 °
Fixed
8kg
GENERAL SPECIFICATIONS
Model
Vertical Stroke (mm)
Crosswise Stroke (mm)
Traverse Stroke (mm)
Dry Take Out Time (sec)
Empty cycle time (sec)
Air Consumption (NL/cycle)
Power consumption (KVA)
Net Weight (kg)
KM-850S2
PP:800
P:250
1400
0.5
3.2
12
1.65
310
KM-950S3
P:900
P:300
1400
0.6
3.8
12
1.65
340
Product features
Precision
Traverse movement is driven by heavy duty servo motor with cooperation of precise linear guide rails and high power V belts; Fast,silent, and precise. Wrist mechanism employs pneumatic driven rack and pinion system, which accomplishes smooth, stable and precise flipping motion. Vertical arm(s) with telescopic design efficiently minimizes the cycle time and height of the robot.
Safety
High efficient shock absorbers allow fast and precise pneumatic driven motion. Drop proof locking mechanism prevents accidences due to malfunction of pneumatic source. Position limit sensors and blocks effectively prevent mechanical and electrical malfunctions. Control board is designed to CE EMC test with short circuit and noise proof functions.
Convenience
Vertical and kick displacements can be adjusted simply by changing the position limit blocks in easy directions. Control board fixtures are designed with flyer structure which provides benefit to maintenance. Cable drag chains help with cable management and ease for maintenance.
