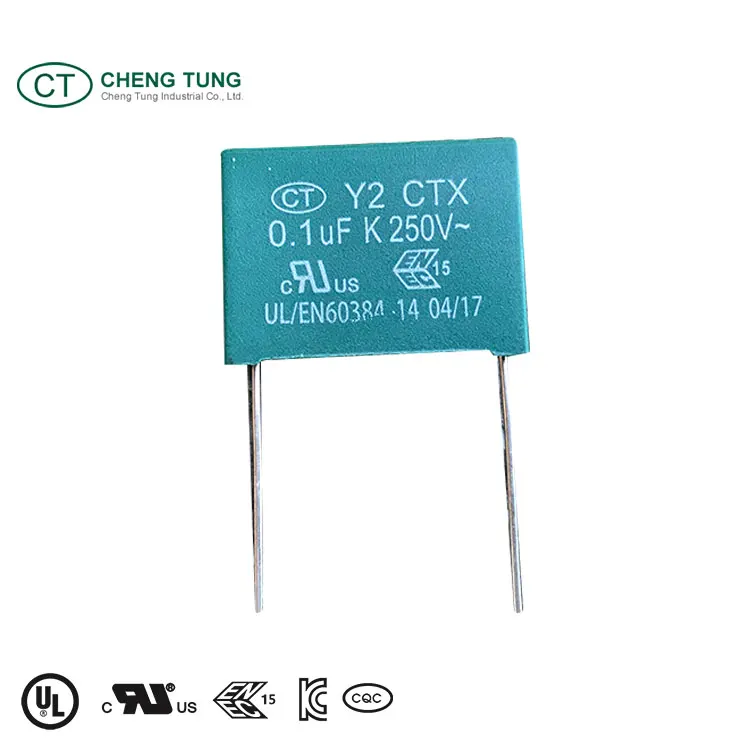

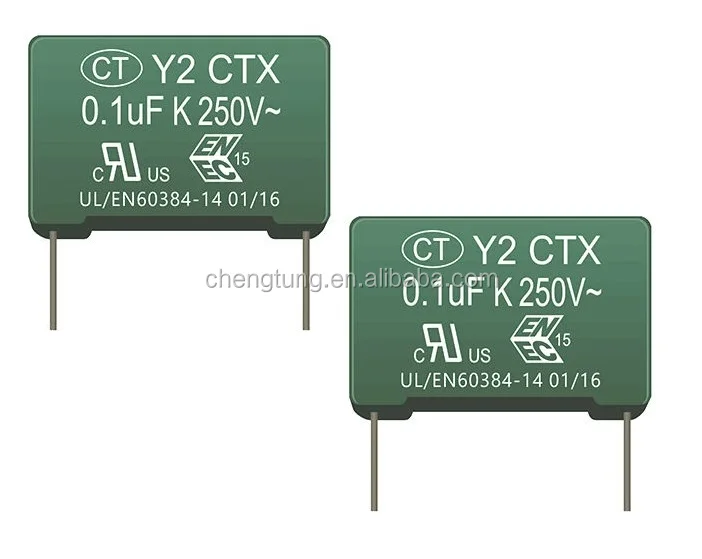

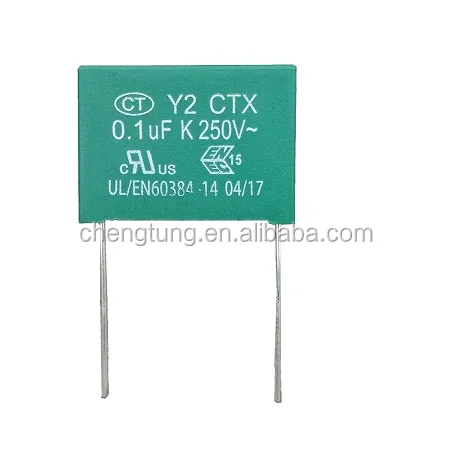

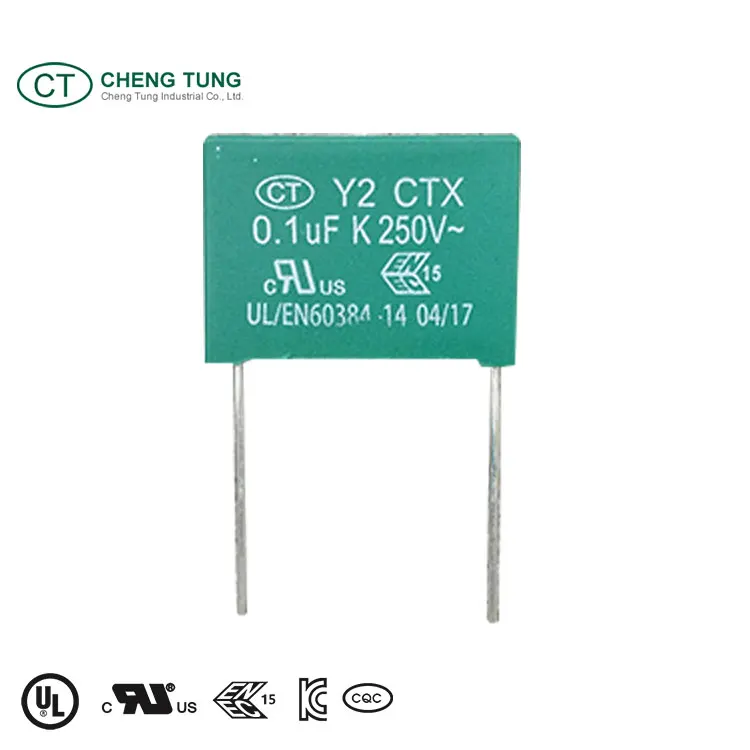

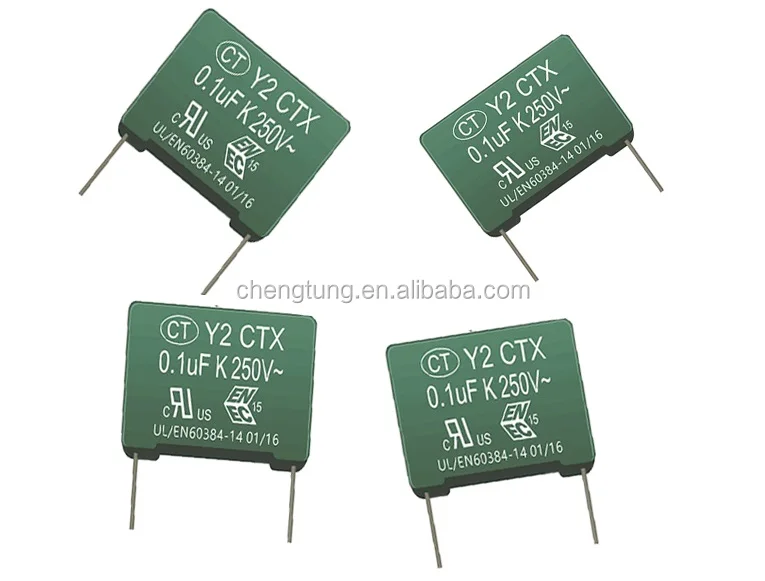

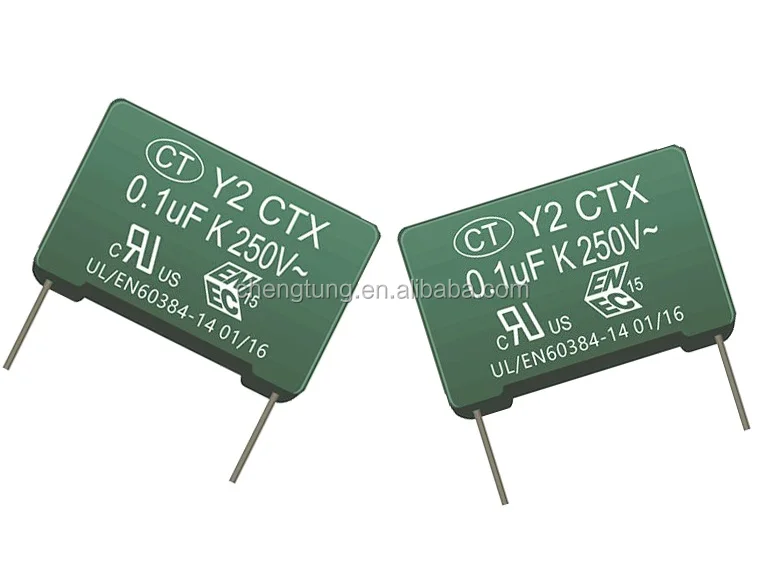

Y2 Film Capacitor

• Provides interference suppression, obtain UL & ENEC


• Overvoltage stress withstanding


• Self-healing properties


• Active and passive flame retardant

• Ideal for use in line bypass, antenna coupling, across-the-line and spark killer circuits.


• Available for EMI filter.


• Switching power supply applications.


• Business machines appliances, such as: typewriters, adding machines, computer displays and monitors.


• Household appliances, such as: mixers, fans, coffee grinders,audio and TV circuits.


• Thyristor and triac appliances, such as: dimmers.

  SPECIFICATIONS

Dielectric

Polypropylene film

Electrodes

Vacuum evaporated metal

Coating

Encapsulated in flame retardant

(UL94V-0) plastic case and epoxy resin end seal.

Leads

Radial leads of tinned wire

Climatic Catalogue

40 / 100 / 21

Capacitance versus Rated Voltage(U_R)

0.0022uF ~ 0.1uF  250V.AC (50/60Hz)

Capacitance Tolerance

K = ±10%  M = ± 20%

Dissipation Factor (Tangent of Loss)

<=0.1% at 1KHz and 20℃

Voltage Proof

T-T 3000V.DC 1 sec.

T-C 2200V.AC 50/60Hz 1 min

Insulation Resistance

IR>=30,000MΩ
