Кабели из стекловолокна (60722938696)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

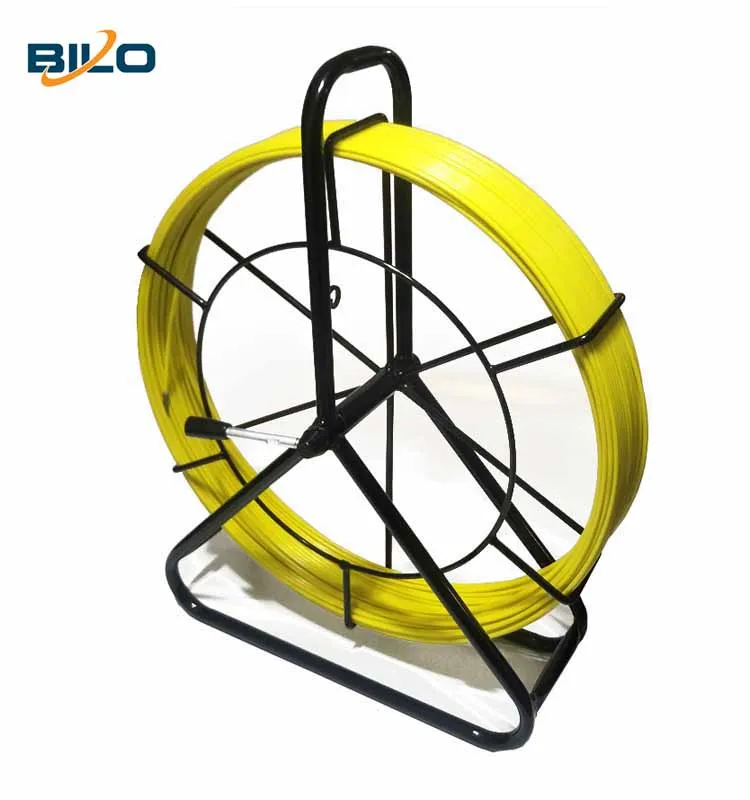

Fiberglass cable rodders





1 Company introduction.jpg





BILO is specialized in power and cable equipments and construction tools. We owns our own factory. The main products are FRP duct rodder, cable rollers, cable pulling winch, cable drum jack, cable pulling sock, etc. Our products have been exporting to more than 40 countries and getting good reputation domestic and abroad.








2-Main Specification.jpg


























Rod Diameter:
4.5mm, 6mm, 8mm, 9mm,10mm,11mm,12mm,13mm,14mm,16mm,18mm
Rod Length:
10-500mtrs

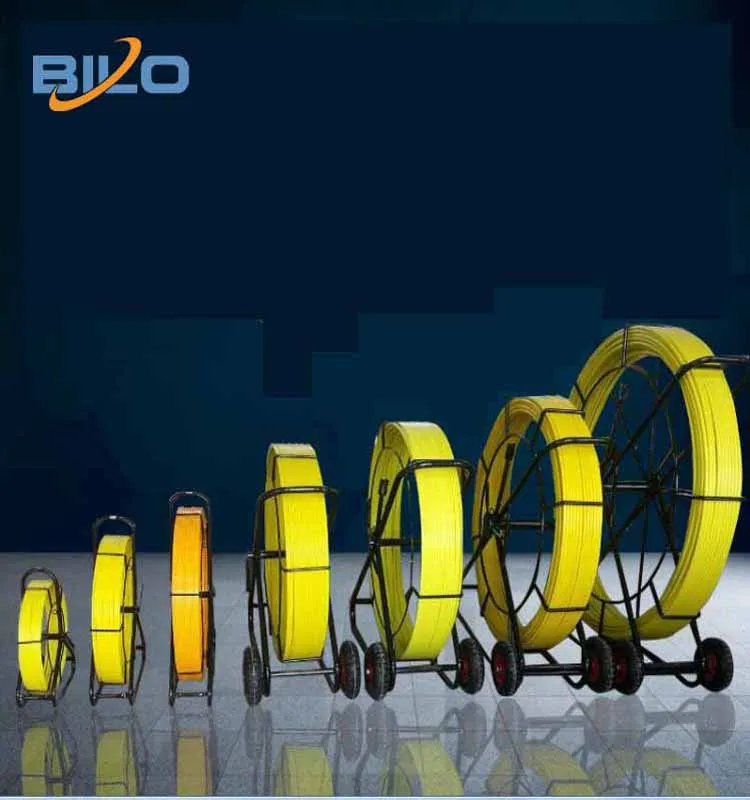

Most popular Size:
4.5x70m, 6*100m, 8*150m, 10*150m, 11*250m,12*250m, 14*250m,16*200m, etc.









Cable puller material and Property.jpg






  1. Technology: pultrusion

  2. : -40°C to +80°C

  3. : +/-0.10mm

  4. When you inquire, please advise the rod diameter, length and quantity.

  5. Technical data












































       Specification(dia. mm)


      Max. tensile strength(KN)   Max. bending force(KN)
     4.5 --- 0.205
     6 --- 0.396
     8 2.67 0.825
     9 19.66 1.18
     11 19.66 1.18
     14 25.36 1.76
     16 29.54 2.85








 3-Structurer Feature.jpg










 Structure






  1. Fiber glass rod inner: Extruded process made of E-fiberglass and high quality resin at high temperature.

  2. Fiber glass rod outer: developed polymer

  3. Assembly: metal frame powder coated; rubber wheels assembly for easy transportation; Guide rollers for rotary coupling; parking brake for the flexible rod control.

  4. Copper wire inside is optional, which is for tracing easily or other professional usage.

  5. Rolling bearing cage for mobility is strong and easy to use.

  6. Feed device allows rod in and out smoothly

  7. Rustproof bull-nose pulling tips with diverse accessories.





Fiberglass cable rodders information






  1. Light weight, durable, good resistance to chemical and corrosion.

  2. High tensile strength and bending properties to make it go through narrow pipes easily.

  3. good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature

  4. Rod jacket: developed composite materials, hard, smooth and wear-resistant.

  5. meter marks: available

  6. Rod colors: yellow, other colors are optional

  7. Rod Length (m): 1-500m

  8. Rod Diameter: 4mm-16mm, any measurement

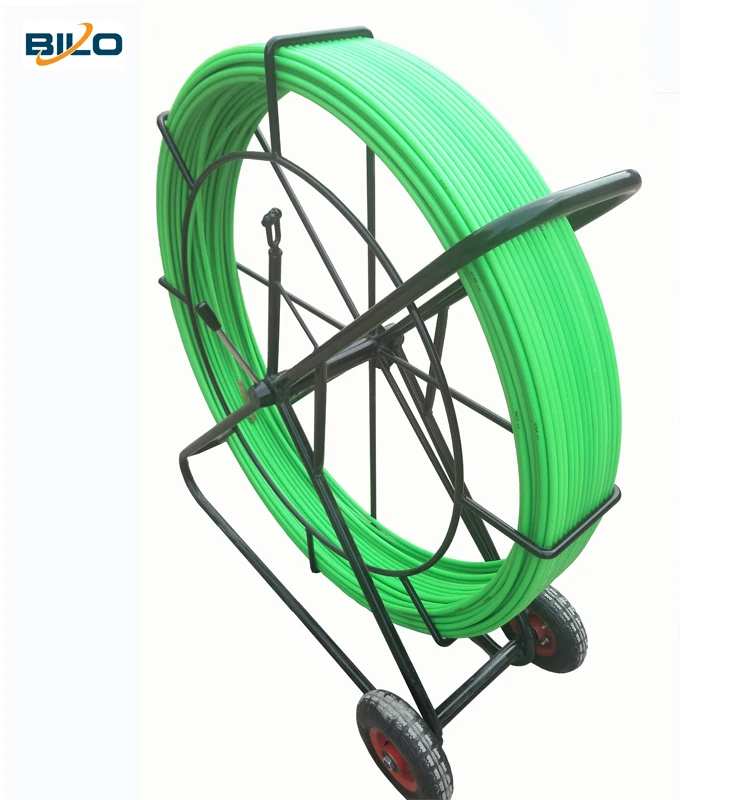

Frame and reel information






  1. Equipped with brake device, the rotating or stopping of the rod can be easily realized just by turning hand. Tilting type handle, convenient for pushing and pulling.

  2. Guide roller and fixed ring: fix the rod end; protect the rod jacket from being scratched.

  3. Frame color: yellow, other colors are available.











 5-Cable puller packing and Tranportation picture.jpg





Fiberglass cable rodders are packed into strong carton which is suitable for long distance transport,


  color label is available as per request on the carton.  for LCL shipment, duct rodder will be packed with crates.


  delivery time: production time for normal orders just need one day.





 packing.jpg loading.jpg


7-Business Terms.jpg





Business term: Ex factory, FOB, C&F, CIF, DDU,DDP are acceptable.


We accept Western Union, T/T, L/C,Paypal etc term of payment.


pls advise the diameter and quantity when you inqury, the quantity affect the price deeply.


CE CERTIFICATE.jpg




9-Contact info..jpg



If you want to know more detailed info. about Fiberglass cable rodders or our company , Pls see our website: www. bl-ductrodder.com





name card.jpg
