fish farming solar tube aerator diffuser for sale

Share on (60722952756):


Price:

Quantity:


Product Overview

Description



Product Description

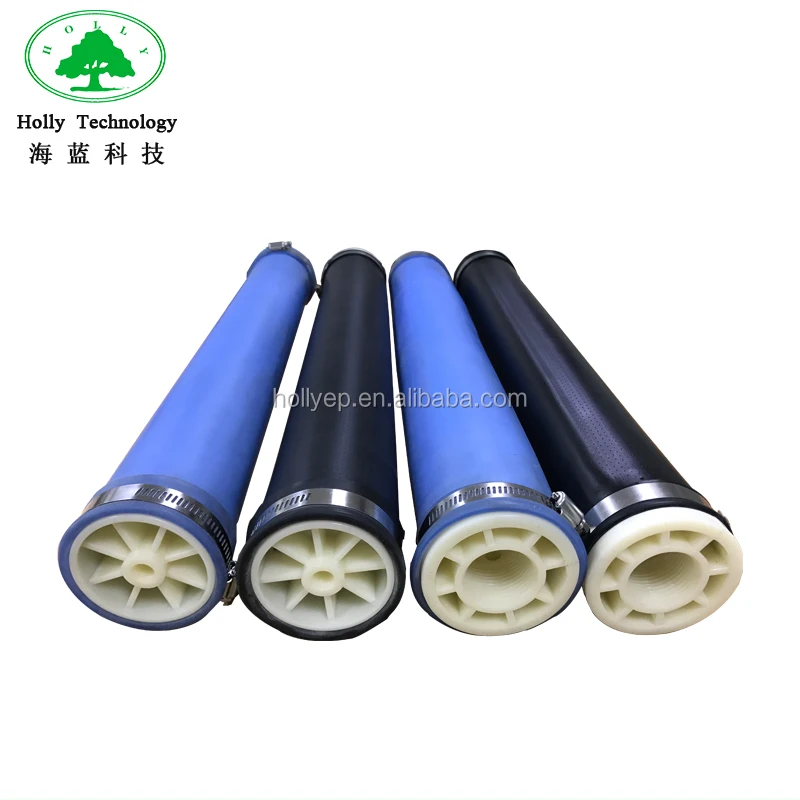

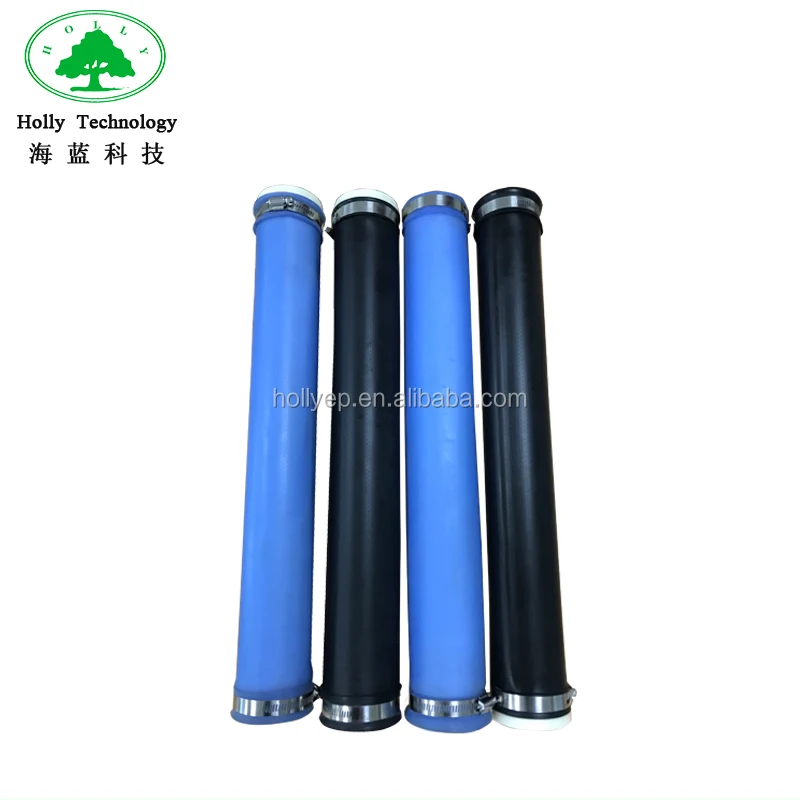

fish farming solar aerator equipment for sale

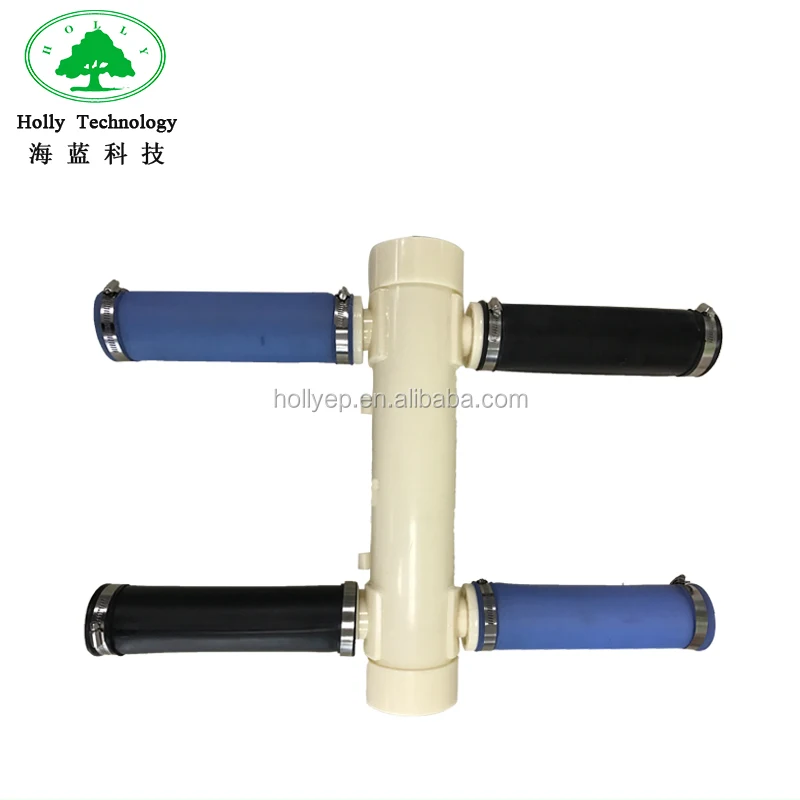

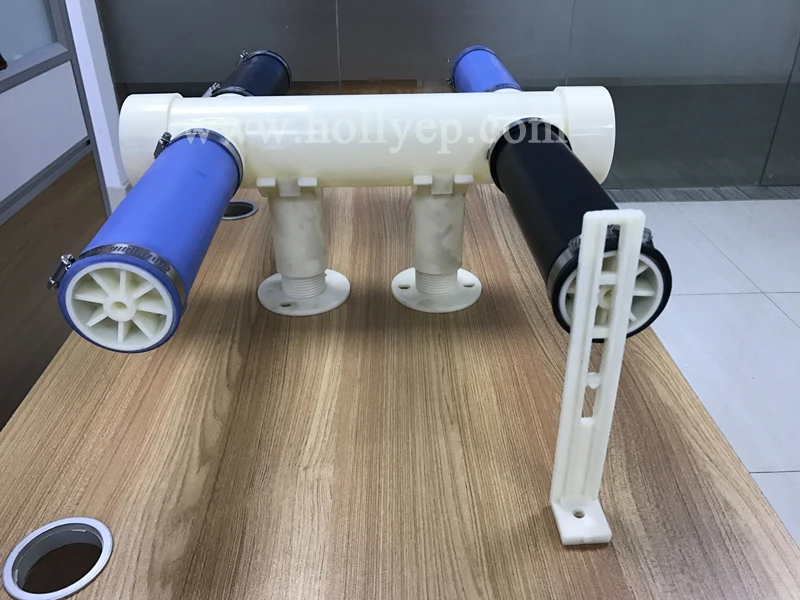

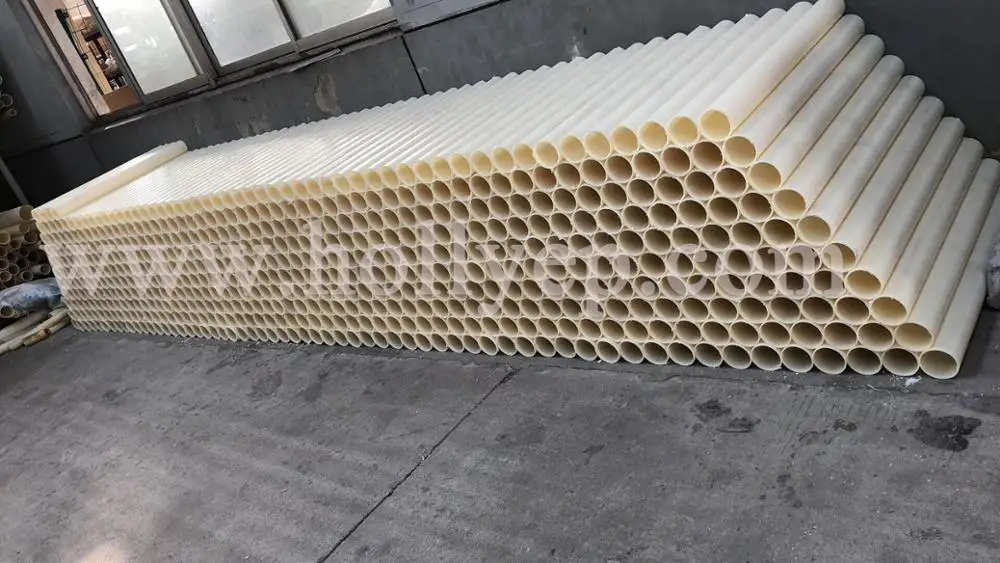

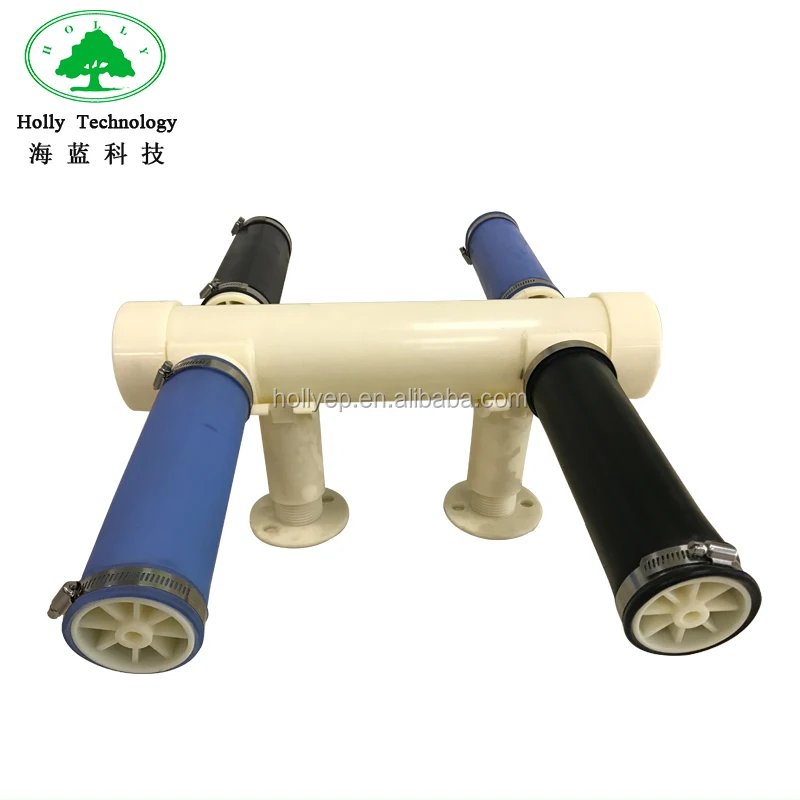

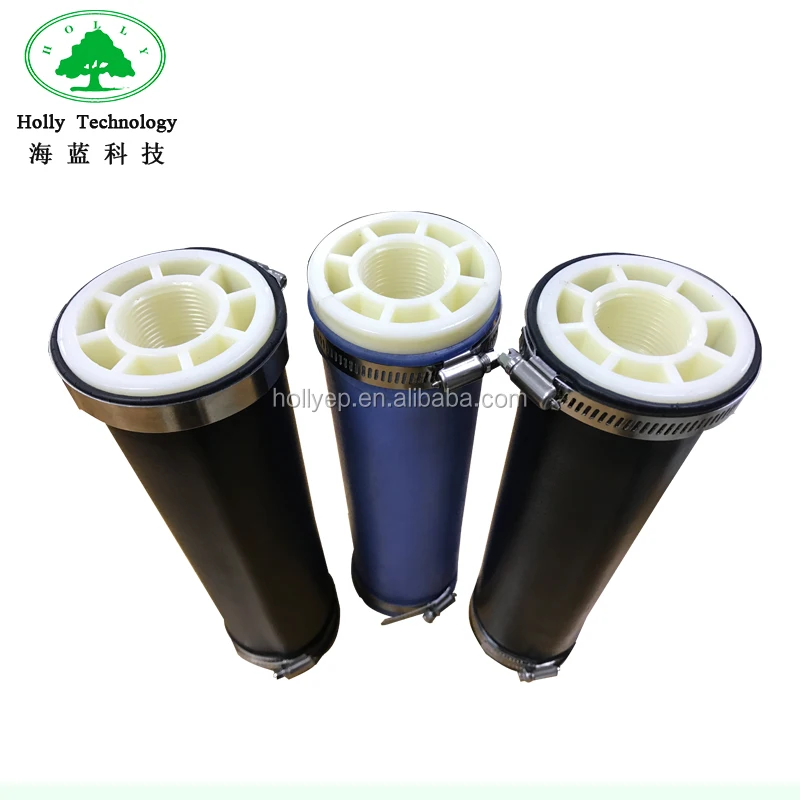

fish farming solar aerator equipment for sale can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation. The support tubes(ABS or PVC material)can be reused when membranes are replaced.



MOC:EPDM

Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm perforations.Compression molding with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.



MOC:Silicon

Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.



Technical Parameters


Technical Parameters of fish farming solar aerator equipment for sale




Type
Membrane Tube Diffuser
Model
Φ63
Φ93
Φ113
Length
500/750/1000mm
500/750/1000mm
500/750/1000mm
Moc
EPDM/Silicon membrane ABS Tube
EPDM/Silicon membrane ABS Tube
EPDM/Silicon membrane ABS Tube
Connector
1''NPT 3/4'' NPT
Bubble Size
1-2mm
Desigh Flow
1.7-6.8m³/h
3.4-13.6m³/h
3.4-17.0m³/h
Flow Range
2-14m³/h
5-20m³/h
6-28m³/h


Main features


Main Features

♦ High oxygen transfer efficiency

♦ Low cost of total ownership
♦ Anti-clogging, corrosion resistant
♦ Ease of installation,2 minutes for one diffuser
♦ Maintenance-free design, 8 years service life
♦ EPDM membrane with excellent performance









Typical application


Typical applications

♦ Preservation aeration of waste water

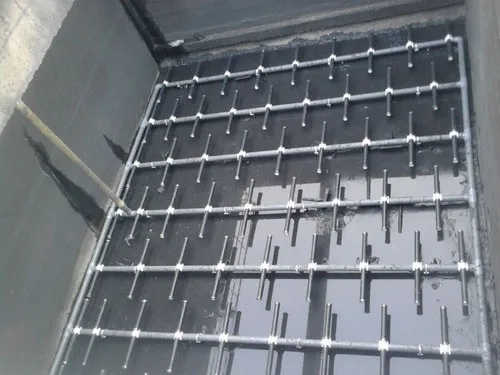

♦ Oxygenation of activation basins
♦ Oxygenation to stabilize sludge

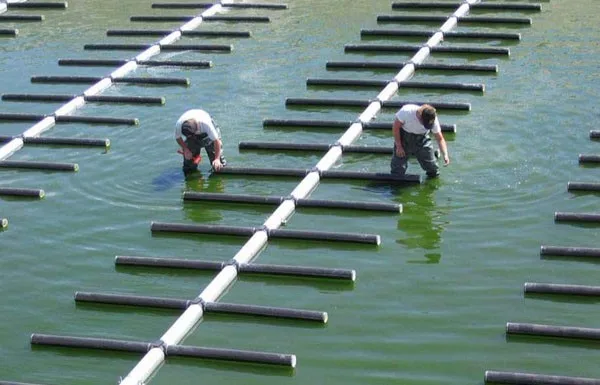

♦ Aeration of rivers and lakes

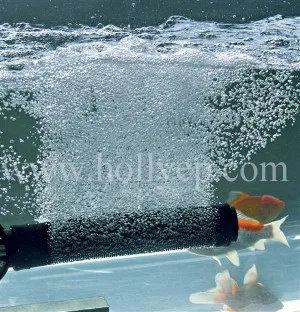

♦ Aeration of fish ponds
♦ CO₂ admission for neutralization

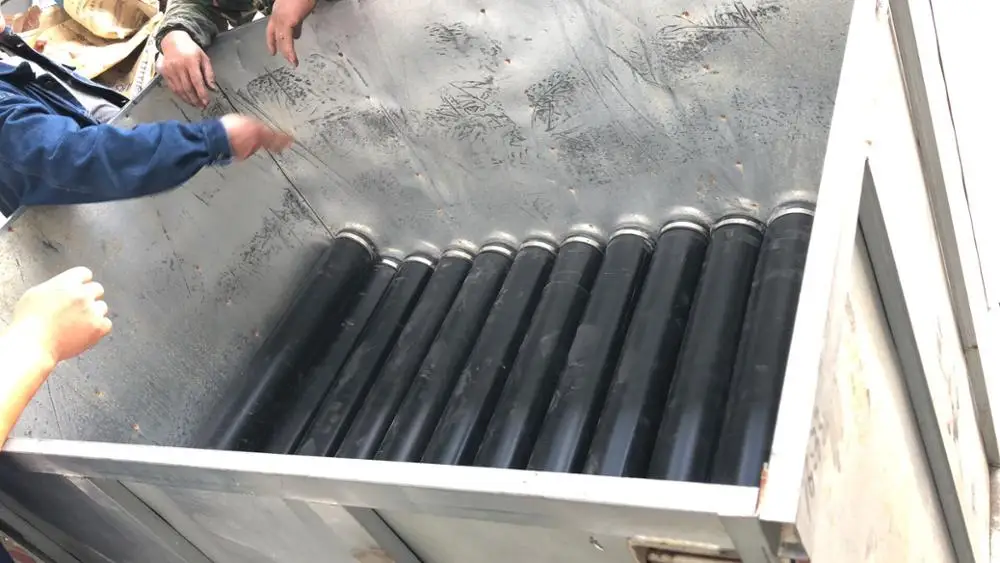

Packing






Related products


Sludge dewatering machine


Nano bubble generator


Fine bubble diffuser




Certificate




About us


Yixing Holly Technology Co., Ltd


 Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipment and parts used for sewage treatment.

Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipment.
