Product Overview
Description

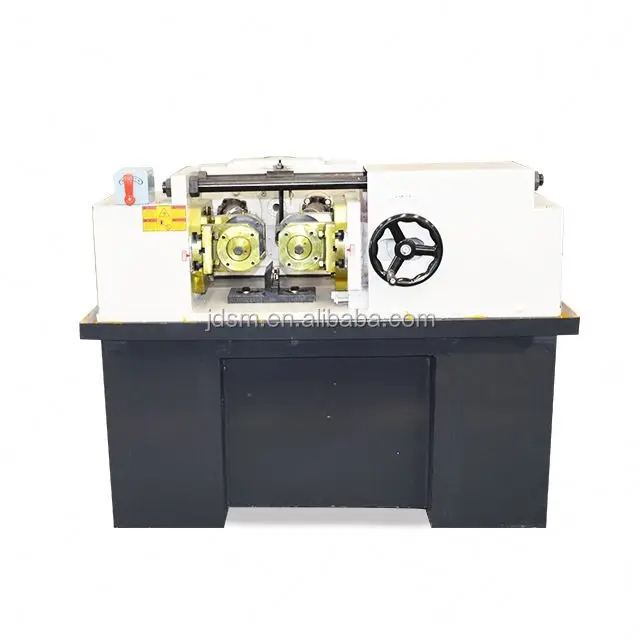

Most effective steel bar 2 roller hydraulic thread rolling machine
Product Description
2 roller thread rolling machine is used to rolling forming 5-36mm straight thread and 0.5-4 pitch, and inclined thread in cold state. It is easy operate, is good equipment for producing nonstandard screw thread and standard bolts.
Features of high speed 2 roller thread rolling machine
Good equipment
Reliable quality
Compact structure
Adjustable operating time
Technical data of 2 roller thread rolling machine
| 1 | Rolling diameter | 5-36mm |
| 2 | Outer Diameter of rollers | 120-170mm |
| 3 | Inner Diameter of rollers | 54mm |
| 4 | Max width of rollers | 100mm |
| 5 | Main axis obliquity | 5 ° |
| 6 | Max. rolling pressure | 120kn |
| 7 | Main axis revolution(exchange gears)(RPM) | 37,36,63,79 |
| 8 | Main axis transmission power | 5.5kw |
| 9 | Hydraulic transmission power | 2.2kw |
| 10 | Dimension(L*W*H) | 1350*1210*1350 |
| 11 | Weight | 1100kg |

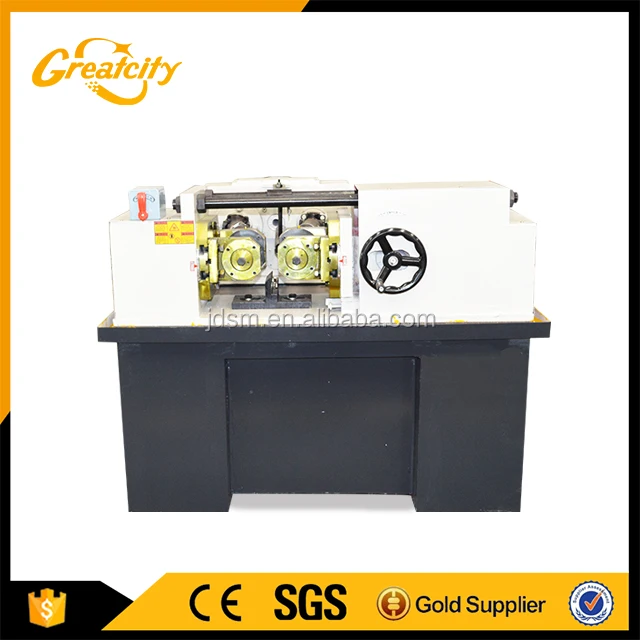

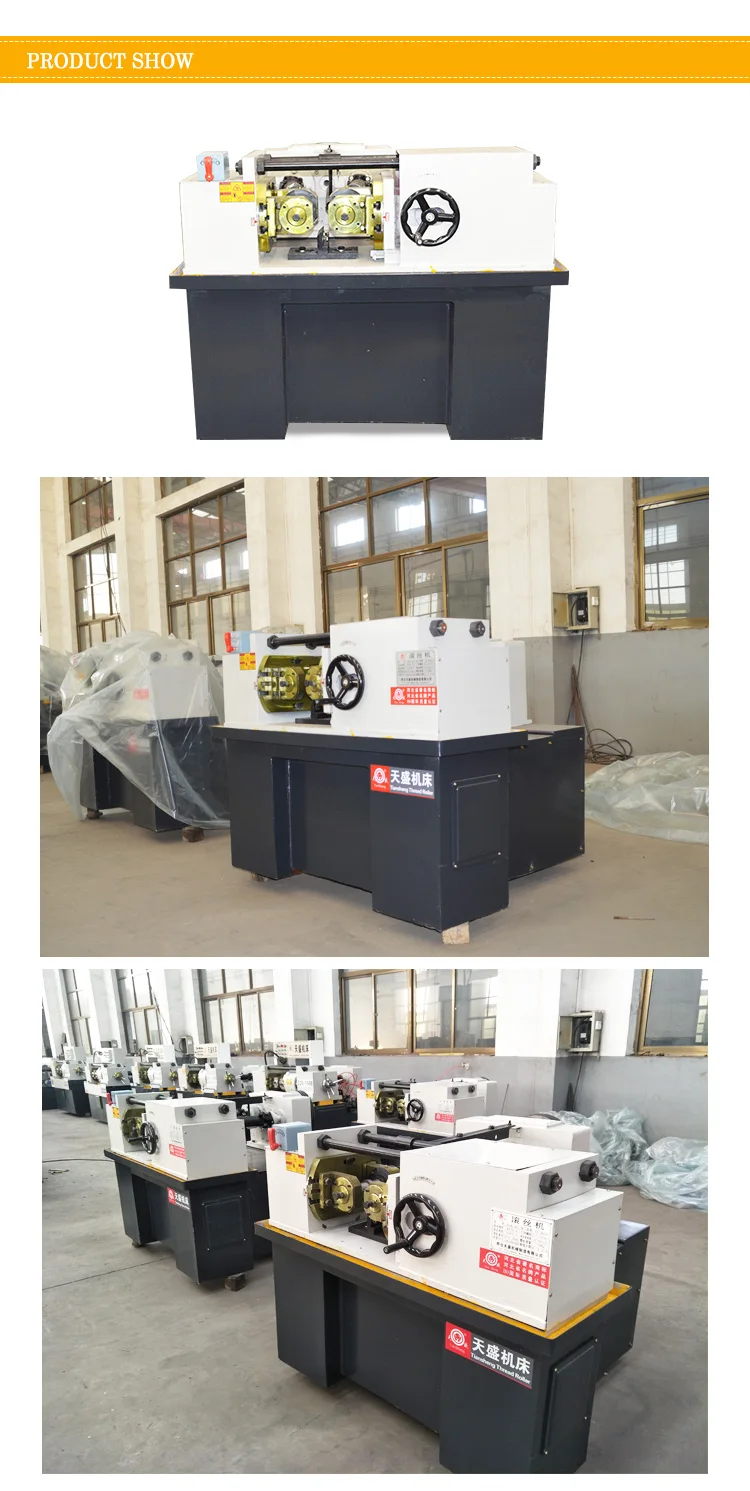

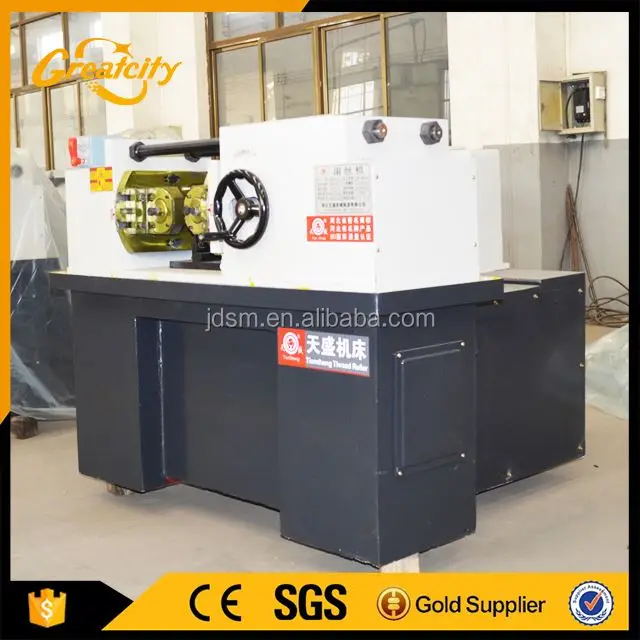

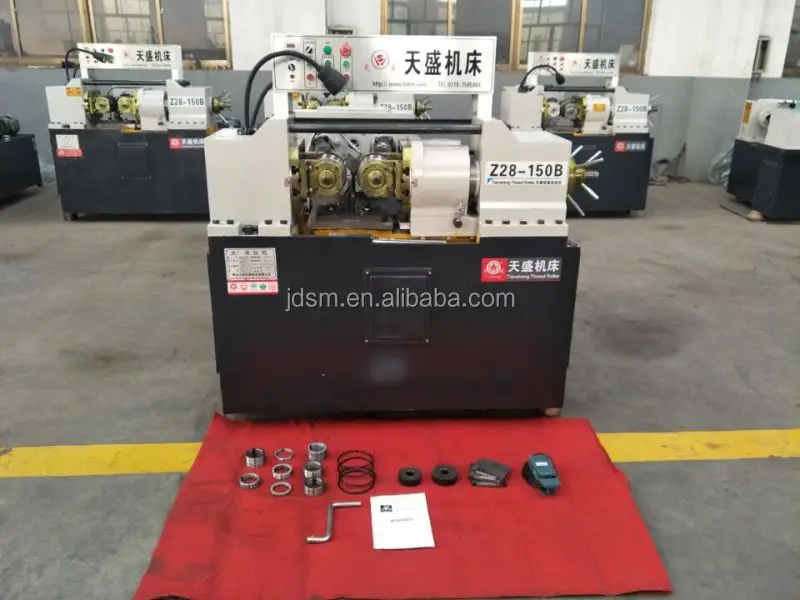

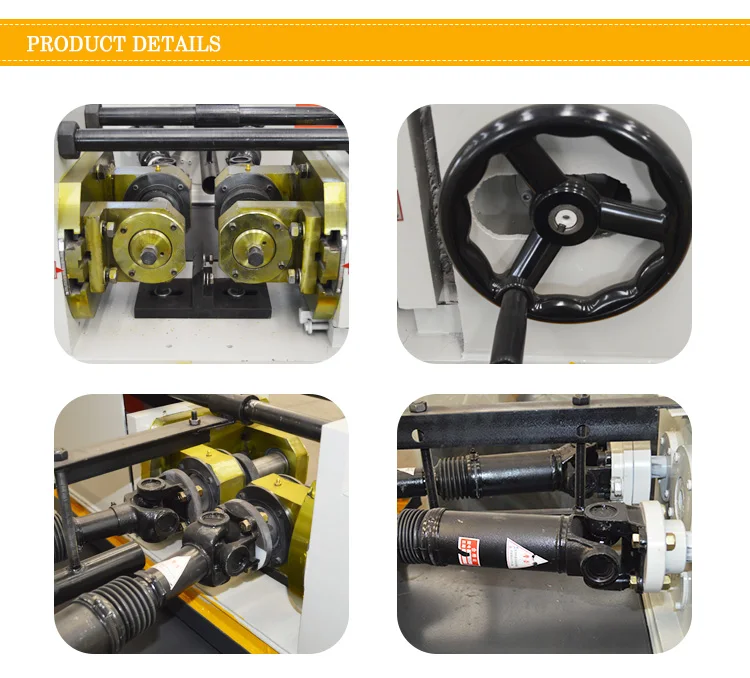

2 roller thread rolling machine details show:
What is the steel bar threading machine

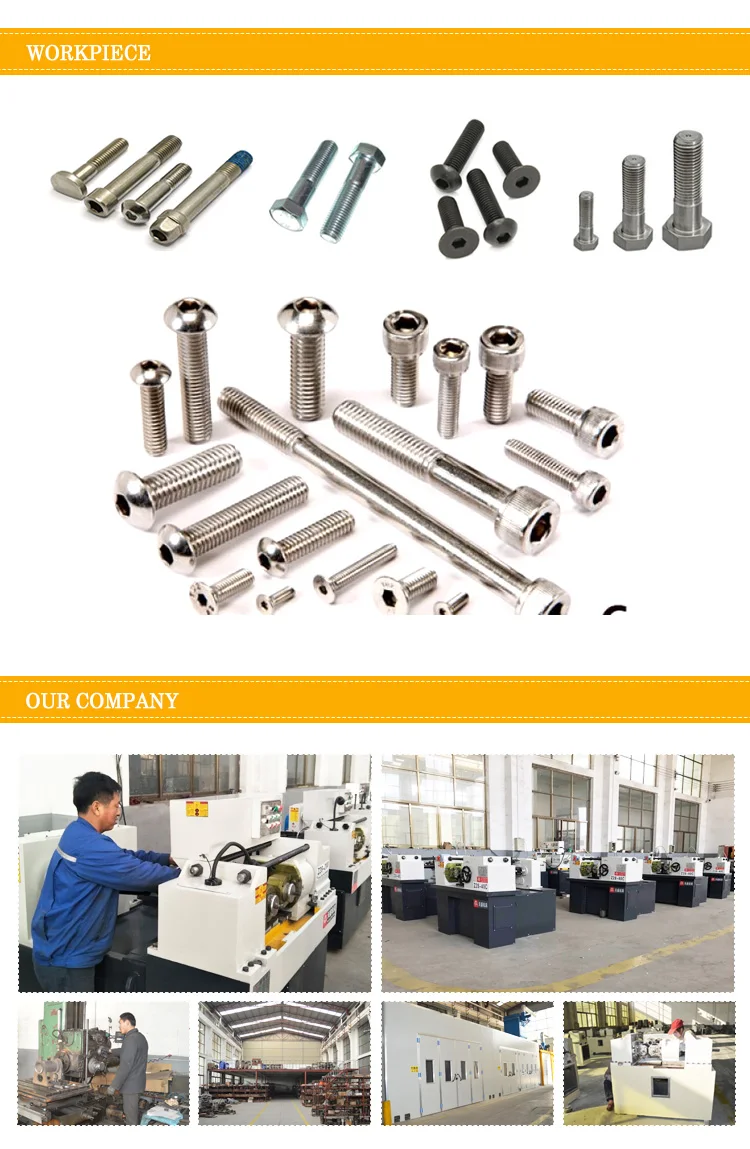

Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..
Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/m m2.
2 roller thread rolling machine
Characteristic:
1.It can make the thead form of good quality.And it It has the high precision.
2.It can be used to process scerw and rebar.The rebar processed by the machine has the good overall mechanical.It can make the tensile strength increased by 20%-30%,the fatigue strength increased by 40%-60%,corrosion resistance increased by 50%-200%.Mechanical properties of rebar connector reached and more than international standards.
3.It works safe and reliable.It can works all day long,and can save steel and energy.
4.It adopt innovative design and advanced technology,alos it has the high precision and easy to operate.
Packaging & Shipping

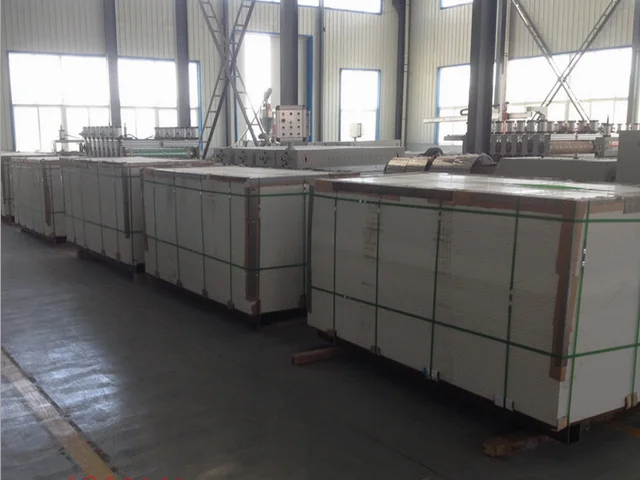

Packaging information: standard export non-fumigation wooden packing for this product.you can choose by sea container or air. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him in the first time.
Shipping time:within 3-5 days after receiving the deposit.
Company Information
Xingtai Judu Technology Co.,LTD was founded in 1990,Specialized in machinery production & export of 2 roller thread rolling machine,has been in this field for more than 20 years.The Hydro construction machines,such as thread rolling machne,steel bar reducing machine and rebar bending machine are our advantages machine. These machines now export to all over the world such as Asia,Africa,South America,Australia and so on.
contact information
if Any questions for 2 roller thread rolling machine ,welcome to contact me at any time!
Jack Song
Tel:0086-18832961315
Trademanager: cn1511995589
Whatsapp: +86-15130126765
Email: peterson(at)greatcitygroup.com
