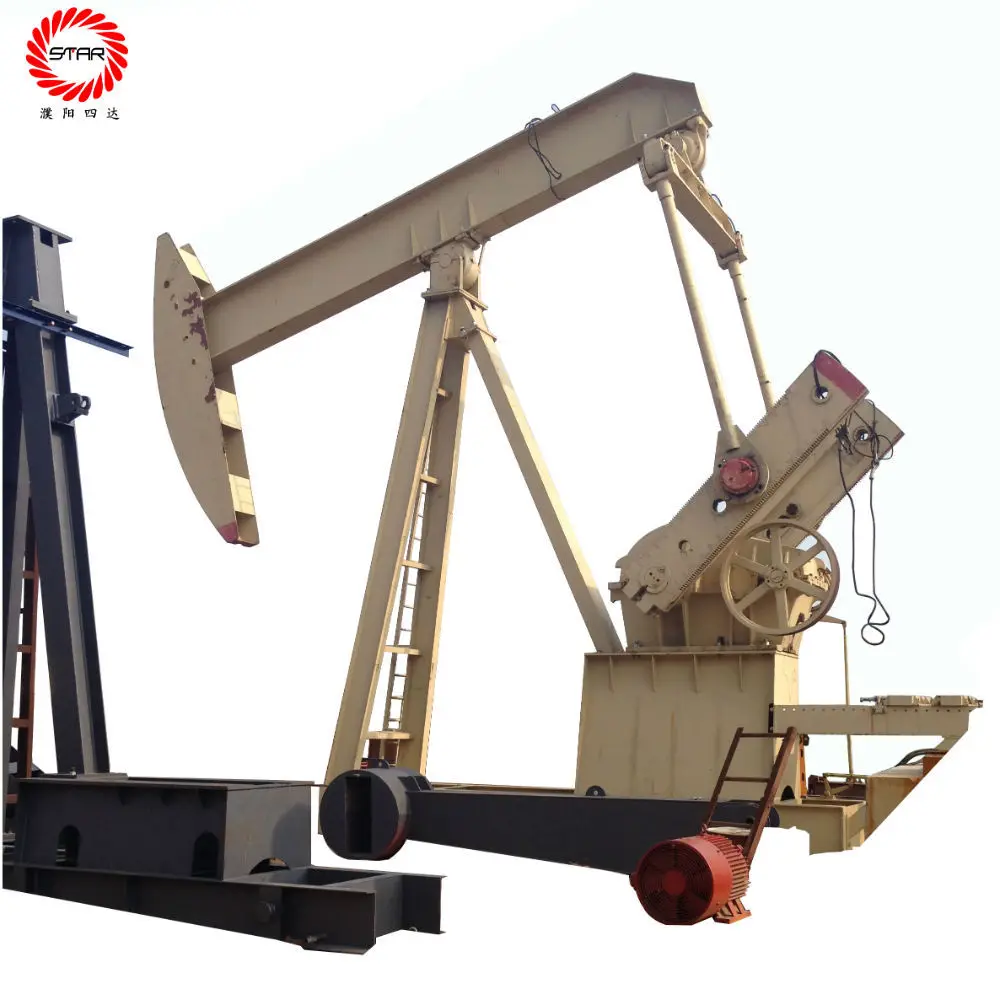

Oilfield Petroleum Mining Equipment API Standard C Series Pump Jack Pumping Units

The API series pumping unit is one kind of convention beamp pumping unit,which selects the crank balanced method.It is the most common, an application scope broadest surface power equipment in field production oil.

The products conform to API Spec 11E "Specification for Pumping Units" and other related standards,and have obtained the certificate of authority to use the official API monogram.

Product Detail

API C Series  Pumping Unit

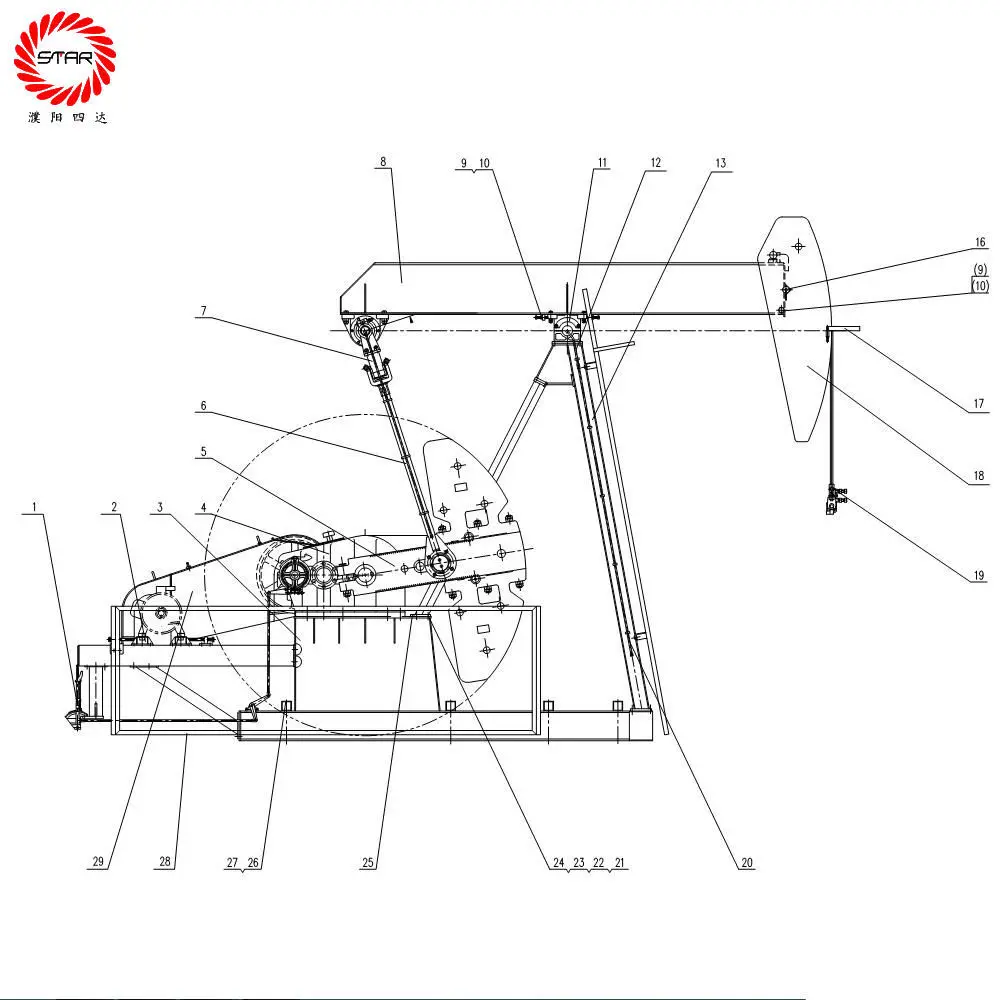

Structure drawing

Pumping Unit Structure Description

1.Wireline	2.Polished Rod Hanger	3.Polished Rod Clamp	4.Mulehead
5.Walking Beam	6.Sampon post support leg	7.Saddle Bearing Assembly	8.Equalizer Bearing Assembly
9.Equalizer Beam	10.Pitman Arm	11.Crank Assembly	12.Crank
13.Reducer	14.Brake Assembly	15.,Motor Base	16.Main Frame
17.Cross Bars Assembly	Crank Guard,Belt Cover

B Series and C Series Structure Comparison

Beam Balance

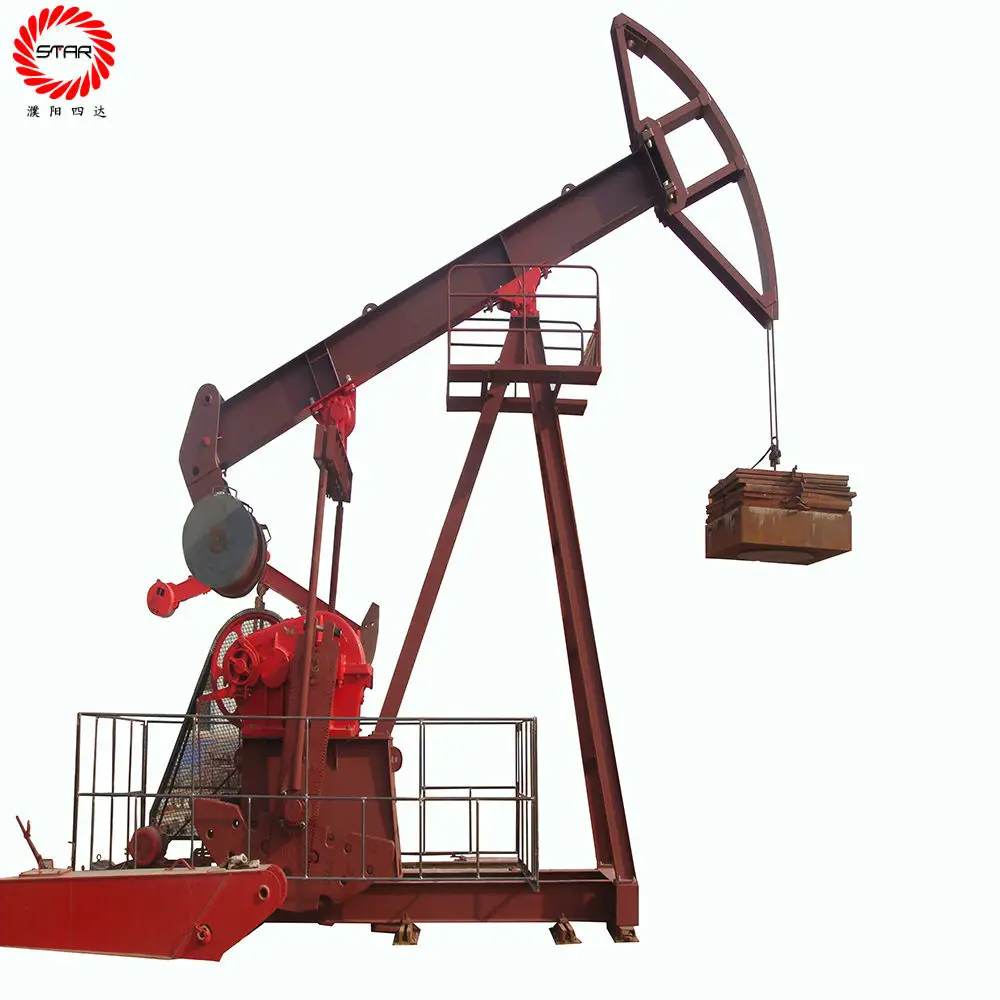

B Series Pumping Unit

Crank Balance

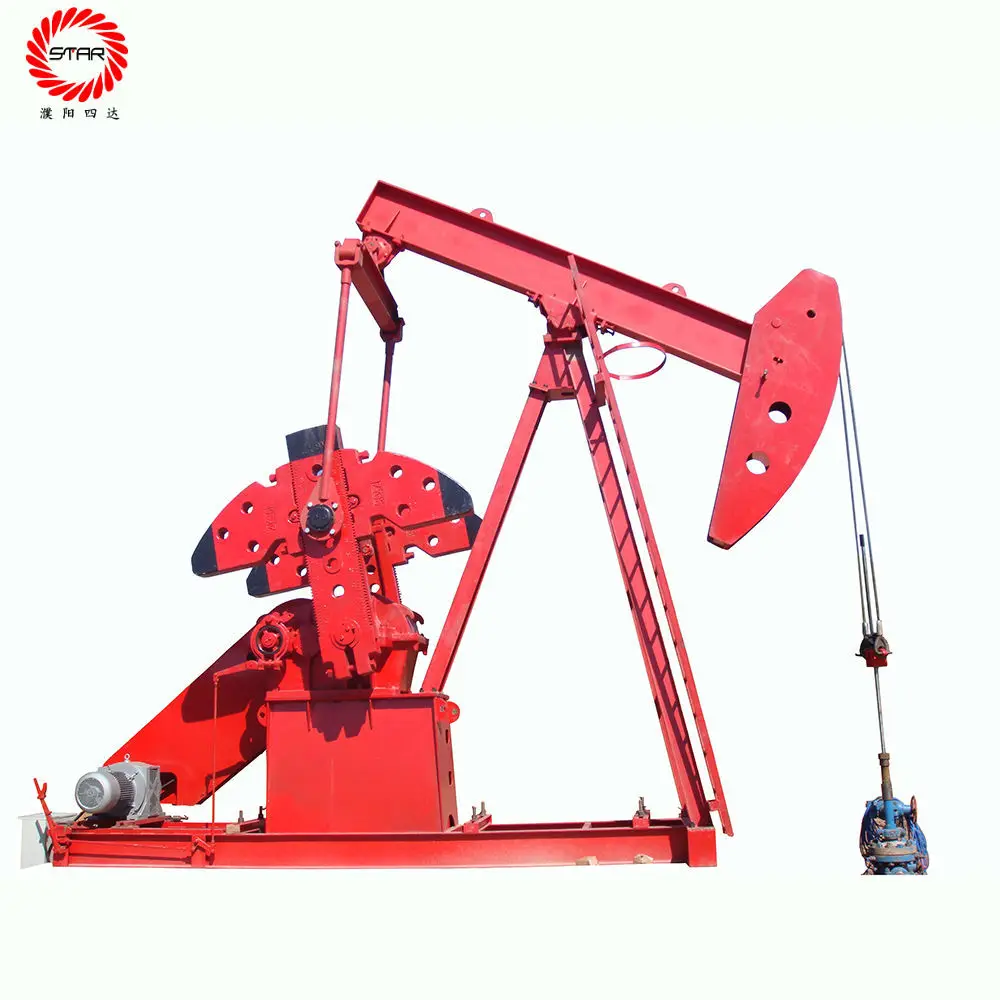

C Series Pumping Unit

CYJ

Technical Parameters

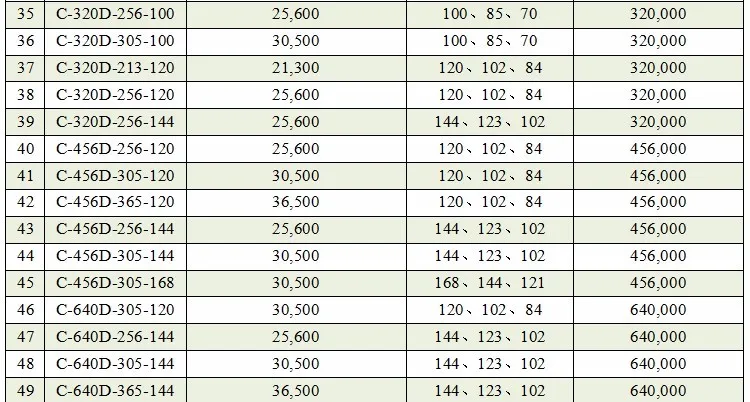

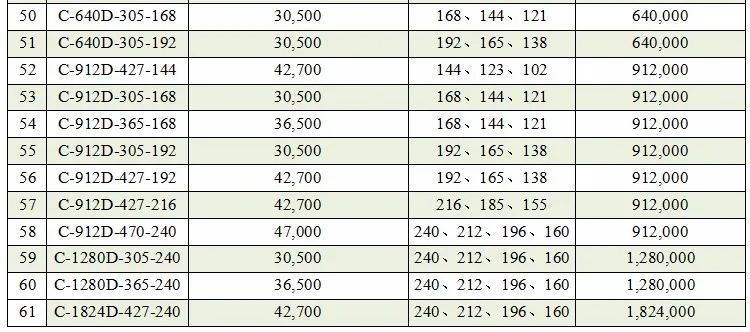

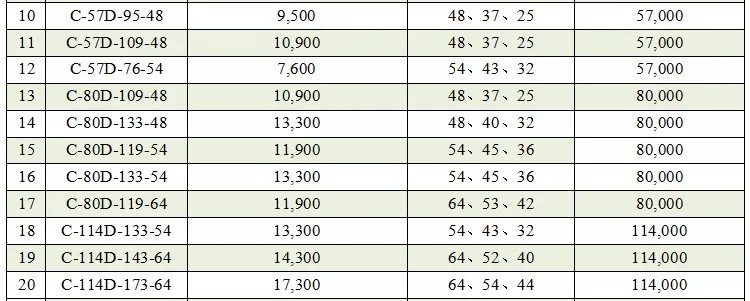

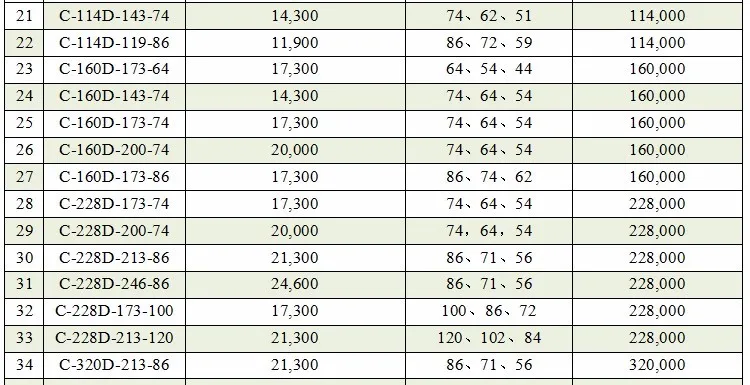

Pumping Unit Main Technical Parameters

Want to know more, please contact Darmon .

Please  supply following information, that I can make the quotation list soon:

1.Gear Reducer:Peak Torque Rating,Reductioin ratio,Type of bearings.

2.Frame structure:Unit structure rating,Range of stroke,Wrist Pin Bearing,Color.

3.Quantity.

4.Trading method:EXW, FOB, CIF(CIF need the destination port) ...

If  have model is better, such as C-25D-53-30

Packing & Delivery

Packaging
Name	Parts/Tools/Files
Method	Iron BOx
Packaging Details	Sucker-rod pumping unit small parts,tools and files(Operation Manual,Parts Catalog) in to the Iron box,then with the Main Machine in to the container

Packaging
Name	Main Machine
Method	Naked
Packaging Details	After fixed, sucker-rod pumping unit main machine naked into the container.

Iron Box

Parts,Tools, Files

Fixed

Fixed and ready to delivery

Loading

Crane to assist in loading

Loading Finished

All the part into the container

Domestic Transport

Container is transported to the port.

Sea Shippinig

Container loaded on board, travel across the sea to the port of destination.

Remarks:

The number of containers required fot the sucker-rod pumping unit shipment depends on the model.

Our Company

Workshop Show

Factory Show

Team Show

The China Import and Export Fair

Foreign Exhibition

International Trade Service Team

Welcome friends from all over the world come to visit our factory and guidance our work.
