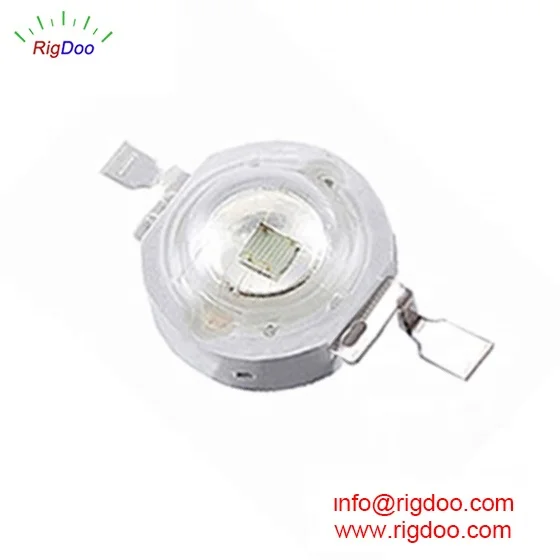

High Quality Free Samples 1 Watt 3 Watt Light Emitting Diode SMD 1W 3W Green LED Chip Light Source for Stage Light
High Quality Free Samples 1 Watt 3 Watt Light Emitting Diode SMD 1W 3W Green LED Chip Light Source for Stage Light
Products Description
Features
Package ( L/W/H ) : 14.6×8×5.1 mm Color : Ultra High Bright Green Lens: Water Clear Flat Mold EIA STD Package Meet ROHS, Green Product Compatible With SMT Automatic Equipment Compatible With Infrared Reflow Solder Process

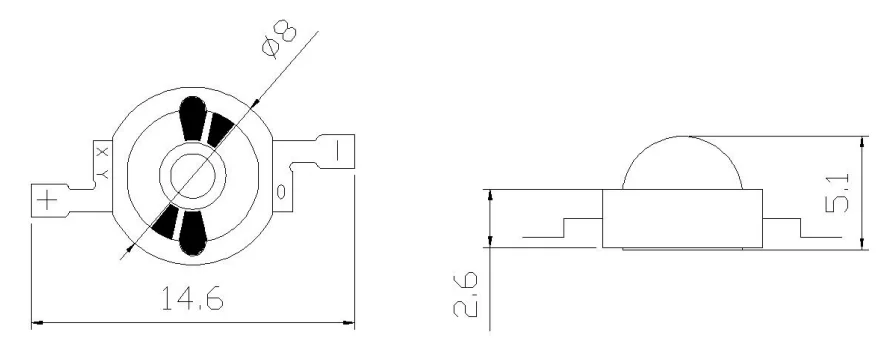

Package Profile & Soldering PAD Suggested
Absolute Maximum Ratings At Ta=25℃
Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
1000
mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
IFP
500
mA
DC Forward Current
IF
350
mA
Reverse Voltage
VR
5
v
Operating Temperature Range
Topr
-40C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 100C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds
Anti-static Sensitivity
ESD
2000V HMB
Thermal Resistance
Rth
10
C/W
Electrical Optical Characteristics At Ta=25℃
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Lumens
Φ
60
70
Lm
IF = 350mA
Viewing Angle
2θ1/2
---
140
---
deg
IF = 350mA
Dominant Wavelength
λd
520
525
530
nm
IF=350mA
Peak Wavelength
λp
527
nm
IF=350mA
Spectral Line Half-Width
Δλ
---
20
---
nm
IF=350mA
Forward Voltage
VF
2.8
3.6
V
IF=350mA
Reverse Current
IR
5
uA
VR=5V

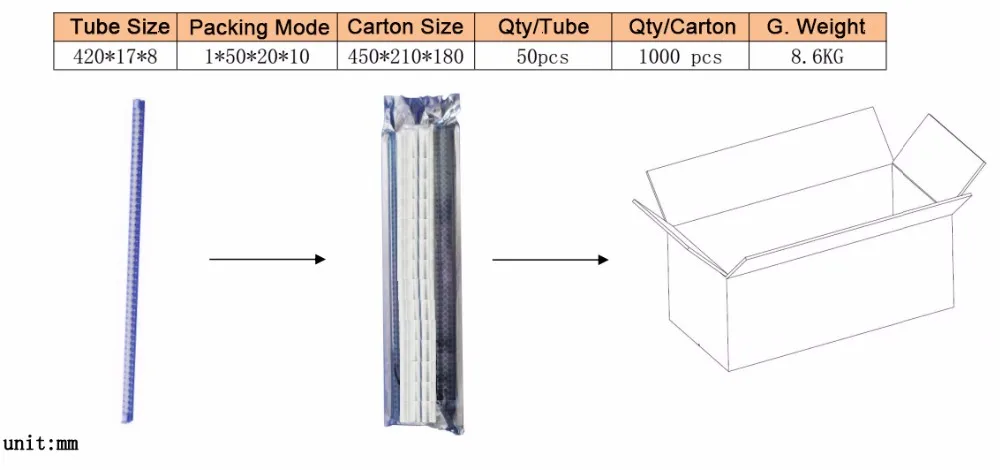

Packing
Certificates
Applications
Backlight for Indicator Board
Backlight for Automobile Meter
Backlight for Digital and Marks
Backlight for Digital,words and Marks
Indicator Application
Backlight for Keyboard and Nameplate
LED Lighting
LED Strips, LED Strings
LED Screen
Company Information
Company Profile
Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China with more than 18 years experience in LED industry. RigDoo specially R&D, manufacture and sales LED, SMD LED, Through Hole LED and High Power COB integrated LED.
We have hundreds of machines of Crystal Bonders (ASM), Wire Bonders (ASM, K&S), Dispensing Machines (Musashi), Molding Machines (Single Well), Slicing Machines (DISCO), Sorting Machines (Ka Large, Single Well, Tripod) and Tape Loading Machines (Mason, Ka Large, Single Well and Tripod) etc..
For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, in Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB, RGBW, RGBWW etc..
For DIP LED (Lamp LED, Through Hole LED), we have 3mm, 5mm, 8mm and 10mm Single color, Bi-color and RGB Tri-Color, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc..
For High Power COB integrated LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.
Our factory are with certificates of ISO9001 and ISO14000. Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
