Excellent quality disc brake tailstock for cnc 4th axis rotary table
- Category: Machine Tools Accessories >>>
- Supplier: Dongguan Mihong Mechanical Hardware Co. Ltd.
Share on (60724573306):
Product Overview
Description
Product Description

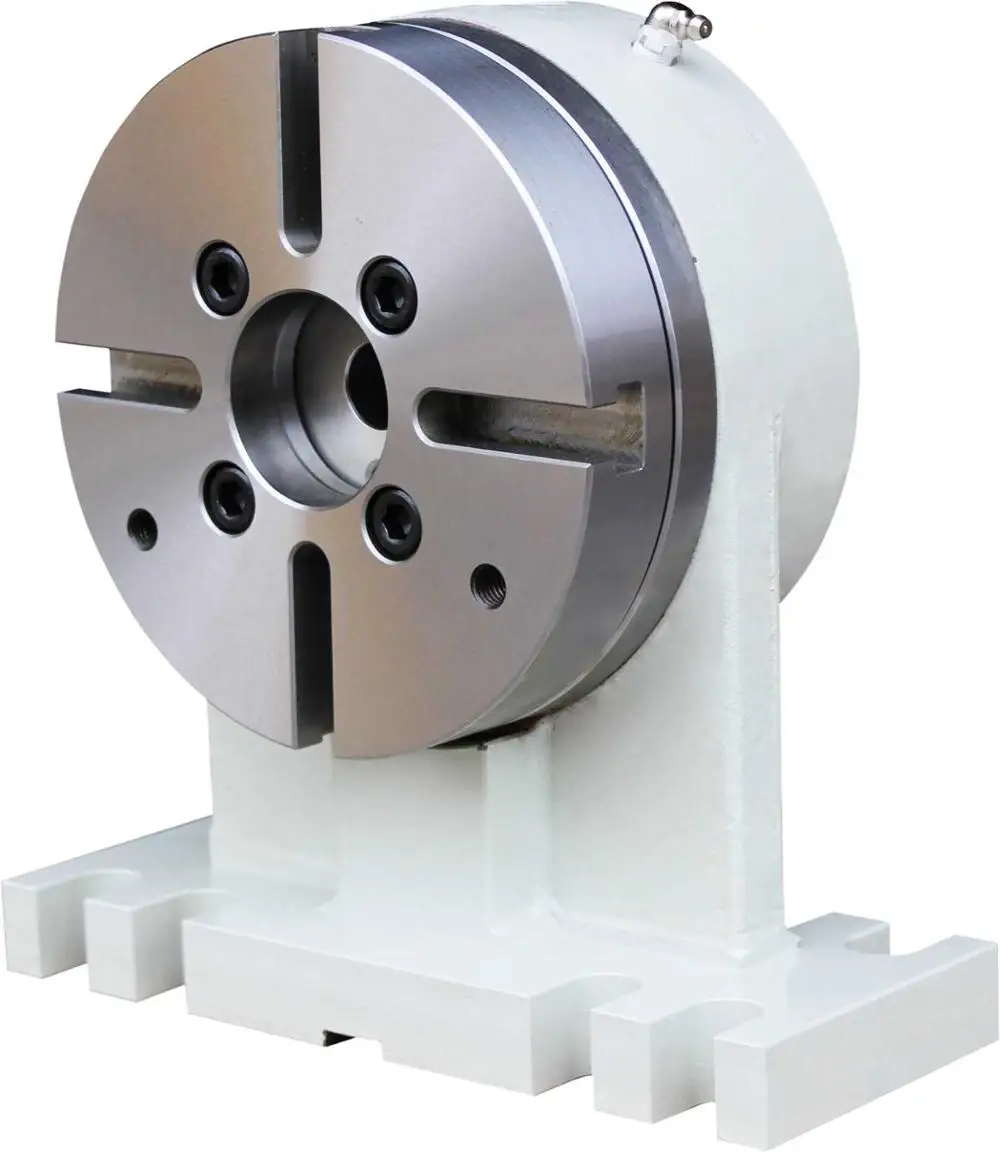

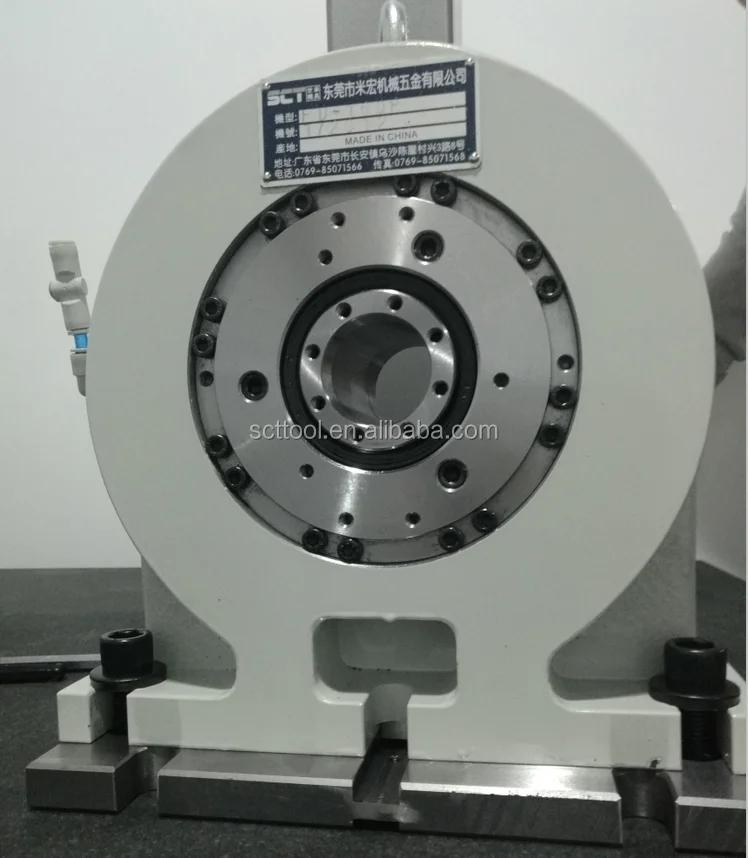

Excellent quality disc brake tailstock for cnc 4th axis rotary table
Feature:
1.Use precision bearing
2.With the nc rotary table can be braked in same time .
3.Disc brake hydraulic locking .
4.Also can be pressure lcoking
Specification:
Model | FD-135P | FD-160P (optional) | FD-210P(optional) |
Locking | Pneumatic 5kg/square meter | ||
Disc size | 170mm | 255mm | 320mm |
Run through diameter | 20mm | 55mm | 42mm |
Center height | 135mm | 160mm | 210mm |
Locking force | 16kgf/m | 45kgf/m | 85kgf/m |
Weight | 22kg | 70kg | 115kg |
