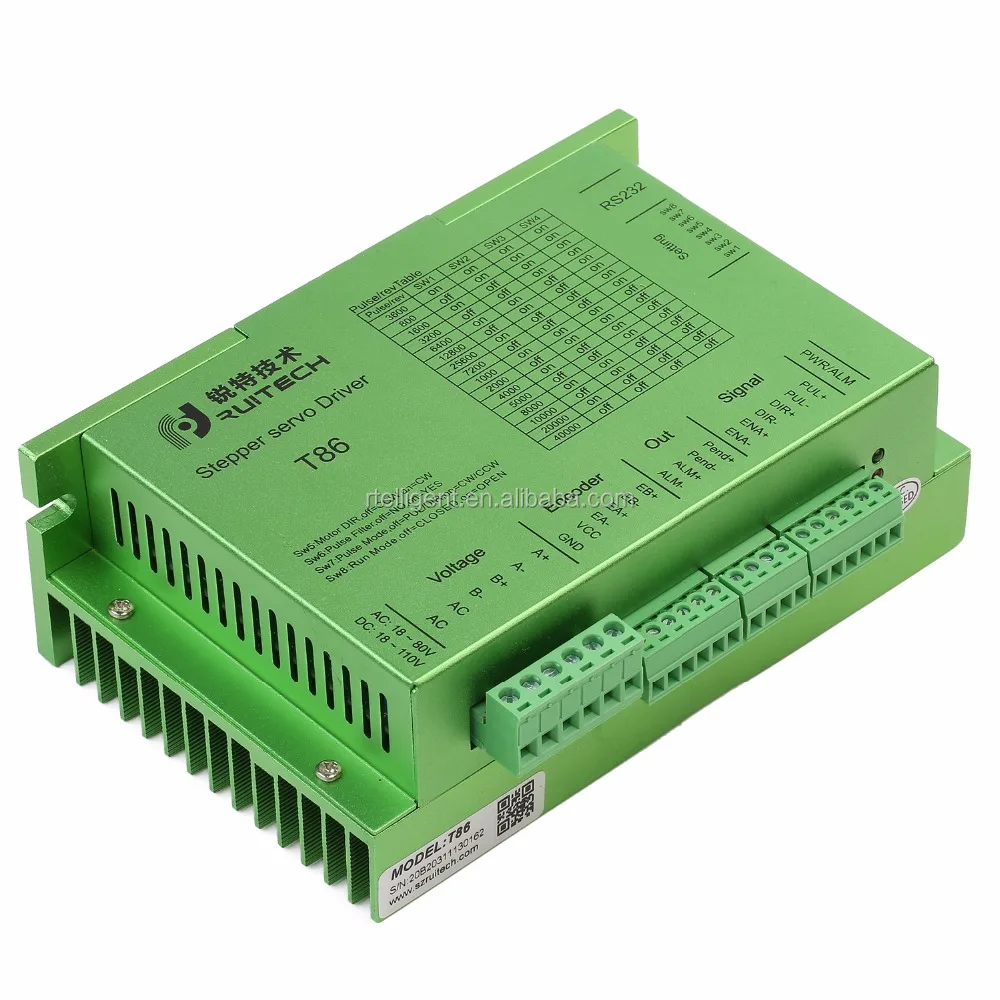

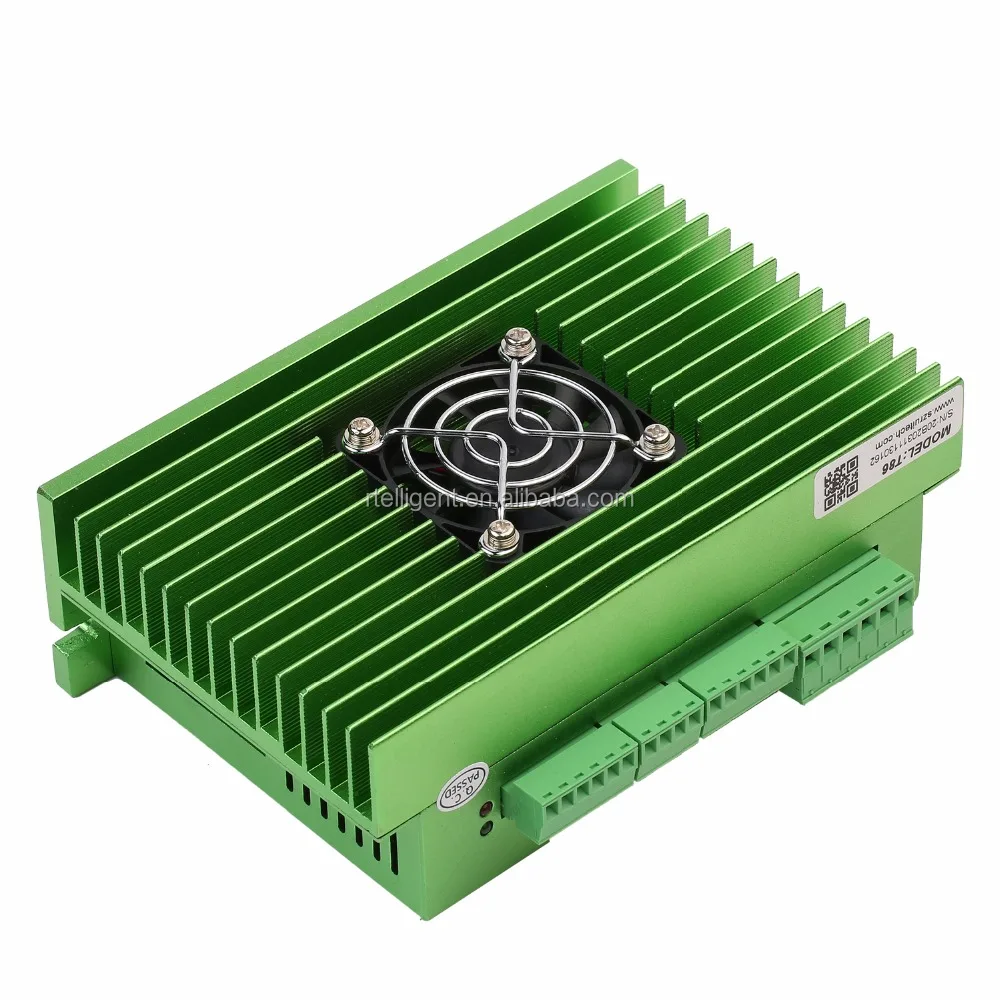

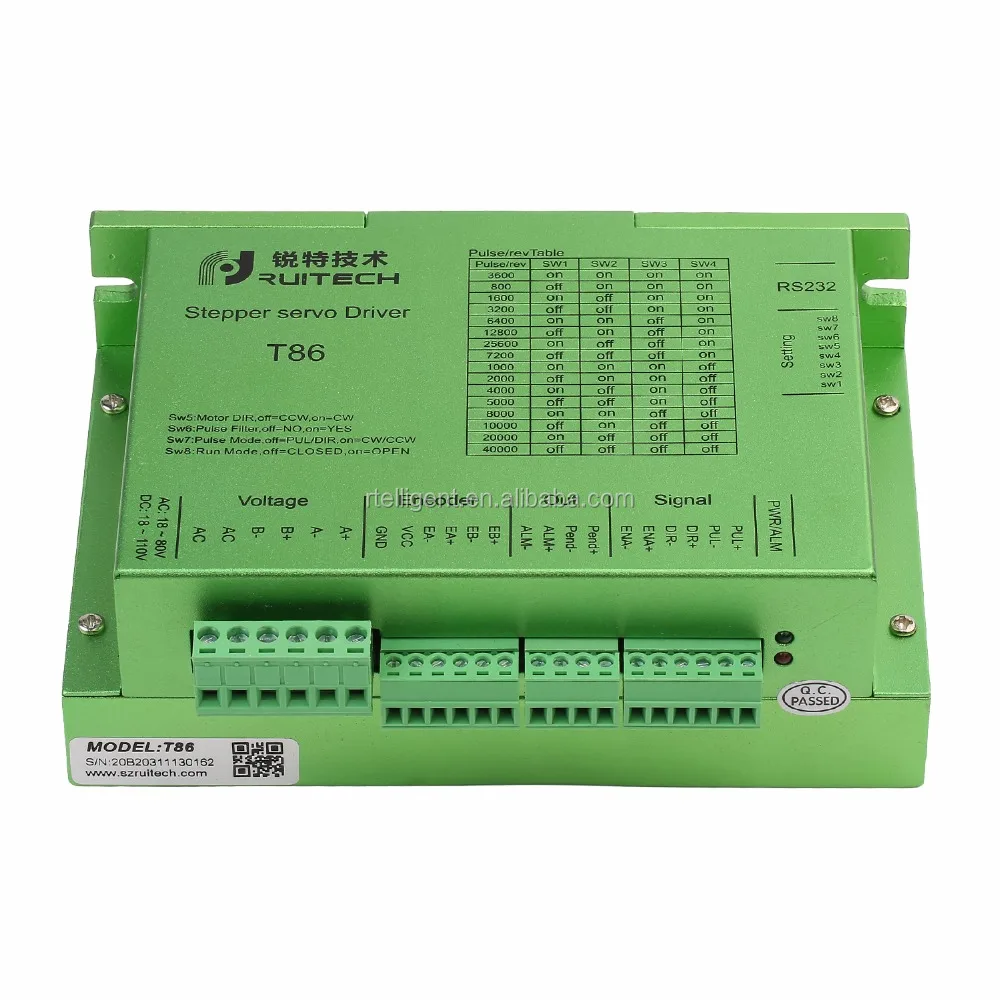

Двухфазный гибридный шаговый драйвер с замкнутым контуром T86

T86 Two-phase Hybrid Closed Loop Stepper Driver

Based on the new 32-bit DSP platform developed by TI, provided with vector control technology and servo demodulation function internally and in combination with feedback from the encoder of closed loop motor, T86 stepper servo drive enables the stepper servo system to feature low noise, low heating, no loss of step and higher application speed, able to improve performance of the intelligent equipment system comprehensively.

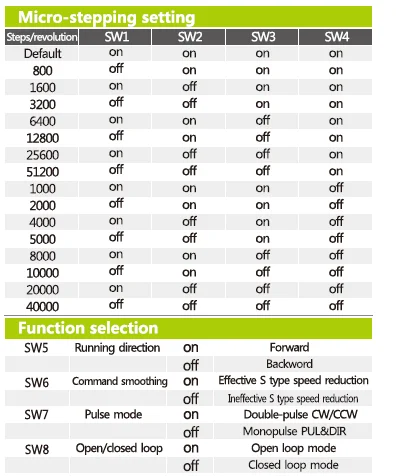

\tPulse mode: monopulse/double-pulse/ orthogonal pulse
\tSignal level: 3.3-24V compatible; serial resistance not necessary for the application of PLC.
\tPower voltage: 24-100V DC or 18-80V AC, 48V AC recommended.
\tTypical applications: welding machine, servo dispenser, wire-stripping machine, labeling machine, carving machine, electronic assembly equipment etc.

G.W.

0.75kg/pc

Packed by

12pcs/carton

Dimension

334*253*220mm
