Popular spice powder grinding machines manufacturers cassava grinding mill

Product Overview

Description

Popular spice powder grinding machines manufacturers cassava grinding mill

Introduction of spice grinding machines manufacturers
This machine has a wide application and is widely used for pharmaceutical industry, chemical industry, foodstuff industry, grain industry and so on.
Working principle of spice grinding machines manufacturers

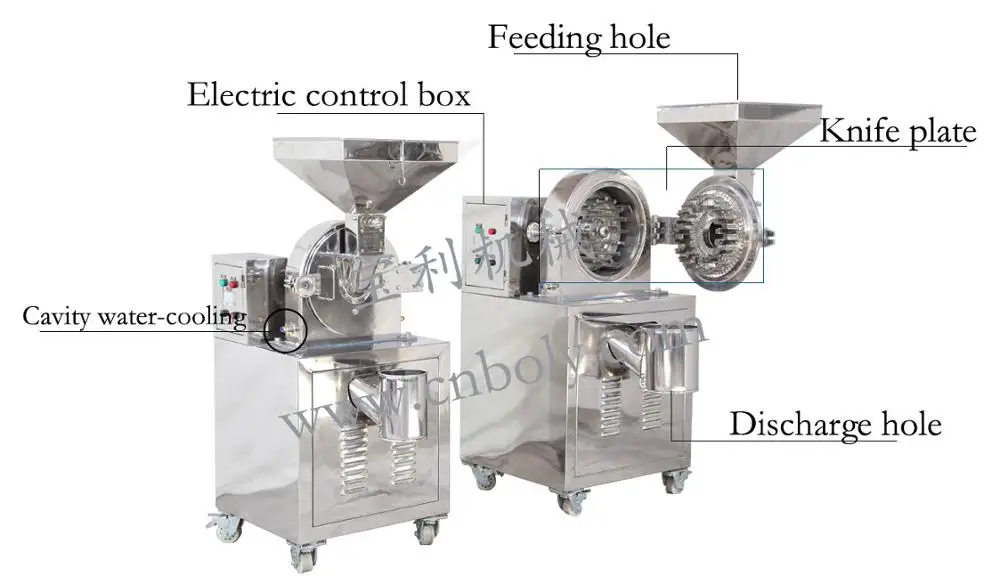

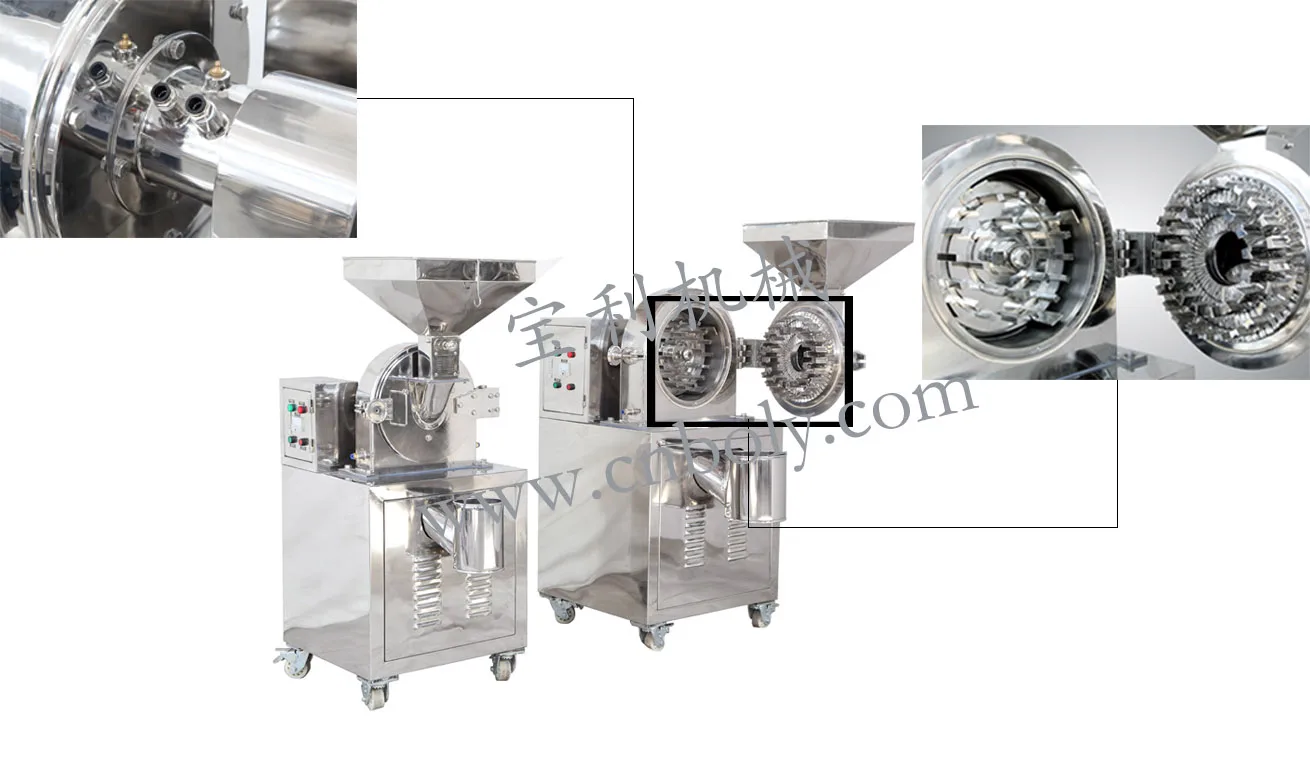

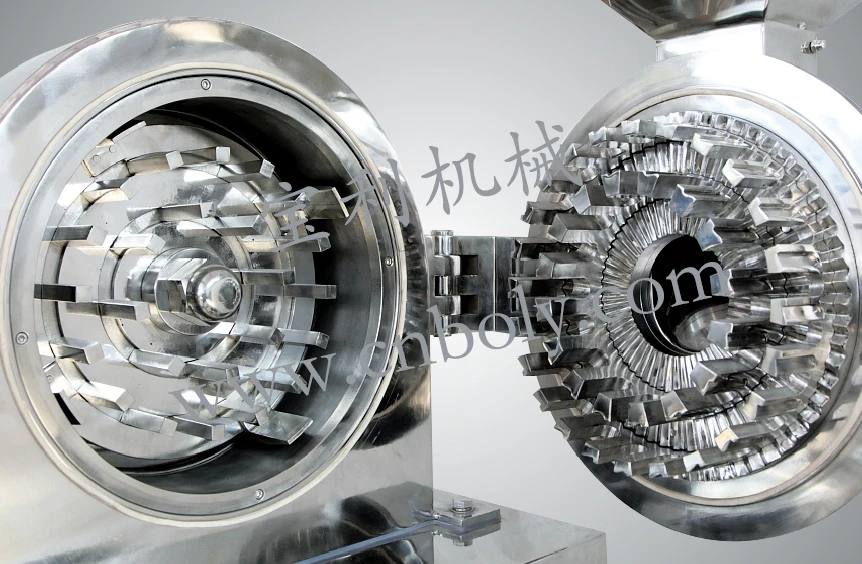

This machine uses the relative motion between movable and fixed teeth disc,and the raw materials is grinded by the comprehensive actions such as impacted by teeth, friction, impact between raw
materials.
Advantage of spice grinding machines manufacturers
It comes with simple and solid structure, stable running, high grinding efficiency.
The crushed material can be discharged through the grinding chamber. Moreover, different size of granule or powder can be got through exchanging screen with different mesh. Its inner wall
is processed finely, so it is smooth and level, which overcomes the shortcomings
existed in the old model such as roughness,accumulated powder.
It makes the production of medicines, foodstuff and chemicals and so on in conformity with the requirements of state standard and GMP.

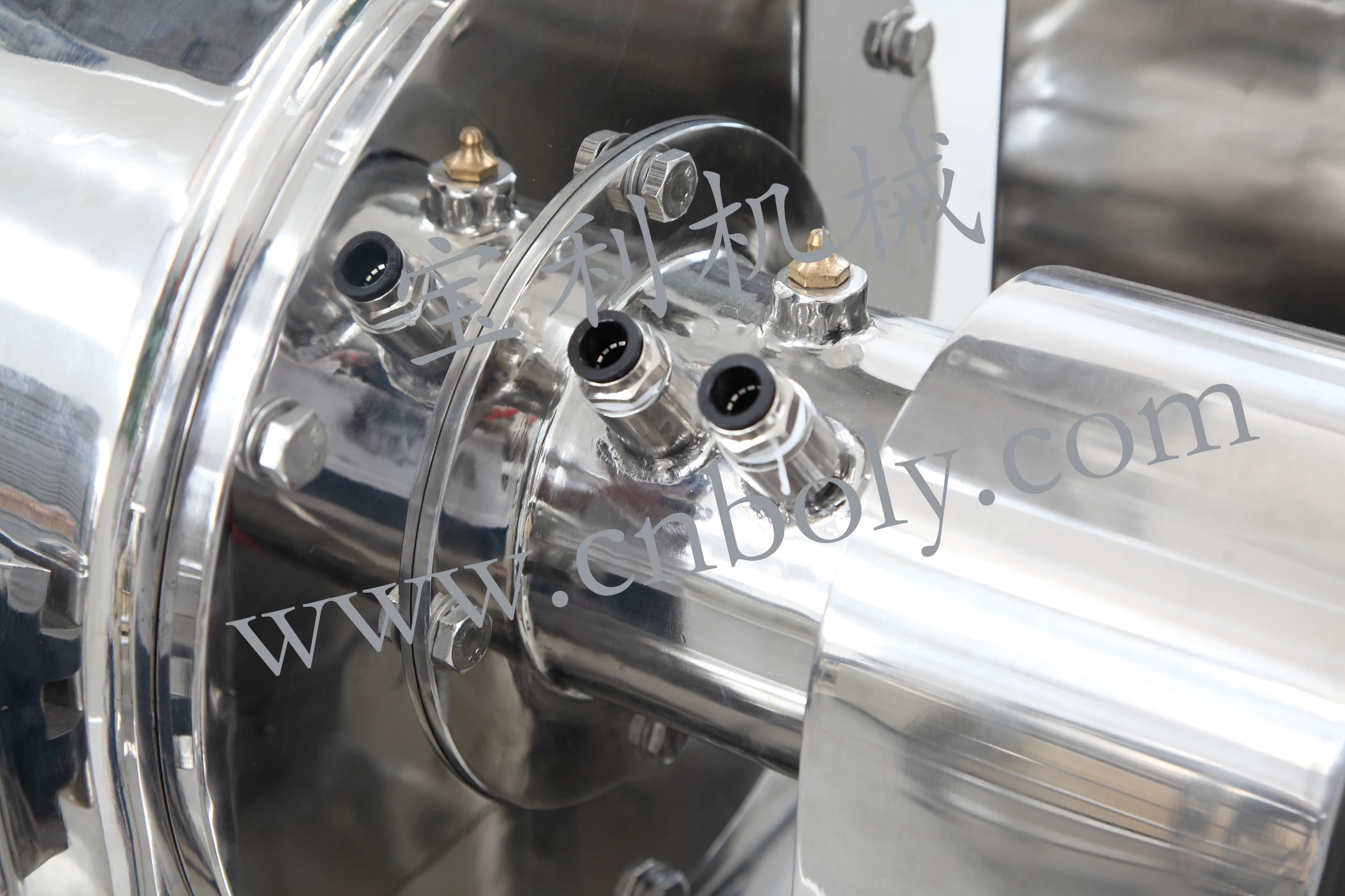

Water cooling device, and conveyor screw can be equipped according to customer’s needs.
Specification of spice grinding machines manufacturers

Technical Data:

Model	20	30	40	60	80
Capacity(kg/h)	20-150	30-300	40-800	80-1200	150-2000
Speed of principle axis (rpm)	4500	3800	3400	3000	2100
Size of input granule (mm)	6	10	12	15	20
Crushing Fineness (mesh)	12-120	12-120	12-120	12-120	12-120
Power (kw)	4	7.5	11	22	30
Overall size (L*W*H) (mm)	700*900* 1500	800*1100* 1700	850*1200* 1850	950*1300* 1950	1100*1000* 2100
Weight (kg)	250	350	450	800	1200
Material	SS304	SS304	SS304	SS304	SS304

Popular spice powder grinding machines manufacturers cassava grinding mill

Transaction History

China popular spice grinding machines manufacturers/cassava grinding mill

1.Our company’s engineers have long been engaged in pharmaceutical machine designed and developed, more experienced. They have the China’s longest pharma design and manufacturing experience (started in 2004).
2.Over 13 years of rich experience in design and manufacture, can not only ensure best Chinese pharma machine
performance,and reliability is optimal in China.
3.Our company can provide the whole line of pharma machines, the most complete varieties China pharma machine:
Pulverizer-----Mixer-----Granulating machine-----Drying machine----Blender----Tablet pressing / Capsule filling----Tablet coating / capsule polishing-----Tablet / capsule counting machine, etc.
4.Our company can provide 100% custom made service, according to your actual production process, we can designand transform the special machines for your use.

Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
1) We are golden supplier on alibaba with a history since 2008.
And our factory's history is from 2004.
2) We have CE certificate, ISO,BV...etc.
3) Each year,We takes part in a lot of Expos ,for example: FIC, CPHI, API...etc
