Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
Capillary copper tube straightening and cutting machine
- Category: Metal Straightening Machinery >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (60725188729):
Product Overview
Description

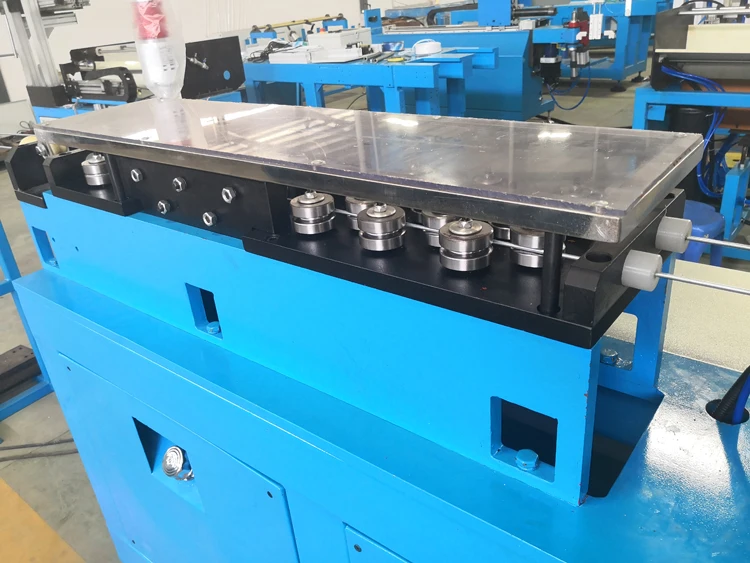

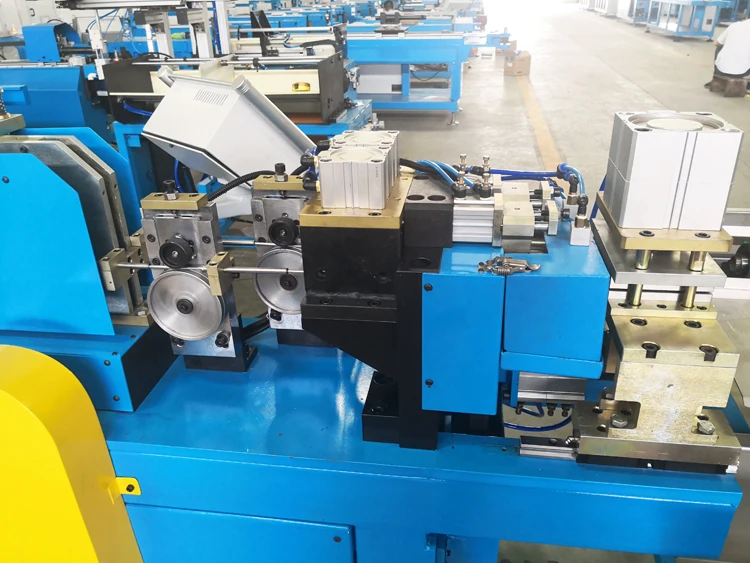

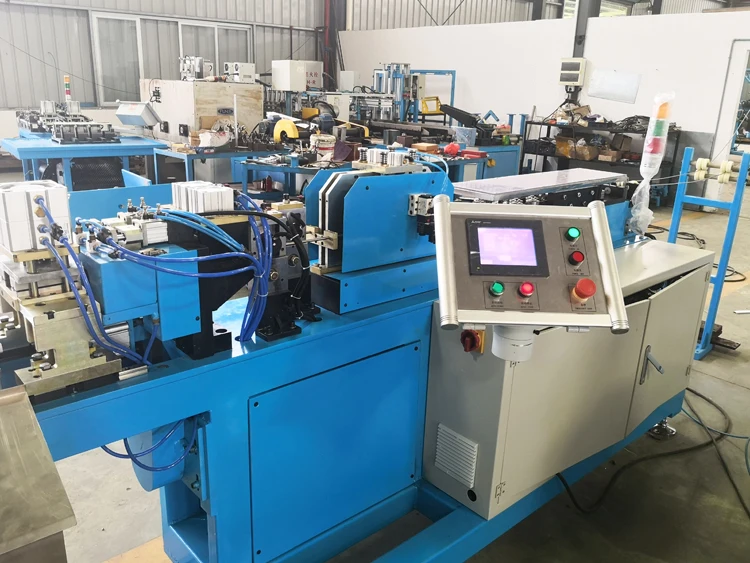

MACHINE DESCRIPTION
This machine is for straightening copper, aluminum or Bundy capillary coil tubes, detecting length, pre-stretching and burrless cutting full automatically, widely used for air conditioner and refrigerator copper tubing works, max. capillary tube diameter 6.5mm.
MAIN FEATURES
- Servo feeding, stable and high re-positioning precision
- One time processing two pieces, high efficient |capillary copper tube straightening and cutting machine|
- Orbital cutter with spray lubricant, burrless cutting
- One time processing two pieces, high efficient |capillary copper tube straightening and cutting machine|
- Orbital cutter with spray lubricant, burrless cutting
- With "pull-apart" function, less tube end ID reduction ratio
- PLC control, HMI operation, high automation, simple and convenient
- PLC control, HMI operation, high automation, simple and convenient
TECHNICAL SPECIFICATIONS
No. | Item | Data |
1 | Applicable copper tube | Coil, TP1/2 (M/M2) |
2 | Applicable copper tube diameter | Ф2.0~Ф6.5mm |
3 | Applicable copper tube wall thickness | 0.2~0.5mm |
4 | Cutting length range | 40mm~ unlimited |
5 | Cutting length tolerance | ≤0.3mm /1000mm |
6 | Length difference among two pieces | ≤0.5mm |
7 | Cutting pieces in one cycle | max. 2 tubes |
8 | Cutting speed | 8 cuts per minute (@L=1000mm) |
9 | One time feeding stroke | continuous feeding, no limit |
10 | Coil tube pay-off device | only one transmitting bridge coils horizontal laying on ground |
11 | Total electric power | 1.0kW |
12 | Pneumatic pressure | 0.5~0.7MPa |
13 | Machine dimension | 2600 x 1200 x 1500mm |
14 | Pay-off device dimension | 2000 x 1000 x 2000mm |
15 | Total weight | about 1400kg |
MAIN CONFIGURATIONS
- PLC + HMI: Mitsubishi from Japan
- Pneumatic components: SMC from Japan / Pneulead from Italy
- Servo motor: Estun from China
- Limit switch: Autonics from Korea
- Ball screw: TBI from Taiwan
- Buttons & relays: IDEC from Japan / SIEMENS from China
- Main bearings: NSK from Japan
- Pneumatic components: SMC from Japan / Pneulead from Italy
- Servo motor: Estun from China
- Limit switch: Autonics from Korea
- Ball screw: TBI from Taiwan
- Buttons & relays: IDEC from Japan / SIEMENS from China
- Main bearings: NSK from Japan

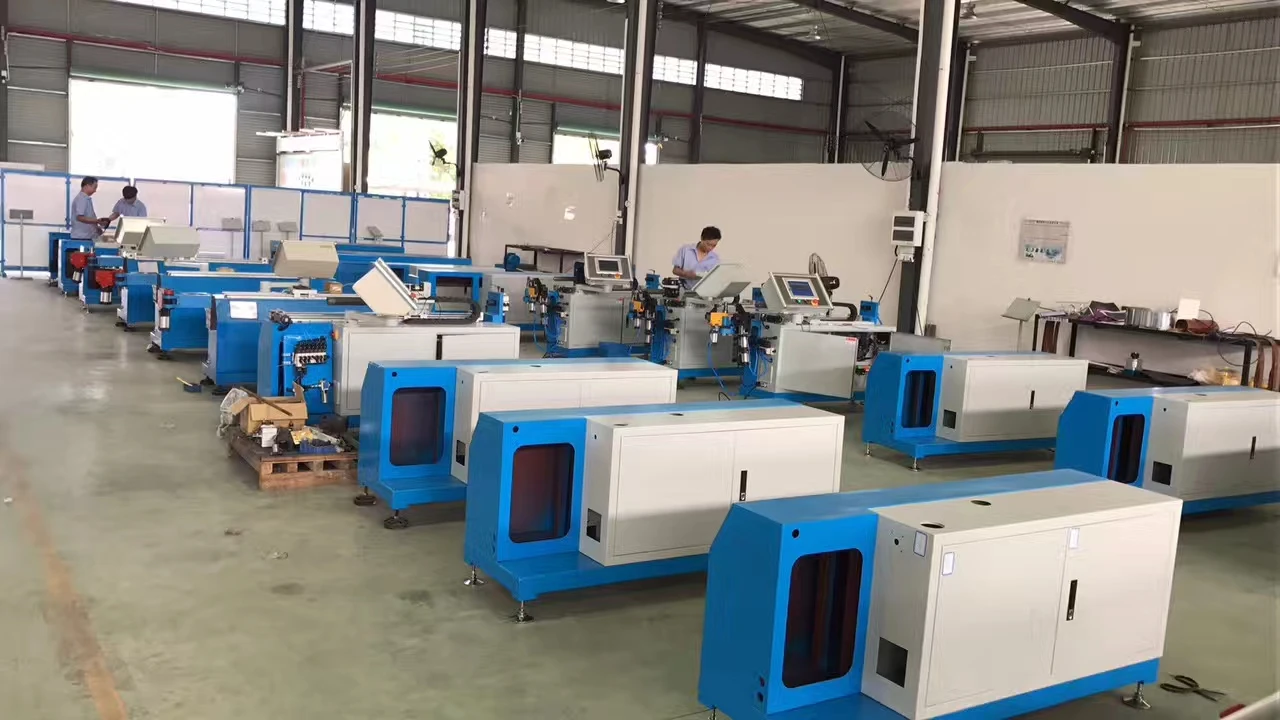

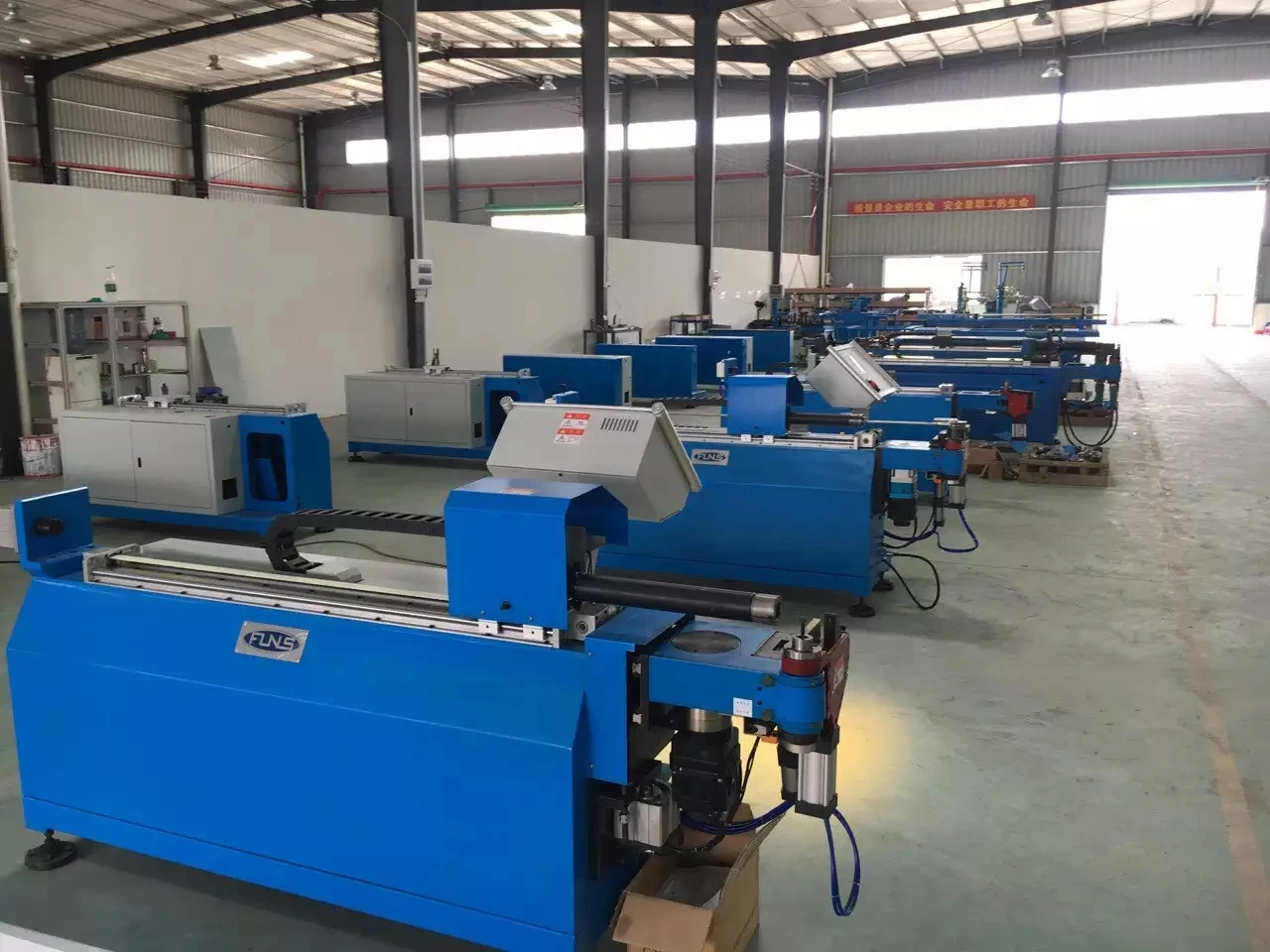

WORKSHOP FACILITY
