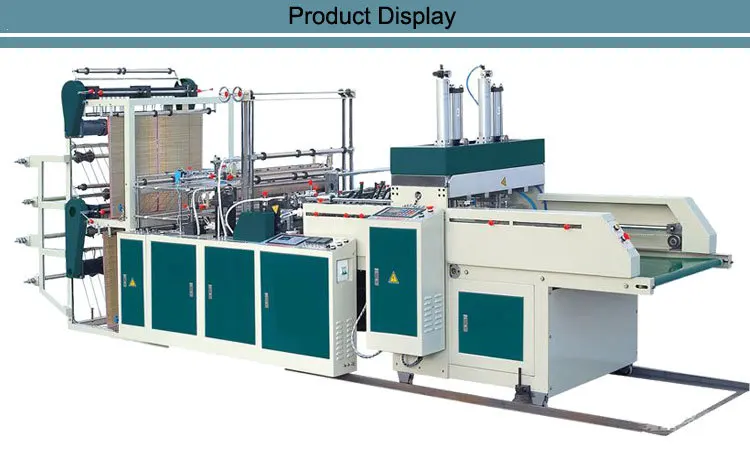

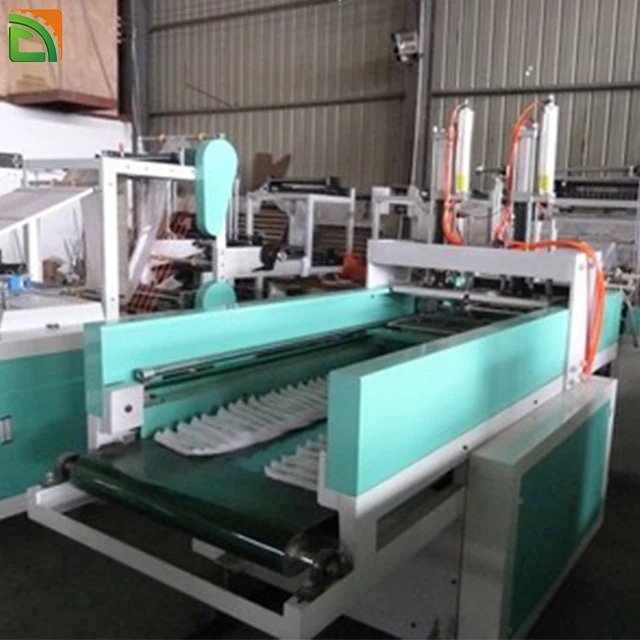

Автоматическая машина для производства двухстрочных сумок для футболок

A

Model

BRN-500

1

Max length of bag

20-1000mm

2

Max width of bag

50-450mm

3

Material

PE,PP , PVC and so on

4

Speed of line

160-210 pcs/min

5

Power

3kw

6

Main motor

Controlled by inverter

7

Weight

700kg

8

Machinery Size

3500x1100x1350mm

B

UNWIND

 t-shirt bag making machine

9

Unwind line

One line

10

Unwind Motor

DC motor

11

Machinery drive and control

SERVER and inverter motor

12

Photo cell

Picture or without picture check

C

SEALING AND CUTTING

13

Sealing line

One hot sealing line

14

Knife

cold cut

D

CONVEYOR

 t-shirt bag making machine

15

Flat bagt-shirt bag making machine

Cold cut blade and operate table

E

Computer and operate board ,driver

Each one set
