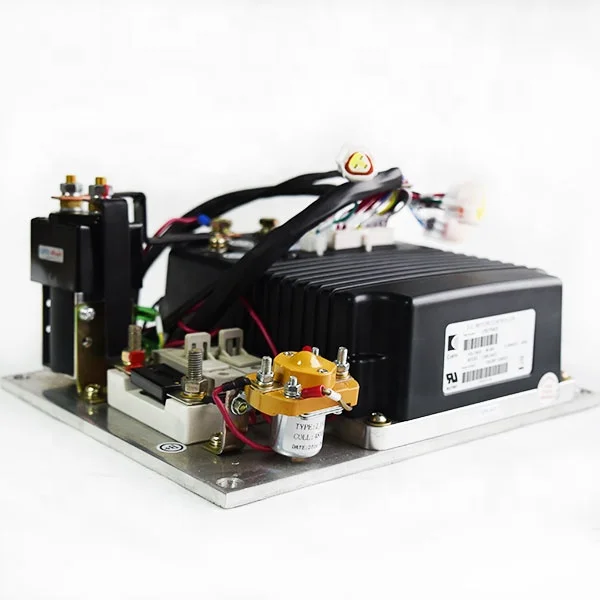

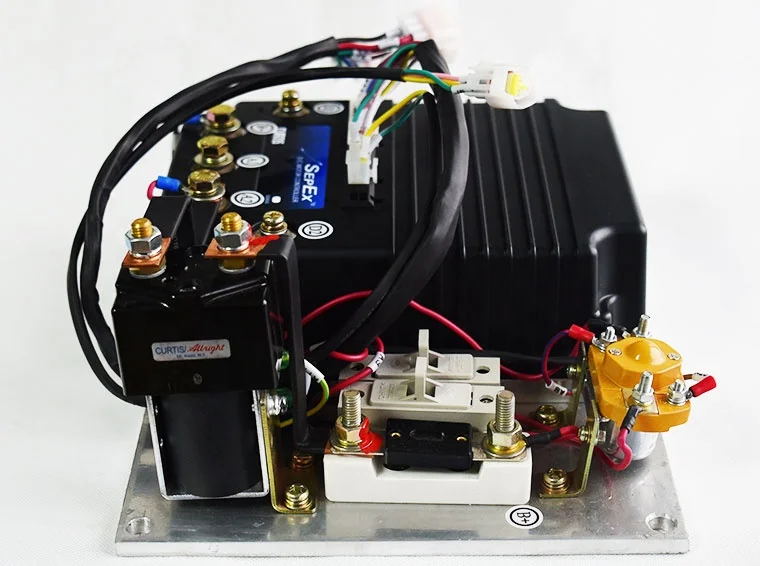

1268-5403 Quality Assured Intelligent Curtis Motor Assemblage 36V/48V-400A
Product Name | Controller Assembly |
Voltage | 36V/48V |
Function | |
Package | Carton/Package |
Product performance description

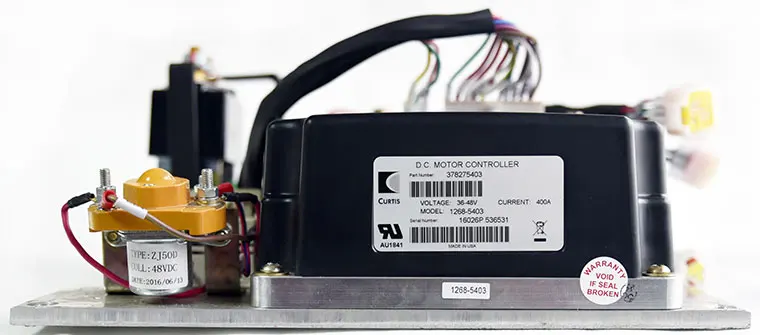

* CURTIS Model: 1268-5403 * Norminal Battery Voltage (Volts): 48V (default setting) or 36V
* Amarture 2 Minute Current Rating (amps): 400
* Field 2 Minute Current Rating (amps): 50
* PWM operating frequency: 16 kHz
* Electrical isolation to heatsink: 500 V ac (minimum)
* Aluminum alloy installation panel size: * L300 mm x W231 mm x H8 mm
* Installation dimensions (holes): 280 mm x 210 mm
* Assemblage Net Weight: 7.8 kg (with throttle)
* Package Weight: 9 kg (reinforced carton package, safe for international delivery)
* Amarture 2 Minute Current Rating (amps): 400
* Field 2 Minute Current Rating (amps): 50
* PWM operating frequency: 16 kHz
* Electrical isolation to heatsink: 500 V ac (minimum)
* Aluminum alloy installation panel size: * L300 mm x W231 mm x H8 mm
* Installation dimensions (holes): 280 mm x 210 mm
* Assemblage Net Weight: 7.8 kg (with throttle)
* Package Weight: 9 kg (reinforced carton package, safe for international delivery)
This CURTIS controller assemblage model 1268-5403 has the safety function "WalkAway™ Braking" (conroller parameter "AUX DRVR MODE"
set as "1", an external "WalkAway™" DC contactor is available), please take reference with the Fig. 3b diagram of the page 9 of
CURTIS 1268 Controller Manual.
If you vehicle features an electromagnetic brake, please contact us before making the purchase. We will change the configuration
of controller assemblage for fitting to your vehicle's setting.
Specifications:
* Proposed SepEx motor power rate: * 36V system: ≤ 5 kW
* 48V system: ≤ 6.3 kW
* simple motor connecting labels on assemblage
* easy installation with components mounted on a heat-sink aluminium alloy installation plate
* foot pedal accelerator (throttle), pre-wired for assemblage
* simple plug-in connctors

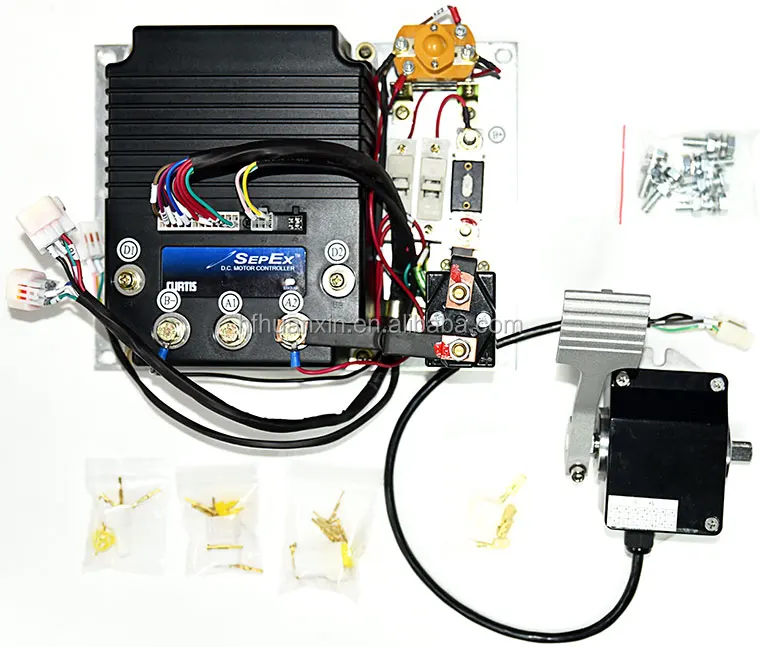

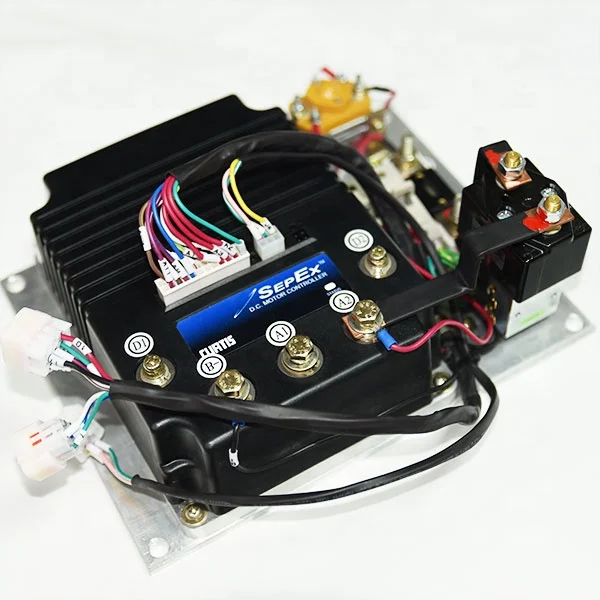

This 1268-5403 controller assemblage is a completed electric vehicle DC Series Motor control system. The assemblage includes:
* controller
* main contactor
* fuses
* wiring
* heat-sink aluminium alloy installation plate
* foot pedal accelerator (0-5V throttle)
* plug-in connectors
* installation (bolts, washes and nuts) kit Included
References: 1268-5403 Controller Assemblage Wiring Diagram (PDF format) and 1268-5403 Controller Assemblage Installation
Instruction (PDF format)
set as "1", an external "WalkAway™" DC contactor is available), please take reference with the Fig. 3b diagram of the page 9 of
CURTIS 1268 Controller Manual.
If you vehicle features an electromagnetic brake, please contact us before making the purchase. We will change the configuration
of controller assemblage for fitting to your vehicle's setting.
Specifications:
* Proposed SepEx motor power rate: * 36V system: ≤ 5 kW
* 48V system: ≤ 6.3 kW
* simple motor connecting labels on assemblage
* easy installation with components mounted on a heat-sink aluminium alloy installation plate
* foot pedal accelerator (throttle), pre-wired for assemblage
* simple plug-in connctors
This 1268-5403 controller assemblage is a completed electric vehicle DC Series Motor control system. The assemblage includes:
* controller
* main contactor
* fuses
* wiring
* heat-sink aluminium alloy installation plate
* foot pedal accelerator (0-5V throttle)
* plug-in connectors
* installation (bolts, washes and nuts) kit Included
References: 1268-5403 Controller Assemblage Wiring Diagram (PDF format) and 1268-5403 Controller Assemblage Installation
Instruction (PDF format)

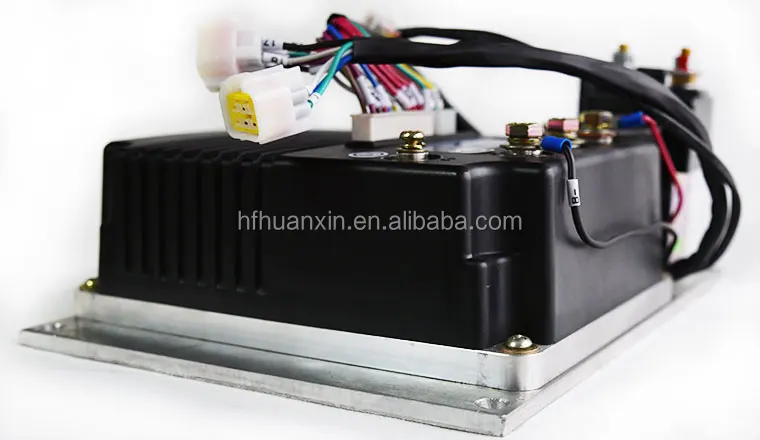

Details Images
Features include:
* Regenerative braking, providing longer operation on a single battery charge and reducing motor brush wear and motor heating
* Adjustable brake rates, for smooth pedal-release braking
* Two user-selectable vehicle operating personalities, with vehicle top speed controlled and limited in each mode
* Motor parameters are programmable to match the characteristics of the specific motor being used
* Vehicle speed control is enhanced through feedback from a Hall effect speed sensor
* Anti-rollback function, providing improved control when throttle is released on hills
* Anti-stall function helps prevent motor commutator damage
* High pedal disable (HPD) and static return to off (SRO) interlocks prevent vehicle runaway at startup
* WalkAway™ braking feature limits any stopped or key-off rolling to a very low speed
* Auxiliary driver can be programmed for either an electromagnetic (EM) brake or a WalkAway™ relay
* Coil driver provides adjustable pull-in and holding voltages to WalkAway™ relay or EM brake
* Driver for brake lamp relay can be used to power external lights during braking
* Reverse signal driver provides a low signal any time the vehicle is traveling in reverse
* Driver outputs are short circuit protected and provide built-in coil spike protection
* Warning buzzer sounds steady in reverse, intermittent during WalkAway™ braking
* Complete diagnostics through any of the optional programmers and through the built-in Status LED
* Driver for remote Status LED enables status information to be available at a dashboard
* Sealed package is rated at IP64 and IP67
* Meets or exceeds EEC fault detect requirements.
* Adjustable brake rates, for smooth pedal-release braking
* Two user-selectable vehicle operating personalities, with vehicle top speed controlled and limited in each mode
* Motor parameters are programmable to match the characteristics of the specific motor being used
* Vehicle speed control is enhanced through feedback from a Hall effect speed sensor
* Anti-rollback function, providing improved control when throttle is released on hills
* Anti-stall function helps prevent motor commutator damage
* High pedal disable (HPD) and static return to off (SRO) interlocks prevent vehicle runaway at startup
* WalkAway™ braking feature limits any stopped or key-off rolling to a very low speed
* Auxiliary driver can be programmed for either an electromagnetic (EM) brake or a WalkAway™ relay
* Coil driver provides adjustable pull-in and holding voltages to WalkAway™ relay or EM brake
* Driver for brake lamp relay can be used to power external lights during braking
* Reverse signal driver provides a low signal any time the vehicle is traveling in reverse
* Driver outputs are short circuit protected and provide built-in coil spike protection
* Warning buzzer sounds steady in reverse, intermittent during WalkAway™ braking
* Complete diagnostics through any of the optional programmers and through the built-in Status LED
* Driver for remote Status LED enables status information to be available at a dashboard
* Sealed package is rated at IP64 and IP67
* Meets or exceeds EEC fault detect requirements.
