Product Overview

Description

Product Description

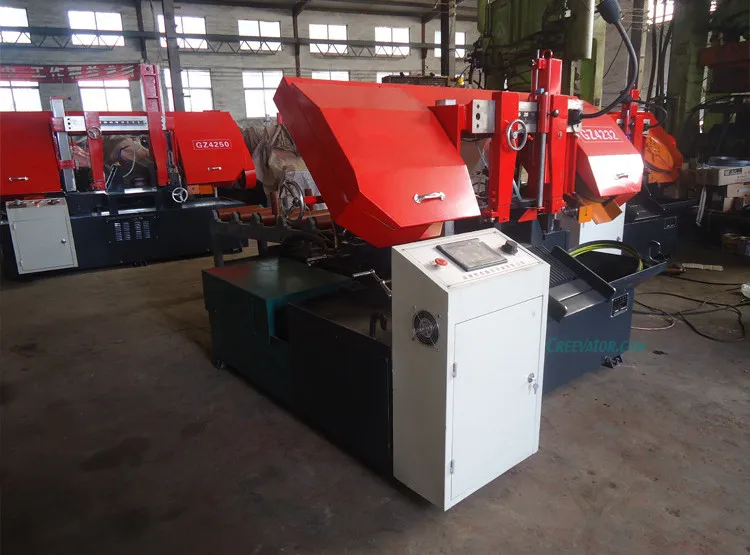

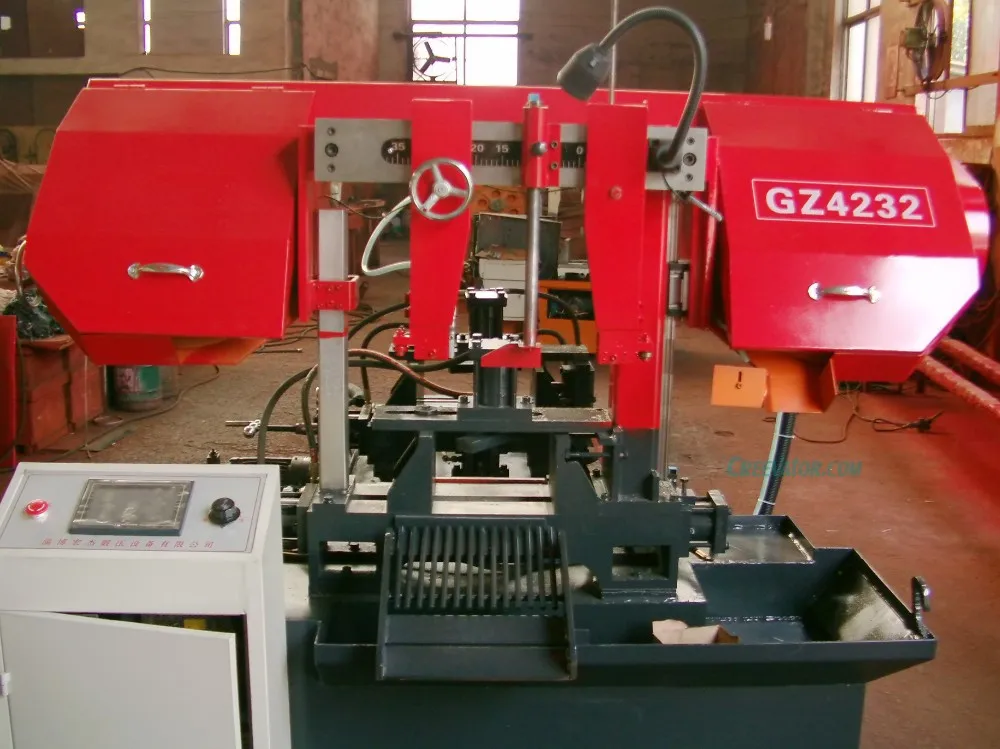

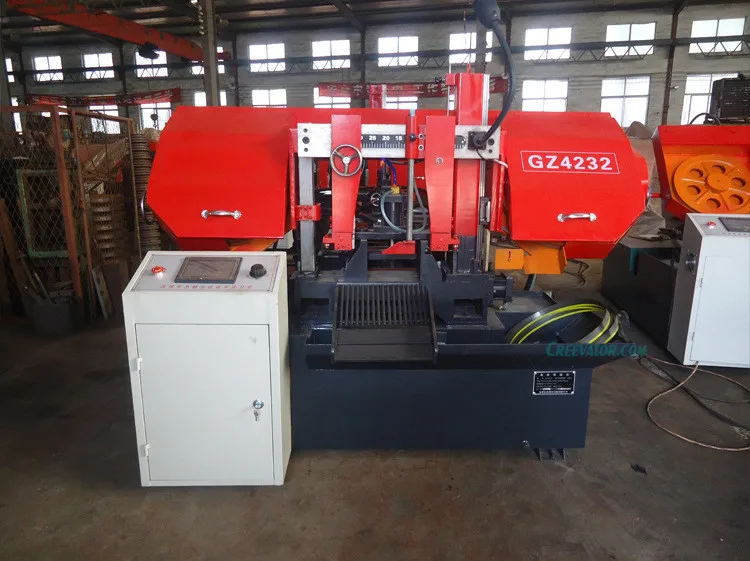

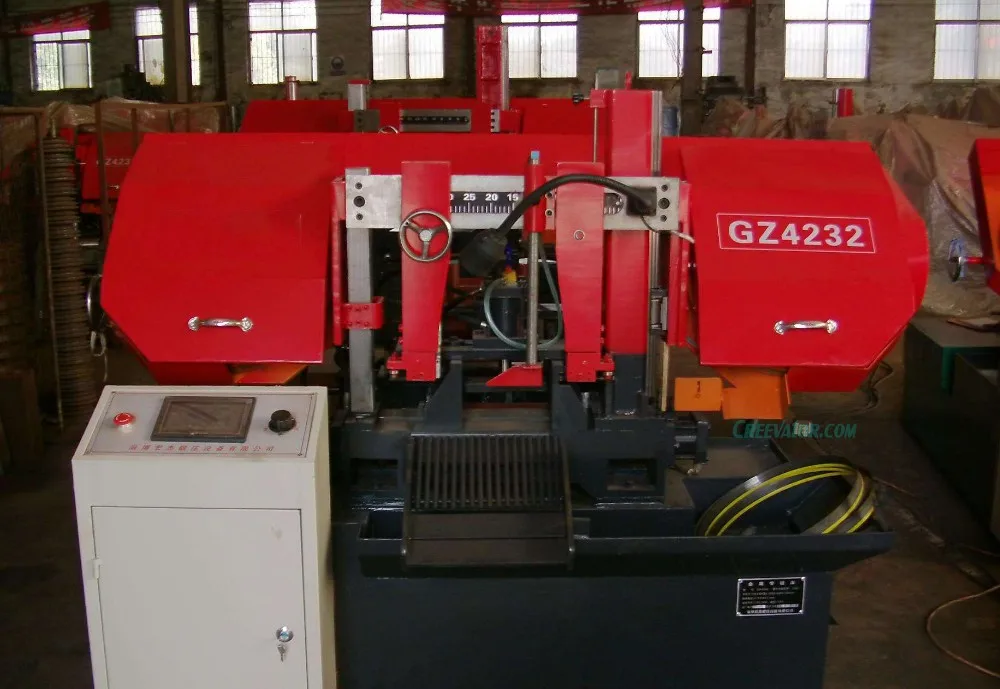

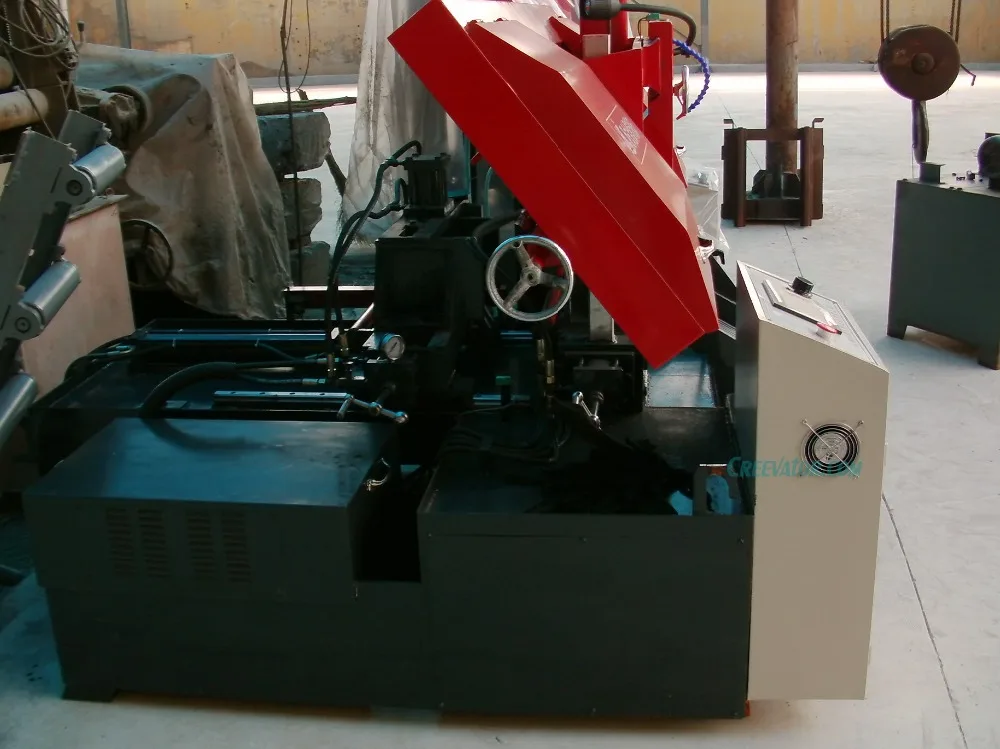

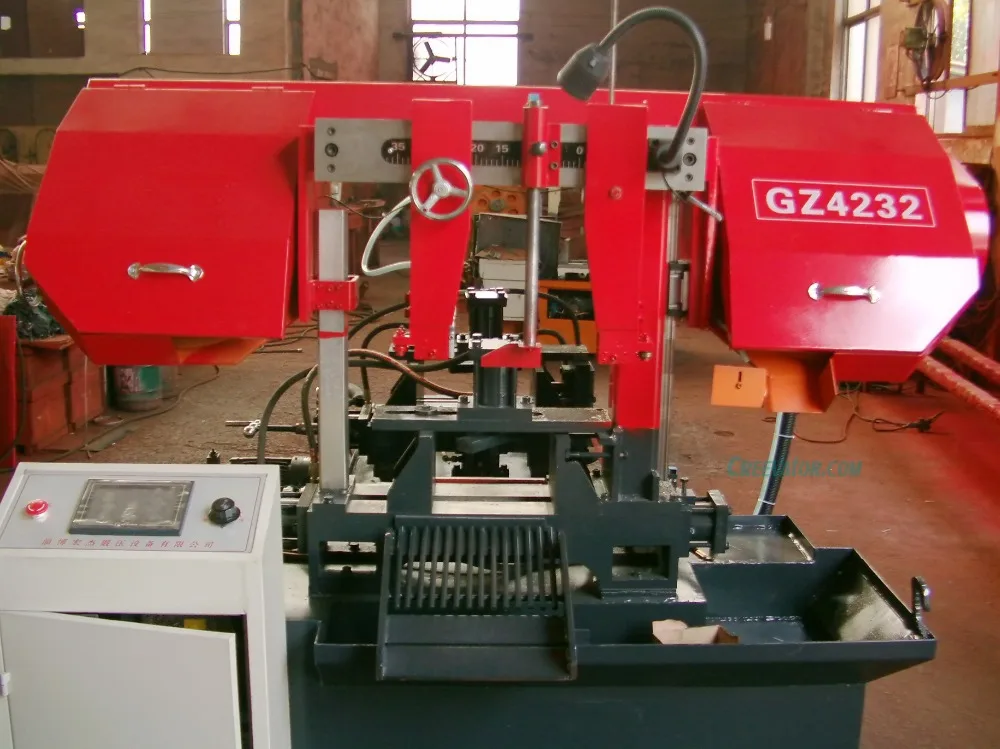

NC Horizontal Band Saw Machine Metal Cutting Machine GZ4232 Automatic

The GZ series fully automatic numerical control metal band sawing machine is a sawing equipment that uses metal saw blades as cutting tools and is used for cutting metal materials. It is mainly used for ferrous metal. The cutting of round material and all kinds of profiles can also be used for cutting non-ferrous and nonmetallic materials. Because of the narrow band saw and high cutting efficiency, the energy consumption is small and the waste of material is less. It is a kind of high efficiency cutting equipment with remarkable energy saving and material saving effect. The main drive of the double column band saw machine adopts worm gear box speed change, and the feed is hydraulically driven. The workpiece clamping adopts manual and hydraulic hybrid clamping. It has the characteristics of compact structure, convenient operation and maintenance.


Feature:

1. Cutting speed hydraulic control, stepless speed control.
2. The structure of the guide block is scientific and reasonable, so as to prolong the service life of the saw blade.
3. Double column structure, smooth operation.
4. The sawing is stable and the precision is high.
5. Working clamping is hydraulically clamped, and the operation is convenient.

Parameters
Type
GZ4232
Cutting capacity(mm)
Round:300
Square:320W*300H
Blade speed(m/min)
25/46/68
Blade size(mm)
1.1*34*4115
Motor main output(kw)
3
Motor hydraulic(kw)
0.75
Size outward(mm)
2000*2000*1500
Detailed Images

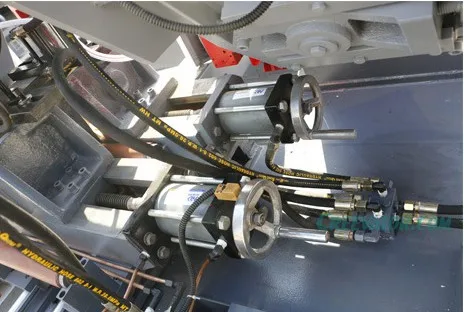

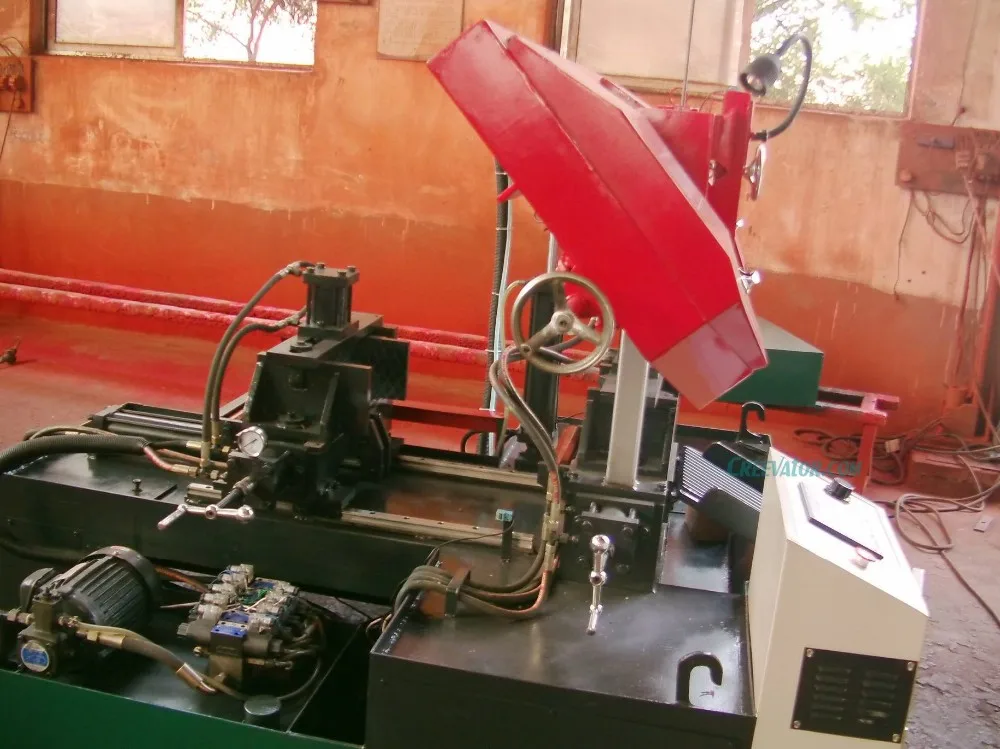

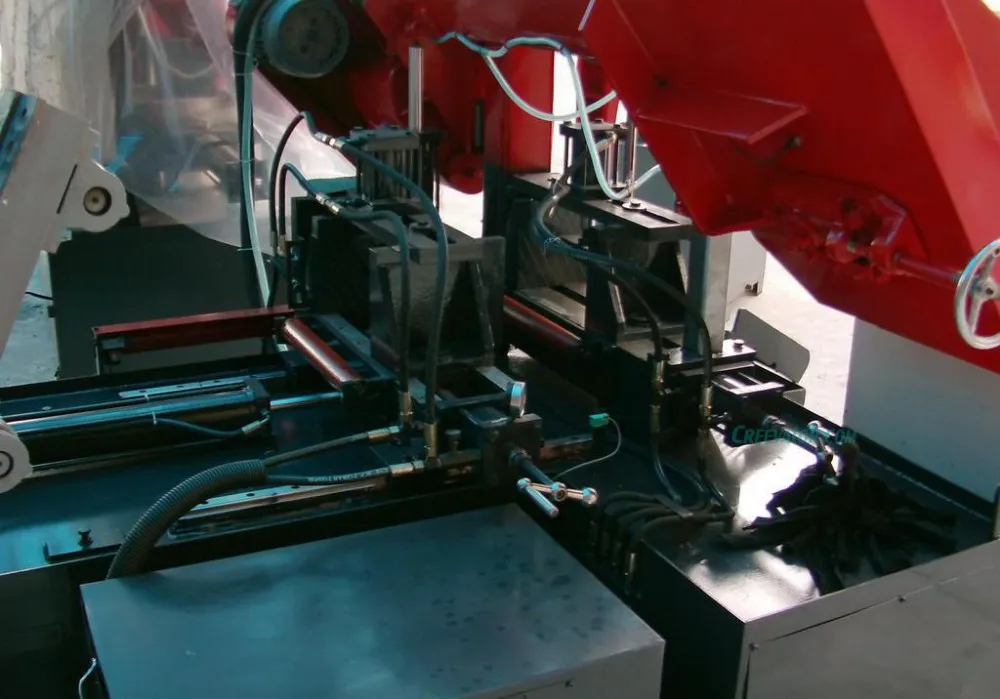

Clamping cylinder:

The oil is used as the working medium to transfer the motion through the change of the sealed volume, and transfer the power through the pressure inside the oil.

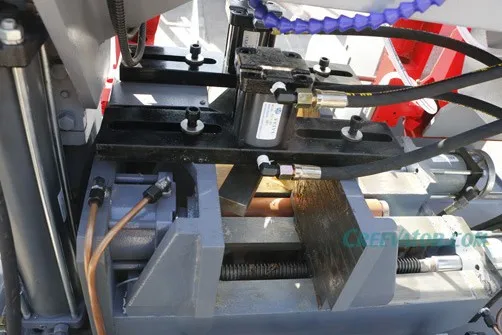

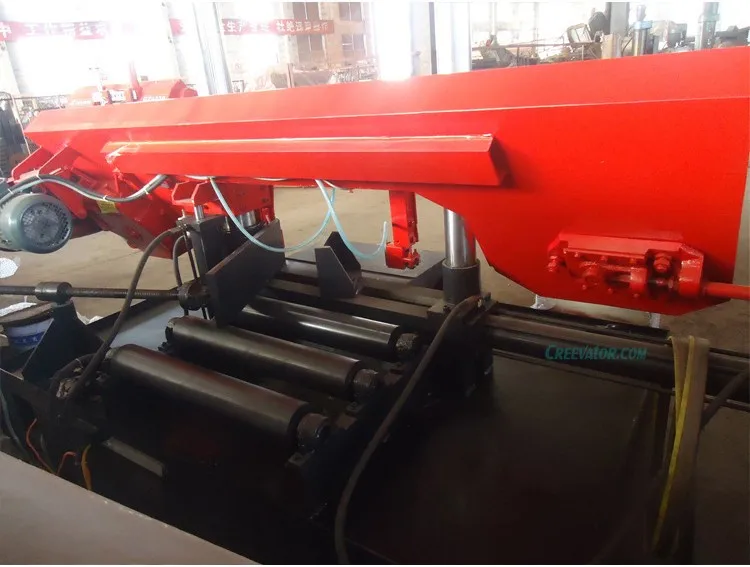

Upper pressure cylinder:

In order to avoid the work of the sawing machine, the workpiece is broken out by flying out or popping out, causing machine damage and personnel damage

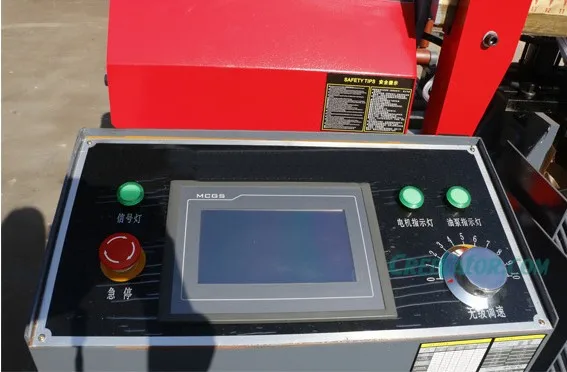

Numerical control panel:

Through the coordination of mechanical, electrical and hydraulic, it has the functions of automatic feeding and automatic cutting to control work.

Packing & Delivery
Our Company

Our company is located in the largest industrial city – Chongqing, China.

We provide decent machine tools from China to all over the world. Our main products as bench lathes, CNC lathes, milling machines, drilling & milling machines, drilling machines, grinders, band saws with a various of specifications, secure and reliable quality and convenient and efficient services.

We have our own shareholding factories, also co-operated with other factories with high quality products. We have a professional international sales team to do the export business in the Global.

Our company has 48 experienced technicians of lathes export team. High quality and high cost-effective has been our company's reputation. The company has advanced testing equipment and strict product.

Our Service

Machine preparation

All Machines go through a pre-delivery inspection carefully (inspect every spare parts, painting, package, and performance trial, and so on even tiny flaw won’t tolerate) by our experienced qualified service engineers. Installation & commissioning packages can be also offered (additional cost should be paid by client)

Spare Parts

Spare parts is quite important for machine tools. KAKU machinery supply each machine is supplied with a full instruction manual and parts list.

Warranty

All of our machines are made from cast iron and are quality checked both at the factory and before dispatch.

Guarantee : 1 year warranty period

a, Within one year, we will offer free spare parts to change when the machine can not work in case of the natural use, not man-made destroy. But you need to pay for the shipping cost.

b, After one year, we always have spare parts for you, not free.

Service & support

If something wrong happened with your machine, our many experienced engineers are always here to help you.

Our company spirit: Integrity, Professional, Efficient and High Quality!


We insist on doing everything seriously, and continuously improve and enhance our team's capabilities and services.





If you are interested in our company's product, welcome to contact us and place an order. Thank you!
