WP145A-ISO30 is a auto tools change ATC spindle motor . It's short arm design to cater for compact wood engraving design . It's popular for wood machinery field with 9.0KW 12.0KWpower , 24000rmp, 7.16NM torque parameters. Some clients applied this to Robot engraving machinery .


 Advance/Features :



  • With high grade size .shape,.position precision,and quality of surface .


  • Work stable ,low noise,enough fatigue strength


  • Reasonable structure desgin ,simple and compact configuration ,easy to take apart.


  • Easy to install and less maintance.


  • High precision.high inflexibility ,high efficiency,long operation life.


  • Enough abrasive resistance ,vibration resistance,stable size.


  • Special design for wood engraving.short arm design








Specificiations



               EEJA WP145A-ISO30  Specification
































































































 Parameters
 Motor Power: 9.0KW Rated voltage: 380v(3~)
 Max rotate speed : 24000Rpm/min Max currency: 17A
 Max Frequency: 800Hz Torque: 7.16NM
Specification
 Cone surface spring at shaft end: ≤0.001mmTooling Releasing  Air curtain: 5.6-6.0 Kgf/cm²
 Tooling Exchange Method: ATCAir curtain pressure at front end: 2.5~3.0 Kgf/cm²
 Tooling Pulling Force: ≥2900Tooling Back Air Pressure: -
 Tooling Connection: ISO30Cooling: Water air cooling optional
 Encoder: Sine-Cosine 1VPP(Optional)Coolant Pressure: 2.5~3.0 Kgf/cm²
 Approach Switch:PNP OnBearing Lubrication Method: Grease
Balance Level : G1Tooling Instalation Method:T slot
Vibration Value: ≤0.8Weight:23kg

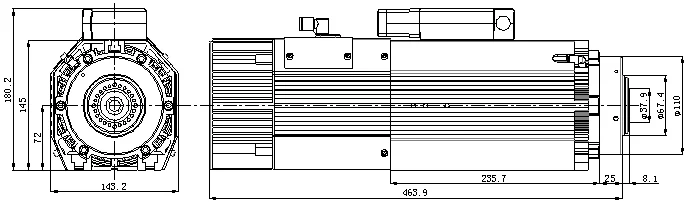

 Structure

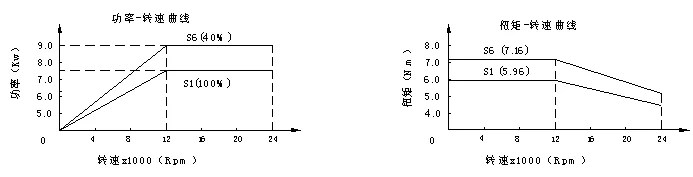

 Motor property curves





spindle details.jpg


 Applications




Why Choose Us



                        Why choose EEJA



100% REFUND IF SPINDLE
MOTOR NOT WORK

ALIBABA TRADE ASSURANCE
AVAILABLE
EUROPE QUALITY
CHINA PRICE
Studer,TAKISAWA,DOOSAN,
SUNNEN CNC machines,
precision ±0.002mm
professional team provide
one stop solution
help you reduce time
All main parts come
from famous suppliers
FAG,GMN,SKF
TOP 500 company supplier,
strong quality control
good cooperation service sense
















 EEJA spindle motor Properties spindle properties.jpg

 EEJA Patents & Certifications certification.jpg





Company Information



                      EEJA  Company Information


















Factory Profile
our company_spindle.jpg
Machinery In EEJA
Machinery in our faclity.jpg

          EEJA SPINDLE MOTOR LIST














































































Square Engraving CNC machine Spindle motor
 Maximum PowerOperating Speed Max FrequencyTooling Exchange MethodTooling ConnectionMaximum TorqueRated voltageMax currencyCooling MethodWeightRemarks
WP145A9.0 KW24000Rmp800HzATCISO307.16 N.M380(3~)V/AC17 AWater/Air23KG
WP145AH9.0 KW24000Rmp800HzATCER327.16 N.M380(3~)V/AC17 AWater/Air21.8KG
WP145B9.0 KW24000Rmp800HzATCISO307.16 N.M380(3~)V/AC17 AWater/Air21.8KGBLOWING FUNCTION
WP145B-HSK63F12 KW24000Rmp800HzATCHSK63F9.55 N.M380(3~)V/AC23 AWater/Air28.2KGBLOWING FUNCTION
