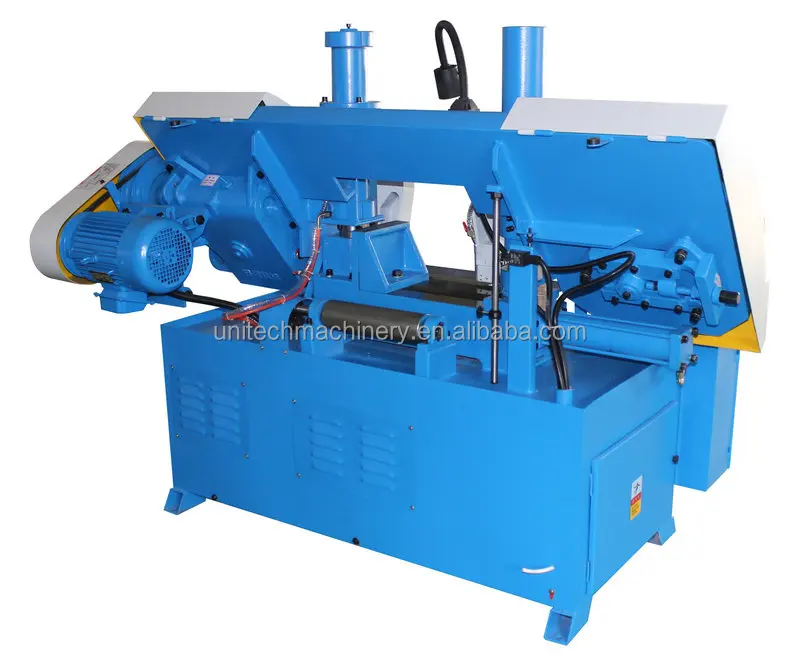

GH 4235 Double column Metal Cutting Band Sawing machine
- Category: Band Saw Machines >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (60725982061):
Product Overview
Description
GH-4235 Double column Metal Cutting Band Sawing machine
Product Description
Main features:
1. Double column structure vertical lifting high stability
2. High efficiency, high precision save material saving energy
3. The hydraulic pressure controls the speed of saw stepless speed regulation
4. The camp of workpieces and hydraulic, control easily
5. Can made 3 hydraulic tension saw blades per request
| Model | Unit | GH4228 | GH4235 |
| Cutting range | mm | round: 280 | round: 350 |
| square:280 | square: 350 | ||
| rectangular: 280*280 | rectangular: 350*350 | ||
| Saw blade size | mm | 3505*27*0.9 | 4115*34*1.1 |
| Blade speed | m/min | 27,45,69 | 27,45,69 |
| Main motor power | kw | 3 | 3 |
| Hydraulic motor power | kw | 0.75 | 0.75 |
| Coolant pump motor power | kw | 0.04 | 0.04 |
| Overall dimension | mm | 1800*2400*1400 | 2000*2500*1500 |
| Net weight | kg | 1000 | 1200 |
Optional configuration (need extra money): |
1.hydraulic tensioning of saw blade; |
2.stepless linear speed of saw blade; |
3.saw blade break protection; |
4.fast drop protection; |
5.automatic hydraulic chip removal device. |

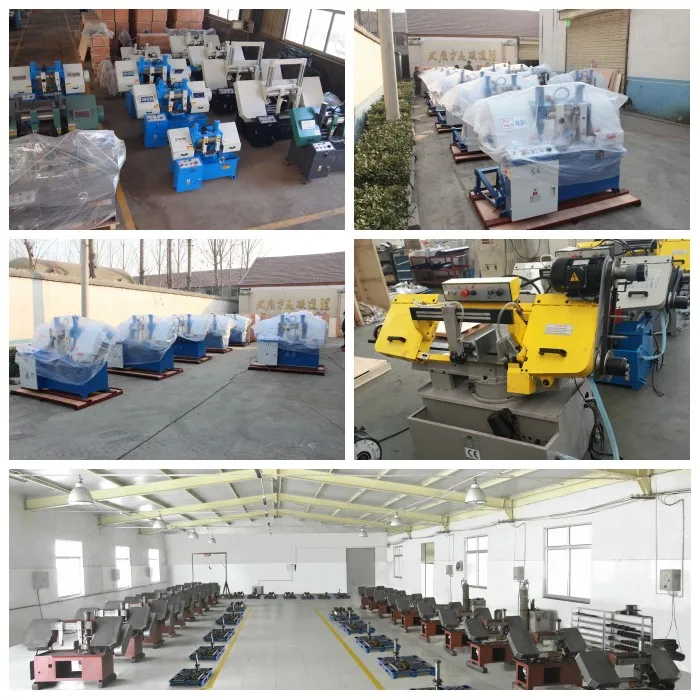

Workshop

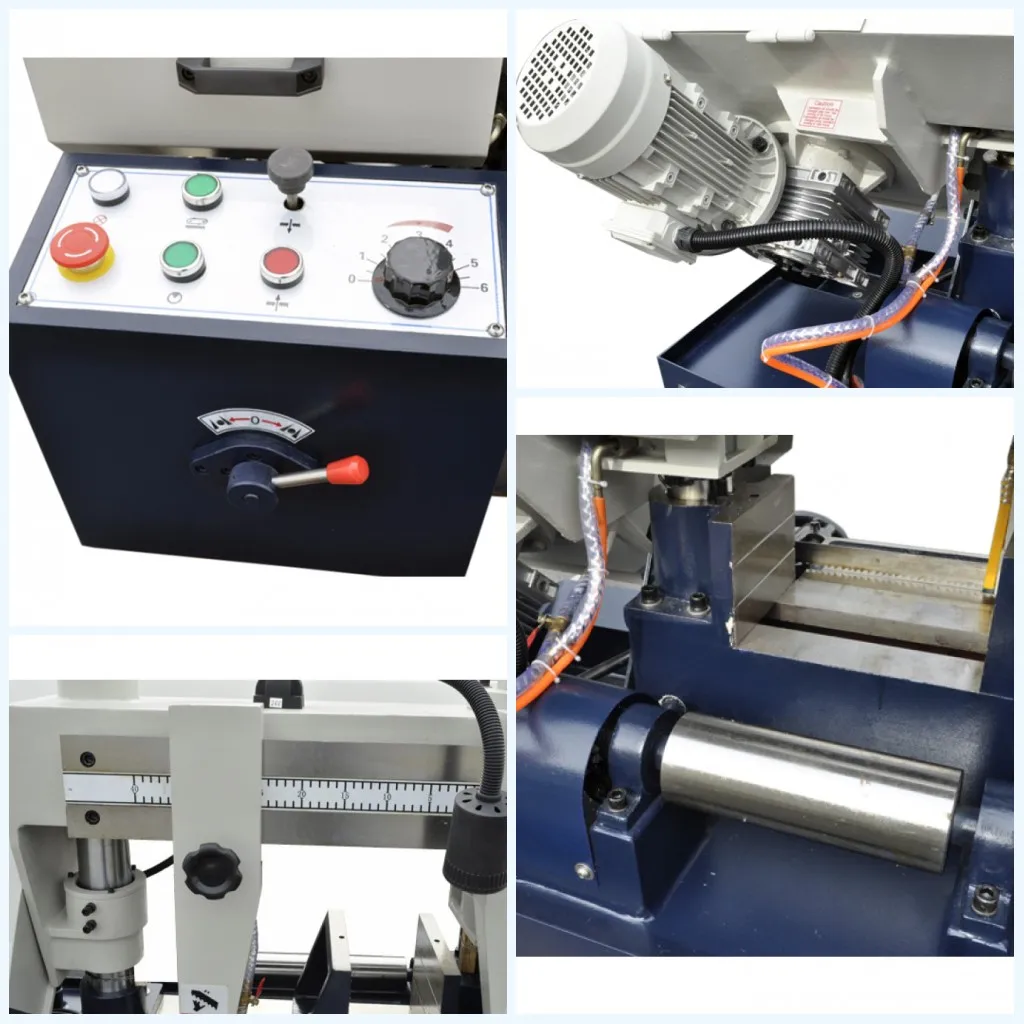

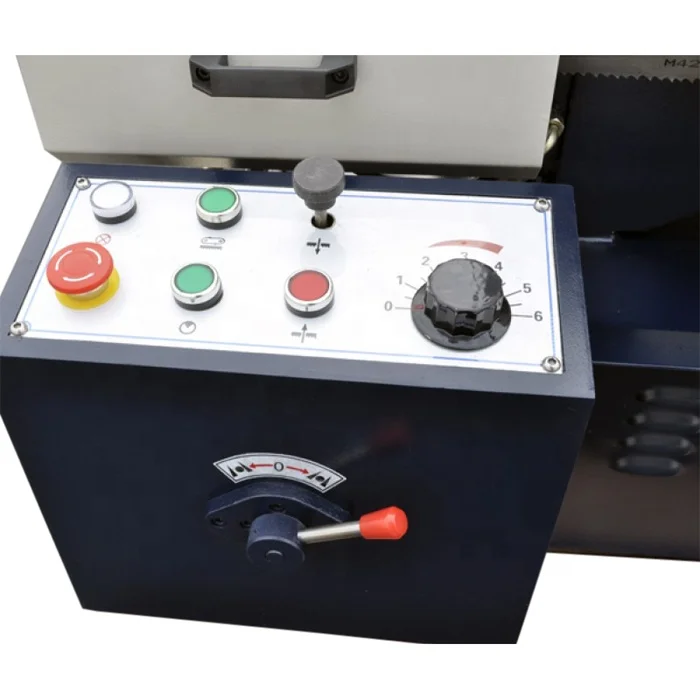

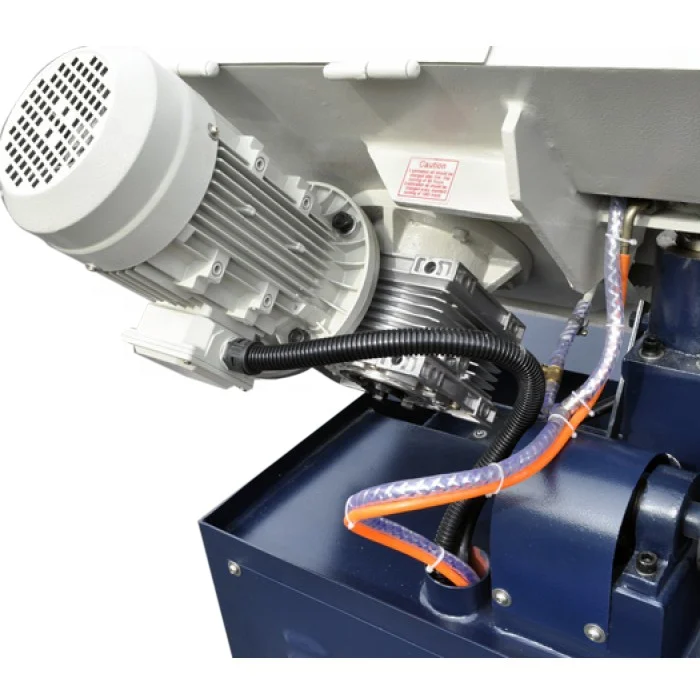

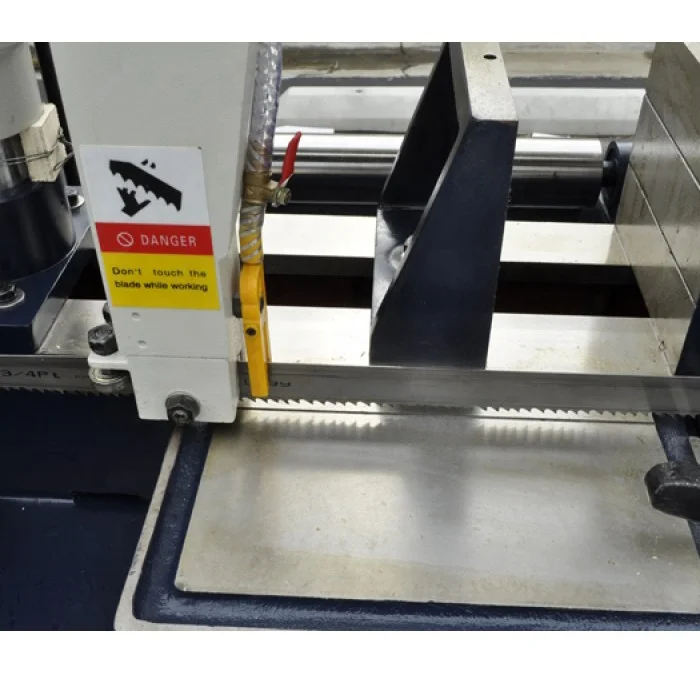

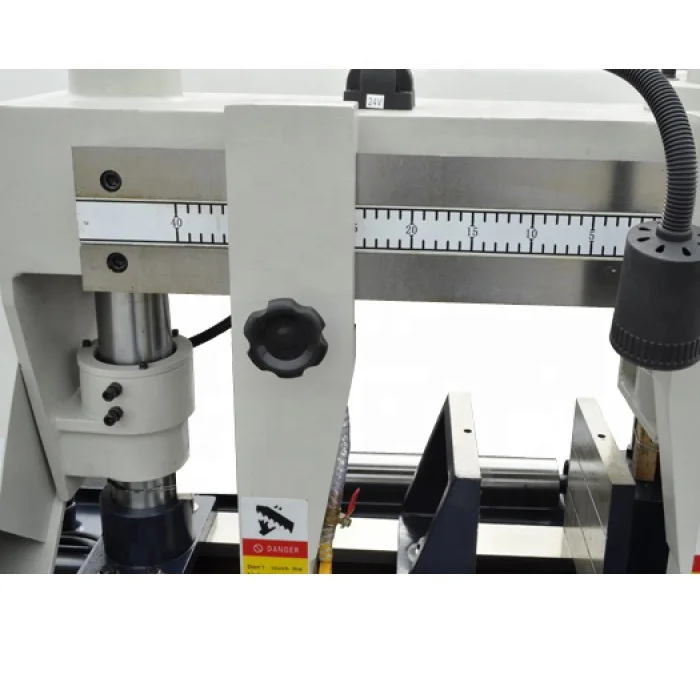

Detailed Images
