Meanwell ELG 150 C700 IP65 IP67 0 10V Dimmable 150W 700mA Constant Current LED Driver
- Category: Lighting Accessories >>>
- Supplier: Hangzhou Jiang Technology Co. Ltd.
Share on (60726354950):
Product Overview
Description

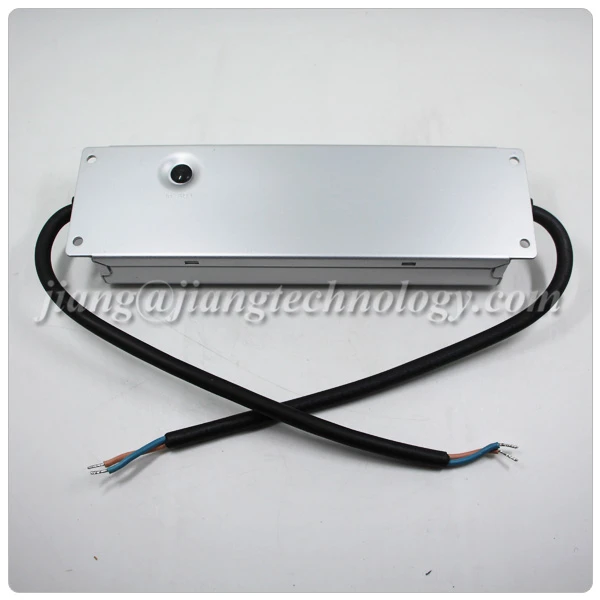

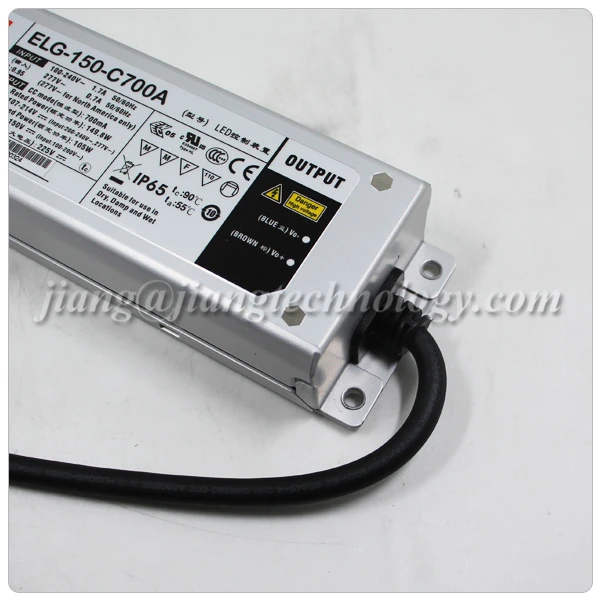

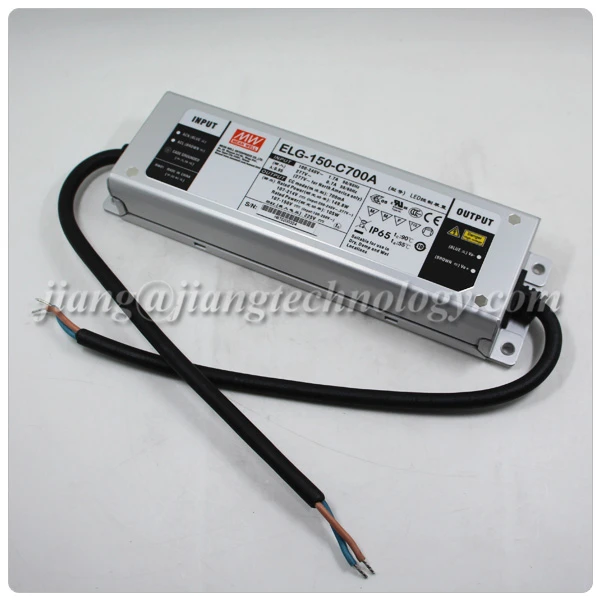

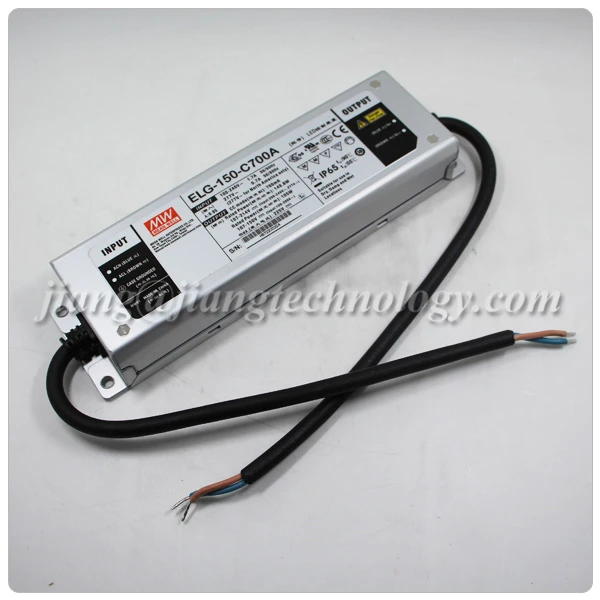

Meanwell ELG-150-C700 IP65 IP67 0-10V Dimmable 150W 700mA Constant Current LED Driver
Product Overviews
Features:
- Meanwell 700mA LED Driver
- Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming(dim-to-off); Smart timer dimming, DALI
- Typical lifetime> 50000 hours
- 5 years warranty
Applications:
- LED street lighting
- LED harbor lighting
- LED bay lighting
- LED greenhouse lighting
- LED flood lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location
- Comply with class II application
Model Series:
ELG-150-C500 / ELG-150-C700 / ELG-150-C1050 / ELG-150-C1400 / ELG-150-C1750 / ELG-150-C2100
| Model Type | Function | |||||||
| Blank : | IP67 rated. Cable for I/O connection | |||||||
| A : | IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer | |||||||
| B : | IP67 rated. Constant current level adjustable additive 0~10VDC, PWM signal, or resistance | |||||||
| D2 : | IP67 rated. Smart timer dimming function, contact MEAN WELL for details | |||||||
| DA : | IP67 rated. DALI function | |||||||
Details:
| MODEL NO. | ELG-150-C500 | ELG-150-C700 | ELG-150-C1050 |
| RATED OUTPUT CURRENT | 500mA | 700mA | 1050mA |
| RATED POWER | 200VAC ~ 305VAC | ||
| 150W | 149.8W | 150.15W | |
| 100VAC ~ 180VAC | |||
| 105W | 105W | 105W | |
| CONSTANT CURRENT REGION | 150 ~ 300V | 107 ~ 214V | 72 ~ 143V |
| VOLTAGE ADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | ||
| 250 ~ 500mA | 350 ~ 700mA | 525 ~ 1050mA | |
| AUXILIARY DC OUTPUT | Nominal 15V(deviation 11.5~15.5V)@0.4A for BE-Type only | ||
| AC INPUT VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF≥0.97/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC@full load | ||
| EFFICIENCY | 92% | 92% | 92% |
| INRUSH CURRENT | COLD START 65A(twidth=485us measured at 50% lpeak ) at 230VAC;Per NEMA 410 | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 320 ~ 360V | 230 ~ 265V | 155 ~ 180V |
| Protection type : Shut down o/p voltage, re-power on to recovery | |||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recovery | ||
| WORKING TEMP. | Tcase= -40 ~ +90°C | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80°C , 10 ~ 95% RH | ||
| SAFETY STANDARDS | U8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1, GB19510.14; IP65 or IP67 approved | ||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| DIMENSION | 219*63*35.5 mm (L*W*H) | ||
| PACKING | 0.95Kg; 16pcs / 16.0kg / 0.77CUFT | ||
| MODEL NO. | ELG-150-C1400 | ELG-150-C1750 | ELG-150-C2100 |
| RATED OUTPUT CURRENT | 1400mA | 1750mA | 2100mA |
| RATED POWER | 200VAC ~ 305VAC | ||
| 149.8W | 150.5W | 151.2W | |
| 100VAC ~ 180VAC | |||
| 105W | 105W | 105W | |
| CONSTANT CURRENT REGION | 54 ~ 107V | 43 ~ 86V | 36 ~ 72V |
| VOLTAGE ADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | ||
| 700 ~ 1400mA | 875 ~ 1750mA | 1050 ~ 2100mA | |
| AUXILIARY DC OUTPUT | Nominal 15V(deviation 11.5~15.5V)@0.4A for BE-Type only | ||
| AC INPUT VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF≥0.97/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC@full load | ||
| EFFICIENCY | 91% | 91% | 91% |
| INRUSH CURRENT | COLD START 65A(twidth=485us measured at 50% lpeak ) at 230VAC;Per NEMA 410 | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 128 ~ 150V | 96 ~ 106V | 82 ~ 92V |
| Protection type : Shut down o/p voltage, re-power on to recovery | |||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recovery | ||
| WORKING TEMP. | Tcase= -40 ~ +90°C | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80°C , 10 ~ 95% RH | ||
| SAFETY STANDARDS | U8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1, GB19510.14; IP65 or IP67 approved | ||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| DIMENSION | 219*63*35.5 mm (L*W*H) | ||
| PACKING | 0.95Kg; 16pcs / 16.0kg / 0.77CUFT | ||
Mechanical Specification:
Other Series for Choose:
Warehouse & Shipping
Applications
Certifications
What Certification do we have?
FAQ
Q1. Are you original Mean Well Power Supply ?
A: Yes, We sell 100% Genuine Mean Well. And there are 2 method to identify:
Method 1: The Original Brand Logo is 'Mean Well', not 'MiWi' 'MeanWell' or 'MingWei' etc.
Method 2: Each product has an unique Serial No. on it, which can be checked in Mean Well official website. (For more information, please contact our sales. )
Q2: Do you offer guarantee for the products?
A: Yes, we offer 2 ~ 7 years warranty.
If the goods have quality problem during warranty period, we provide maintenance service.
If you have using problem, welcome to contact us for help.
Q3. Can I have a sample order firstly ? what's your MOQ limit ?
A: Yes, sample order is acceptable. And we do not have MOQ limit. Welcome to inquiry.
Q4. What's about the lead time and shippment ?
A: For common type like ELG, LRS, DR, MDR series, we have enough stock. Sample Order can be delivered within 3 days, Bulk Order can be delivered within 3~7 days after payment, not common type need 10~35 days after payment, for detail lead time, please contact our sales.
For shipping, we often use DHL, FedEx, UPS, and TNT. And they take 3-5 days to arrive. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.
Q5: What's your payment terms?
A: We accept pay via Bank Transfer, Paypal and Western Union.
For bulk order,if the lead time is long, we also accept 30% in advance,70% balance before shipping.
We also accept Trade Assurance online to get 100% guarantee for your orders.
(For more details, please contact us)
Q6. How to proceed an order ?
A: 1. Inquiry: Tell us your requirements, such as model No, Quantity and delivery address...
2. Quotation: We will quote you soon according to your requirements.
3. Confirmation: If quotation is OK, we will make PI for your payment.
4. Payment: After your payment, please give us your bank slip, then we can arrange goods for you soon.
5. Delivery: Once get your payment and goods all ready, we will delivery goods soon, and tell your the tracking number or Vessel No. then (For more details, please contact us.)
