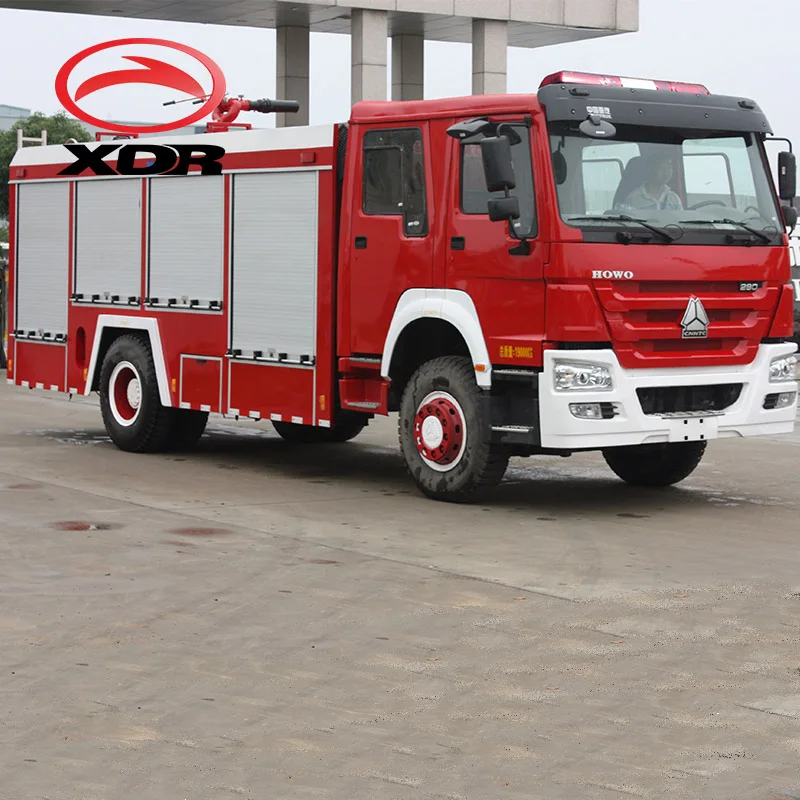

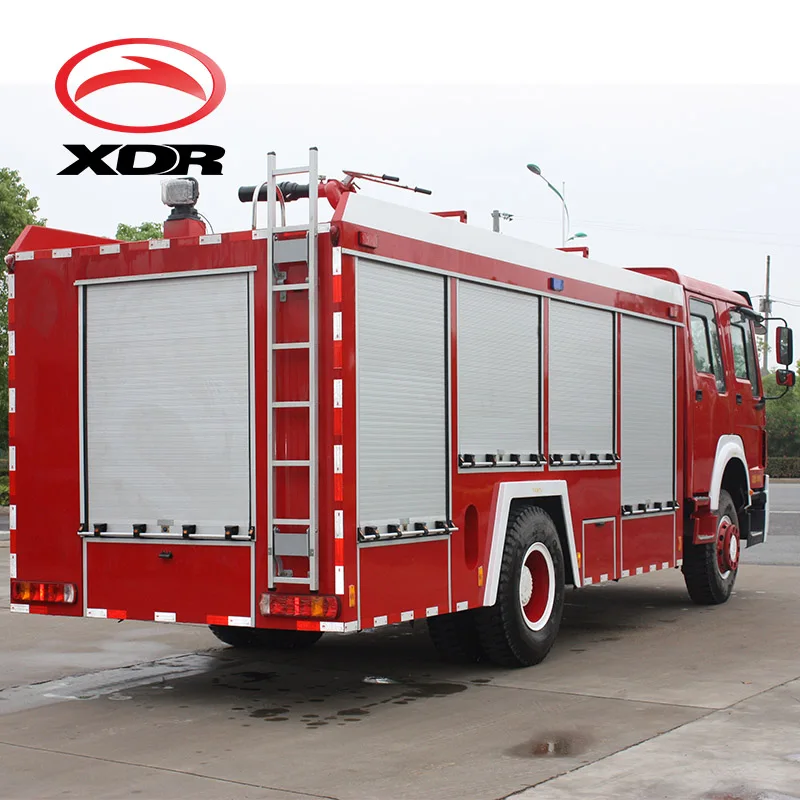

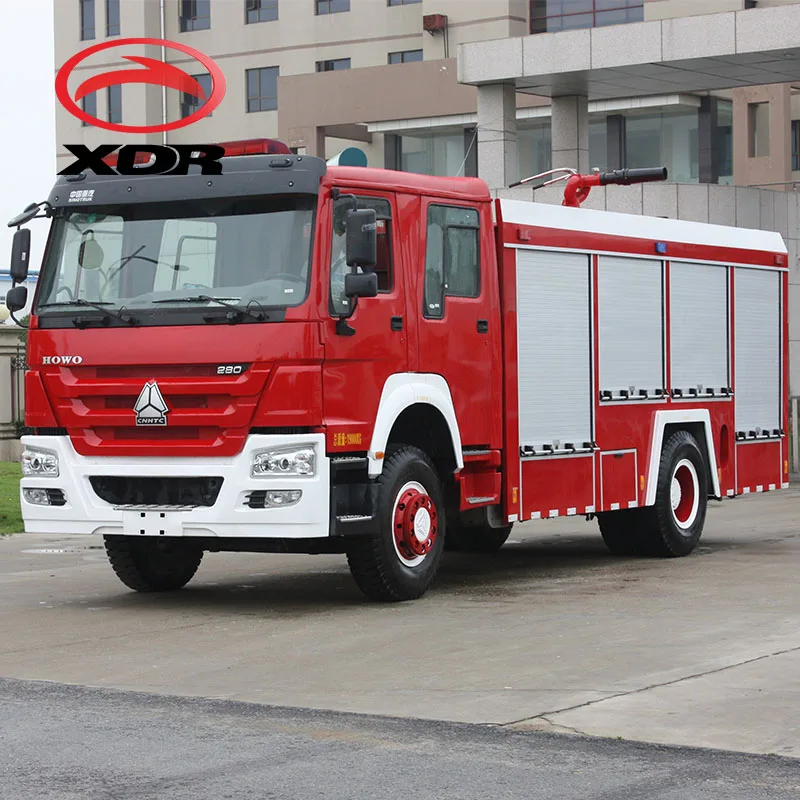

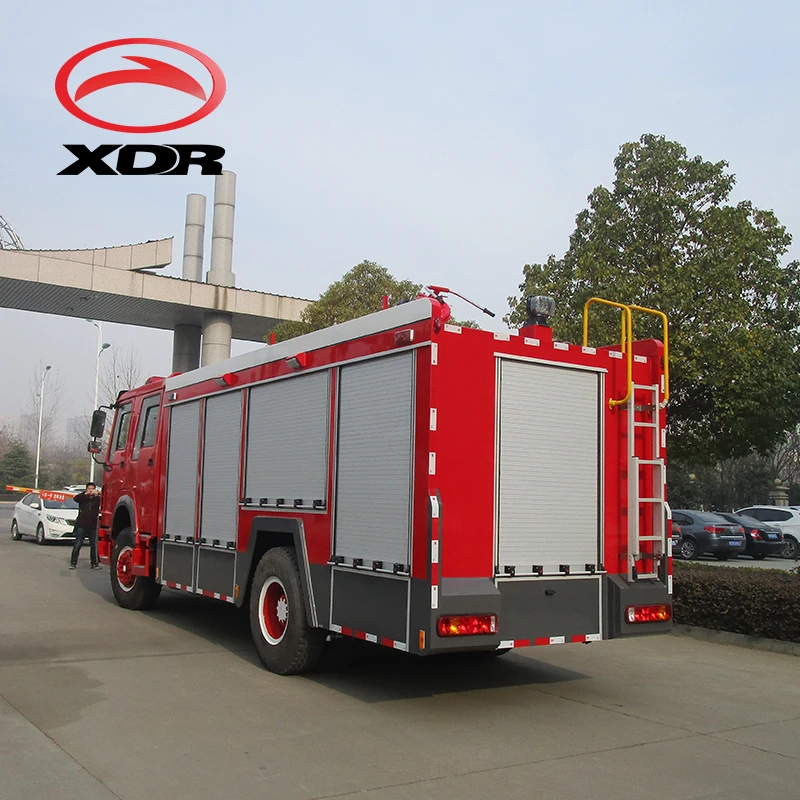

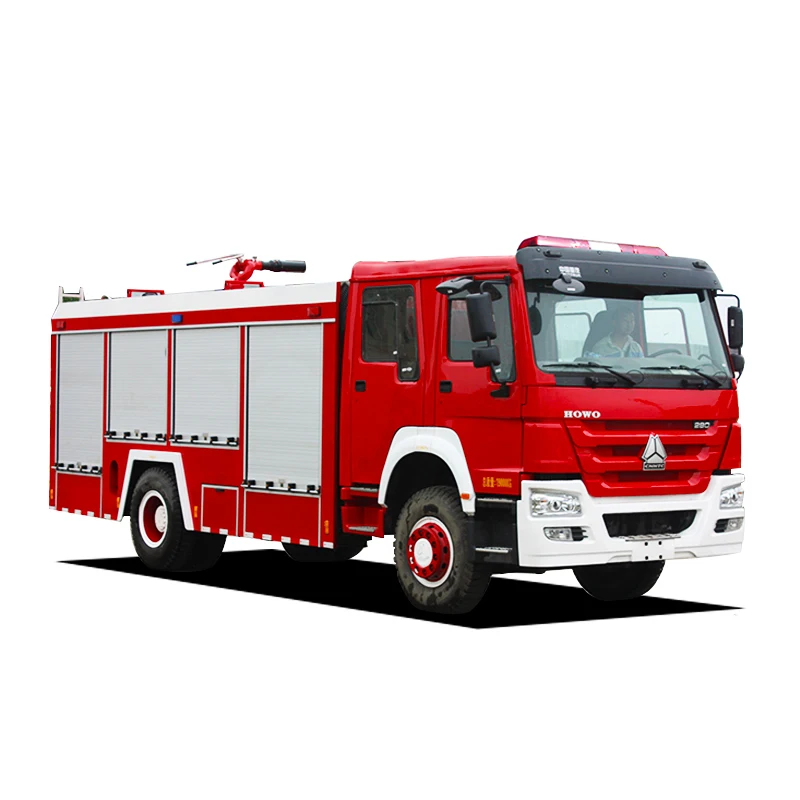

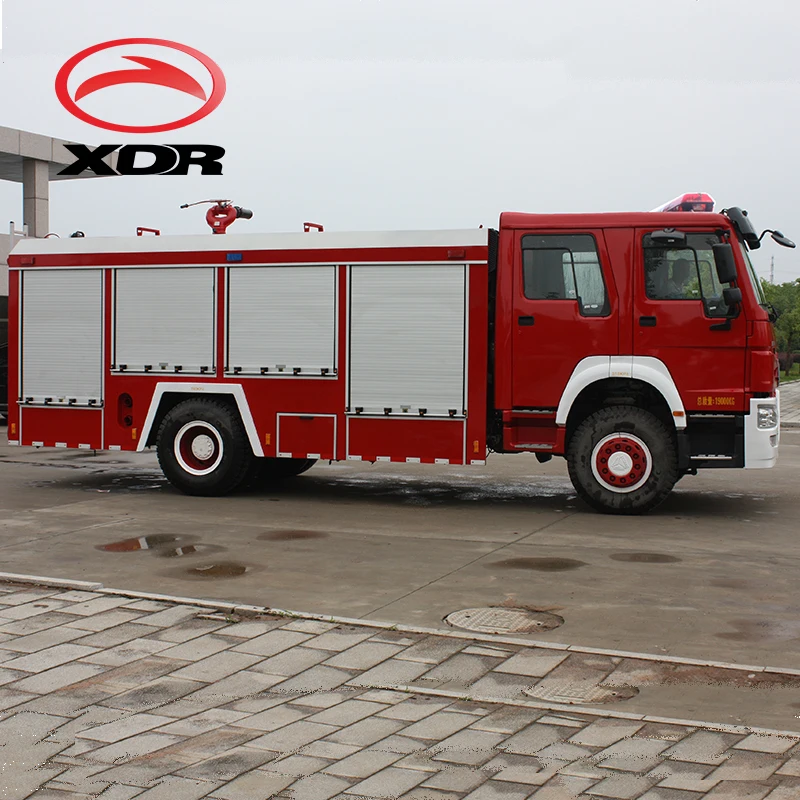

XDR 10ton Wholesale Cheap Howo emergence fire engine fire truck

XDR 8000liters water fire truck

Vehicle Parameters

General

Vehicle Model

YZR5200GXFSG80/HW

Vehicle Brand

XDR

Chassis Brand

SINOTRUK

Overall Dimension(mm)

7925×2505×3450

GVW/Curb Weight(kg)

15000/8650/5900

Chassis Parameters

Cab

Cab Seat

2+4

Air Conditioner

YES

Engine

Fuel Type

diesel

Engie Model

WD615.62

Engine Brand

SINOTRUK

Power(kw/hp)

195/266

Displacement(L)

9.726

Emmission Standard

Euro2

Chassis

Drive Type

4*2

Transmission

8speed, Manual

Wheelbase(mm)

4600

Tyre Specification

12.00R20

Tyre No.(pcs)

6+1

Max Speed(km/h)

95

Paint

Red

Fire Truck Water Tank Structure Parameters

Tank Volume

6000-8000L

Tank Material

Carbon Steel

Tank Thickness

4/3/3mm

Fire pump

CB10/40

Fire monitor

PS40

Color and

Optional

Standard configuration

Chassis,sub frame, van body,national standard equipment box, 25 units national standard fire-fighting equipment,fire pump(CB10/20,
CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off,
sliding gate, row type lights, reel, common tools,rear climbing ladder,water tank.

Selective configuration

foam type,dry powder type,stainless tank,other requirements.
