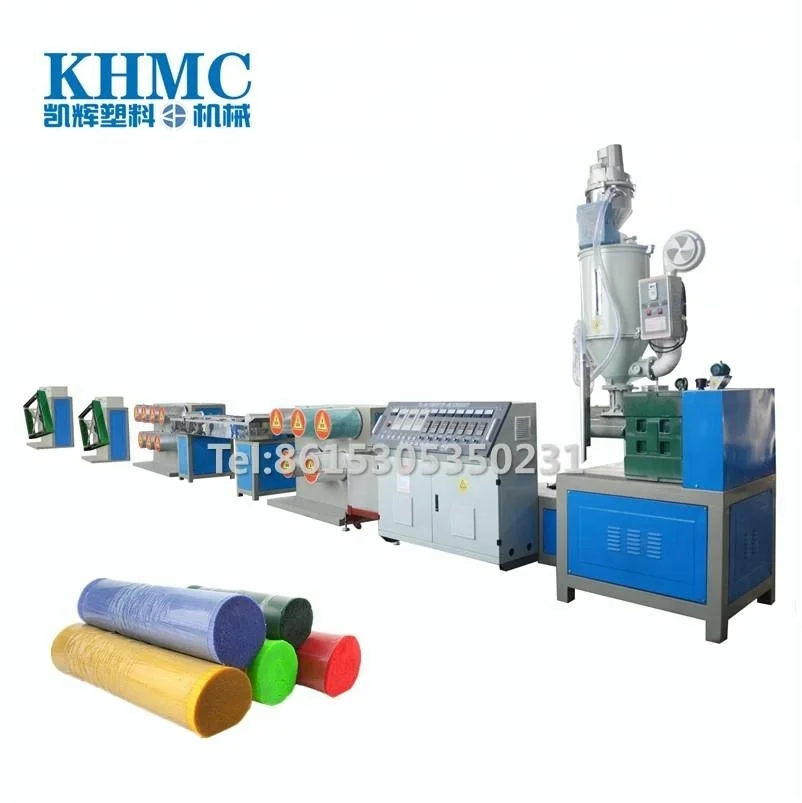

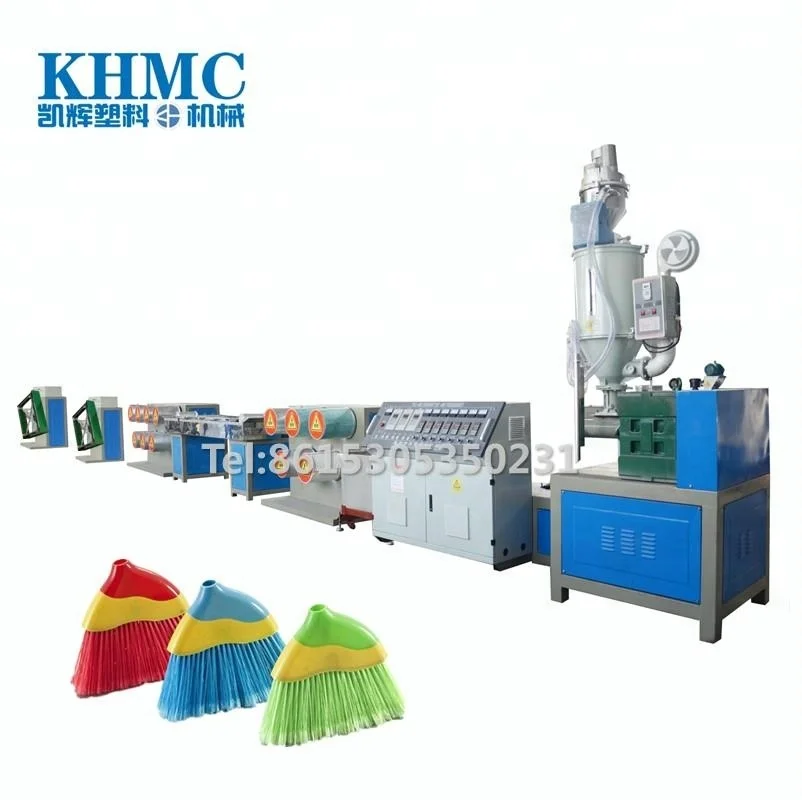

Машина для производства пластиковой моно пряжи/экструдирующая машина

Product Overview

Description

Application

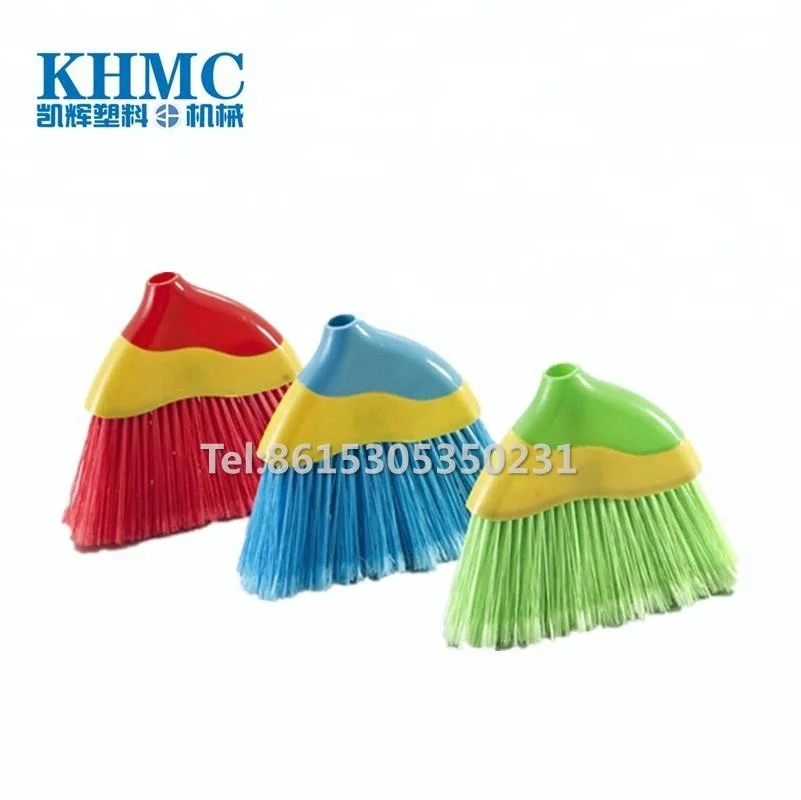

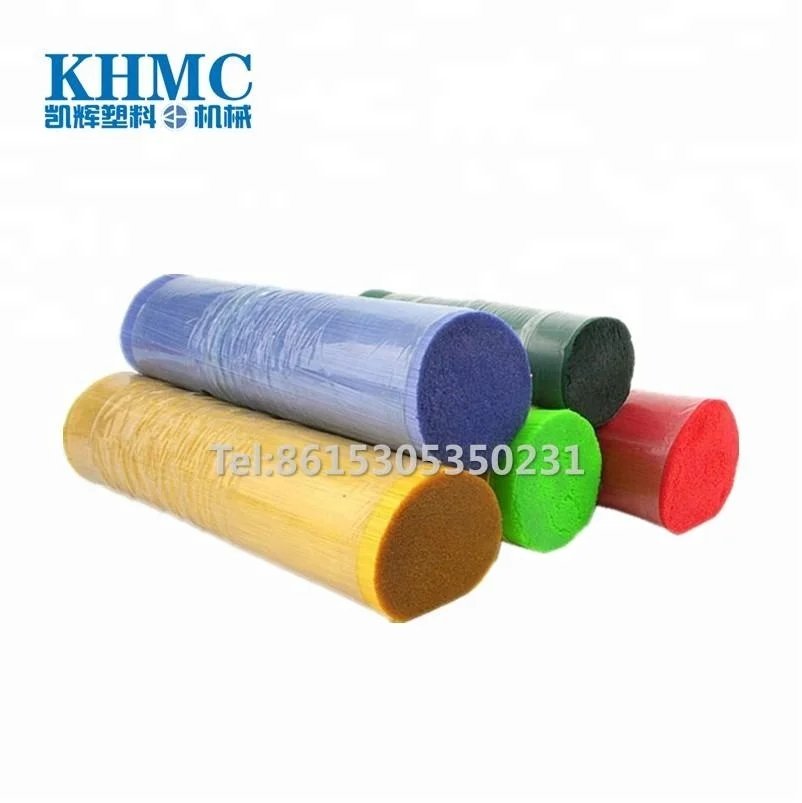

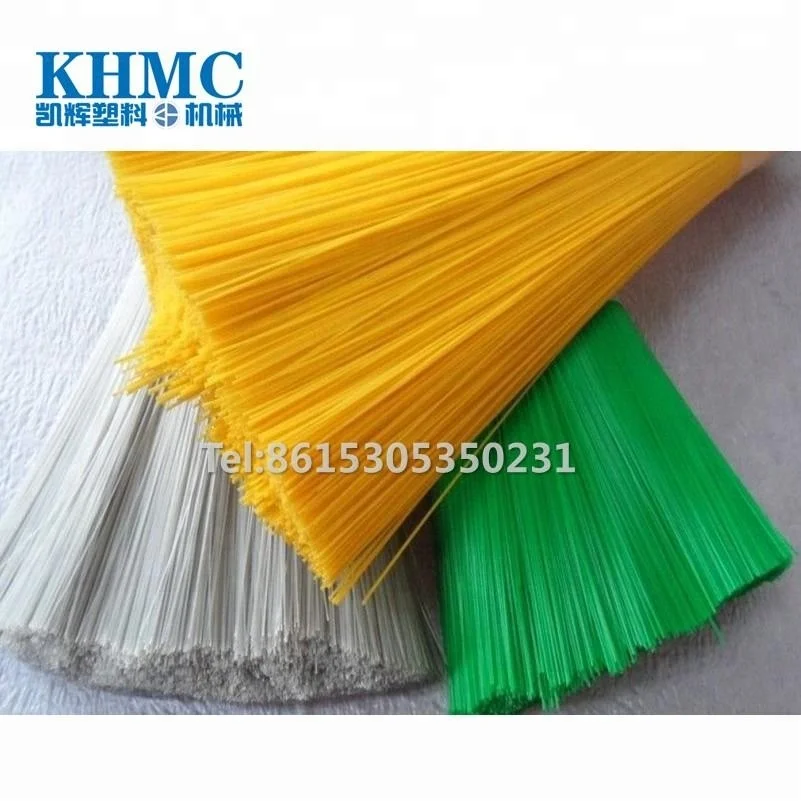

The machine can produce different size of PP, HDPE, PET virgin or recycled monofilament, fishing yarn which is widely used in brush and broom. The machine has the characteristics of high capacity, long life span, easy operation, easy maintenance.

Advantage

Easy operation  High output and Low power consumption  Easy to maintain

Inspection and testing machine before delivery,assemble and produce at customer's workshop

Technical service forever

Flow Chart

Raw material (PP/PE/PET)-------Extruder--------water cooling------1^STstretching-------heating tank(hot water)-------2^nd stretching ----- winder(Combined spindles )-----Heating stove----- Yarn cutting machine

Machine Specifications

Type	SY-65	SY-80	SY-90	SY-125	SY-160
Screw Diameter(mm)	65	80	90	125	160
Screw speed range(r/min)	30-70	30-70	30-70	30-70	30-70
Extension ratio	1:5	1:5	1:5.5	1:5.5	1:5.5
Total power ( kw)	40	60	78
Output     ( kg/h)	20-40	40-60	60-80	80-120	100-140
Installation Dimensions ( m)	16×2.1×2	20×2.1×2	25×2.2×2
Total weight(t)	4	5	6	7	8



High value-added

The extruder can also make  PP/HDPE/PET monofilament rope yarn, mowing yarn and , net yarn, etc.

Service

Term of Payment: 30% TT down payment, 70% TT balance

Warranty Period: 1 year

Installation and Testing The seller will send technician to the buyer’s factory install and test the machines.

Friendly Reminder

The product recommended is for your reference. We will recommend you the most suitable one according to your detailed requirements.
