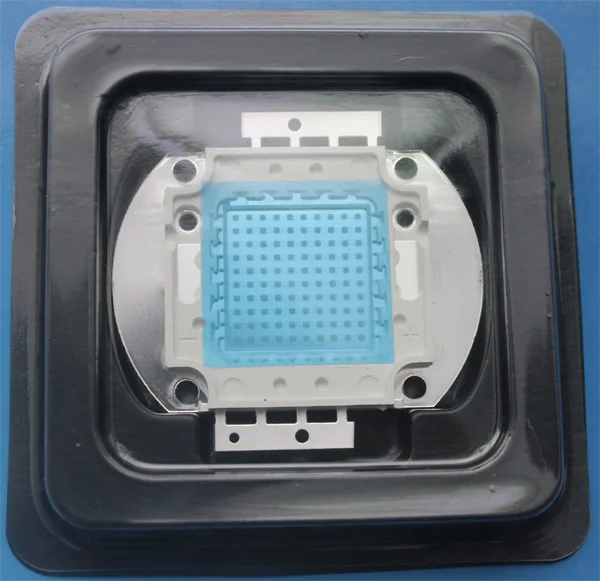

Светодиодный чип высокой мощности 20 Вт зеленого цвета нм со свернутым чипом 45 мил
- Category: High Power LED >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (60727237358):
Product Overview
Description
20W green color 520-530nm high power led chip
Product Description
Highest Flux green
low voltage DC operated
high reliability and long life time
soon delivery
RoHs&CE
20W green color 520-530nm high power led chip
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage
| VF | IF = 1500mA | 12.0 | --- | 14.00 | V |
Luminous Flux
| Φv | IF = 1500mA | 1200 | --- | 1600 | lm |
Viewing Angle
| 2θ1/2 | IF = 1500mA | ---- | 120 | ---- | Deg. |
Wavelength
| WL | IF = 1500mA | 520 | ---- | 530 | nm |

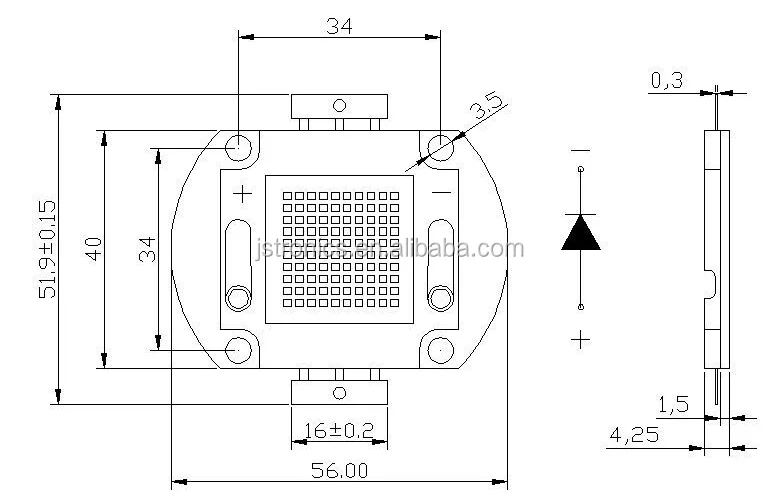

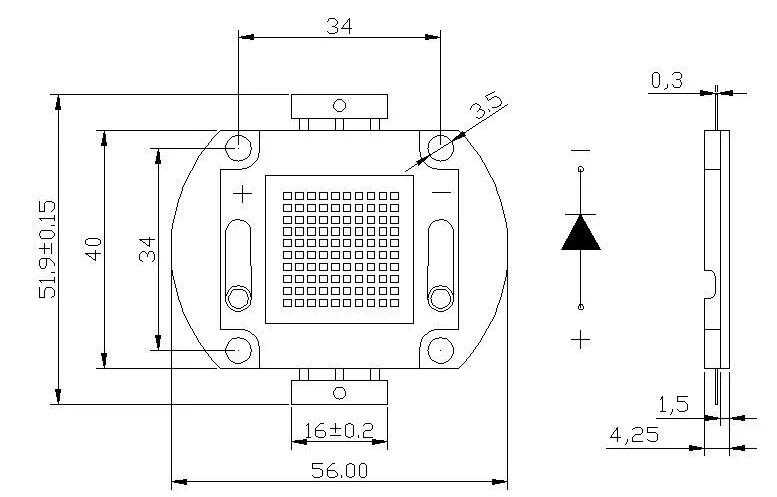

20W green color 520-530nm high power led chip dimension
20W green color 520-530nm high power led chip
Absolute maximum ratings(Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | |
Min. | Max. | ||||
DC Forward Current
| IF | ---- | ---- | 1500 | mA |
Peak Pulse Current
| Ipeak | Duty=0.1,1kHz | ---- | 1700 | mA |
Power Dissipation
| Pd | ---- | ---- | 20 | W |
LED Junction Temperature
| Tj | ---- | ---- | 120 | ℃ |
Operating Temperature
| Topr | ---- | -25 | +100 | ℃ |
Storage Temperature
| Tstr | ---- | -40 | +120 | ℃ |
ESD Sensitivity
| --- | HBM | 8000 | ---- | V |
Soldering Temperature
| --- | ---- | 260℃ for 5 Seconds max | ||
Product Packing
Related products
Certification
FAQ
1. How to shipping ?
(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small .
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
2.what will be the types of payment?
The payment we can accept are T/T transaction,Paypal,Western Union,etc.
3.Could you please send me the samples for comfirm the quality?
Of course ,We can provide some free samples for our clients comfirm the quality.
