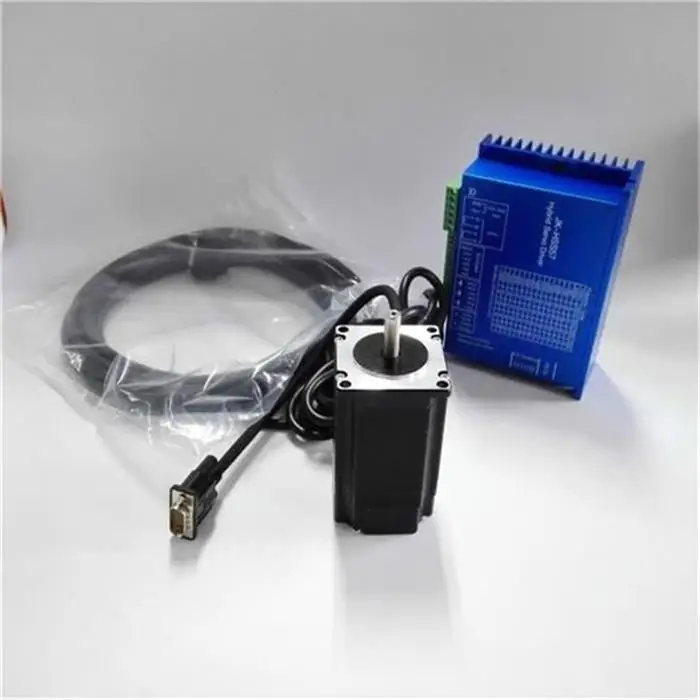

57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00

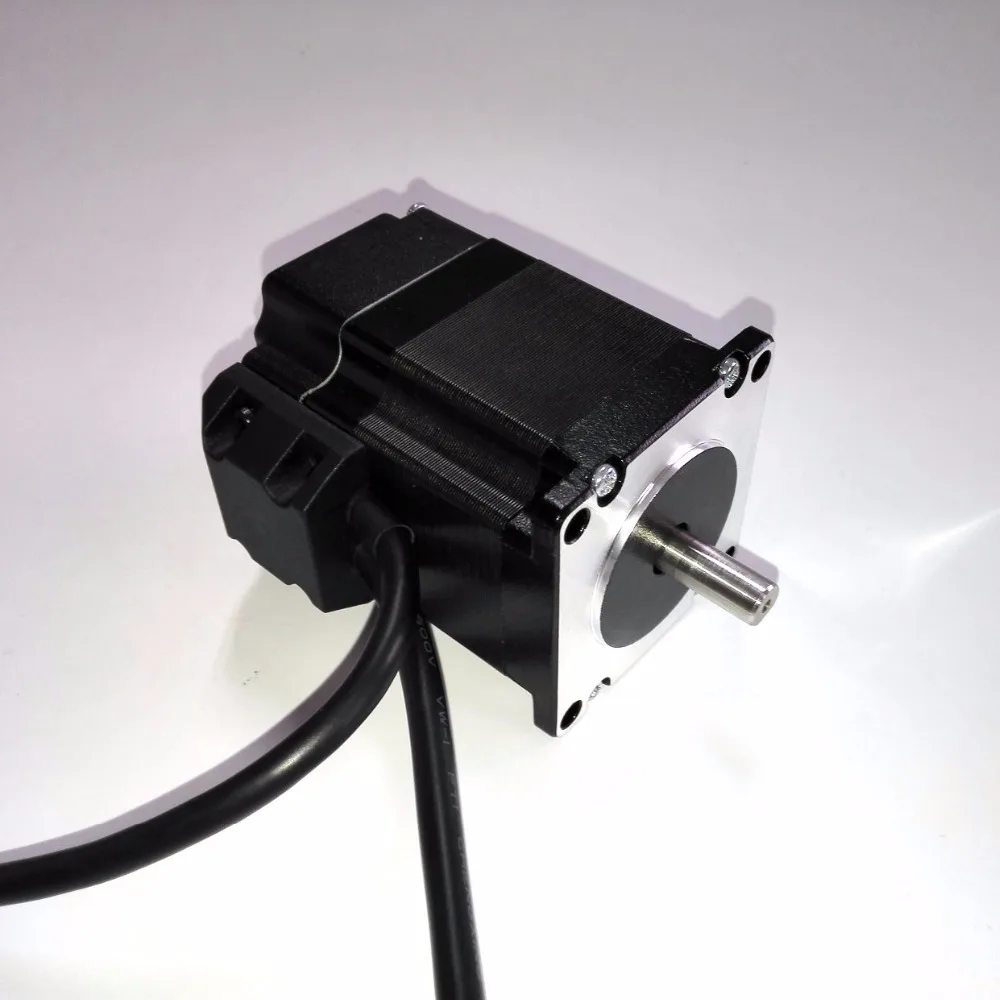

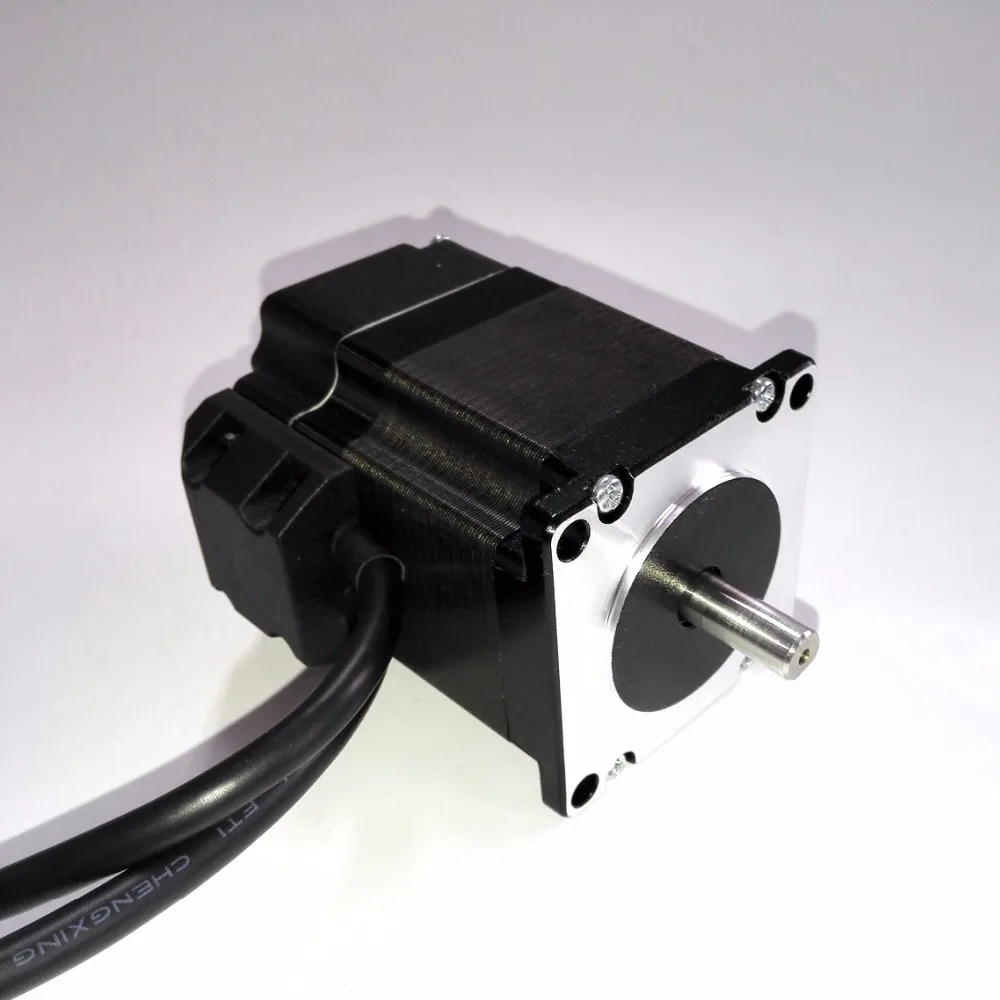

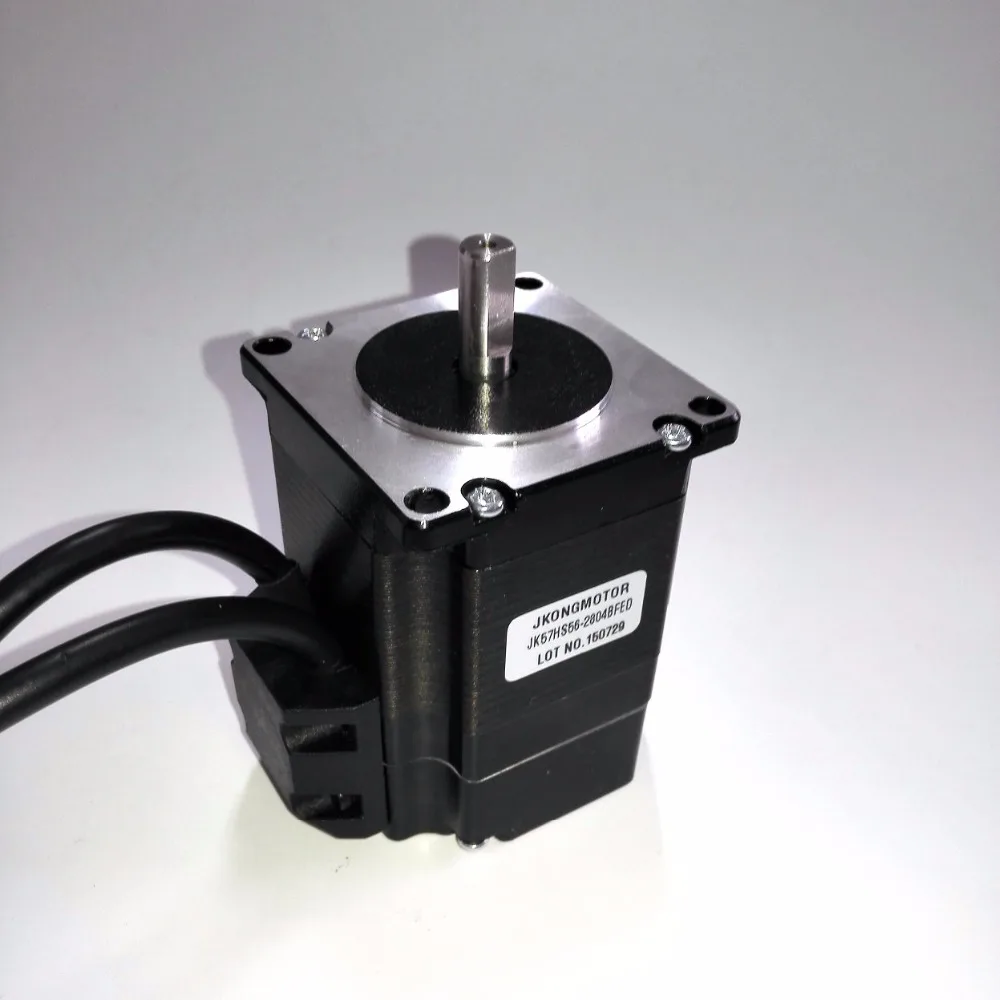

Низкая цена 57 мм nema 23 биполярный 4.2A 2 Фаза замкнутый контур шаговый двигатель
- Category: Stepper Motor >>>
- Supplier: Changzhou Jkongmotor Co. Ltd.
Share on (60727511632):
Product Overview
Description
Closed loop stepper motor nema 23 hybrid stepper motor system servo1.8N.m
Genaral Specification:
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N
Product Description:
Note: We can also manufacture products according to customer's requirements.
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Lead wires | Rotor Inertia | Motor Weight |
| ( °) | (L)mm | A | Ω | mH | Kg.cm | No. | g.cm² | Kg | |
| JK57HS51-2804BFED-2M | 1.8 | 71 | 2.8 | 0.83 | 2.2 | 10 | 4 | 230 | 0.80 |
| JK57HS56-2804BFED-0.35M | 1.8 | 76 | 2.80 | 1.00 | 2.5 | 12 | 4 | 280 | 0.90 |
| JK57HS76-4204BEFD-0.35M | 1.8 | 96 | 4.20 | 0.60 | 1.8 | 18 | 4 | 440 | 1.20 |
| JK57HS82-4204BFED-0.35M | 1.8 | 102 | 4.20 | 1.1 | 2.5 | 22 | 4 | 600 | 1.30 |
| JK57HS112-4204BFED-0.35M | 1.8 | 132 | 4.20 | 0.90 | 3.8 | 28 | 4 | 800 | 1.6 |
Note: We can also manufacture products according to customer's requirements.

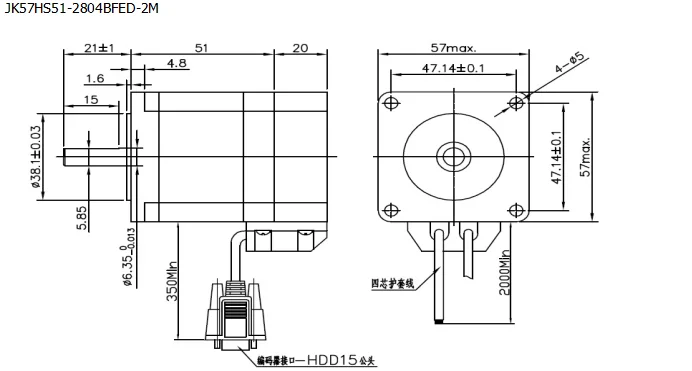

Dimensions:
(Unit=mm)
(Unit=mm)
JK57HS56-2804BFED-0.35M
JK57HS76-4204BEFD-0.35M
JK57HS82-4204BFED-0.35M
JK57HS112-4204BFED-0.35M
Wiring Diagram:
Our Packing:
About our company:
CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd) is a high -tech enterprise that Specializes in designing and producing Hybrid Stepper Motor, Stepper Gear Motor, Stepper Motor Driver, Brushless Dc Motor and Driver.
Jingkong Motor has strong technical force, mature production technology, complete testing equipment and has obtained CE certification, compliance with the EU Rohs standards. Our applicable fields refer to robot, electronic equipment, medical instrument, ad instrument, lighting&audio equipment, printer, textile machinery. Already export to USA, Germany, Italy, Spain.U.k, Mexico Brazil and other countries.
company name : Changzhou Jingkong Motor&Electric Appliance Co.,Ltd
