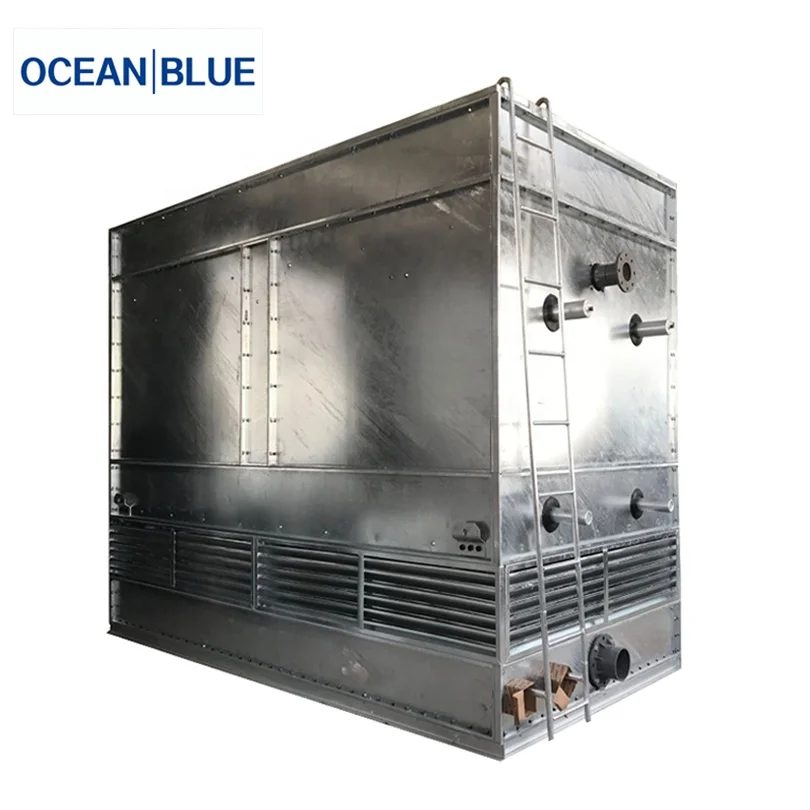

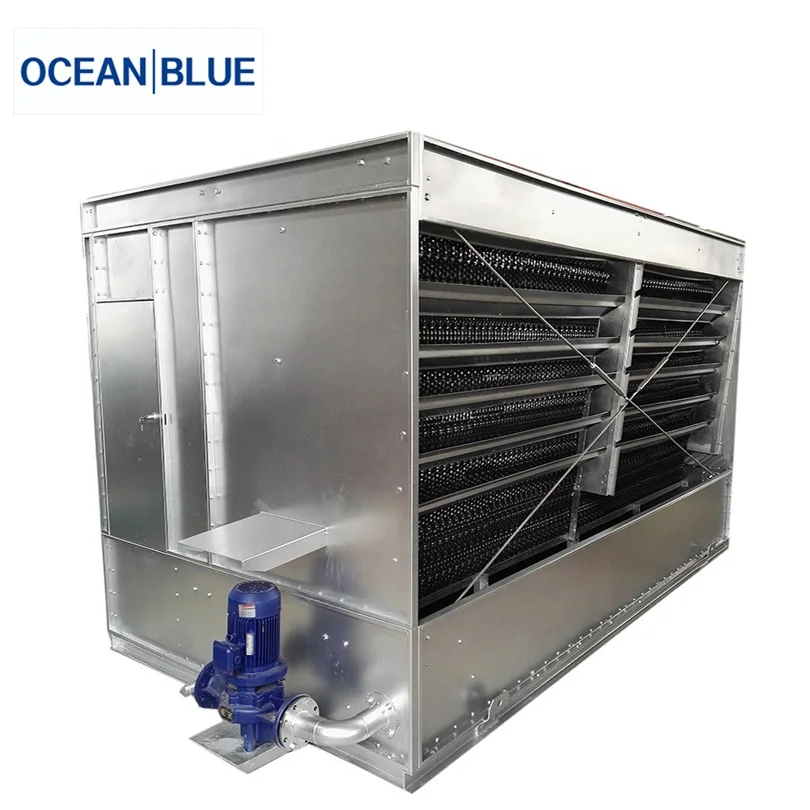

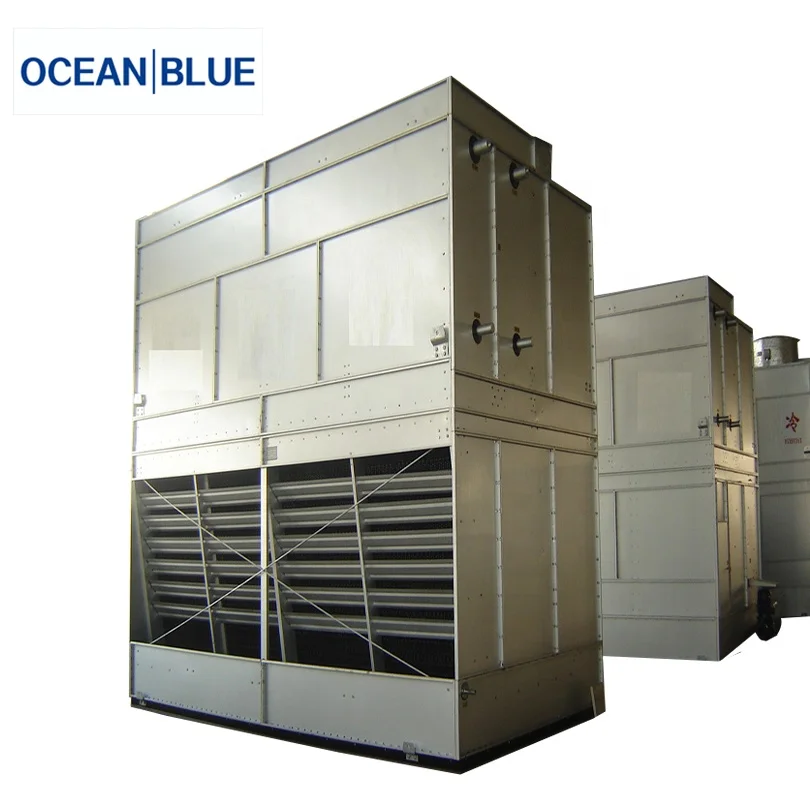

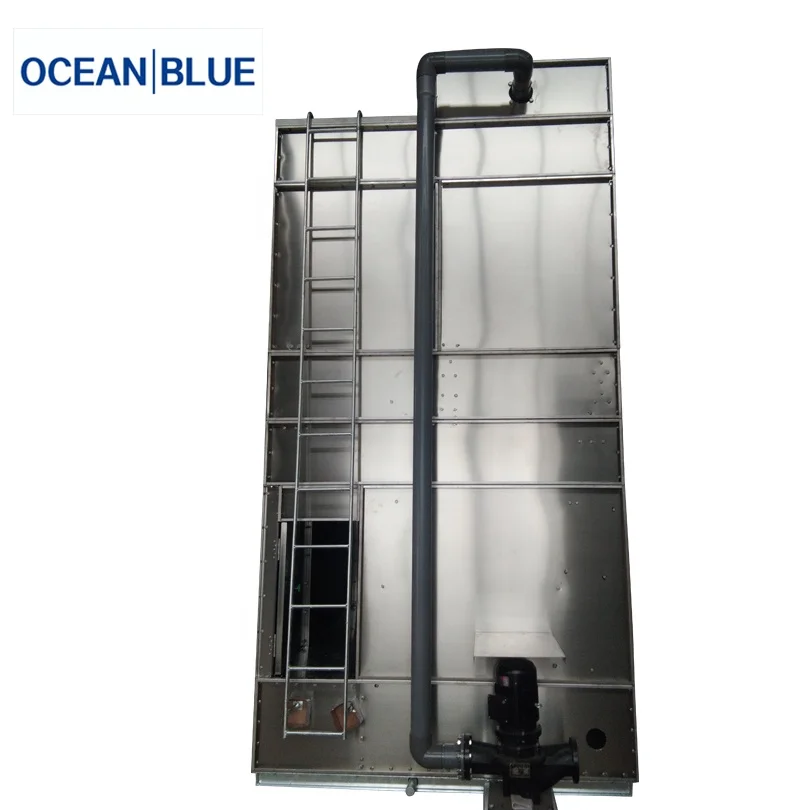

High Quality Industrial ammonia Evaporative Condenser for cold room

High Quality Industrial ammonia Evaporative Condenser for cold room

Category: Cooling Tower >>>
Supplier: Yantai Oceanblue Refrigeration Engineering Co. Ltd.

Price:$15,000.00

Quantity:

Product Overview

Description

Product Description

Product Application (high quality industrial freon ammonia evaporative condenser manufacturer)

High Quality Industrial Freon Ammonia Evaporative Condenser Manufacturer is one of the most important parts of the whole refrigeration system. The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle. The evaporative condenser is widely applied to cold storage, ice-store, chemical industry, supermarket and etc.

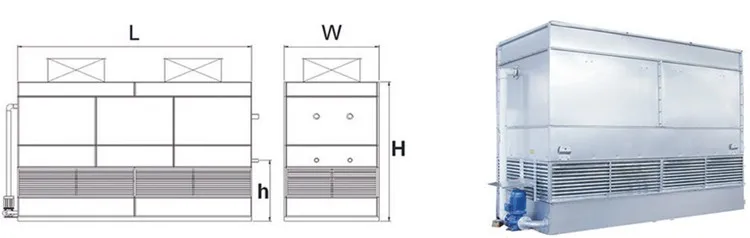

Model	Heat Rejection(KW)	Size(LWH) mm	Weight(kg)	Fans (Air Flow m³/hr)	Water Pump (Water Flow L/S)
ECB300	305	246020003715	2360	60000	12.5
ECB550	555	300021103940	3160	60000	12.5
ECB600	605	300022003940	3310	60000	12.5
ECB700	705	392020704240	4220	90000	13.9
ECB850	855	424022004240	4820	120000	13.9
ECB900	905	500020704296	5080	120000	24.7
ECB1100	1109	560022004315	5750	120000	24.7
ECB1250	1258	560022004466	6400	180000	27.8
ECB1400	1405	560022004466	6740	180000	27.8
ECB1520	1528	500030004500	7010	180000	27.8
ECB1680	1682	560031004280	7760	225000	39.7
ECB1800	1803	560031004520	8080	225000	39.7
ECB2000	2005	560035004520	9080	255000	39.7
ECB2200	2208	560035004520	9540	255000	39.7

Main Features (high quality industrial freon ammonia evaporative condenser manufacturer)

(1) Power-saving; Water-saving; Space-saving
(2) High Heat Exchange Ability
(3) Easy to instal
(4) Low maintenance cost
(5) Long lifetime

High Quality Industrial Freon Ammonia Evaporative Condenser Manufacturer

Design & Features

Detailed Images

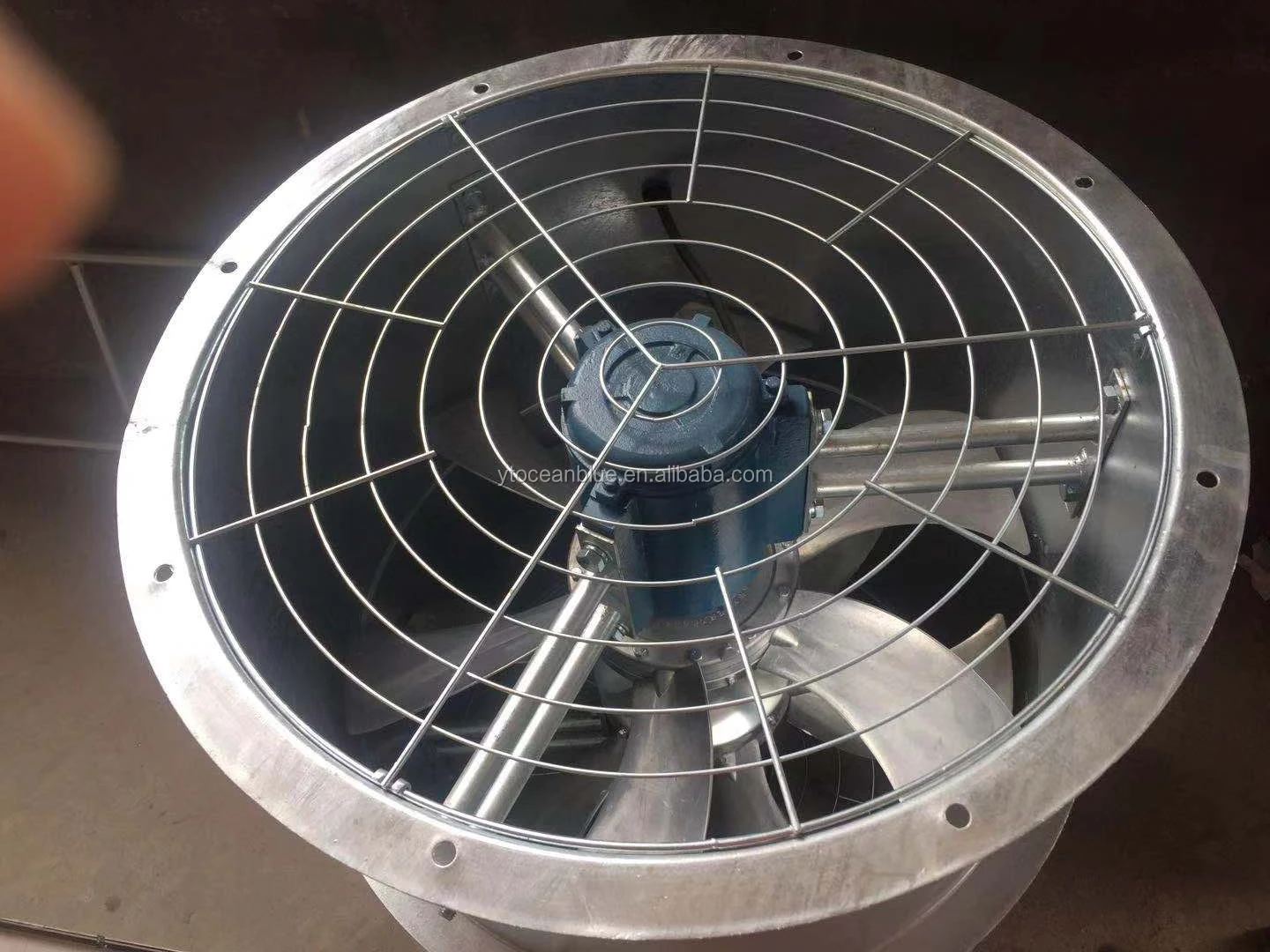

AXIAL FAN

1. Aluminum alloy propeller fan for the evaporative condenser.

2. For the Fan shell, Stainless steel and Hot dip galvanized you can choose.

3. Advantage: high blowing rate, low damping, low noises, good performance and high efficiency.

4. Motor: fully closed and shelf-cooled, low noise, reliable opeartion, protection IP55, insulation class F.

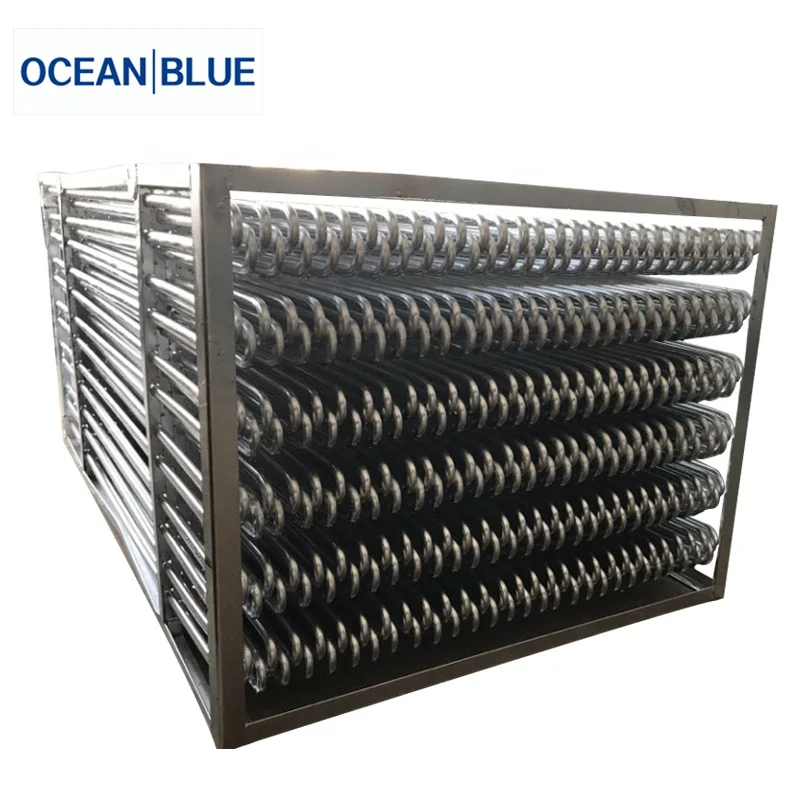

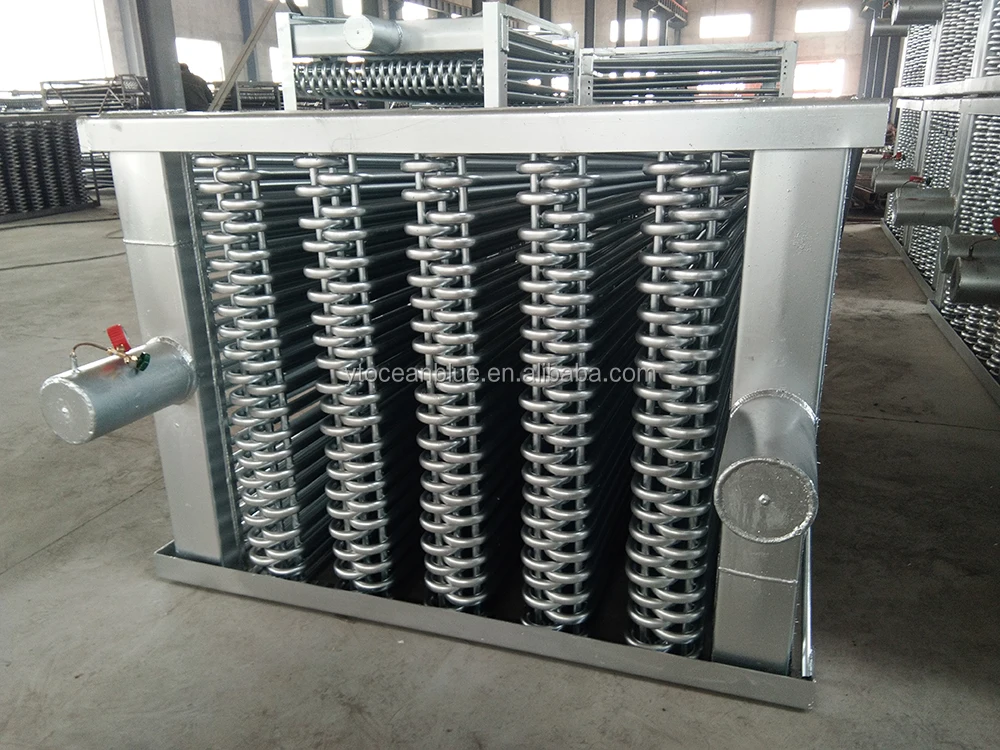

CONDENSING COIL

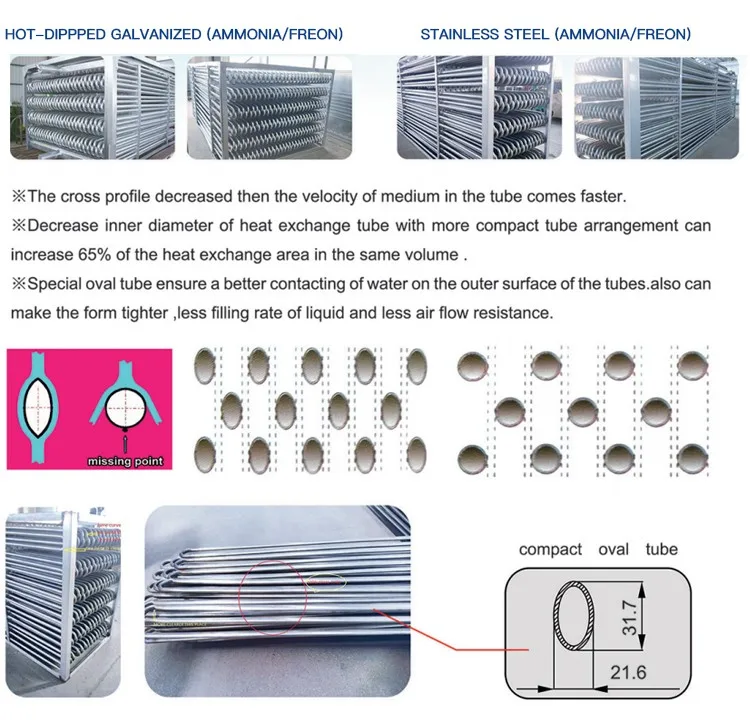

1. Oval tube 21.6*31.7mm

2. Hot dip galvanized or Stainless steel

3. The design pressure is 2.0Mpa and all the coils have ben pneumatically tested at least 3 times at 2.5Mpa to avoid leakage.

4. The design pressure is 2.0Mpa and all the coils have ben pneumatically tested at least 3 times at 2.5Mpa to avoid leakage.

HOT DIP GALVANIZED

STAINLESS STEEL

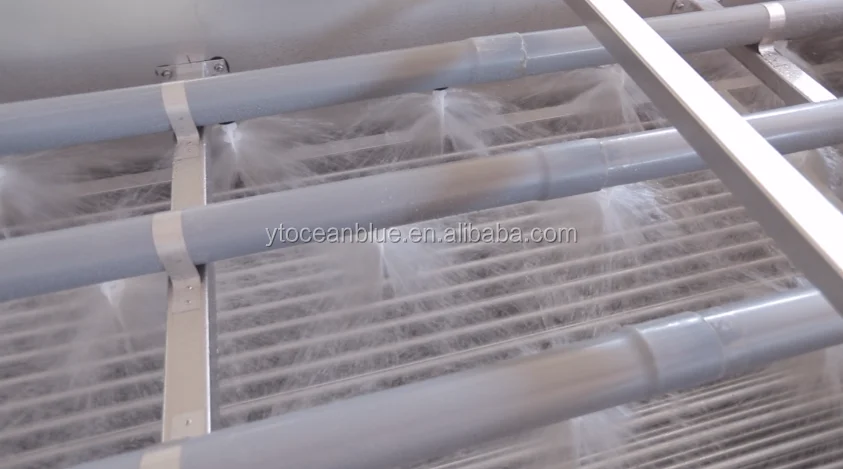

WATER DISTRIBUTION SYSTEM

1. Over lapping spray patterns ensure proper water coverage.

2. Large orifice, Non-clog, 360 spray Nzzles.

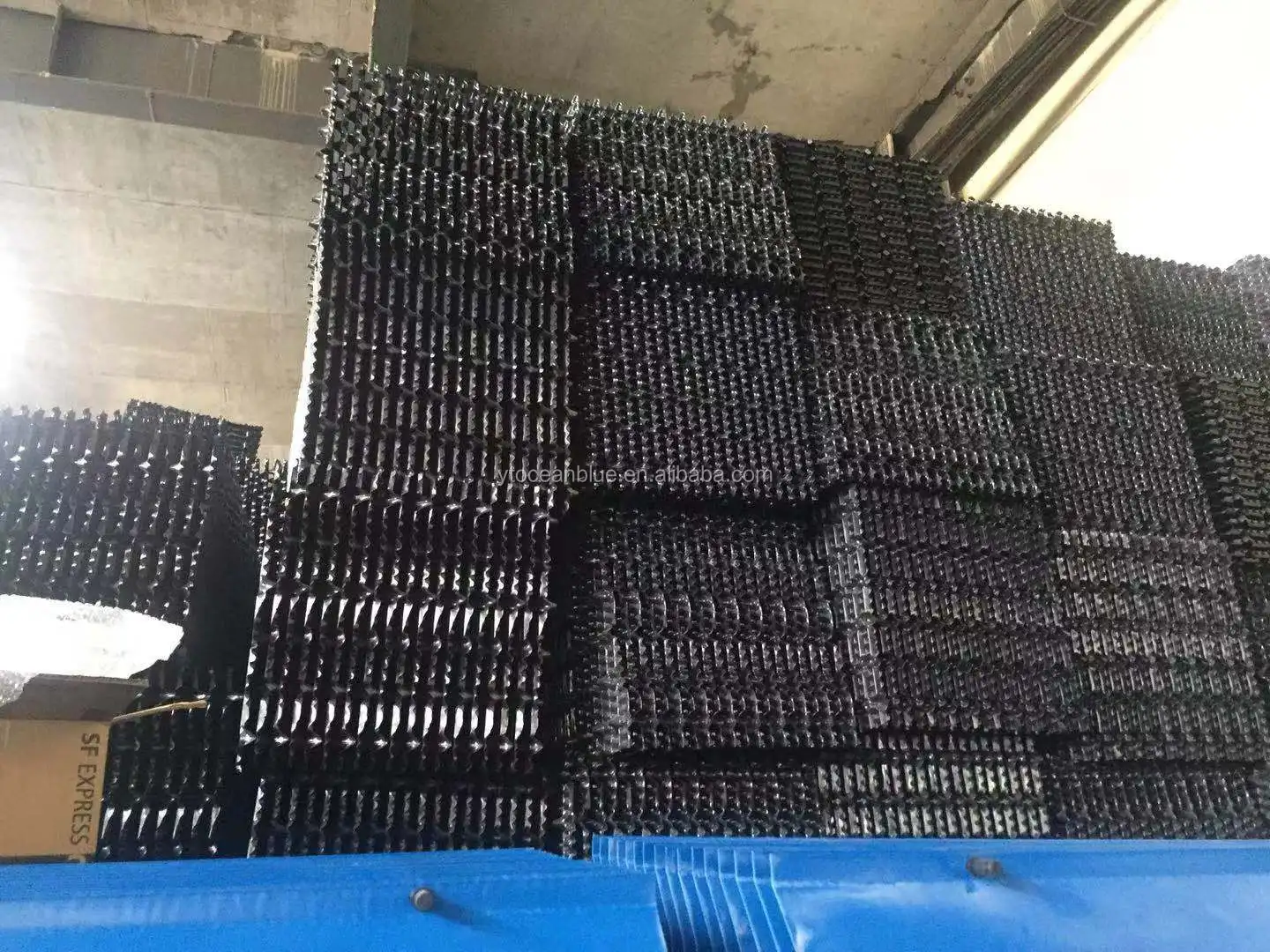

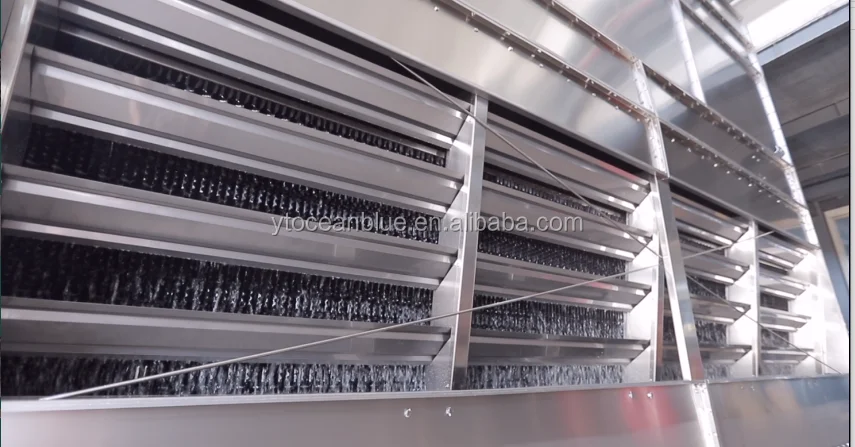

DRIFT ELIMINATOR

1.High-effective water eliminater is made of PVC, can filter the drips from expelled air-steam. Radiation-endurin and long lifespan. With the access door on the eliminators side panels
