Price:$70,000.00 - $75,000.00

Quantity:


Product Overview

Description



Product Description


 WISBIII-75AS-02 pet plastic automatic blowing machine for bottles

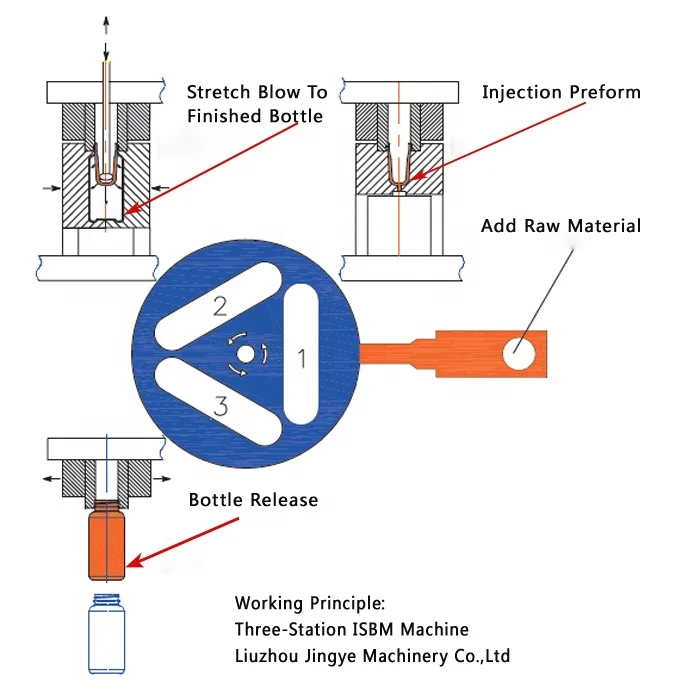

This machine has three station.





Injection station - for injection preform from raw material.





Stretch & blow station - for stretching & blowing preform to finished bottle.





Ejection station - for releasing finished bottle from molds.





We provide turn-key solution, ISBM machine, molds and auxiliary machines. Get more details, contact us now!


Plastic Blowing Machine







 Injection Stretch Blow





Technical Data Sheet
























































ItemData
Machine ModelWISBIII-75AS-02
Screw Diameter35 mm
Theoretical Injection Capacity134.6 cm3
Injection Clamping Force282.6 kN
Blow Clamping Force123.1 kN
Motor Power26 + 17 kW
Heater Capacity8 kW
Blow Air Pressure2.5 - 3.0 MPa
Cooling Water Pressure0.2 - 0.3 MPa
Machine Size4650 * 1880 * 2850 mm
Machine Weight 6000 kg

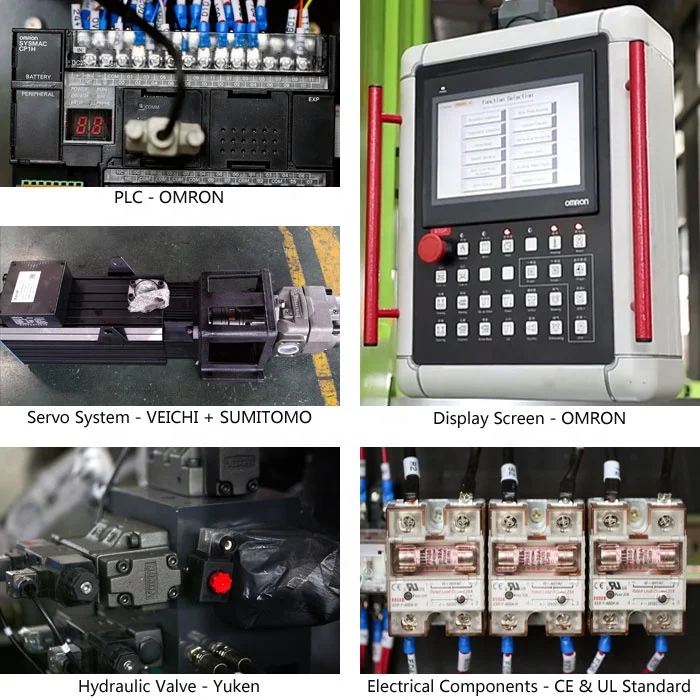

High Standard Configuration





All key parts, we use high standard configuration on this machine to keep machine running stable, saving power & human resources and long service life.


Injection Stretch Blow

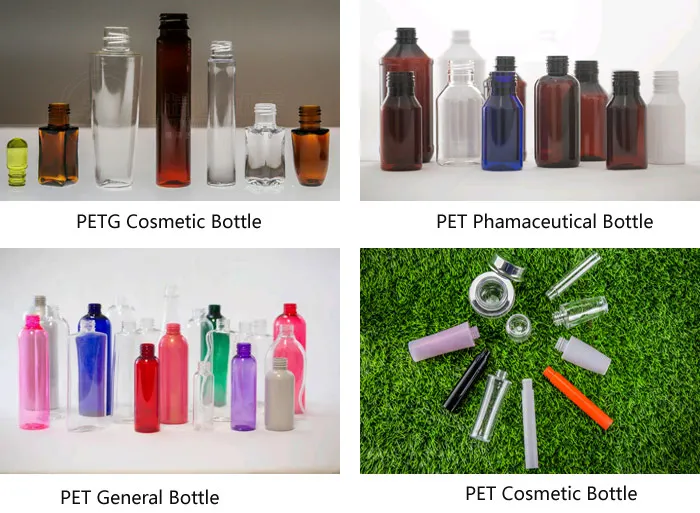

Sample


This machine is widely used for making PET bottles.

3-Details




Packaging & Shipping


4-Details





Customer Factory Display


Injection Stretch Blow





Company Information


Liuzhou Jingye Machinery Co.,Ltd is an expert manufacturer of one step injection stretch blow molding (ISBM) and molds in China since 1997.





We provide turn-key solution, ISBM machine, molds and auxiliary machines.





Online installion & technical services is available now. Contact us now, please!


 9-Detail

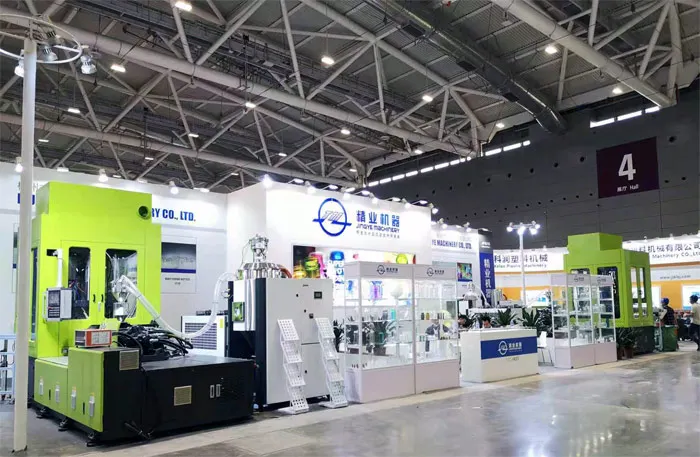

Exhibition Display


Injection Stretch Blow


Thanks a million for taking time to read above information, to get more details, chat us now!
