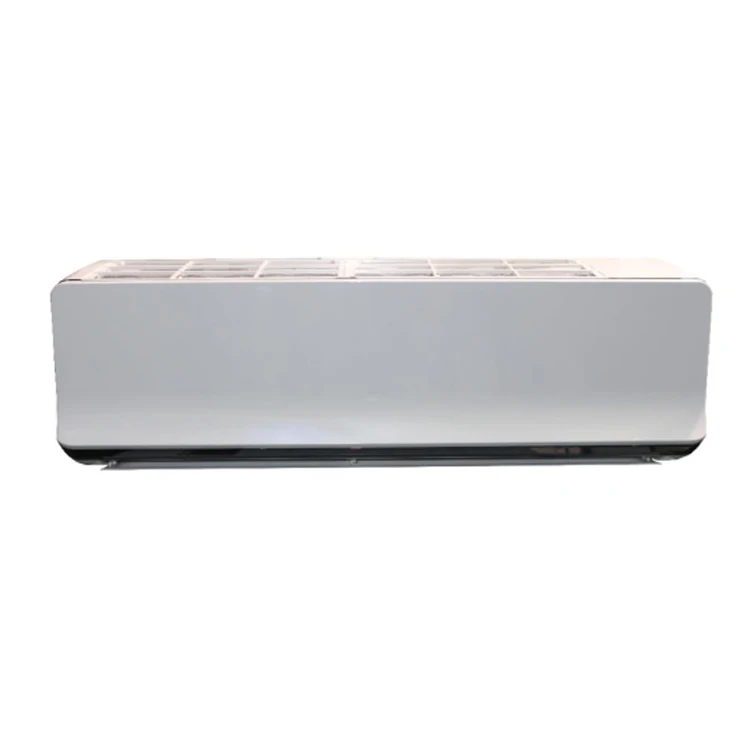

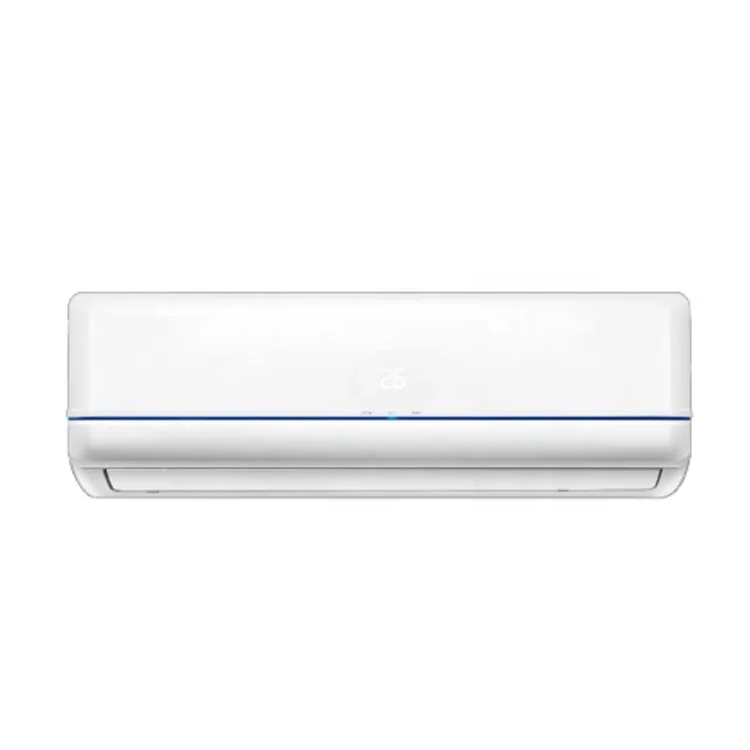

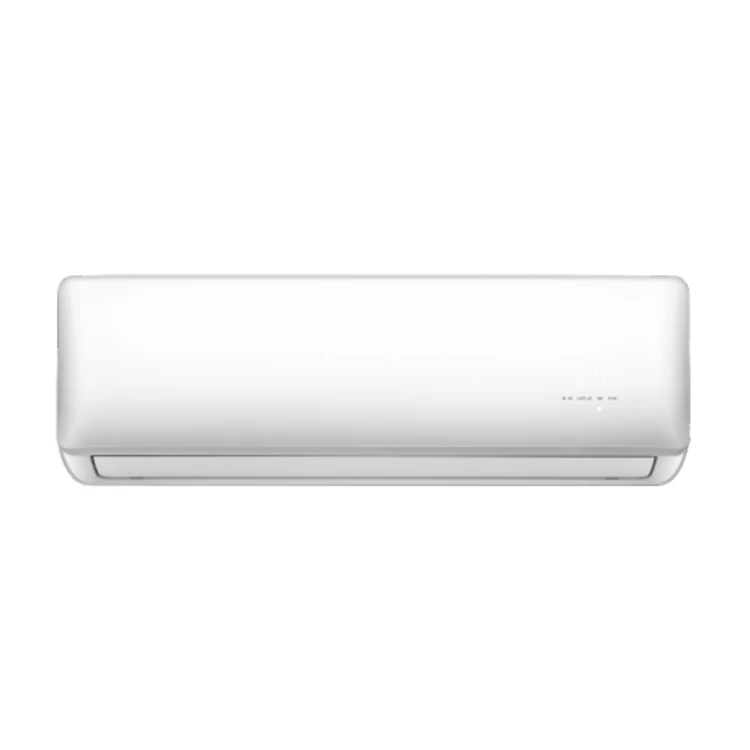

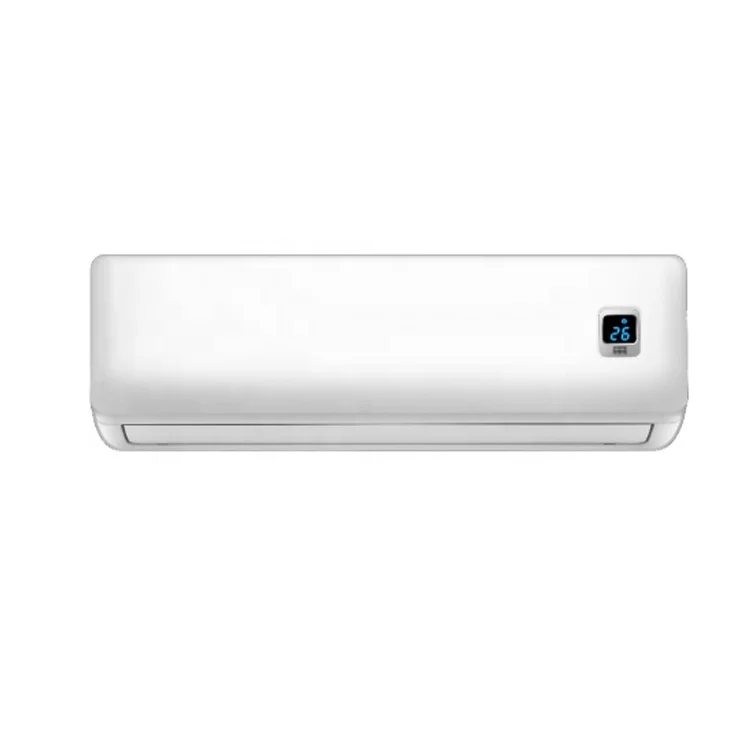

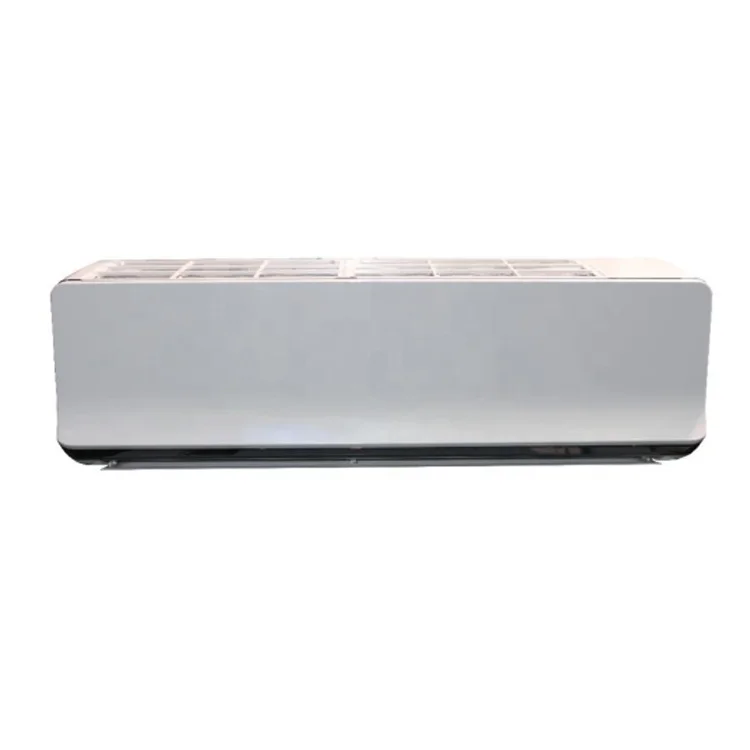

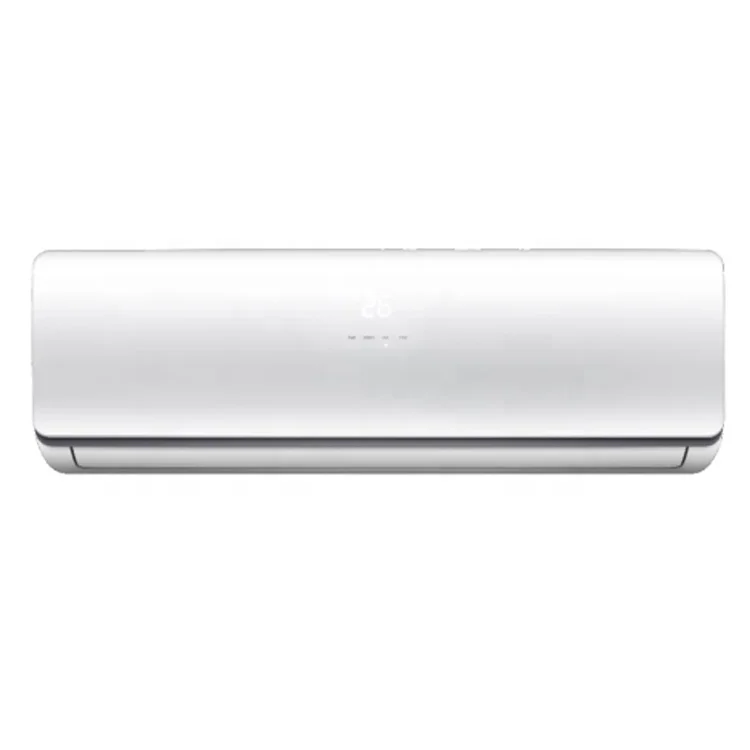

Wi Fi 12000 бту/1 тонна/1,5 л. С. Aquamind R410A тепловой насос кондиционеры мини раздельный Настенный Кондиционер
- Category: Air Conditioning Appliances >>>
- Supplier: Shenzhen Midas Electronics Co. Ltd.
Share on (60729164576):
Product Overview
Description
| Model | MSAF-18HRN1 | ||
| Power supply | Ph-V-Hz | 220-240V- 50Hz, 1Ph | |
| Cooling | Capacity | Btu/h | 18000 |
| Input | W | 1860 | |
| Rated current | A | 8.2 | |
| EER | W/W | 2.84 | |
| Heating | Capacity | Btu/h | 18000 |
| Input | W | 1700 | |
| Rated current | A | 7.8 | |
| COP | W/W | 3.10 | |
| Max. input consumption | W | 2700 | |
| Max. current | A | 12.3 | |
| Starting current | A | 41 | |
| Compressor | Model | PA200M2AS-4KU2 | |
| Type | ROTARY | ||
| Brand | GMCC | ||
| Capacity | Btu/h | 16975/17179 | |
| Input | W | 1670/1795 | |
| Rated current(RLA) | A | 7.85/8.15 | |
| Locked rotor Amp(LRA) | A | 41 | |
| Thermal protector | ----- | ||
| Thermal protector position | INTERNAL | ||
| Capacitor | uF | 45 | |
| Refrigerant oil/oil charge | ml | ESTEL OIL VG74 · 620 | |
| Indoor fan motor | Model | RPG45C | |
| Input | W | 72 | |
| Capacitor | uF | 3.0 | |
| Speed(Hi/Mi/Lo) | r/min | 1180 / 1100 / 900 | |
| Indoor coil | a.Number of rows | 2 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | |
| c.Fin spacing | mm | 1.3 | |
| d.Fin type (code) | Hydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | Φ7,innergroove tube | |
| f.Coil length x height x width | mm | 780x315x26.74 | |
| g.Number of circuits | 5 | ||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1050/980/800 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 48/46/39 | |
| Indoor unit | Dimension(W*D*H) | mm | 1045x235x315 |
| Packing (W*D*H) | mm | 1135x395x315 | |
| Net/Gross weight | Kg | 12 / 15 | |
| Outdoor fan motor | Model | YDK48-6H(A) | |
| Input | W | 110 | |
| Capacitor | uF | 3.0 | |
| Speed | r/min | 890 / -- / -- | |
| Outdoor coil | a.Number of rows | 2 | |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | |
| c.Fin spacing | mm | 1.4 | |
| d.Fin type (code) | Hydrophilic aluminium | ||
| e.Tube outside dia.and type | mm | Φ7,innergroove tube | |
| f.Coil length x height x width | mm | 660x546x26.74 | |
| g.Number of circuits | 3 | ||
| Outdoor noise level | dB(A) | 59 | |
| Outdoor unit | Dimension(W*D*H) | mm | 760x285x590 |
| Packing (W*D*H) | mm | 887x355x645 | |
| Net/Gross weight | Kg | 35.5 / 38 | |
| Refrigerant type | g | R410A/1280g | |
| Design pressure | MPa | 4.2/1.5 | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ6.35/Φ12.7(1/4"/1/2") |
| Max. refrigerant pipe length | m | 25 | |
| Max. difference in level | m | 10 | |
| Connection wiring | 2.5(Optional) | ||
| Plug type | 2.5x3 | ||
| Thermostat type | Remote Control | ||
| Operation temperature | ℃ | 17-30 | |
| Room temperature | Indoor(cooling/ heating) | ℃ | 17-32/0-30 |
| Outdoor(cooling/heating) | ℃ | 18-43/-7-24 | |
| Application area (Cooling Standard) | m2 | 24-35 | |
| Qty’per 20’ /40’ /40'HQ | 78/166/190 | ||
