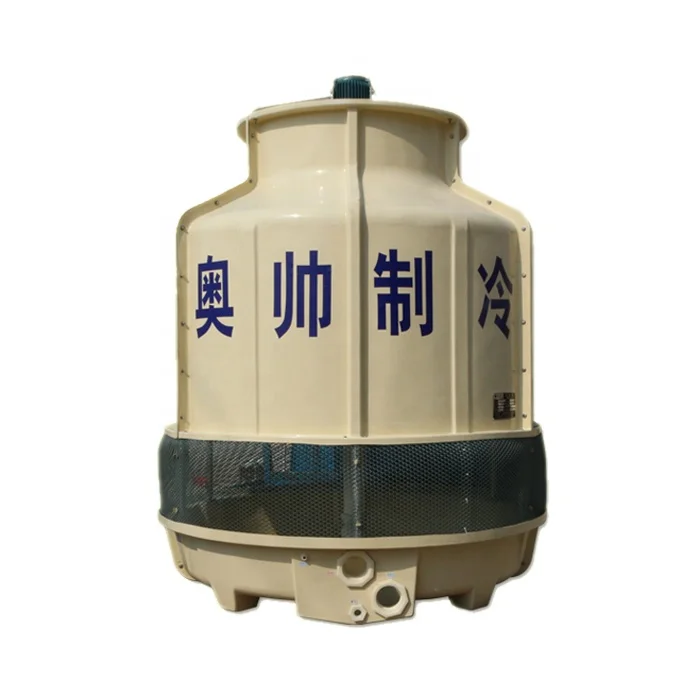

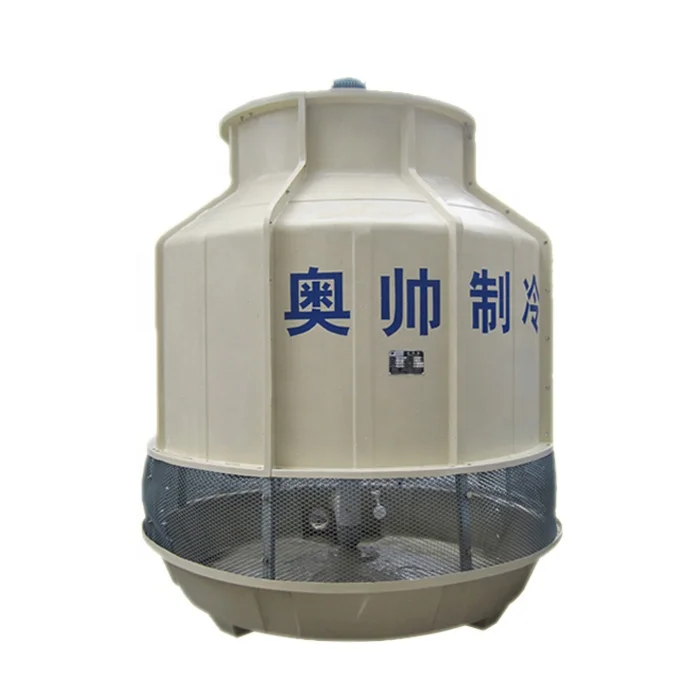

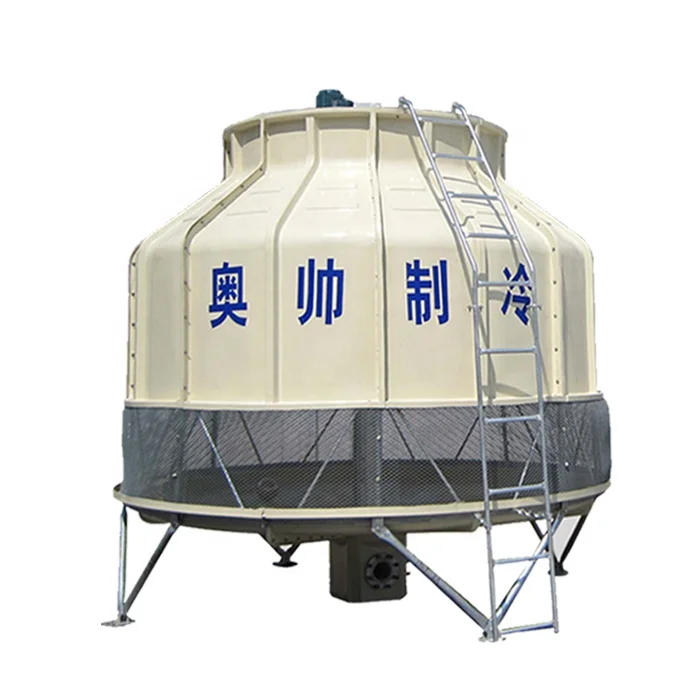

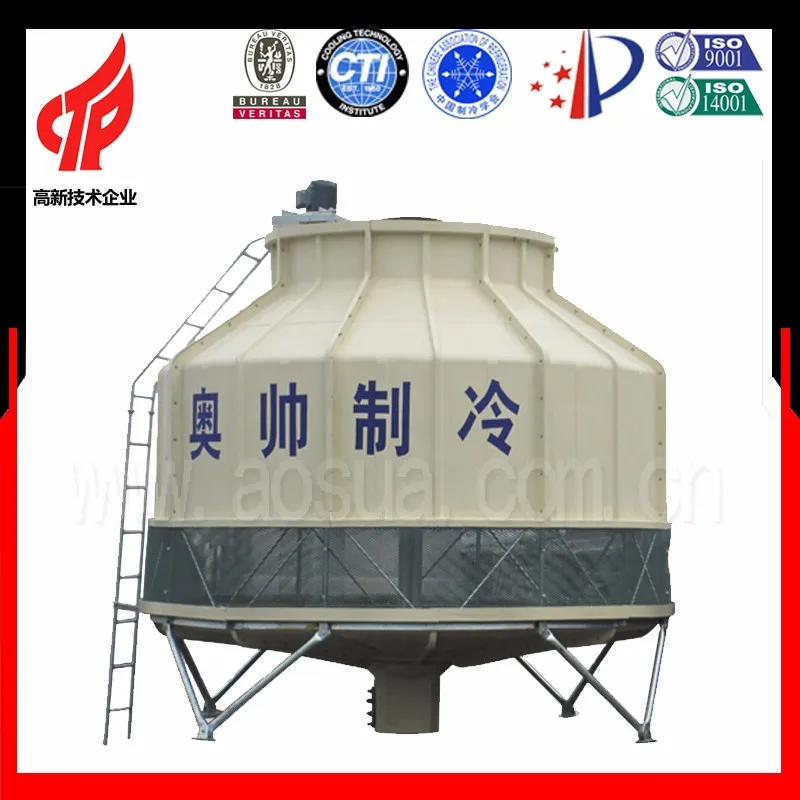

High Temperature Industrial Round FRP Cooling Tower For Water Chiller

Share on (60729590152):


Price:$4,180.00

Quantity:


Product Overview

Description



Product Description

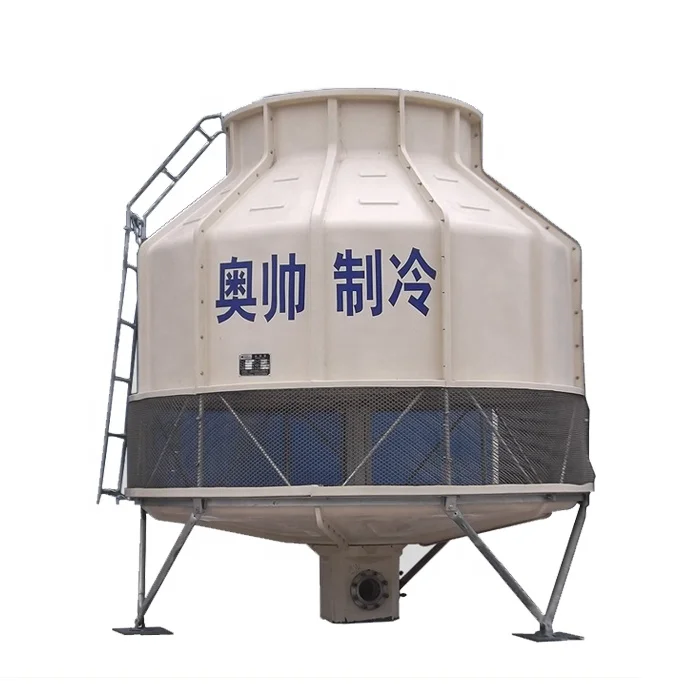

Round Cooling tower

Cooling tower is designed to economic and save water,it is the huge advance in industry.We take Fibre-reinforced plastic as the materials of cooling tower.it is light,low noise and high quality.It is widely used in plastic,electronics,food,textile,chemicals,packing industrial and so on.

Aosua round counter flow cooling tower is mainly composed by motor,fan,sprinkler head,filler,casing,basing and air intake louver.
Aosua Round counter flow cooling tower has been technique corrected in the original basis.Not only match up high quality motor but also improve product’s material selection and technology.It make Aosua round counter flow cooling tower have more perfect users experience.

Round cooling tower,we have two type, one is standard cooling tower(AB type), another is Heat resistant cooling tower(GAB type). The standard cooling tower can afford the highest temperature is 60°C. If the temperature is higher than 60°C,we suggest you choose the Hest resistant cooling tower which can afford 100°C.

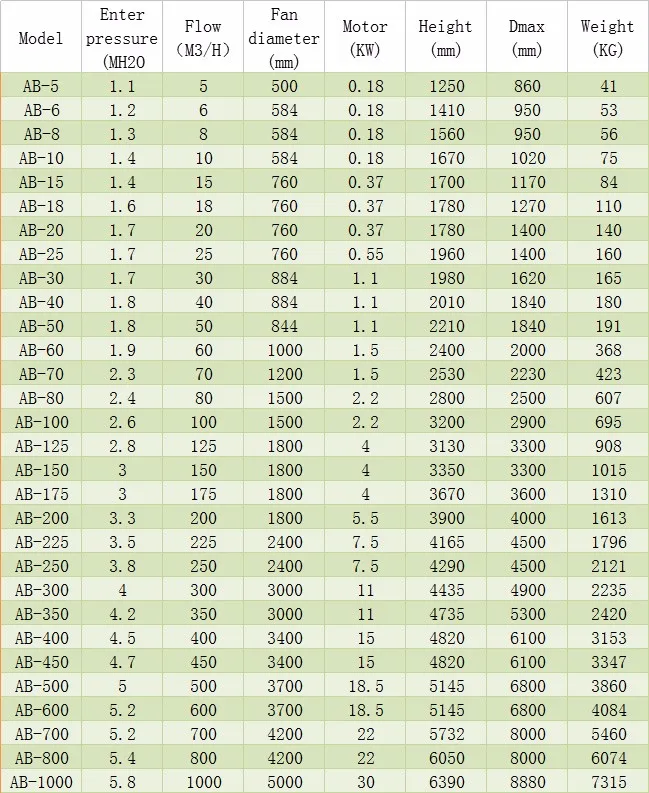

175T Round cooling tower parameter

Model:GAB-175

Flow:175m3/h
Fan Diameter: 1800mm

Fan Material: Aluminum
Motor Power:4KW
Tower Diameter:3600mm
Tower Height:3670mm
Filler Material:PP
Net Weight:1310KG
Operation Weight: 2540KG
Inlet/Outlet Diameter: DN150



Detailed Images


4KW Motor

Material:Cast iron

Power:4KW

Voltage:380V(custom-made)

Frequency:50HZ(custom-made)

Speed:890 RPM

1800mm Fan

Diameter:1800mm

Material:Aluminum

Shaft:42mm

Size:6"

Material:Aluminum

Blades: 4





Material:PP
Height:200mm/250mm/300mm
Thickness:0.3mm
Color:White
Use temperature: 0-90 C

Material:PVC

Thickness:06-0.8mm

Size:custom-made

Tower Body

Material:FRP

Color:Beige



Packing & Delivery

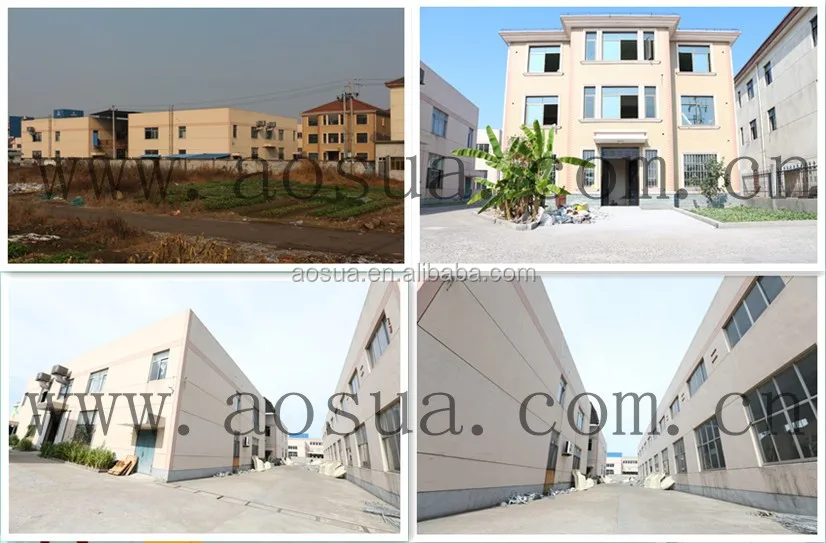

Our Company


In May 2011,AOSUA got ISO9001:2008,UKAS(United Kingdom Accreditation Service) and IAF(International Accreditation Forum)That same year become a membership of CTI(Cooling Technology Institute) and The Chinese Association Of Refrigeration.
AOSUA's powerful combination of financial strength and technical expertise has established the company as a recognized manufacturer of market-leading products on a worldwide basis.



Certifications




Our Service


Service

1.Provide install video if necessary.
2.Quality guarantee is 12 months.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.

4.Oversea technical guidance.
5.Provide foundation drawing.
