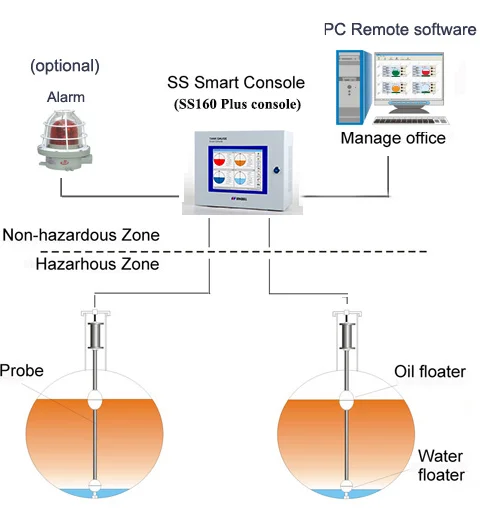

Магнитострикционный зонд, автоматическая система датчика бака (ATG) дизельного топлива и бензина

Magnetostrictive Probe

Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

Accuracy: level accuracy is ±0.3mm

Stability: strong anti-jamming ability

Efficiency: less than 1 second to test one tank.

Touch Control Console

♦ It can monitor up to 12 tanks and monitor the delivery conditions, it also enjoys a static leak test function.

♦ It can display product level, water level, temperature, volume, ullage.

♦ It enjoys a tank tilt compensation function.

♦ It can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.

♦ It features an audible and visual alarm function with front panel.

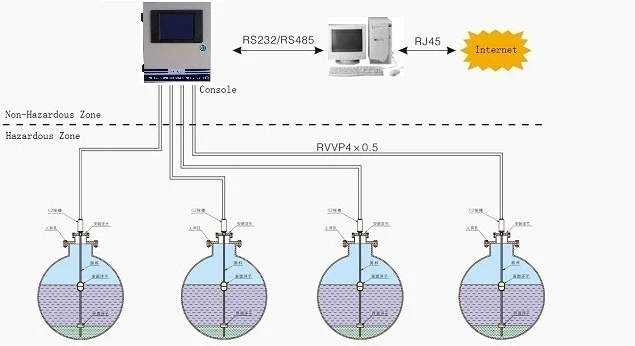

♦ It comes with two RS-232 serial interface communication ports to connect with different brand center console.

♦ It enjoys a record function, all information are stored in memory for future queries

♦ There is an embedded printer in it to print inventory reports, delivery reports, leak reports and shift reports.

♦ It can calculate volume of product by multipoint, which can fully ensure the accuracy of volume of the product.

♦ After connected with Center Console though internet, it can provide information in long-distance for manager to arrange the inventory.

♦ It can monitor the oil pump according to the product level, which can avoid the product spilled and pumpdown..

♦ It can connect with flow-meter to display delivery information constantly.

Magnetostrictive Probe

Purpose

To measure product level, water level and temperature

Titles of medium

Gasoline, diesel, kerosene, ethanol , water etc.

State of medium

Liquid

Explosion-proof grade

ExiaIIBT4 (Intrinsically safe)

Pressure range

-0.02Mpa~0.6Mpa

Certificate

PCEC Conformity Certificate of Explosion-proof

Temperature

-40℃~70℃

Product Level Accuracy

±0.3mm

Water Level Accuracy

±0.3mm

Temperature Accuracy

±0.2℃

Height Resolution

0.023mm

Repeatability

±0.1mm

Temperature Effect

Error<0.2mm

Vibration Effect

Error<0.5mm

Lowest Product Inactive Zone

2.5'' floater-180mm

Lowest Water Inactive Zone

2.5'' floater-25mm

Measured Variable

Product level, interface level and temperature of  5 sensors and average temperature

Measure Range

600~4000mm

Method of Communication

RS-485

Probe Material

1Cr18Ni9Ti

Power Supply

+24~26VDC

Protection Class of Probe Canister

IP67

Max Communication Distance

1200m
