Product Overview

Description


Emergency switch of rope pull type KP-850-1

Features

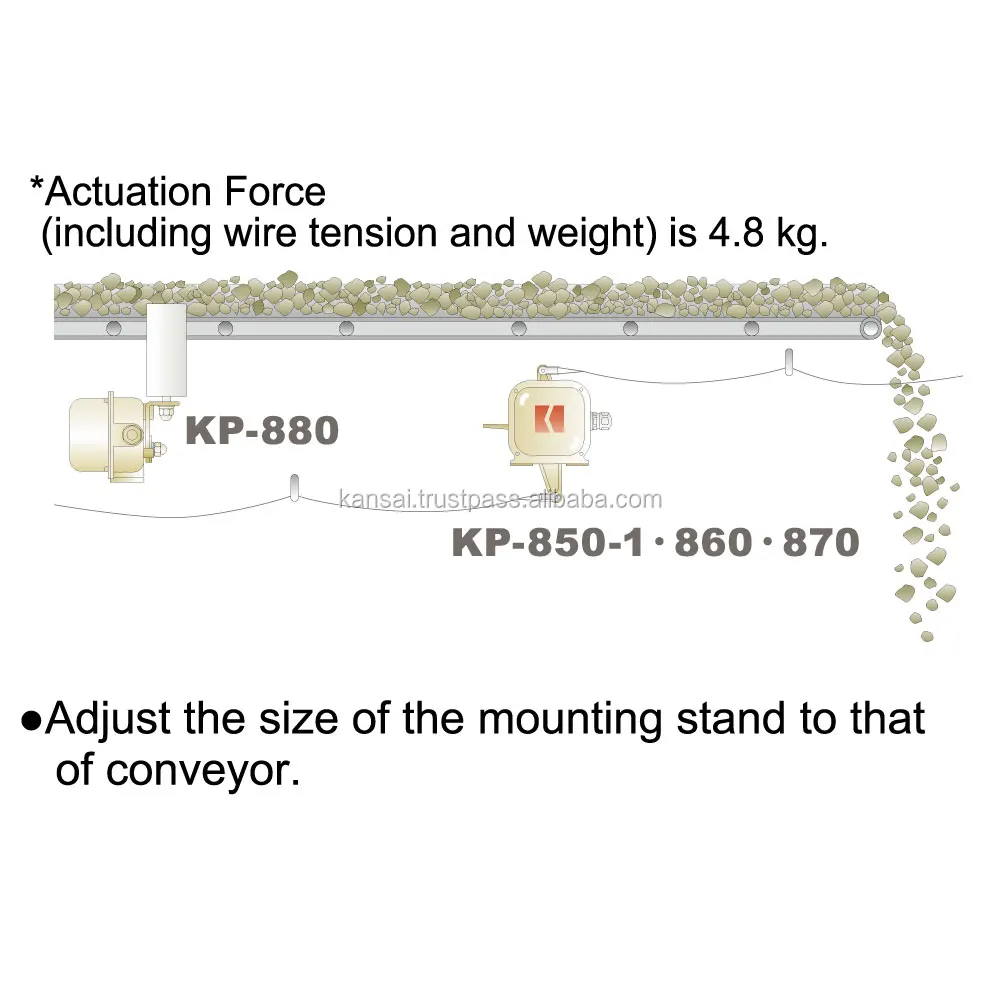

The secure operations ensure the safety of conveyor lines!

  • The simple structure makes the operation secure!
  • A two-way operation method is used.

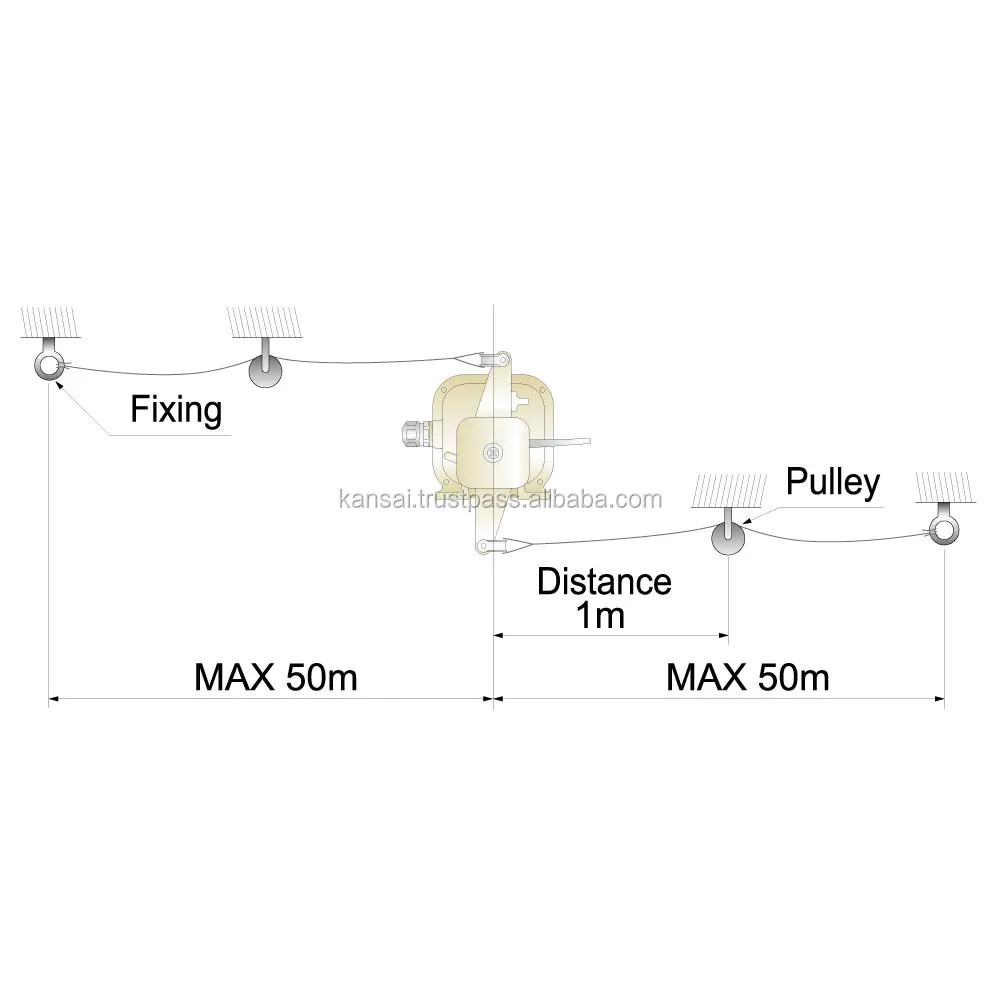

  • The maximum length of the pull-wire rope is 50 m.
  • The protection code is IP-67.
Operating Principles

In the case of emergency stop of a conveyor, the cam is surely operated by the ratchet mechanism and spring provided for the shaft to make the contact operate, when the wire is pulled from an arbitrary position. The contact operation is maintained until the recovery lever is operated.


Standard Specification
 Action Manual-reset
 Indication No
 Power Source No
 Output Contact SPDTx1
 Contact Capacity AC250V 15A
 Process Connection 2-φ10 Pich 110
 Enclosure Rating IP67

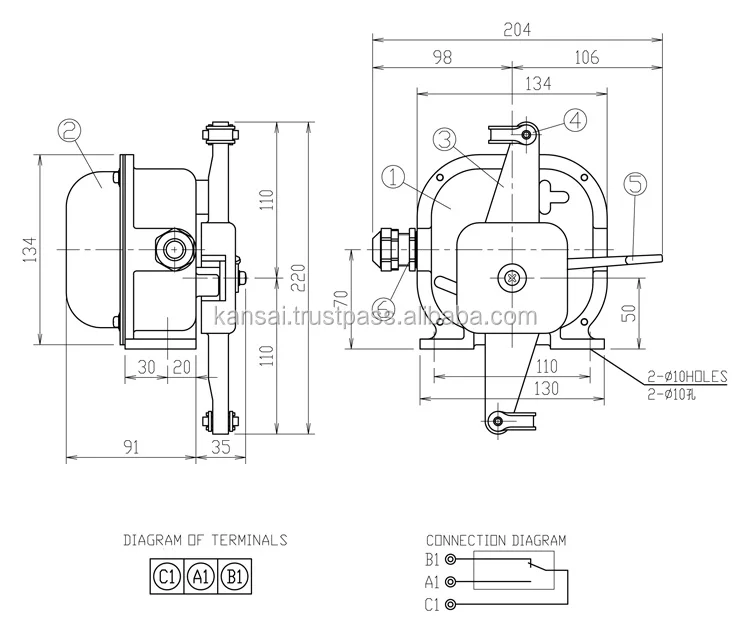

 Drawing

KP-850-1
